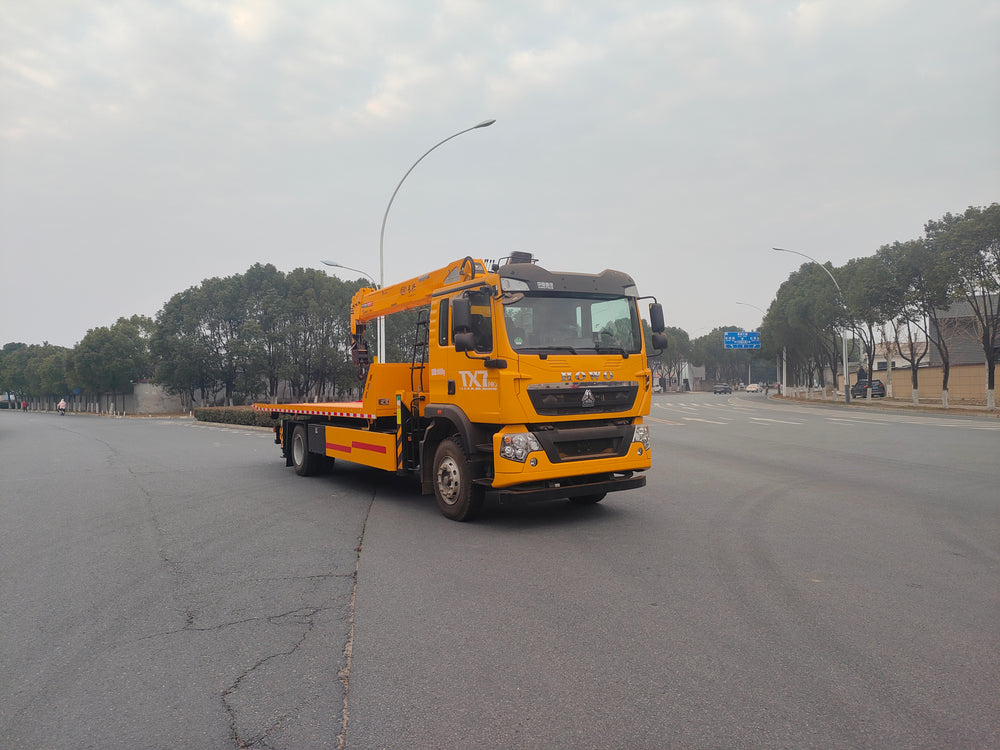

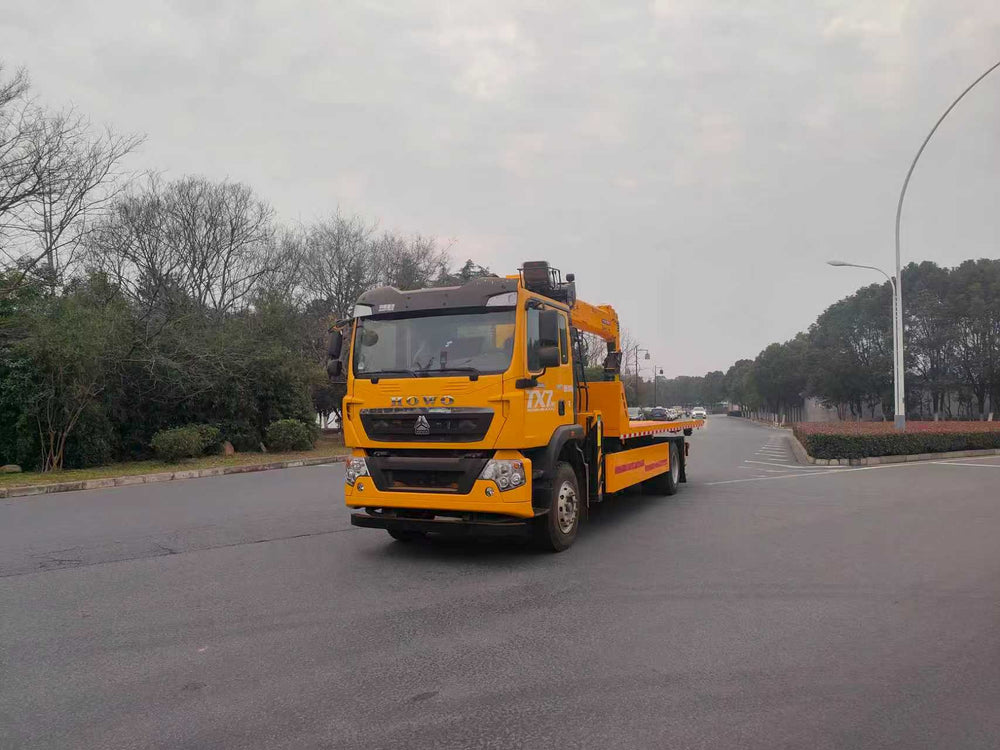

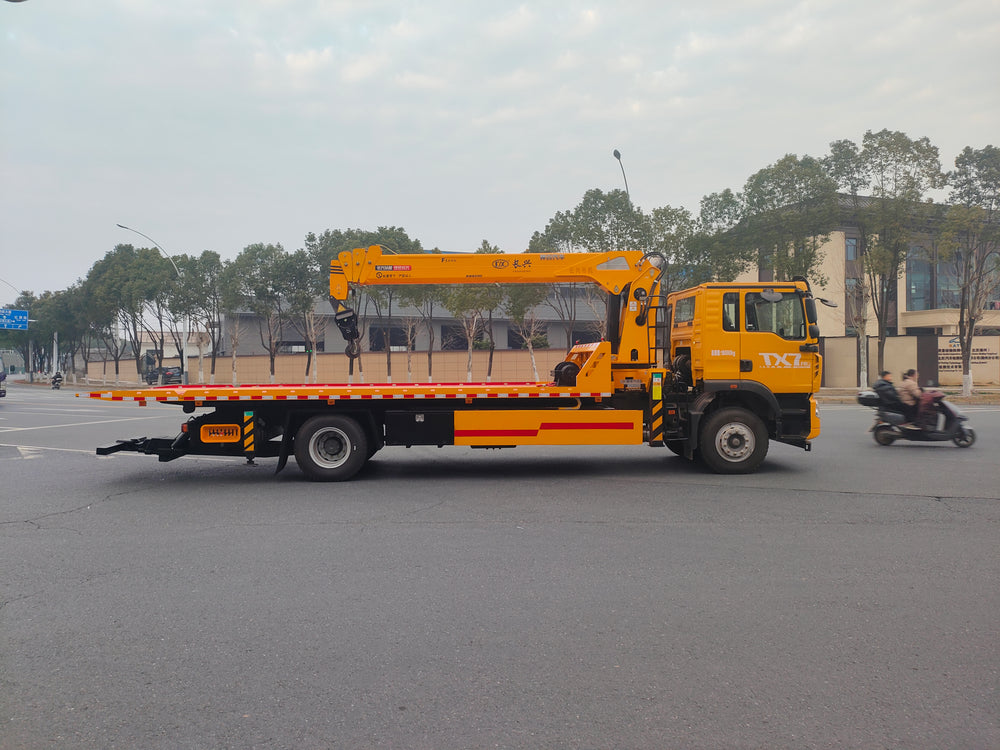

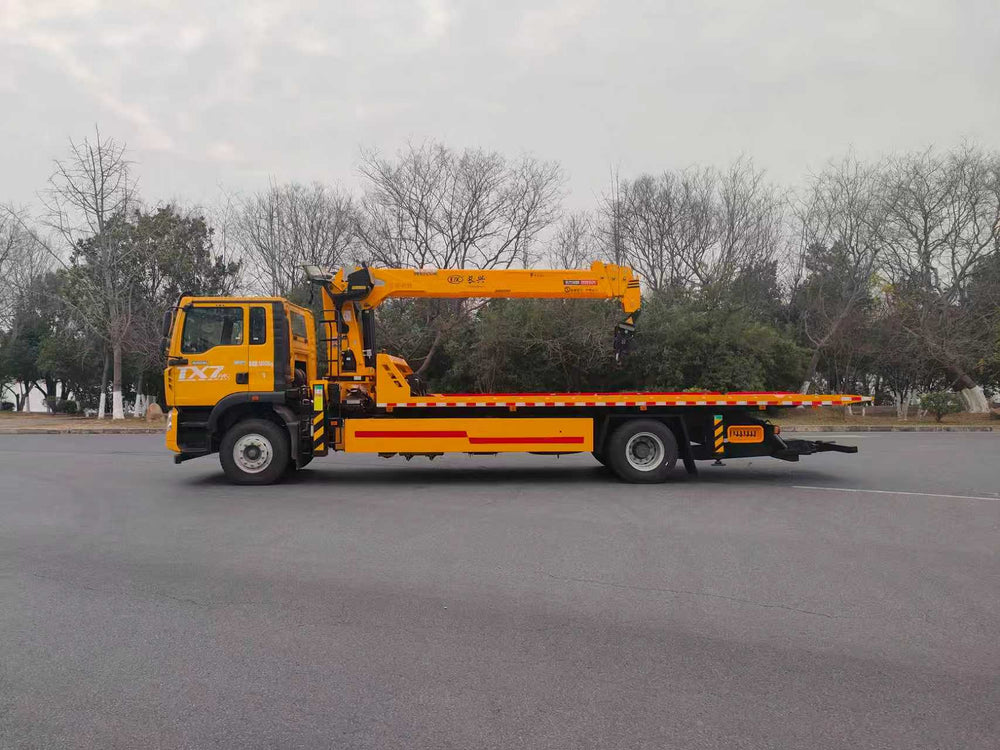

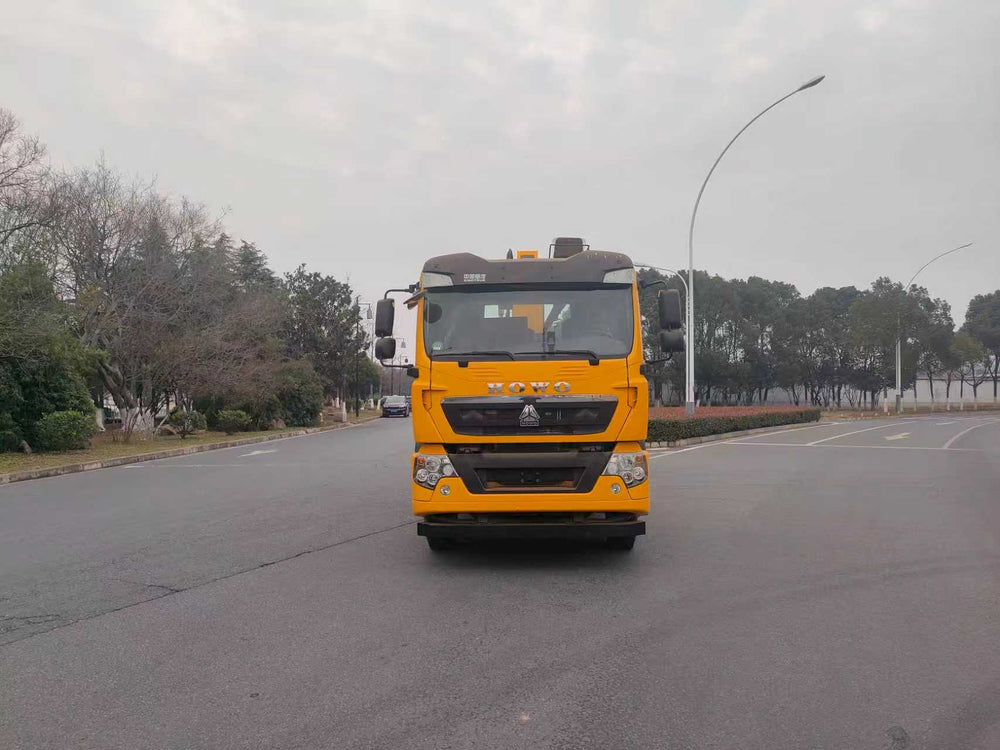

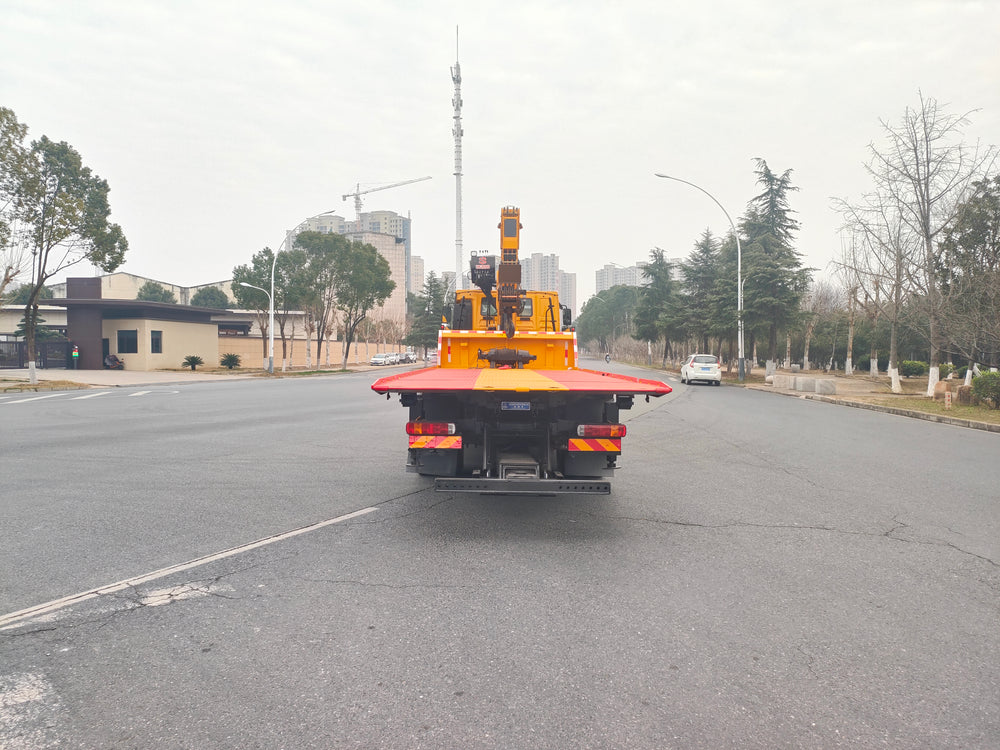

SINOTRUK Howo 7.6 meter single axle with 8-ton crane tow truck

1 / 6

SINOTRUK Howo single axle with 8-ton crane tow truck

1. Basic Vehicle Parameters
Chassis Brand	HAOWO
Driving type	Left-hand drive
Total vehicle weight	18000kg
Curb weight	14000kg
Overall vehicle dimensions	10430×2500×3550mm
Engine Model	WP4.6NQ240E62
Horsepower	240 horsepower
Gearbox	HW95508STC2
Wheelbase	5600 mm
Tire specifications	1000R20 steel-belted tire
Emission standards	Euro 2, Euro 3, Euro 4, Euro 5, Euro 6
Top speed	90km/h
Fuel tank capacity	200 liters
Standard configuration	Extended cab with sleeper berth, four-point suspension, factory-installed air conditioning, power windows and doors, central locking, ABS, and air brakes.
2. Basic parameters of the upper part
Flat panel size	7600×2500mm(1 m tail-end tipping plate)
Flat plate bearing	10000kg
Rear trailing arm	10-ton three-section telescopic
Hydraulic winch	10-ton centrally mounted winch
Crane Brands	Changxing
Crane Specifications	8-ton four-section folding boom crane
Maximum working radius	12m
Maximum lifting height	14m
Standard tools	Toolbox, handwashing box, 2 auxiliary trolleys, 1 pair of L-shaped tire holders, 4 binding straps, 1 pair of forks, 1 chain hook
Applicable Scenarios	One-to-two roadside assistance, transport of light accident vehicles
