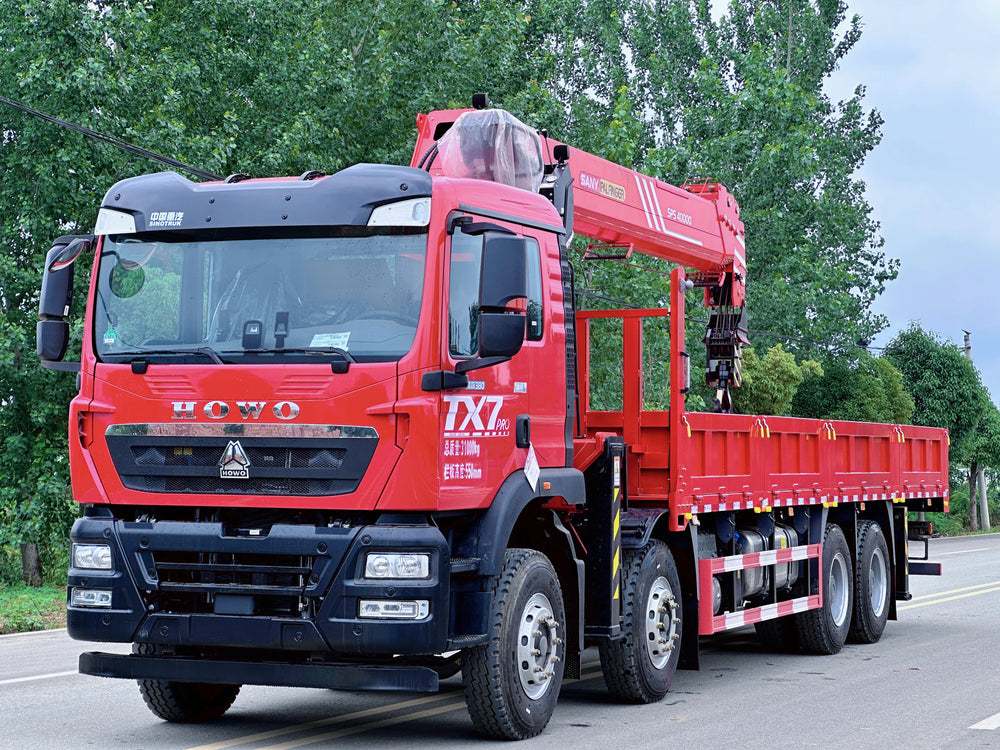

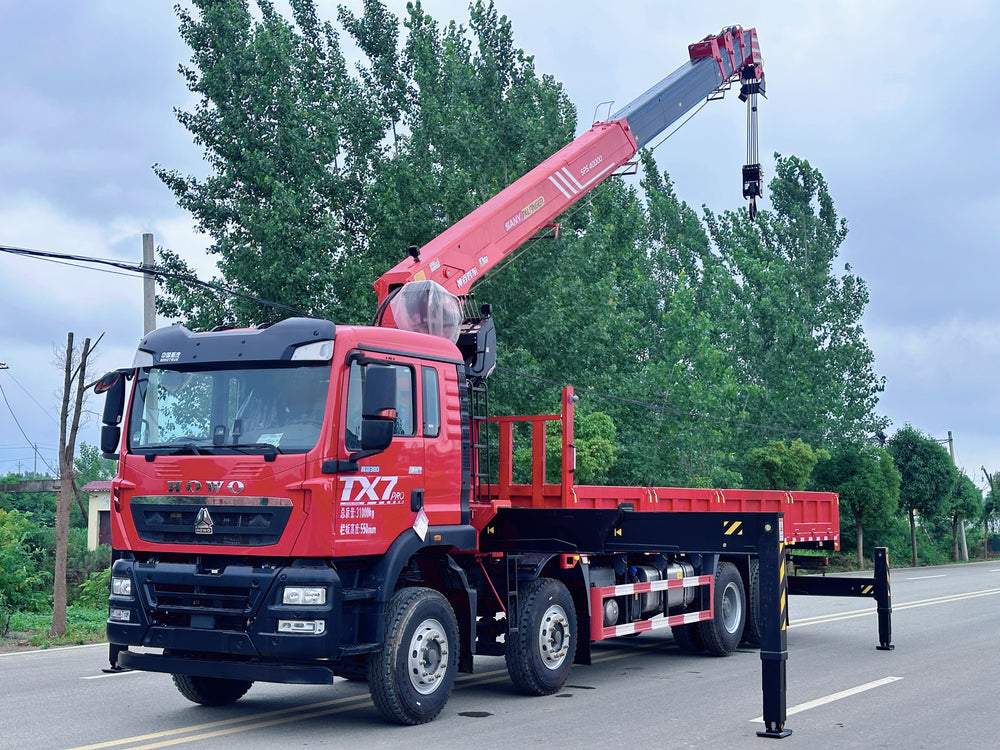

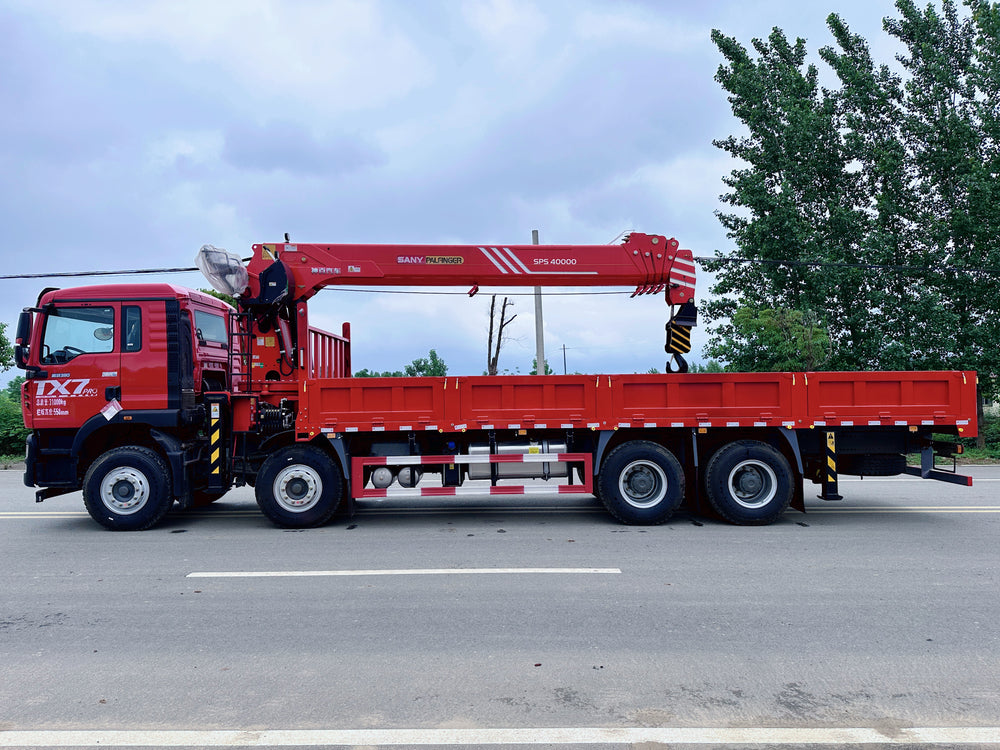

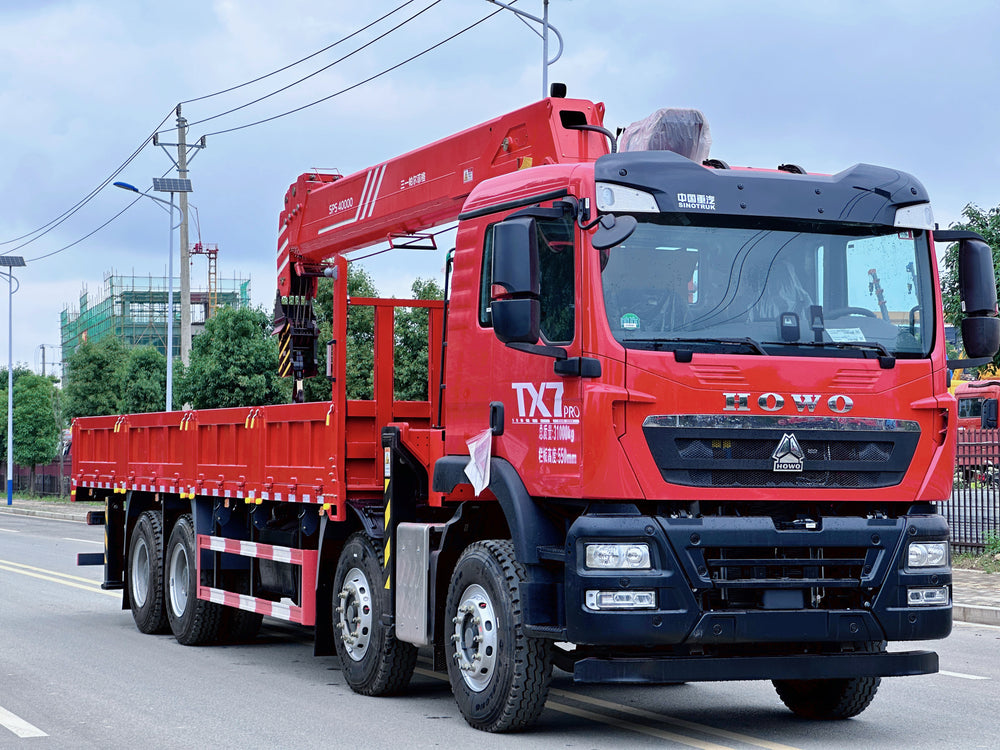

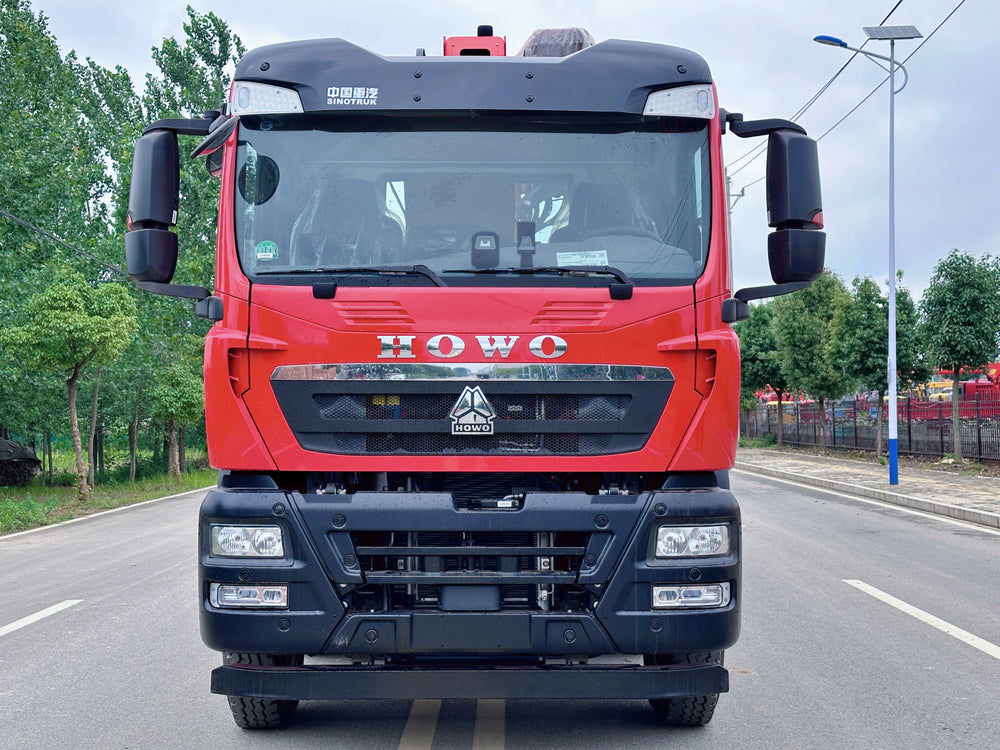

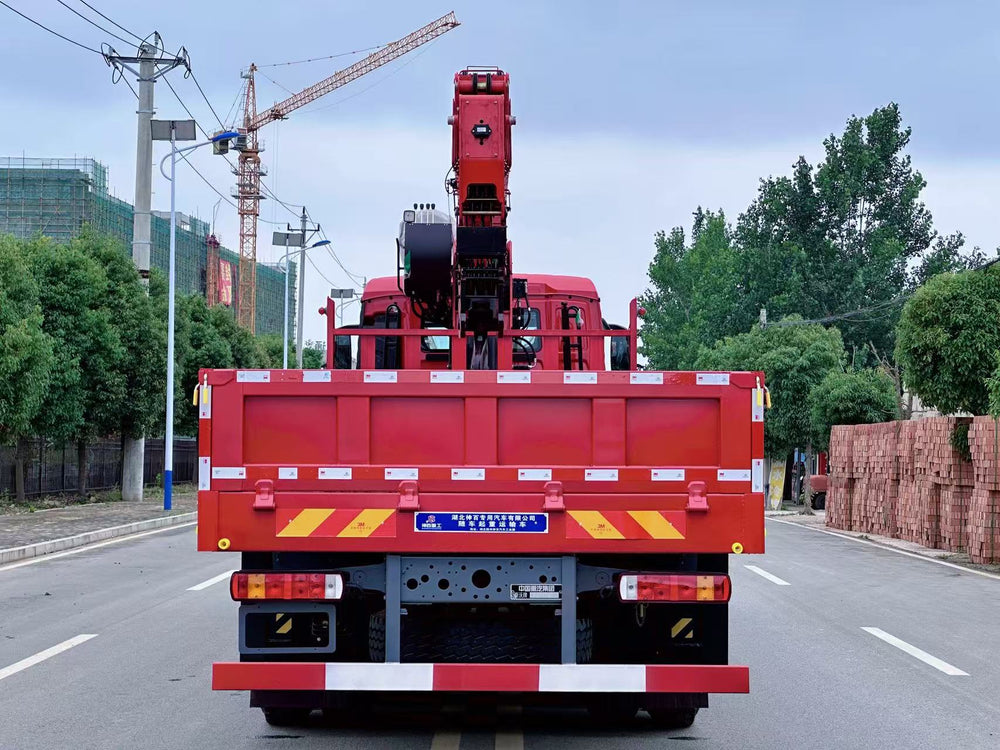

Sinotruk Howo Sany 16-ton 5-section boom truck crane
Sinotruk Howo Sany 16-ton 5-section boom truck crane
I. Basic Vehicle Parameters |
|
Gross Vehicle Weight |
31000kg |
Rated Load Capacity |
14000kg |
Curb Weight |
16800kg |
Emission Standard |
China VI |
Rated Passenger Capacity |
3 Persons |
Maximum Speed |
90km/h |
Wheelbase |
1800+4600+1350mm |
Overall Vehicle Dimensions |
12000×2550×3950mm |
Approach Angle/Departure Angle |
19°/12° |
Minimum Turning Diameter |
24m |
II. Chassis Core Parameters |
|
Engine Model |
Weichai WP8.380E61 |
Engine Rated Horsepower |
380HP |
Engine Displacement |
7.8L |
Engine Maximum Torque |
1500N·m |
Transmission Model |
Sinotruk HW19710C |
Transmission Type |
Manual 10-speed, with synchronizer, high/low gear |
Front Axle Model |
Sinotruk 7.5-ton dual front axles |
Rear Axle Model |
Sinotruk 16-ton dual reduction rear axles (tandem axles) |
Differential Lock Configuration |
Front axle + middle axle + rear axle, 3 differential locks |
Frame Structure |
Full three-layer high-strength steel frame, locally reinforced, frame thickness 8+5+8mm |
Suspension System |
Front few-leaf spring, rear multi-leaf spring, with lateral stabilizer bar |
Tire Specification |
12.00R20 18PR all-steel radial tire |
Fuel Tank Capacity |
400L aluminum alloy fuel tank |
Braking System |
Dual-circuit air brake, ABS anti-lock braking system, ASR drive anti-slip, exhaust brake, retarder |
Steering System |
Hydraulic power steering, with steering damper |
Clutch |
Φ430mm pull-type diaphragm spring clutch |
III. Upper Mounted Crane Core Parameters |
|
Crane Brand |
Sany Heavy Industry |
Crane Model |
SPS16000-5 |
Rated Maximum Lifting Capacity |
16 Tons |
Boom Structure |
5-section telescopic boom, high-strength HG785 steel material |
Maximum Boom Extension Length |
21.6m |
Maximum Lifting Height |
23.6m |
Slewing Mechanism |
360-degree full slewing, dual slewing reducers, planetary gear structure |
Slewing Speed |
0-2.2r/min |
Hydraulic System |
Load-sensitive hydraulic system, dual pump confluence, pressure compensation |
Hydraulic Pump Model |
High-pressure piston pump, displacement 100ml/r |
Hydraulic Oil Tank Capacity |
140L |
Hydraulic System Rated Pressure |
31.5MPa |

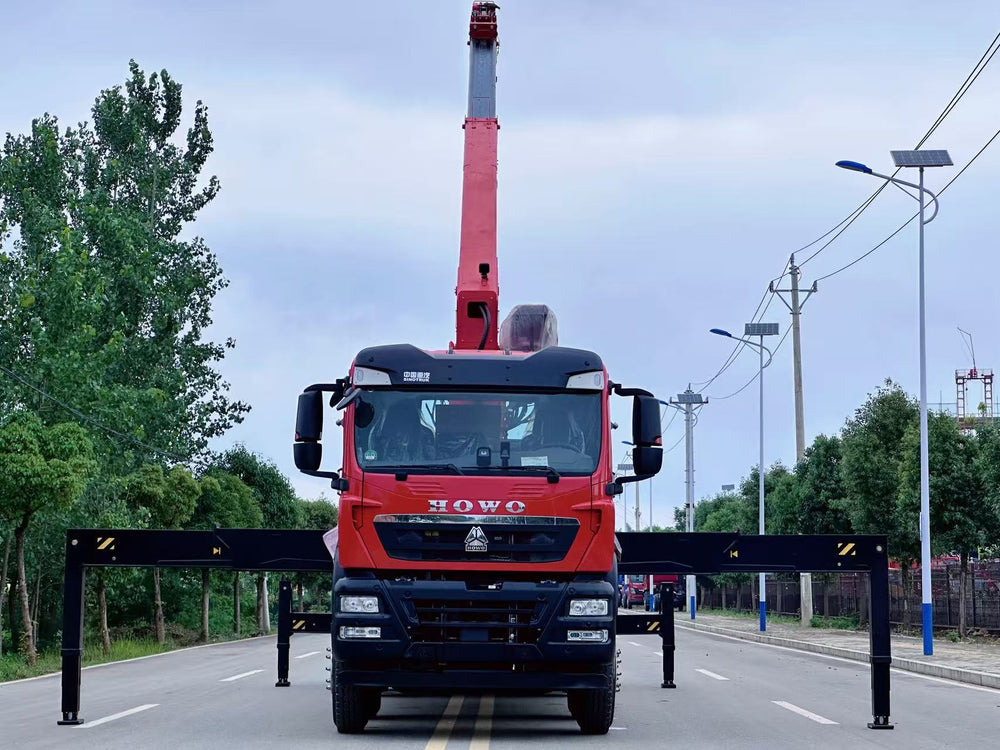

Outrigger Structure |
H-type double-chamber outriggers, front and rear bidirectional telescopic, vertical outriggers with floating function |
Outrigger Span |
Horizontal 7.2m, Longitudinal 6.8m |
Operation Mode |
Upper operation + lower operation dual operation mode, standard wireless remote control |
Safety Protection Devices |
Load moment limiter, over-wind protection, over-lower protection, outrigger locking device, anti-tipping protection, hydraulic overload protection |
Cooling System |
Hydraulic oil radiator, air-cooled type |
IV. Cargo Box and Other Configurations |
|
Cargo Box Internal Dimensions |
8200×2450×600mm |
Cargo Box Structure |
Full-folded steel engineering cargo box, side 3mm thick, bottom 5mm thick, high-strength steel plate |
Gantry Configuration |
Heightened and reinforced gantry, with anti-slip ladder, reinforced crane mounting base |
Standard Configuration |
Central lock, electric doors and windows, original factory air conditioning, multi-function steering wheel, cruise control, driving recorder, reversing image, airbag seat, aluminum alloy air reservoir |
Optional Configuration |
Air conditioning radiator, hydraulic oil radiator, tool box, anti-slip plate, rear tow arm, on-board tools, auxiliary fuel tank, water shower, ladder, guardrail |
