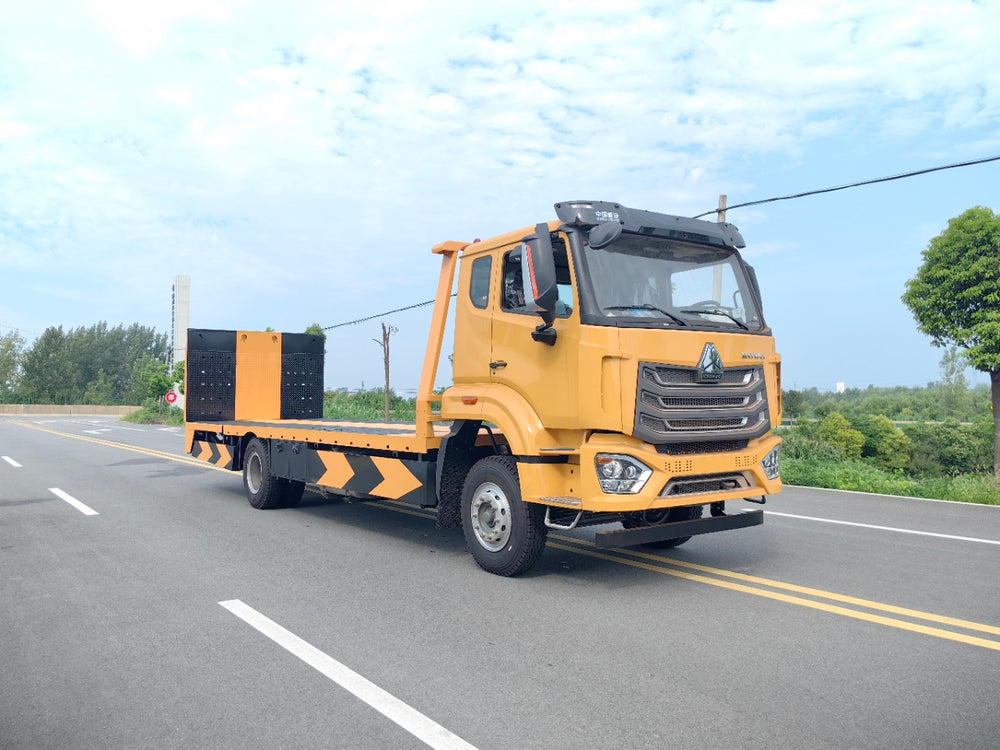

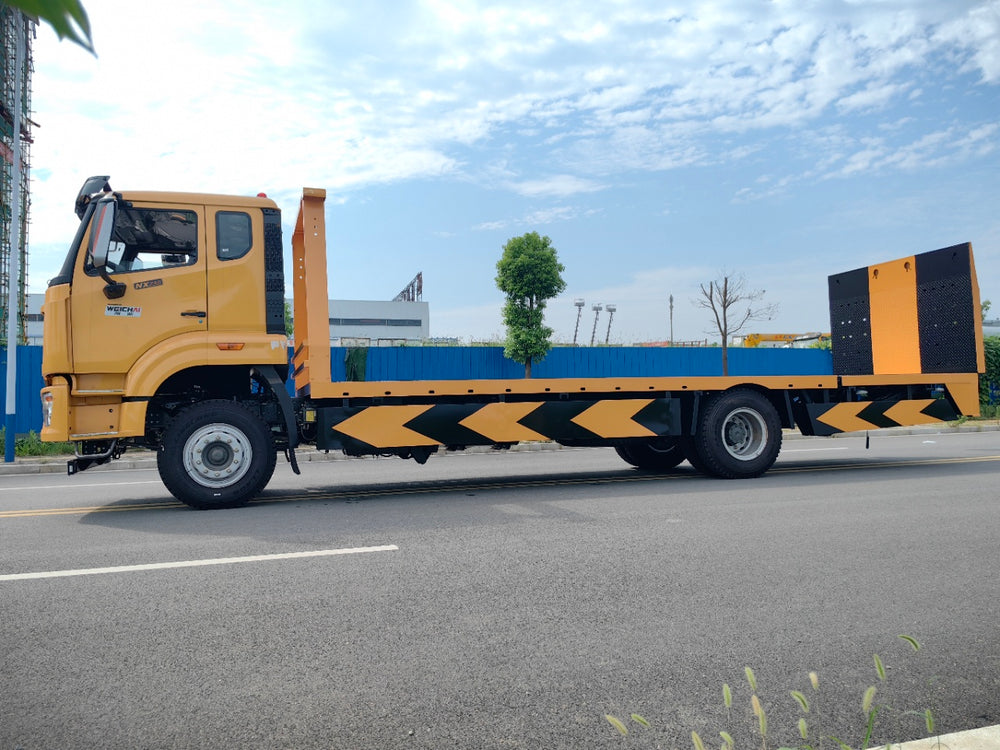

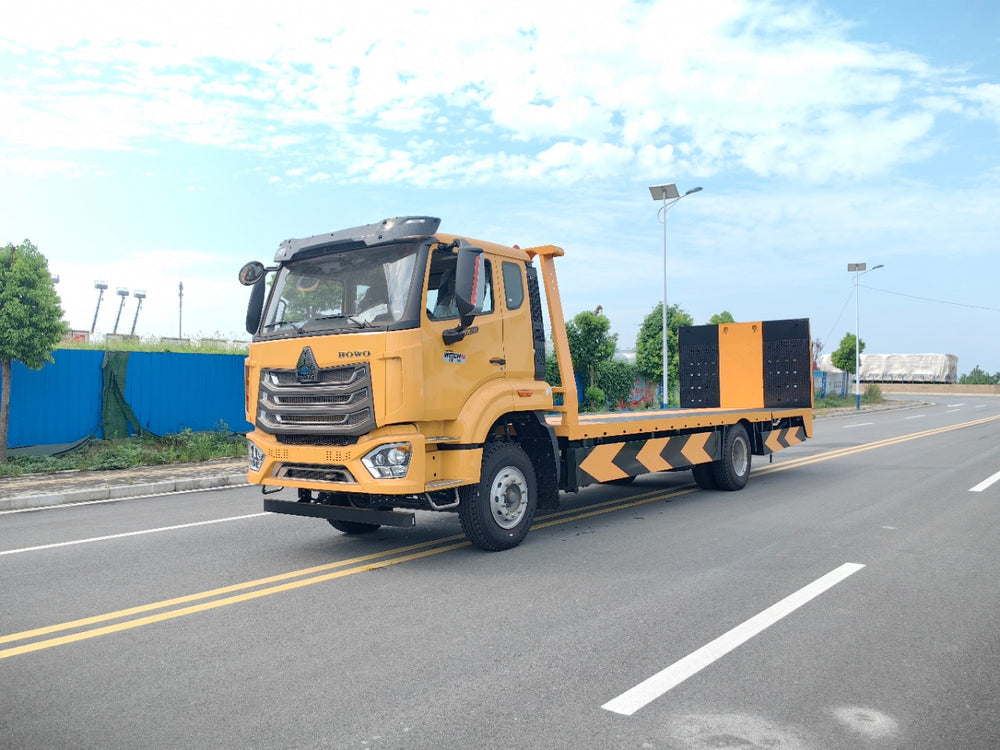

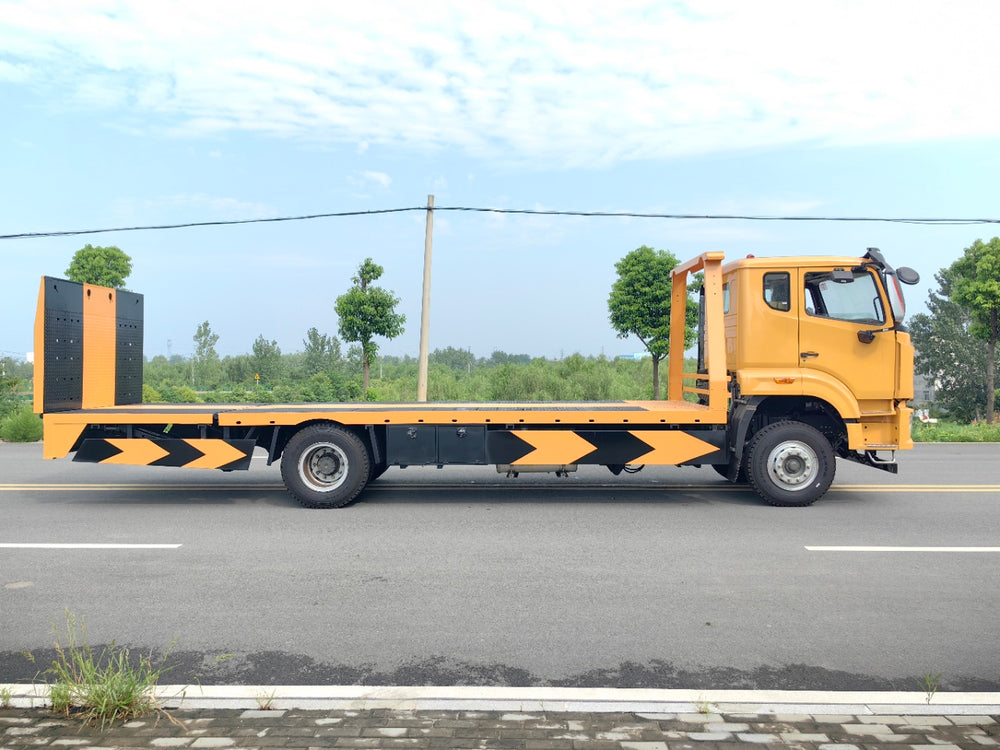

Sinotruk Howo NX flatbed tow truck

1. Basic Vehicle Parameters

Total vehicle weight

18000kg

Curb weight

9970 kg

Overall vehicle dimensions

9800×2550×3200 mm

Engine Model

WP4.6NQ240E61

Horsepower

240 horsepower

Gearbox

Howo 8-speed

Wheelbase

5600 mm

Tire specifications

1000R20 steel-belted tire

Emission standards

Euro 2, Euro 3, Euro 4, Euro 5, Euro 6

Top speed

100 km/h

Fuel tank capacity

300 liters

Standard configuration

Remote key, power windows and doors, factory automatic air conditioning, automatic headlights, cruise control, air horn, airbag seat

2. Basic parameters of the upper part

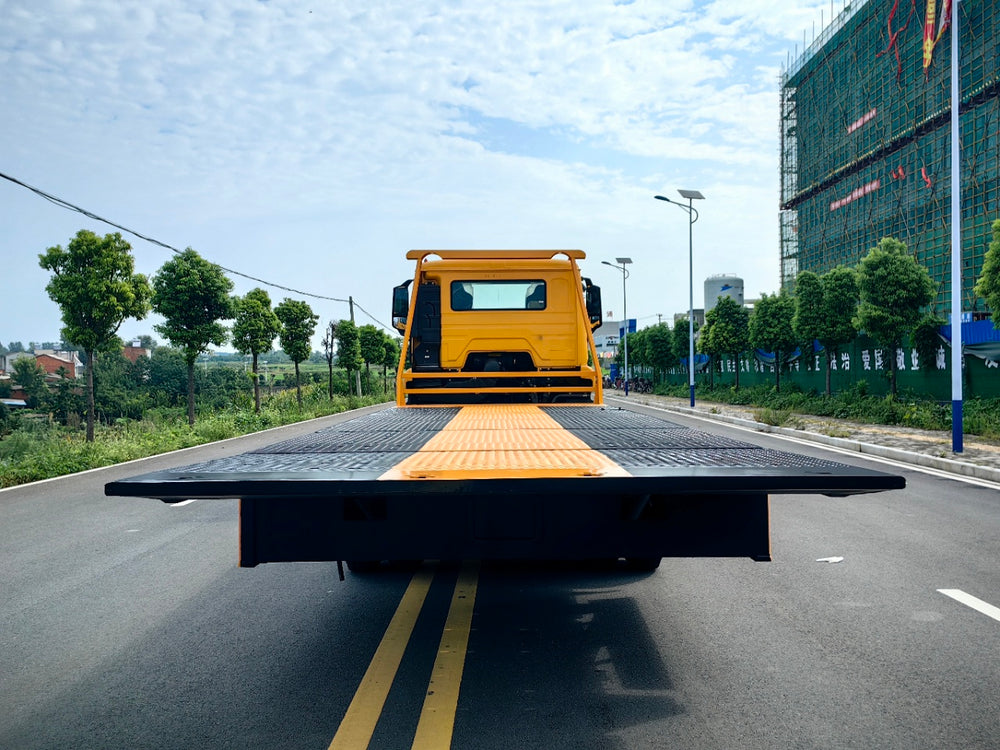

Flat panel size

9630×2550mm

Flat plate bearing

Main plate: 6.0 m long, maximum load capacity 20 tons

Sub-plate: 2.0 m long, maximum load capacity 4 tons

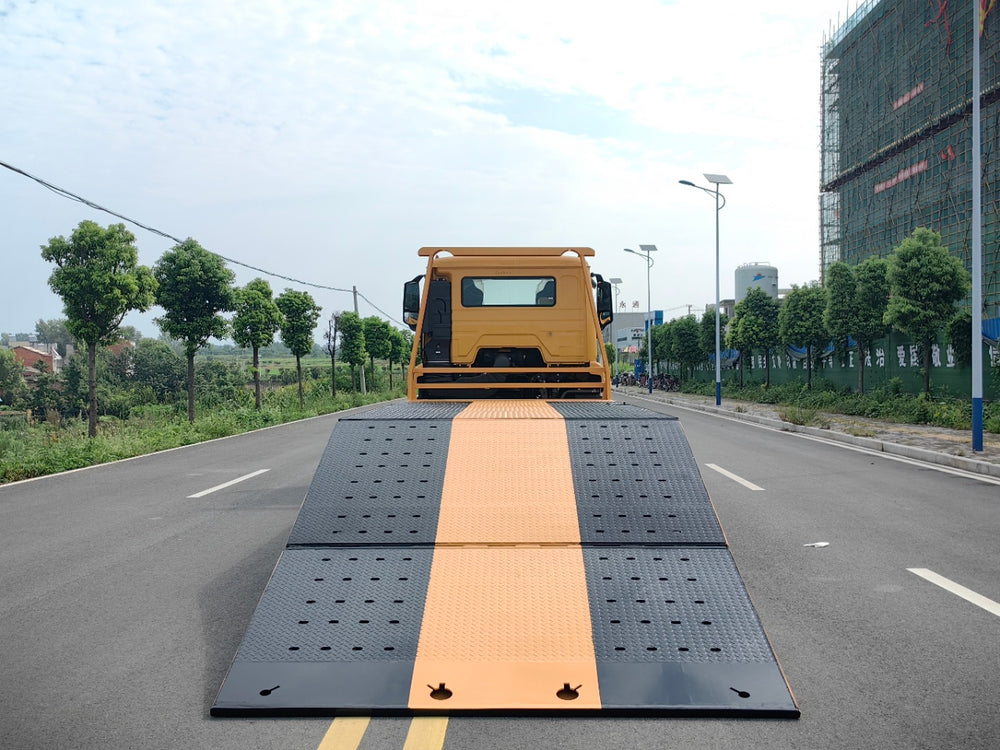

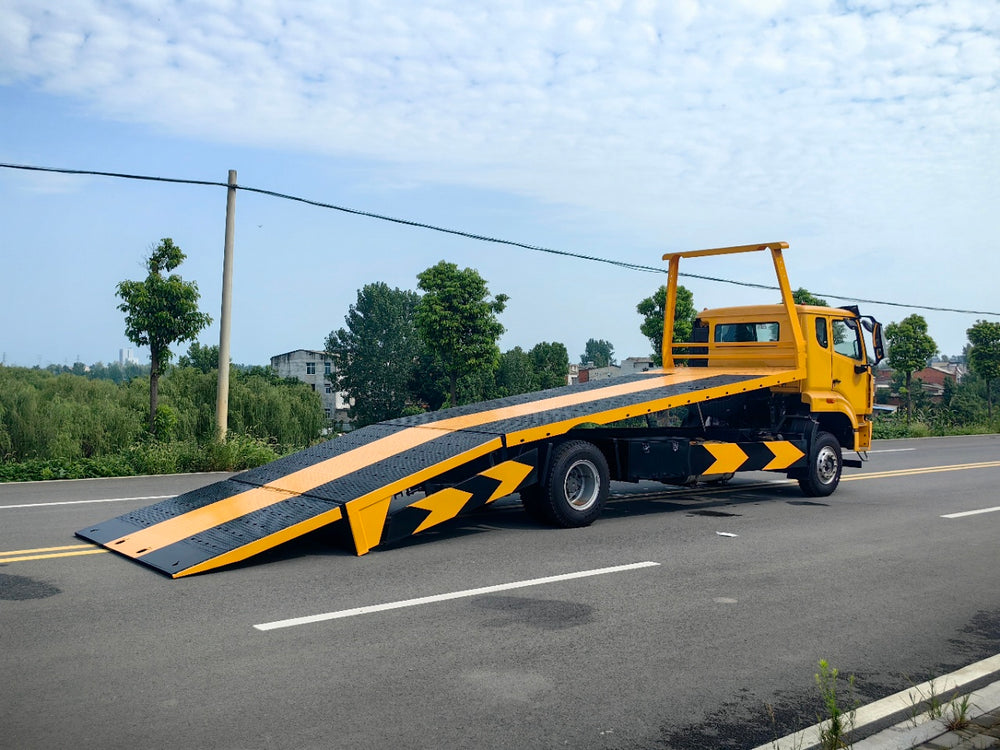

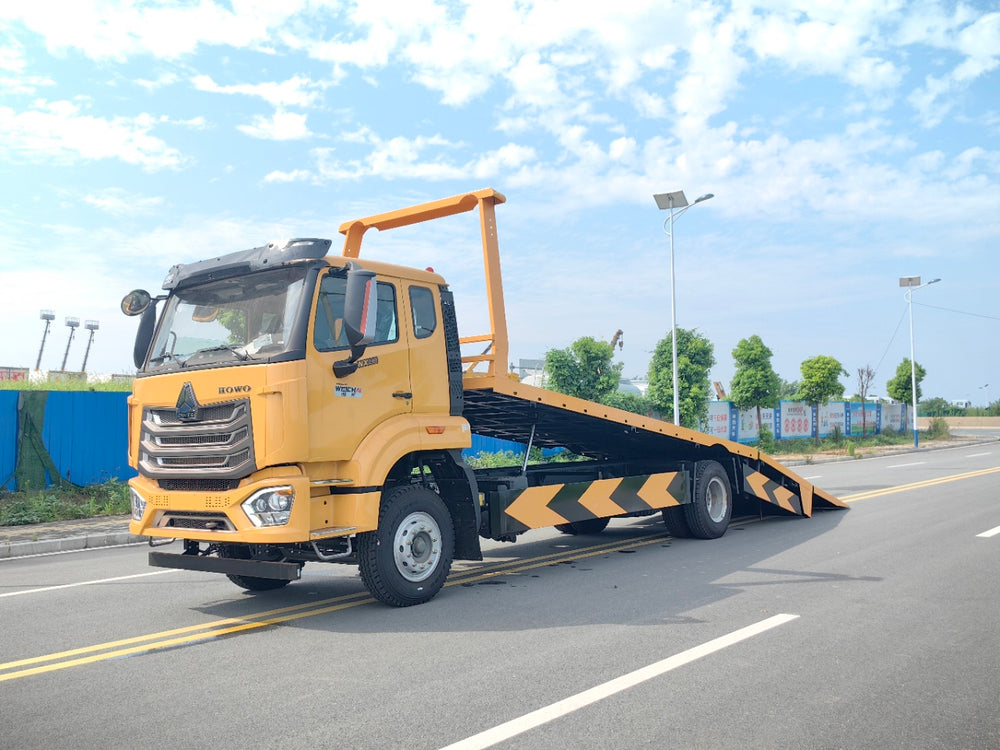

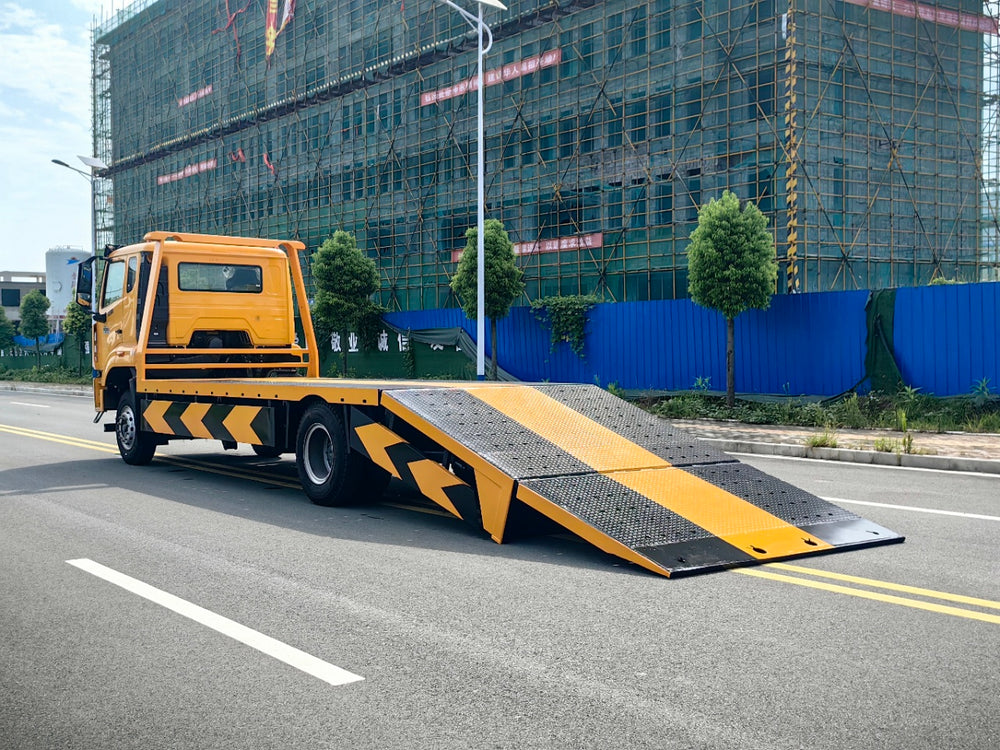

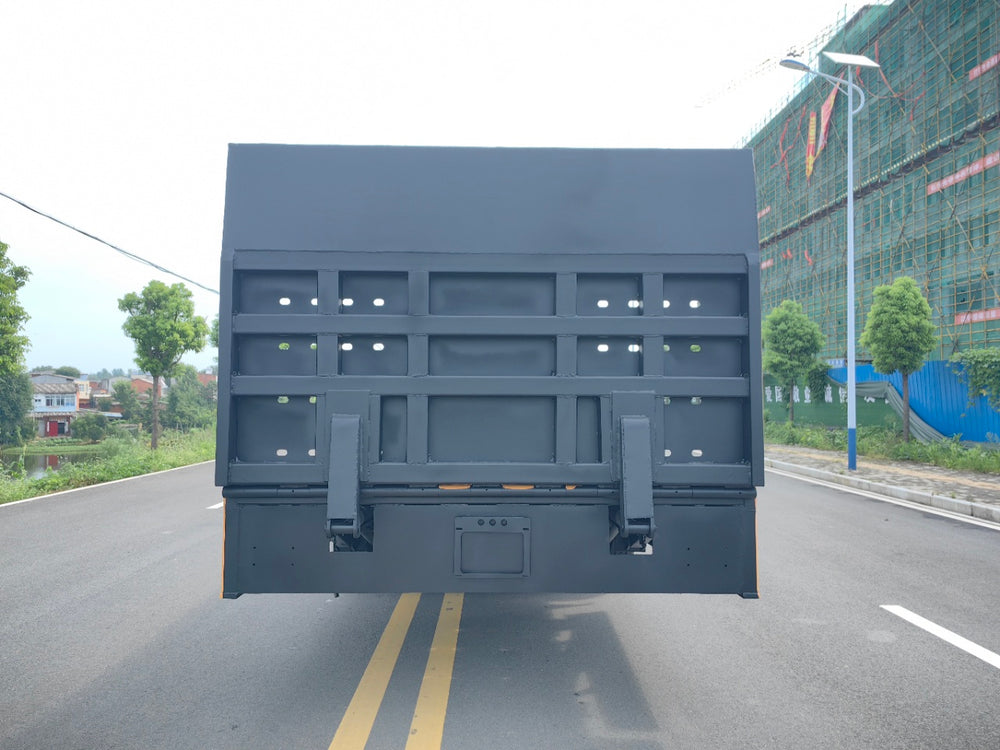

Tail plate: Hydraulic through-shaft tilting, 1.63 m long, maximum load capacity 1.5 tons, lowering angle approximately 70°

Base plate material

6mm high-strength wear-resistant patterned plate, with perforated sides for slip resistance.

Applicable Scenarios

Excavator trailer, construction machinery transport, urban road clearing
