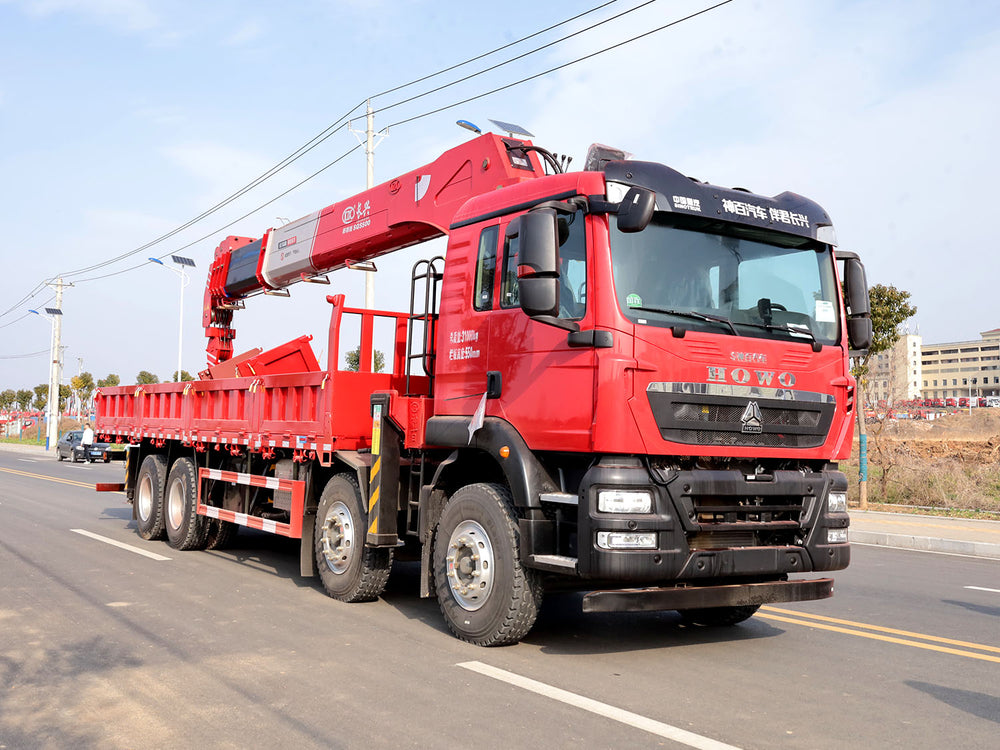

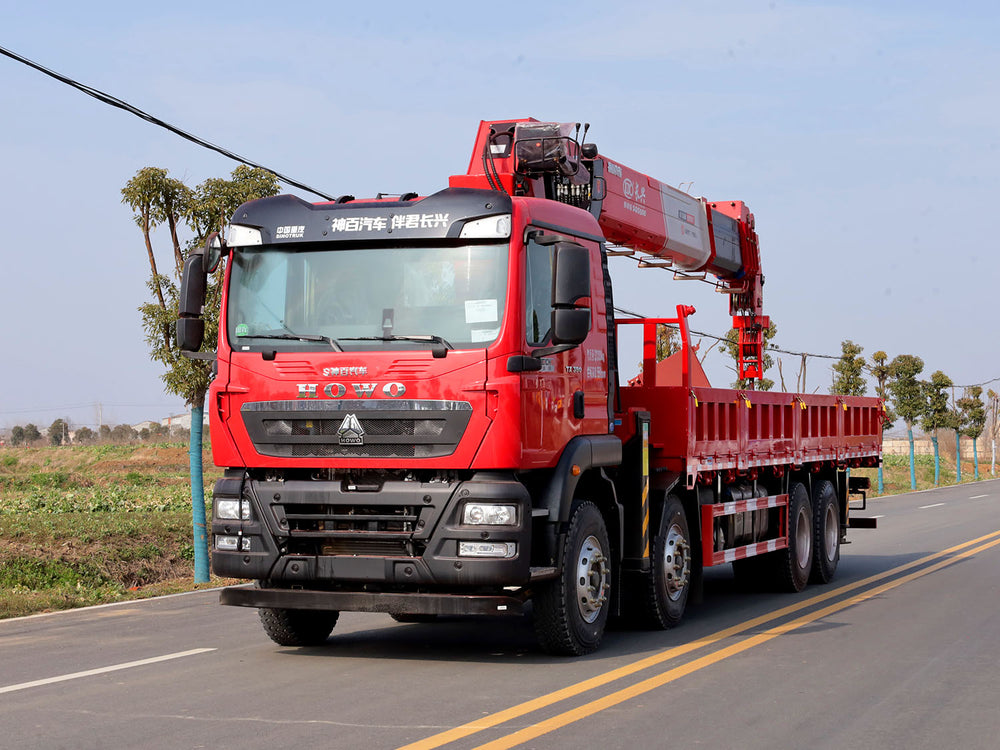

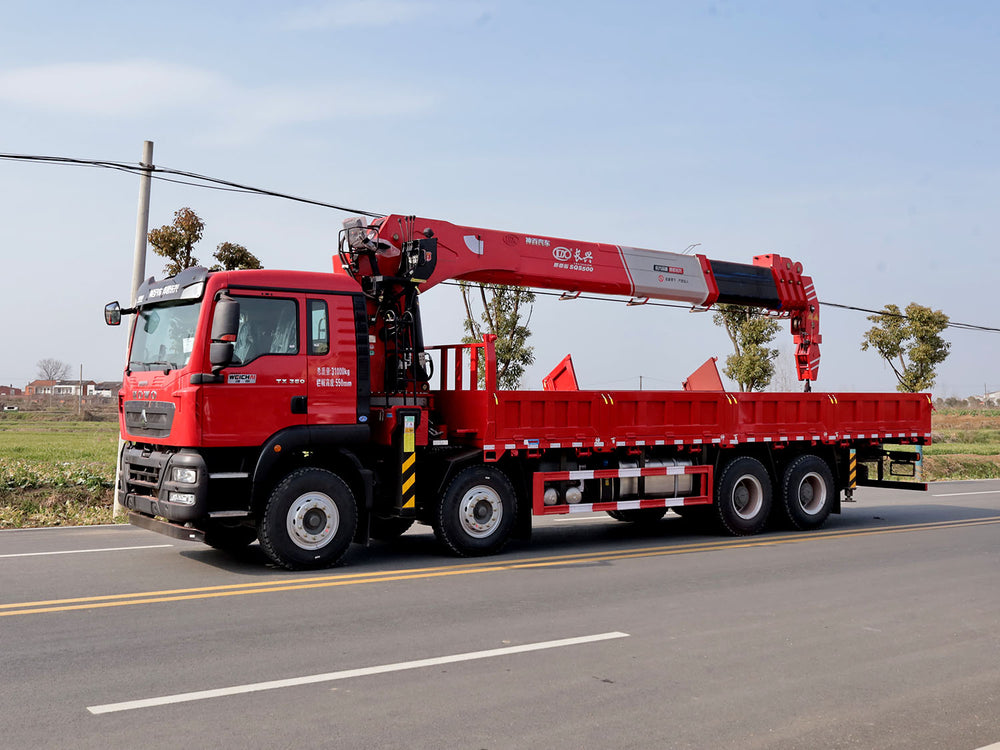

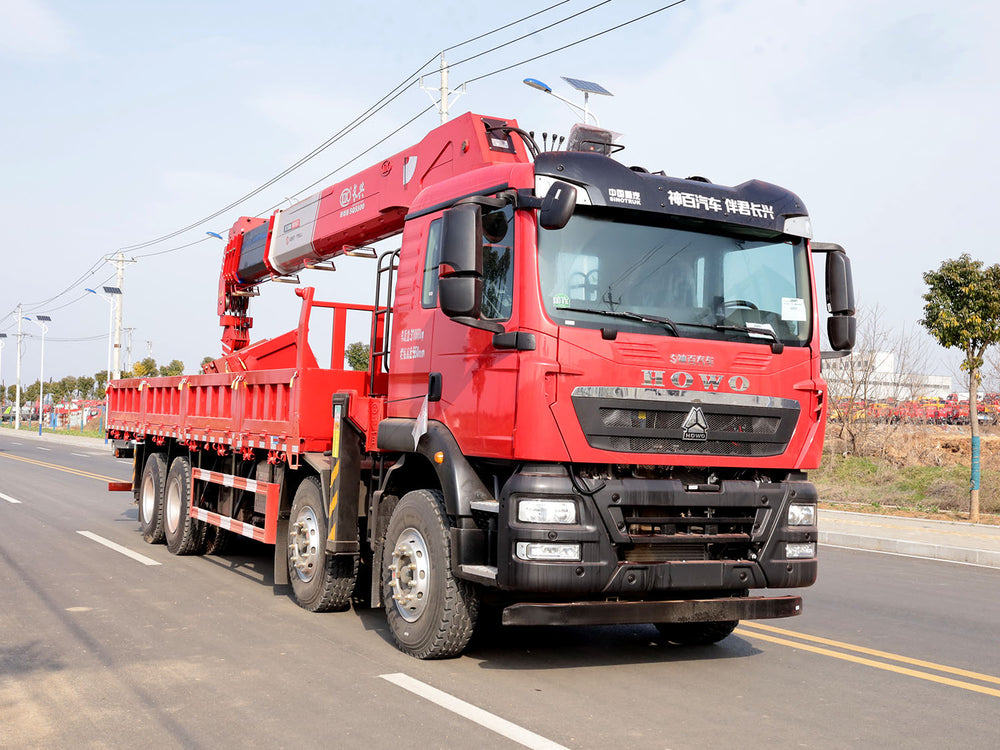

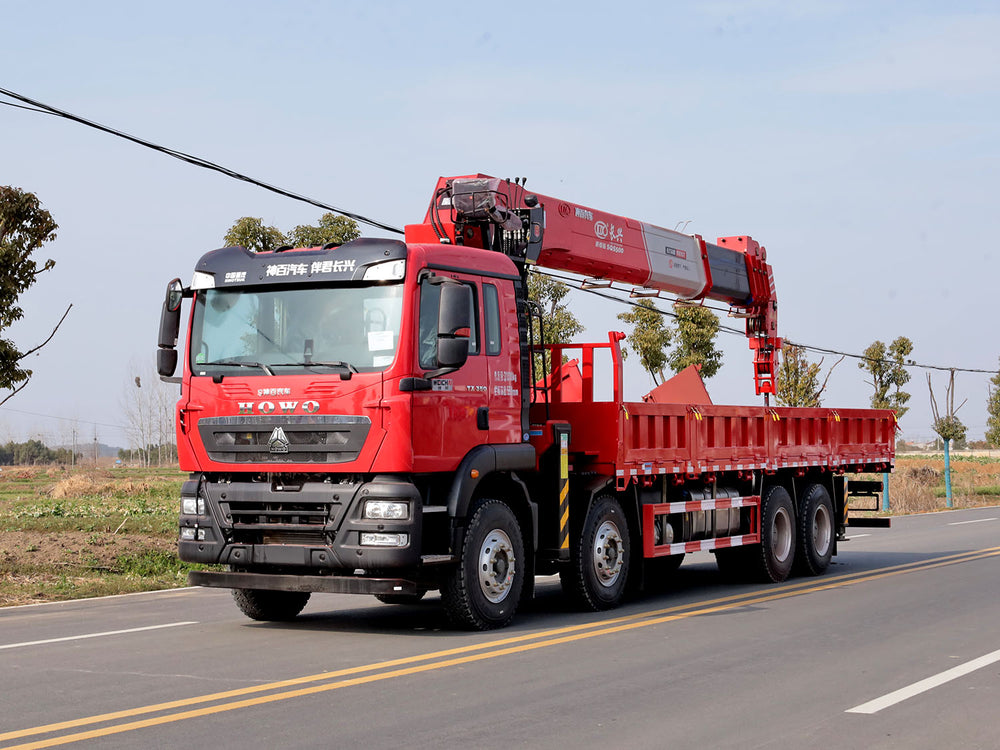

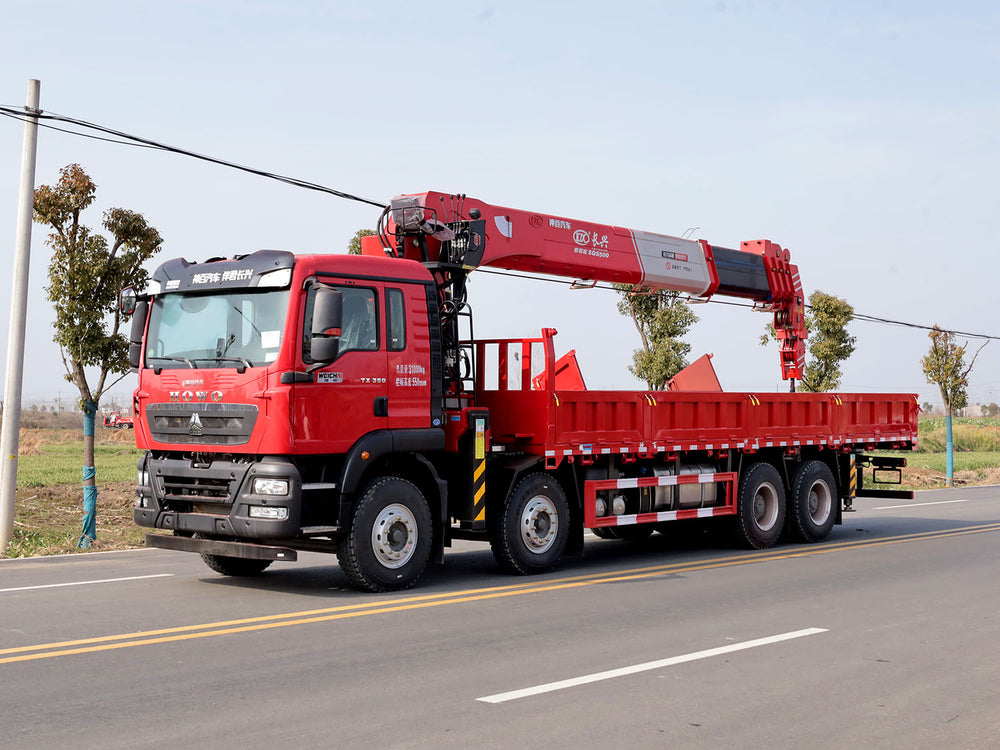

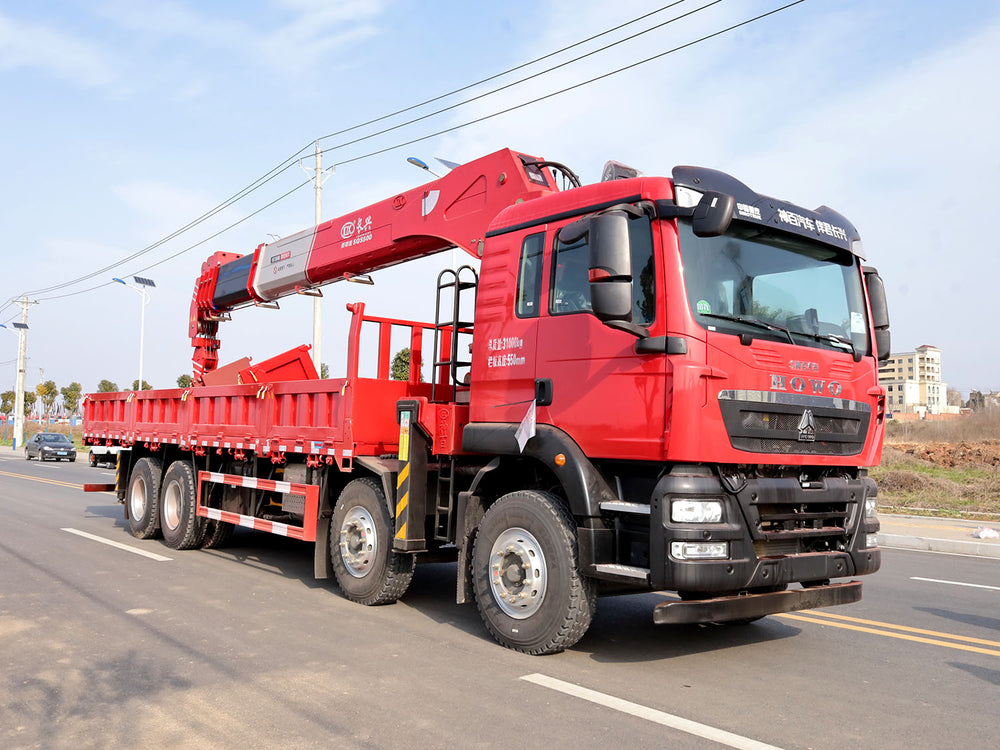

Sinotruk Howo 8x4 Changxing 20-ton Straight Boom Truck Crane

1 / 8

Sinotruk Howo 8x4 Changxing 20-ton Straight Boom Truck Crane

Overall vehicle size and performance
Total vehicle weight	31000kg
curb weight	21000kg
Rated effective load	10000kg
Overall vehicle dimensions	12000×2550×3850mm
Cargo box dimensions	8500×2450×550mm
Chassis parameters
Chassis Brand	Howo 8X4
Driving type	left-hand drive
engine	WP8.350E61
horsepower	350 Horsepower
Speed gearbox	HW25712XSTL
wheelbase	1800+4300+1350 mm
axis	7.5 Ton/16Ton
Emission standards	Euro 6
Tire type and size	12.00R20 18PR
fuel tank	400 Liters
Top speed	89km/h

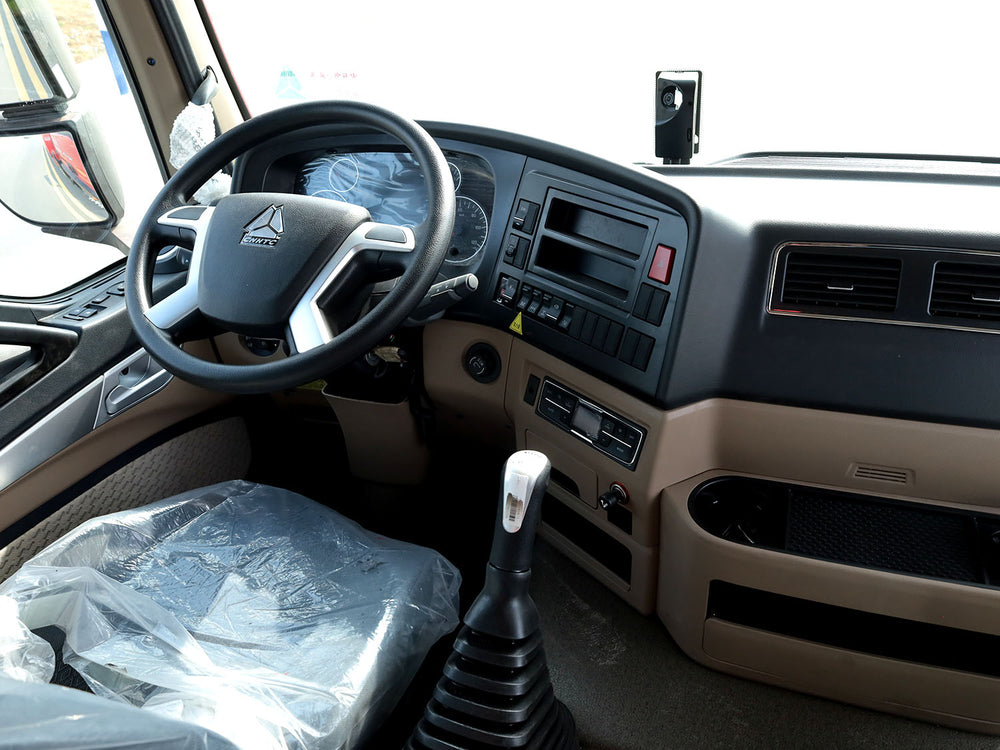

other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing SQS500‑5
Maximum lifting capacity	20 Tons
Maximum working radius	22.1m
Maximum lifting height	23.5m
boom type	5-section Straight Boom
Rotation angle	360° rotation
Crane weight	4800kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
