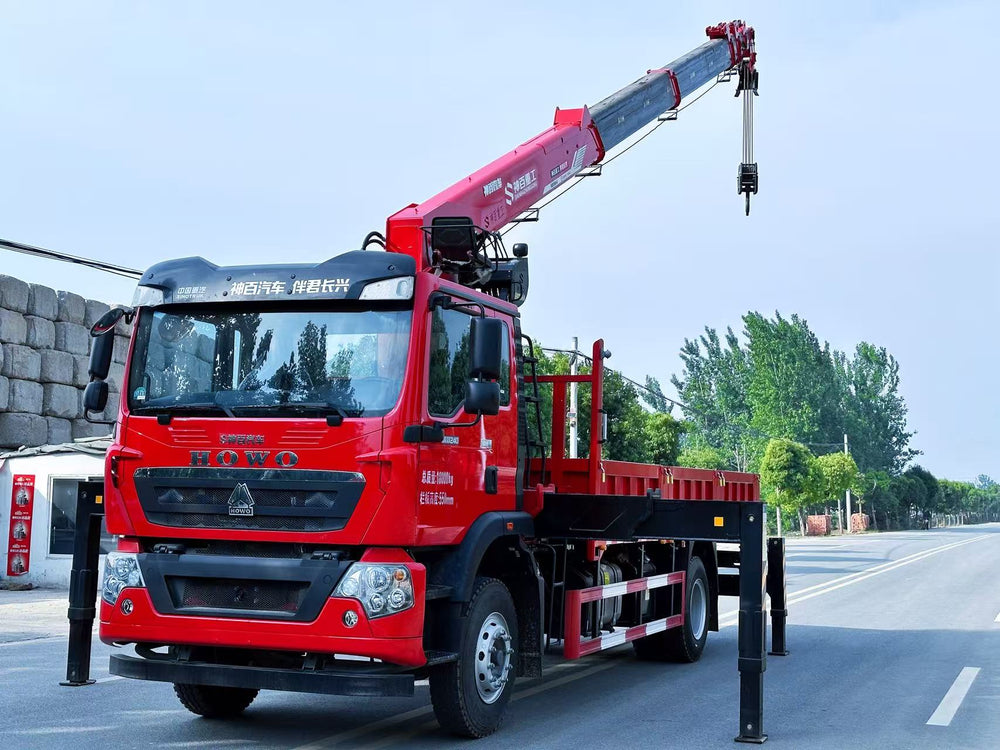

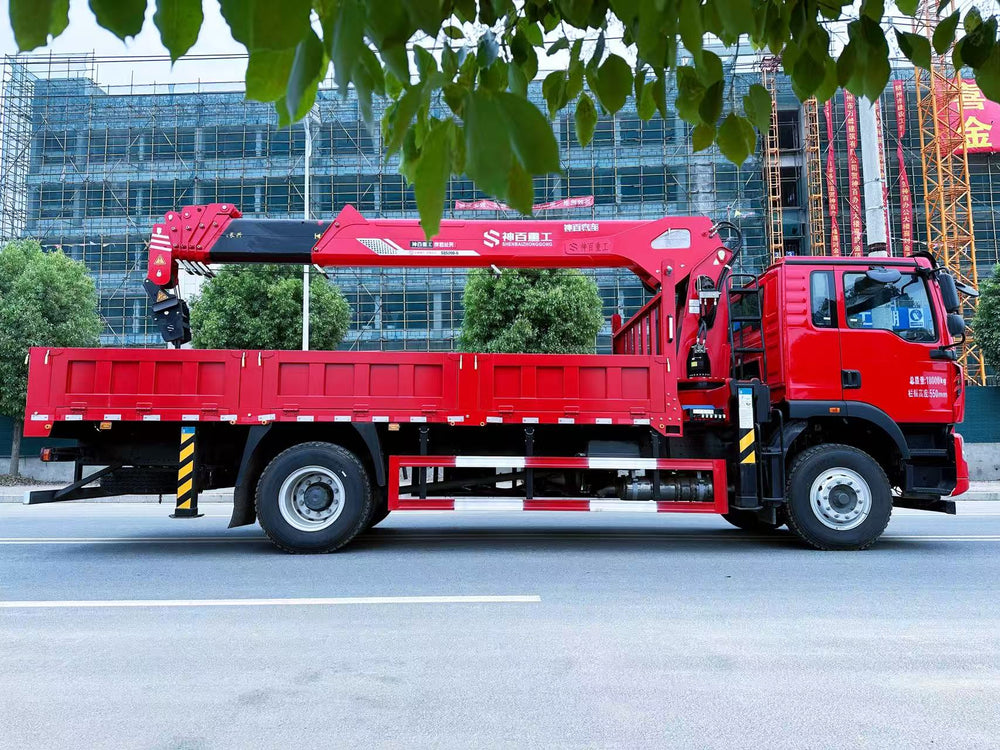

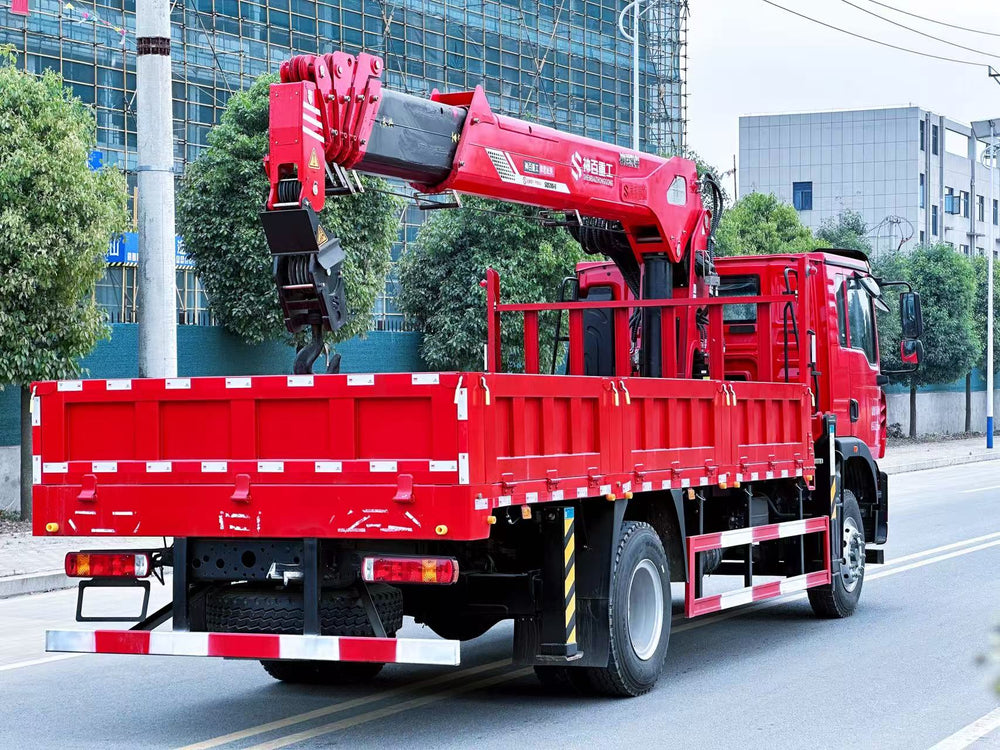

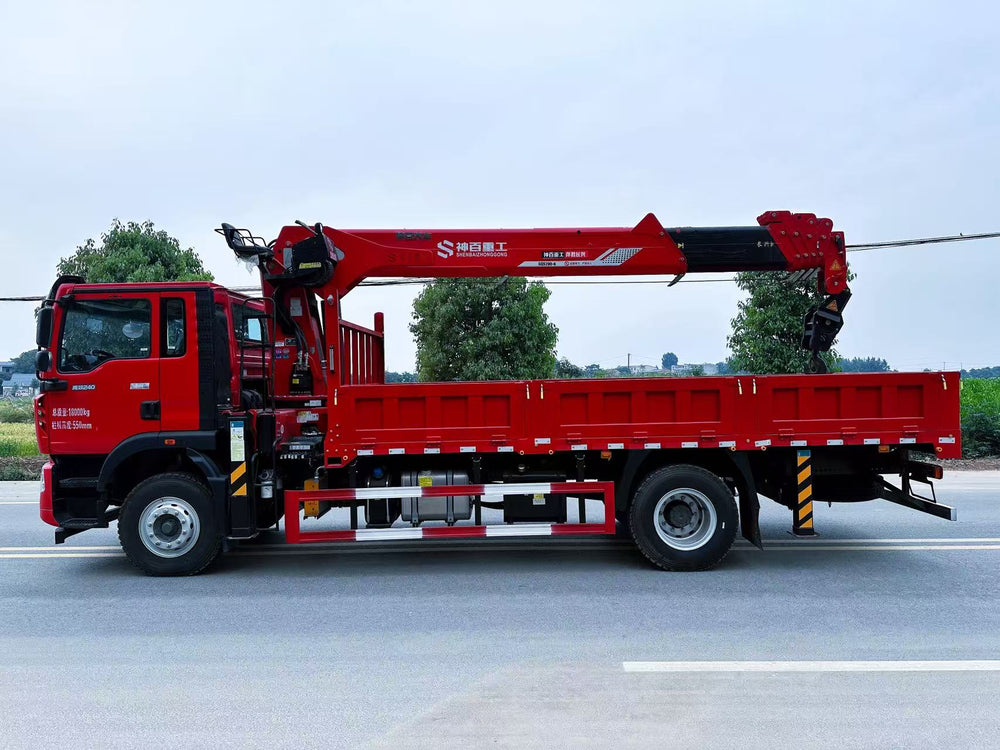

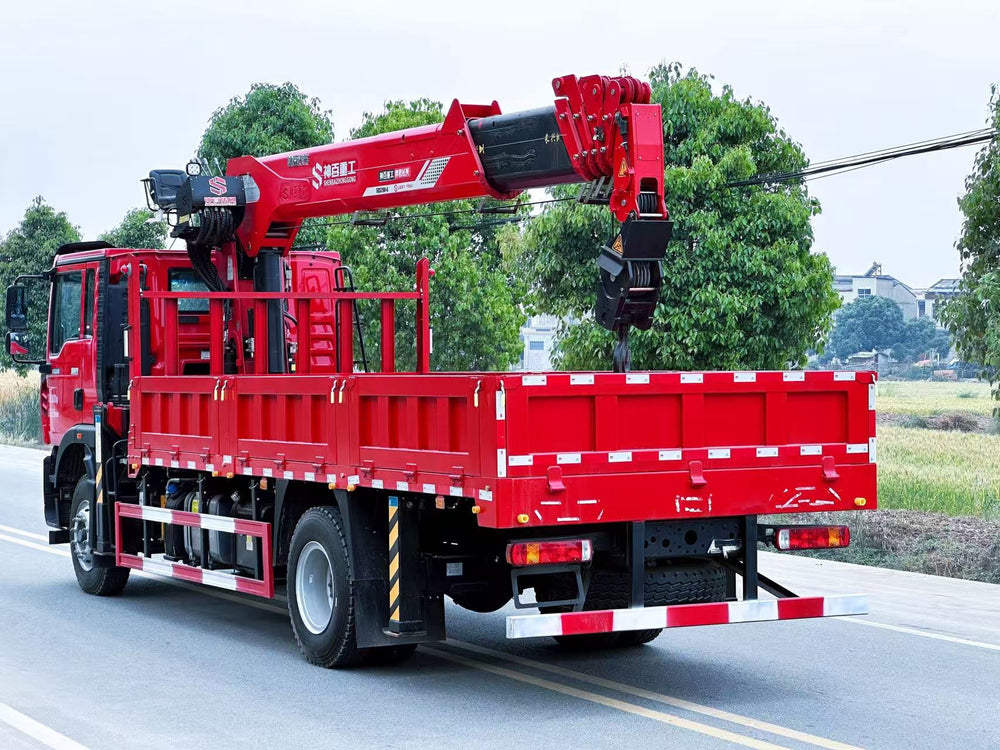

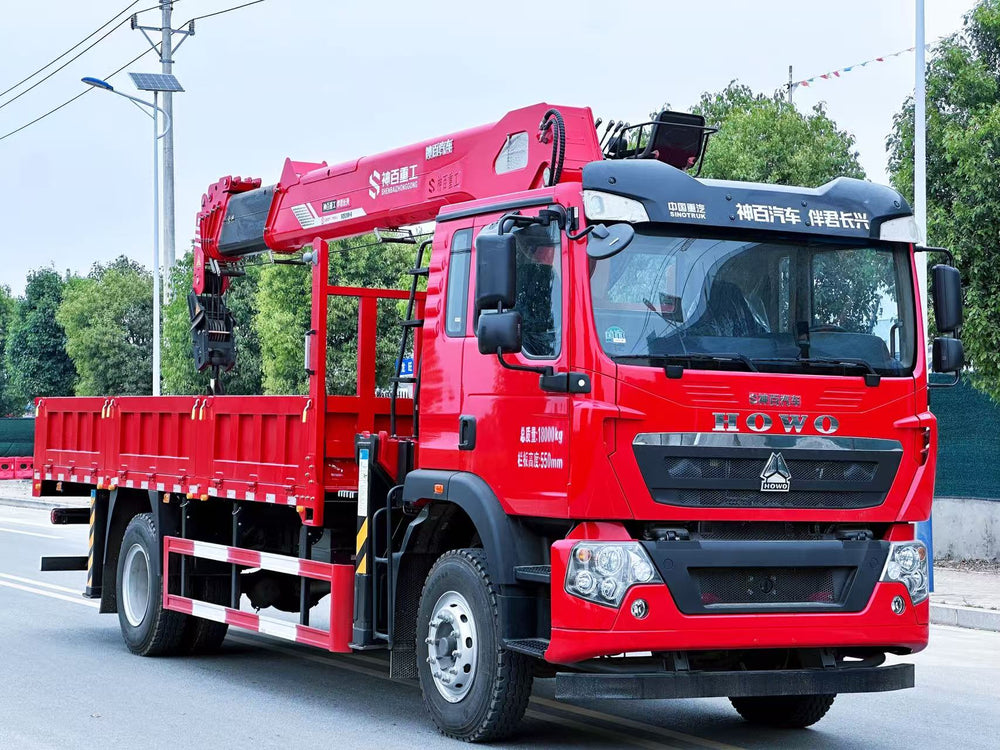

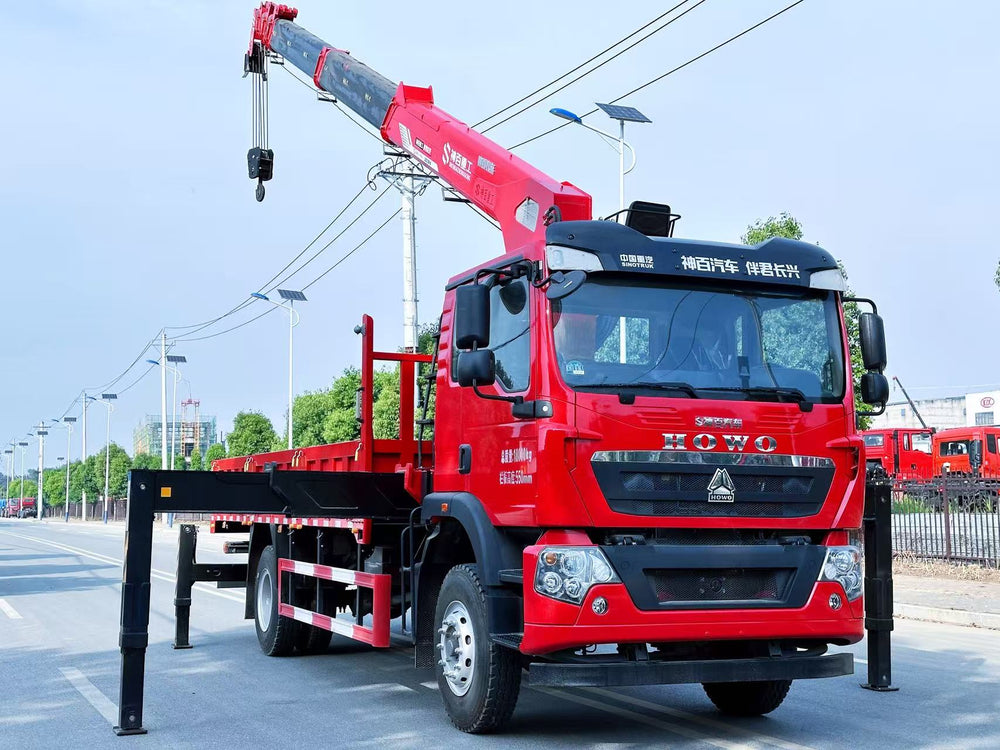

Sinotruk Howo 8-ton 6-section boom truck crane

1 / 7

Sinotruk Howo 8-ton 6-section boom truck crane

Overall vehicle size and performance
Total vehicle weight	18000 kg
curb weight	11000 kg
Rated effective load	7000 kg
Overall vehicle dimensions	9000* 2550* 3610mm
Cargo box dimensions	59002400550mm
Chassis parameters
Chassis Brand	Howo
Driving type	4x2 left-hand drive
engine	Weichai WP4.6NQ240E62
horsepower	240 Horsepower
Speed gearbox	Sinotruk HW95508STC 8-speed Gearbox
wheelbase	5000 mm
axis	7 Tons/13 Tons
Emission standards	Euro 6
Tire type and size	10.00R20
fuel tank	200 Liters
Top speed	105 km/h
other	Main Airbag Seat, Electric Windows, Original Air Conditioner, Central Lock, Multi-function Steering Wheel, LCD Instrument Panel, ABS Anti-lock Braking System
Crane parameters
Crane Model	SQ8.0A5
Maximum lifting capacity	8 tons
Maximum working radius	21.2 meters
Maximum lifting height	22.9 meters
boom type	6-section synchronous telescopic boom
Rotation angle	360° rotation
Crane weight	4.45 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
