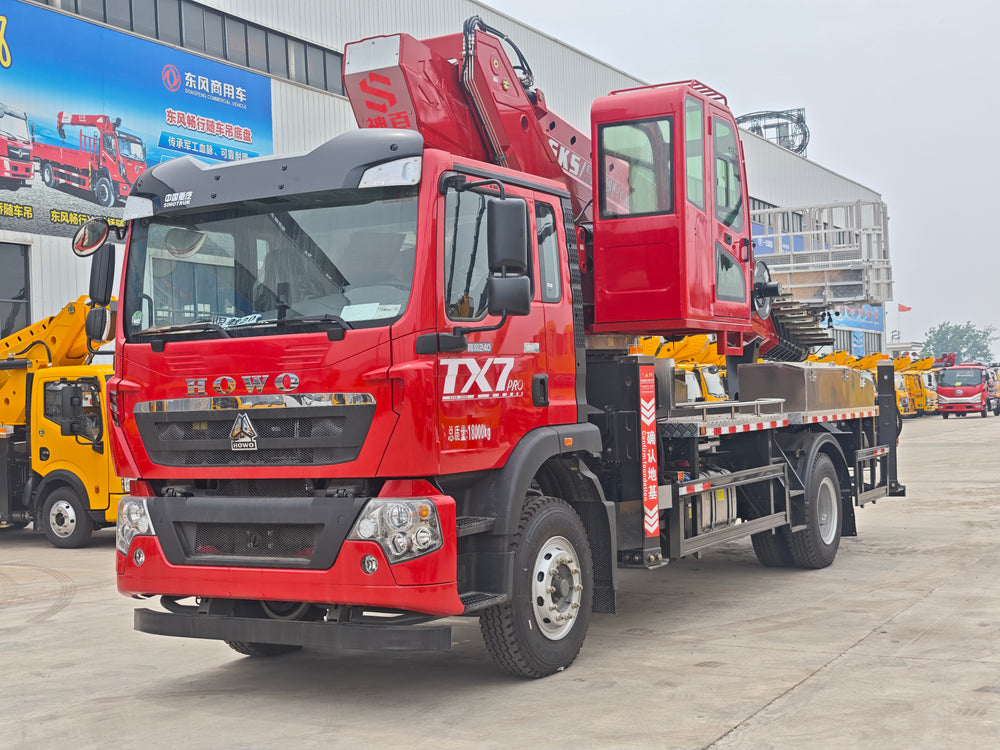

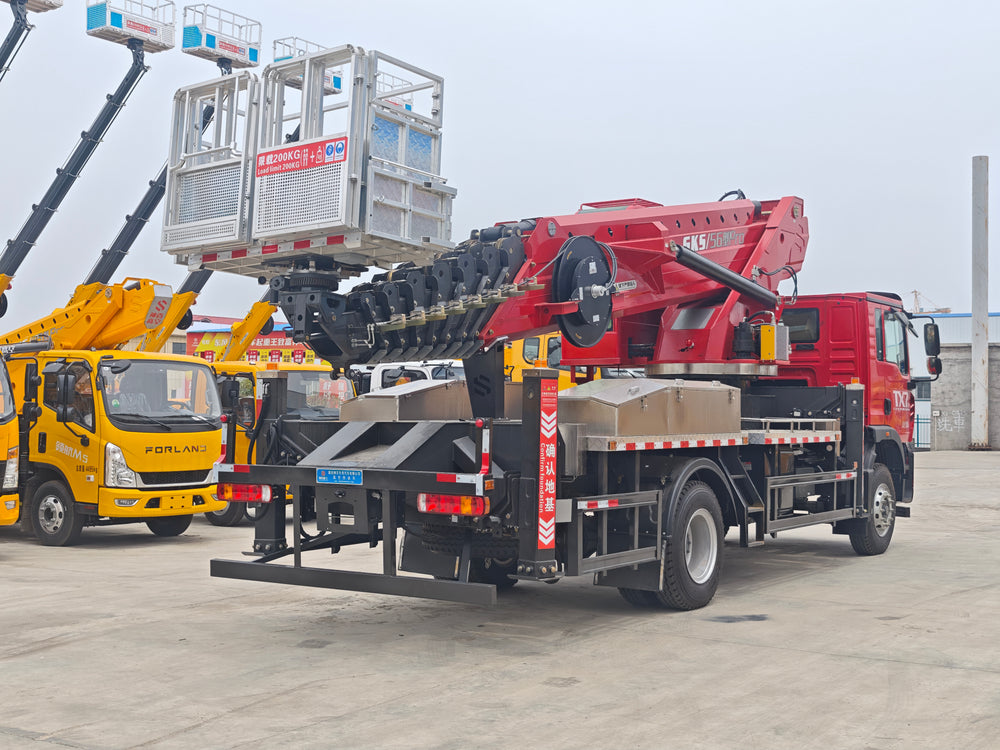

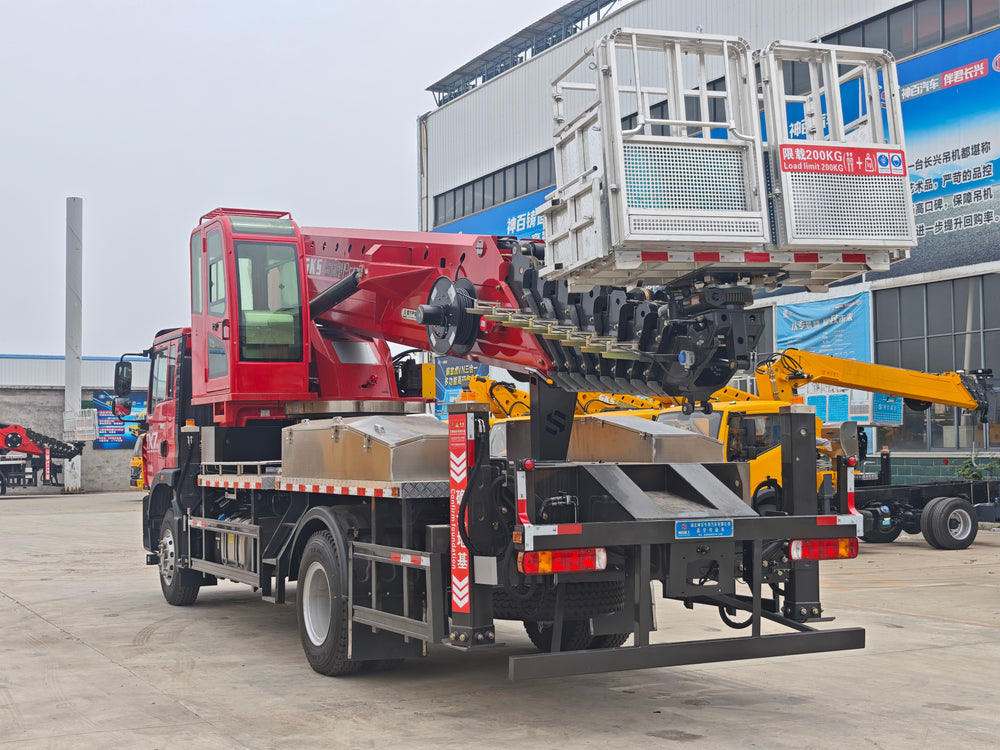

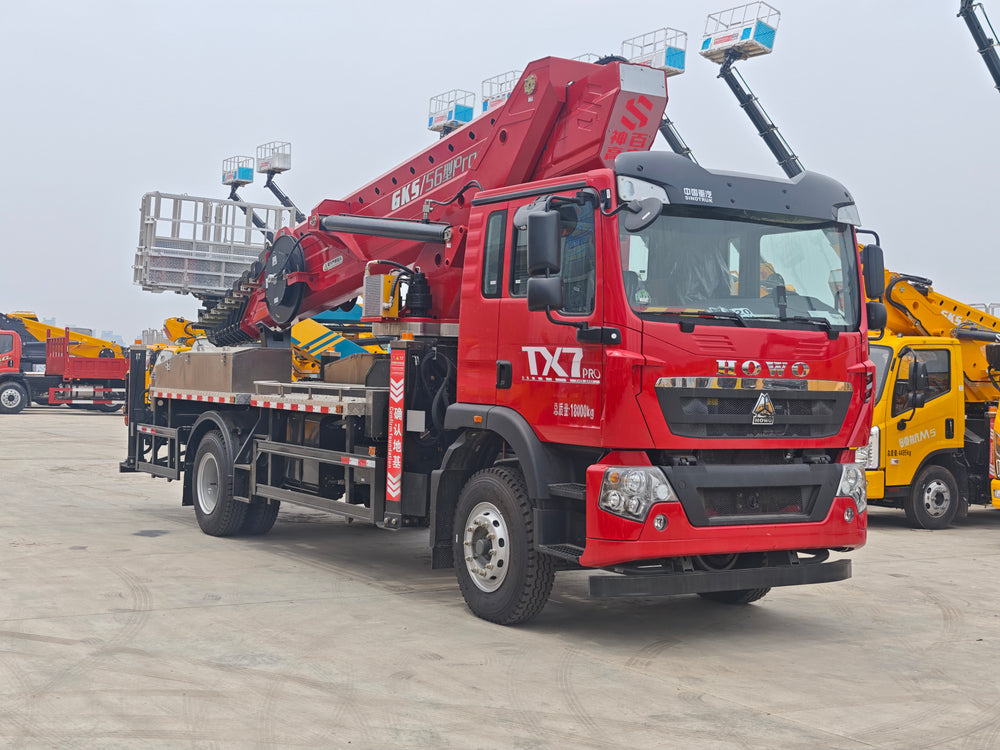

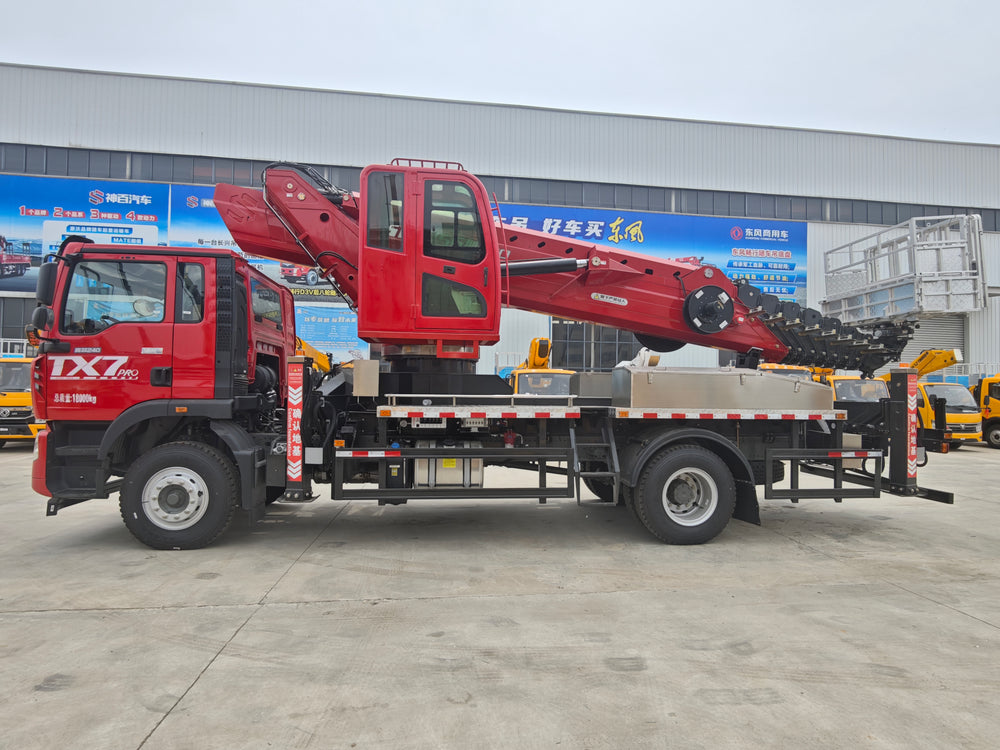

Sinotruk Howo 56-meter Aerial Work Truck

1 / 8

1. Basic Vehicle Parameters
Chassis Brand	HOWO TX 4×2
Total vehicle weight	18000KG
curb weight	17870KG
Overall vehicle dimensions	9650mm × 2500mm × 3930mm
Engine Model	Weichai 240HP
horsepower	240horsepower
gearbox	HW95508STC2
wheelbase	5000mm
Tire specifications	10.00R20
Braking System	Air Brake
Emission standards	Euro 6
Top speed	99km/h
fuel tank capacity	200 liters
Lateral support leg span (front/rear)	9050mm/9000mm

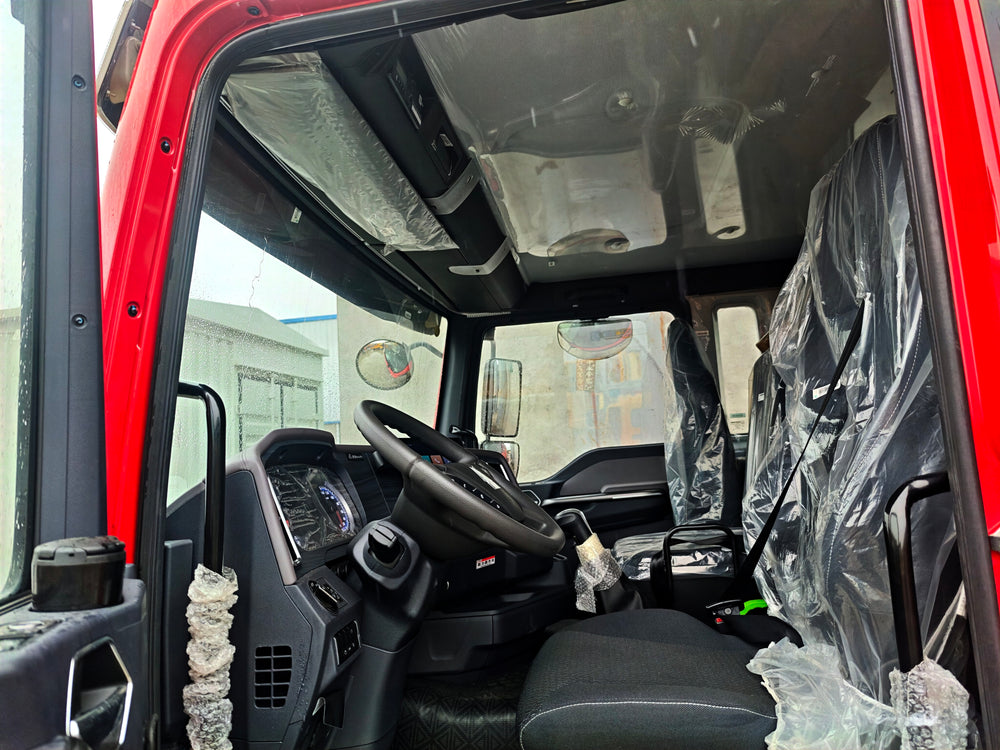

Standard configuration	Power Windows、Air Conditioner、Central Locking、Multi-function Steering Wheel、7-inch Full HD LCD Central Control Screen
2. Basic parameters of the upper part
Maximum working height	52m
Rated load of the work platform	200 kg

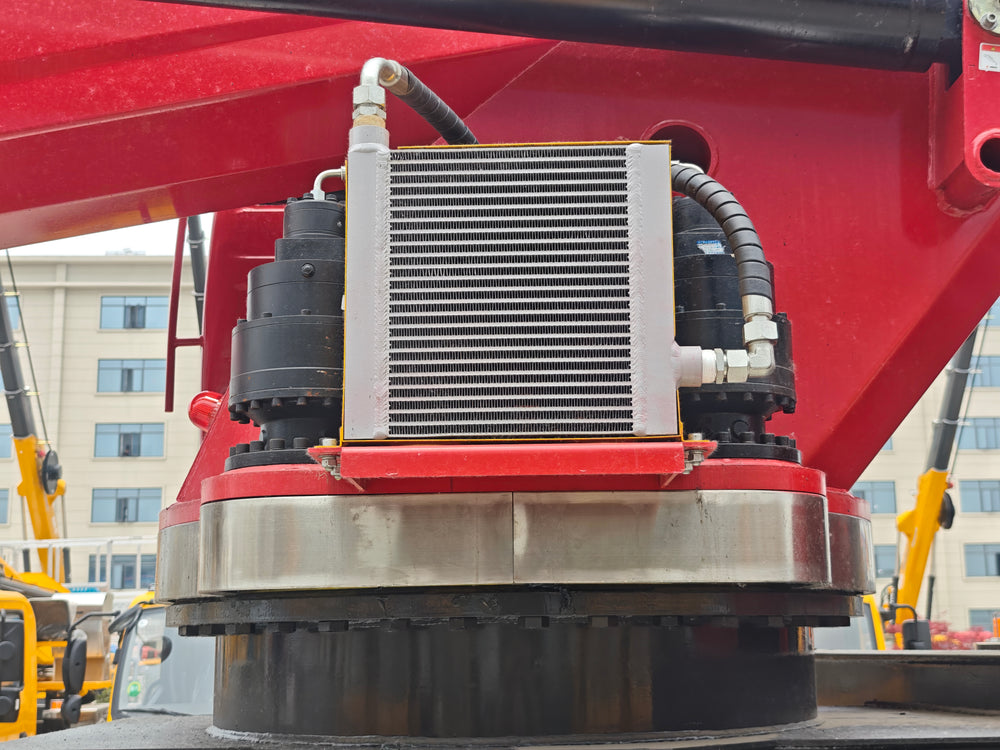

boom slewing angle	360° rotation
Overall platform dimensions	3200mm × 1000mm × 1100mm

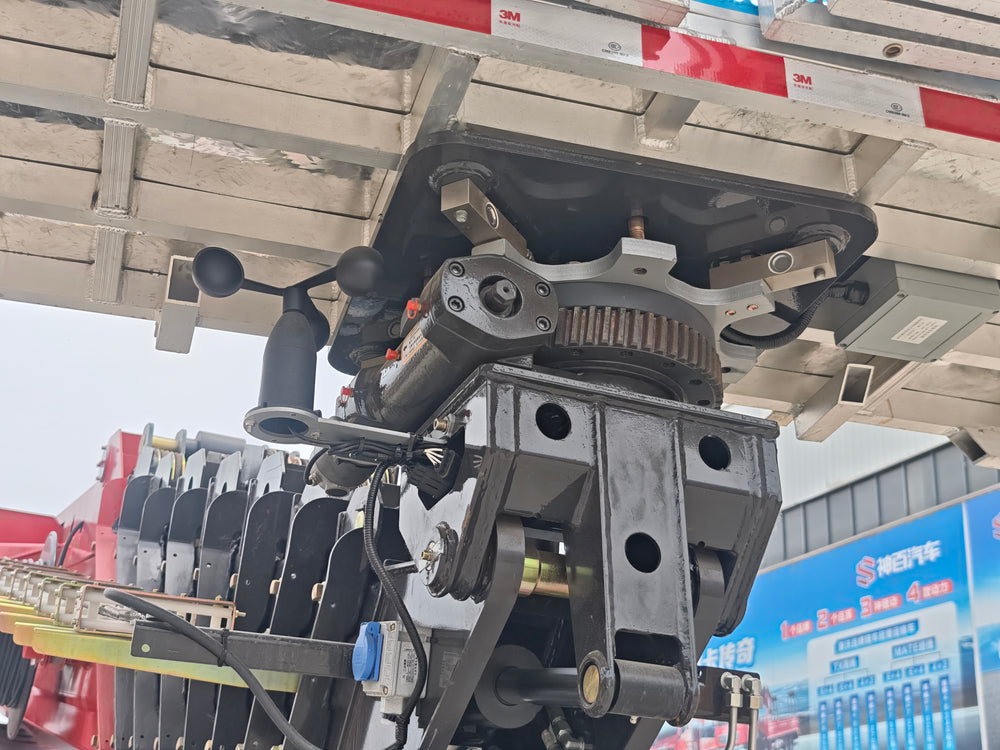

Platform rotation range	±180°
boom structure	9-section Boom, 8-section Synchronous Telescopic, 2nd Boom with Through-shaft 4-steel Wire Rope Design
control system	Well-known Domestic Electronic Control System, Equipped with Wireless Remote Control
Hydraulic system	Electro-hydraulic Proportional Valve, Stepless Speed Regulation, Equipped with Emergency Power Source
Hydraulic outriggers	X-type, 4 Sets of 3-section Outriggers, Bidirectional and Independently Adjustable
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply、Outrigger Length Protection、Weight Detection Protection、Wind Speed Sensor Protection、Limit Protection
