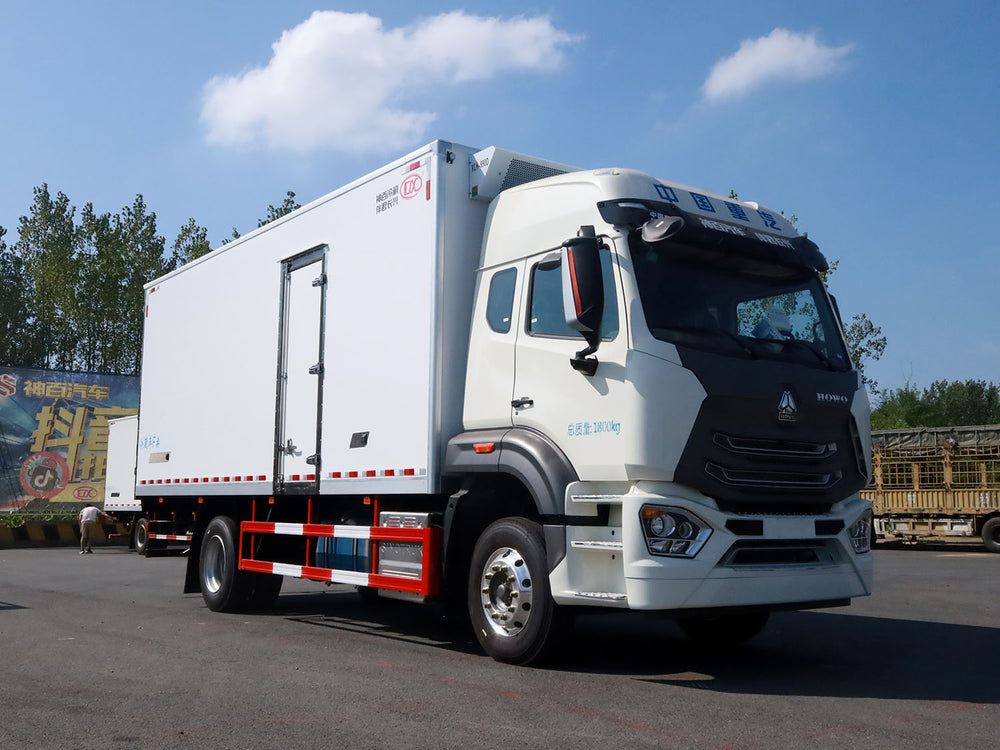

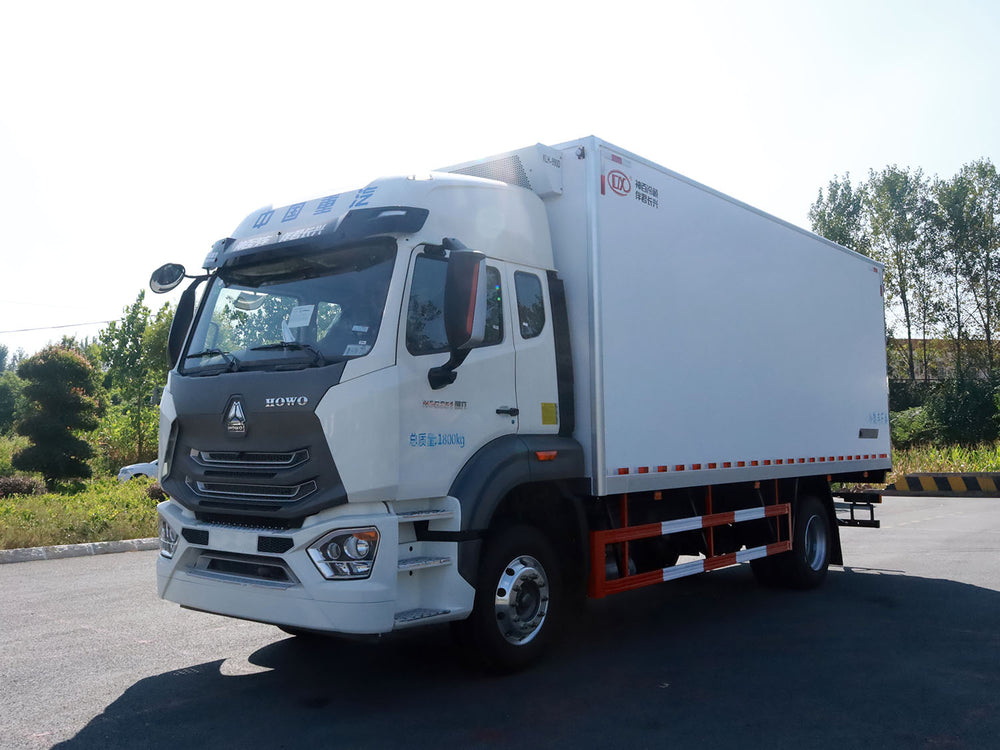

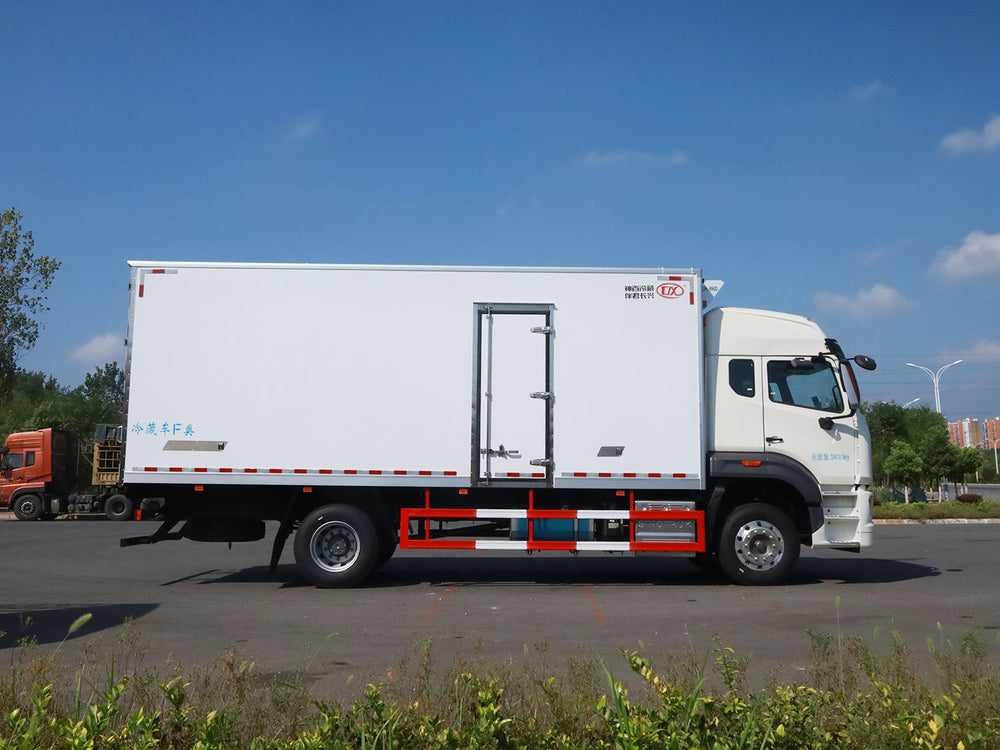

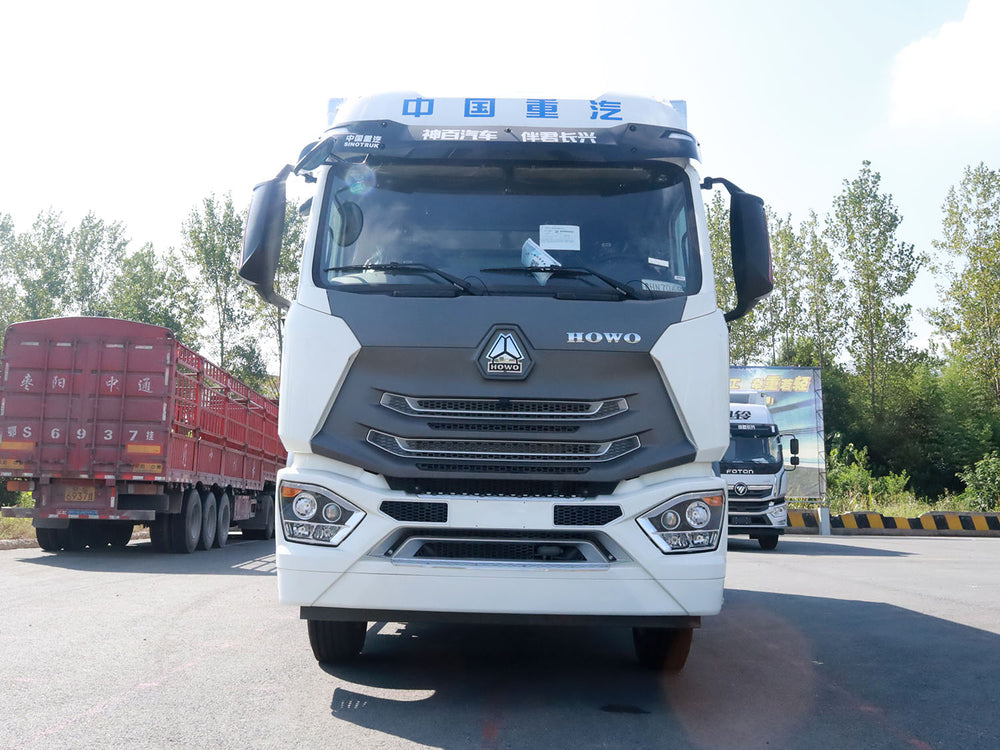

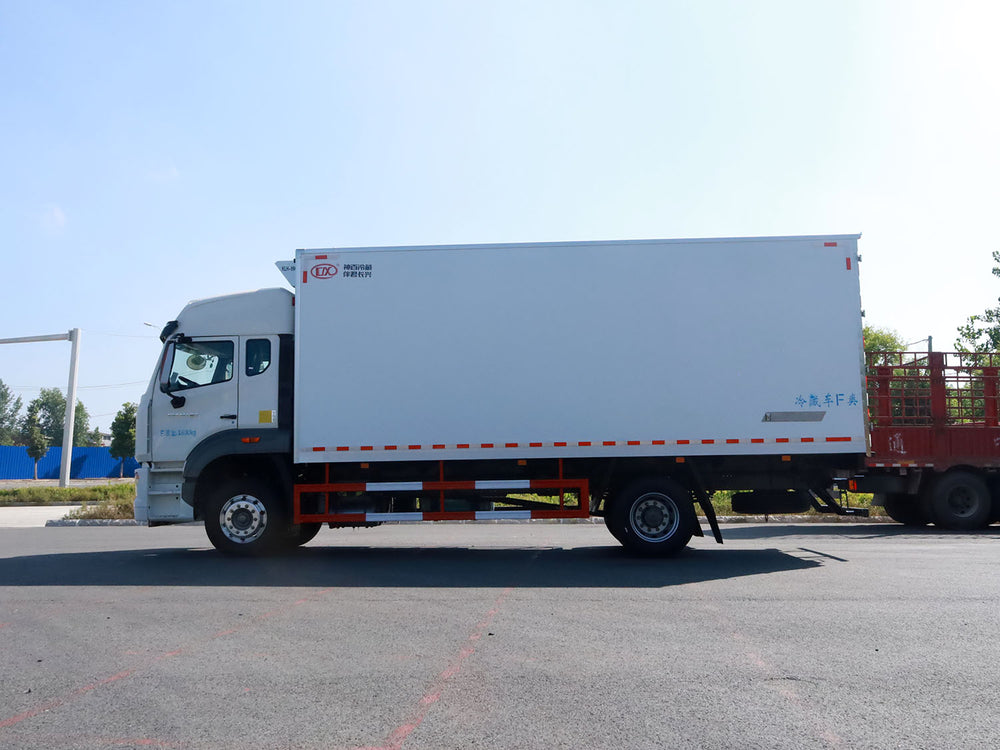

Sinotruk Howo 5.2-meter extended-length refrigerated truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	HOWO 4x2
Total vehicle weight	11995kg
curb weight	5000 kg
Rated load	6800kg
Overall vehicle dimensions	6995×2450×3400mm
Top speed	110km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	WP4.1NQ190E61
horsepower	140 kW / 190 HP
gearbox	Fast 8-speed gearbox
Front axle/Rear axle	3.5 tons / 7.5tons
wheelbase	4200mm
Tire specifications	70R19.5 18PR tubeless tire
tank	200L Aluminum Alloy
Emission standards	Euro 6

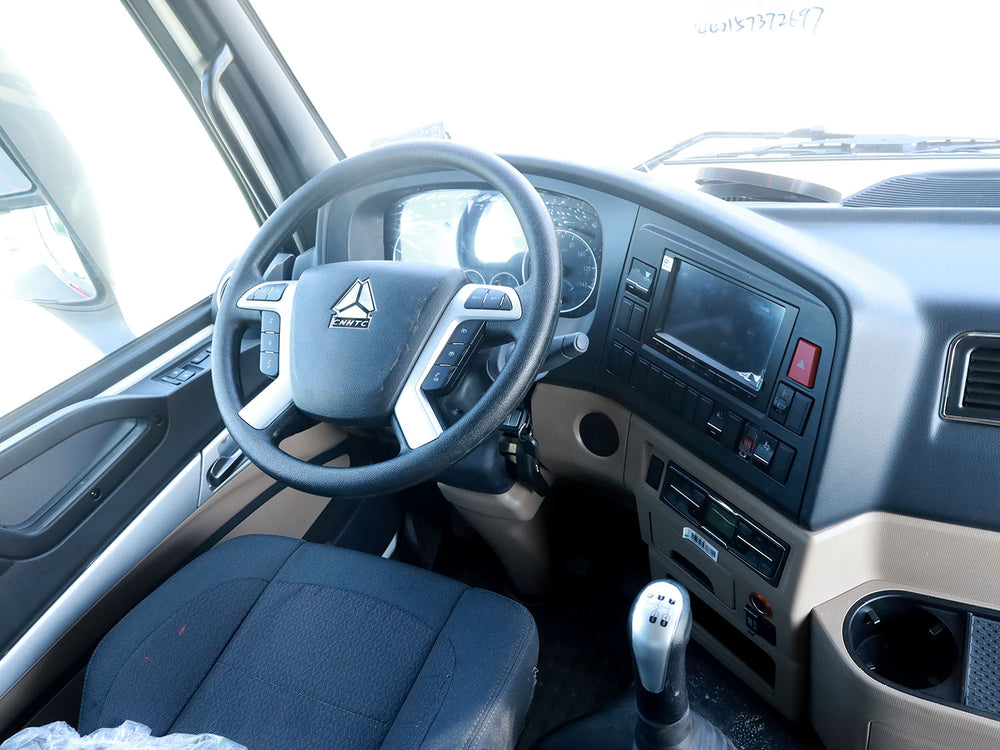

Other configurations	Full-floating airbag shock absorption, intelligent cockpit, four-way monitoring, central locking, power windows and doors, heated side mirrors, multi-function steering wheel, and LCD instrument panel.
3. Basic parameters of the upper part
Cargo box dimensions	5200×2450×2500mm
Volume	28m³
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

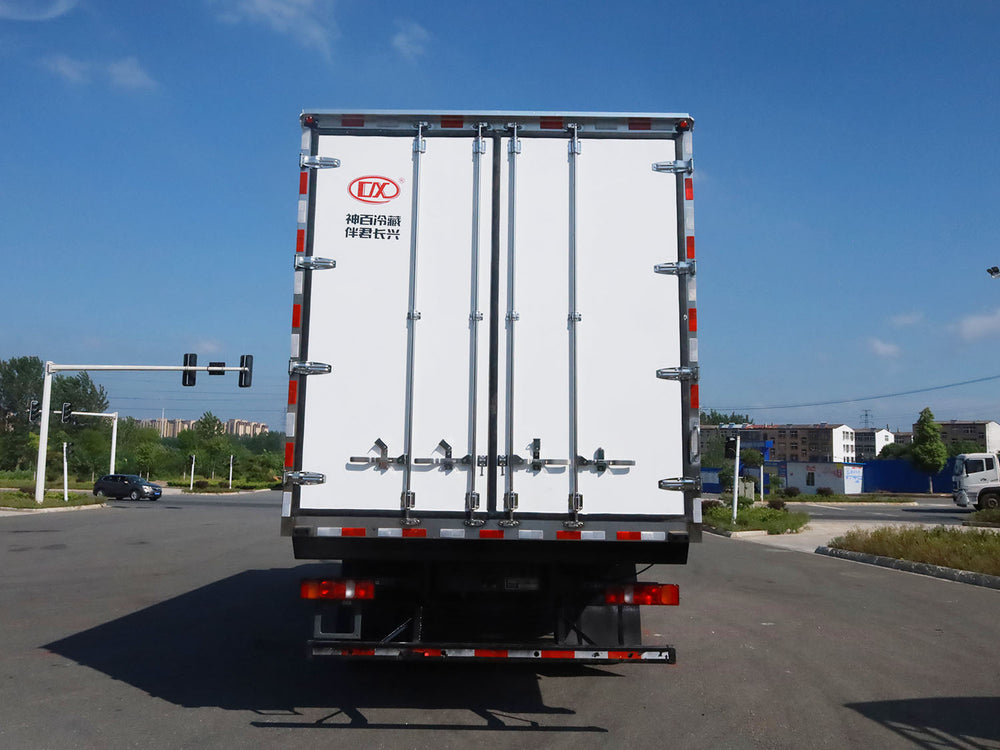

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
