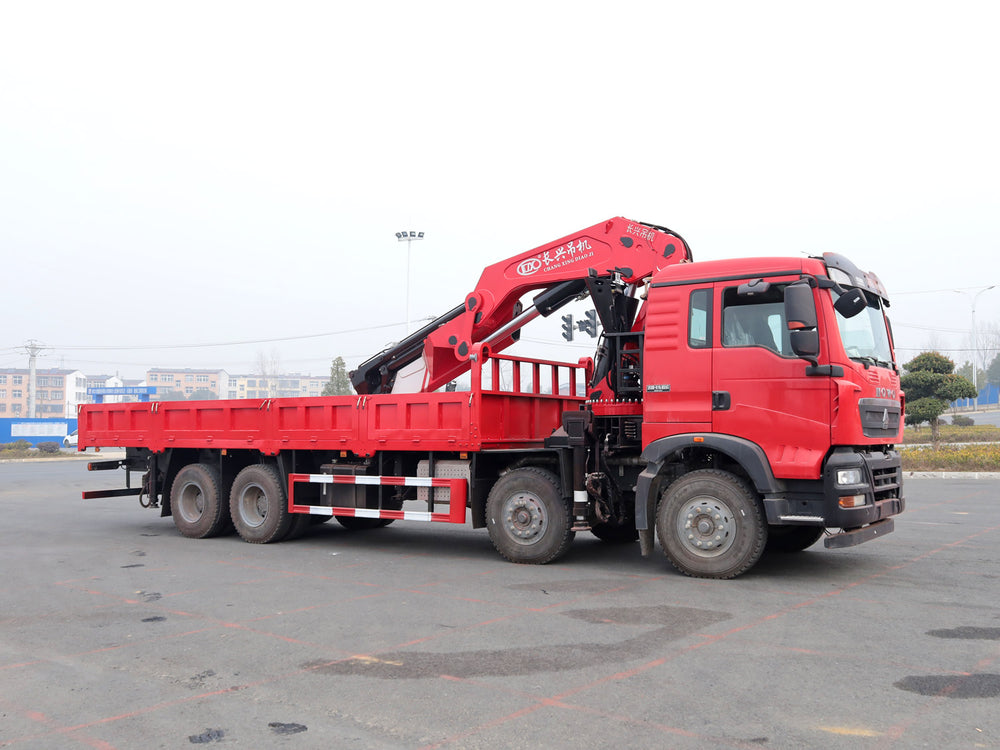

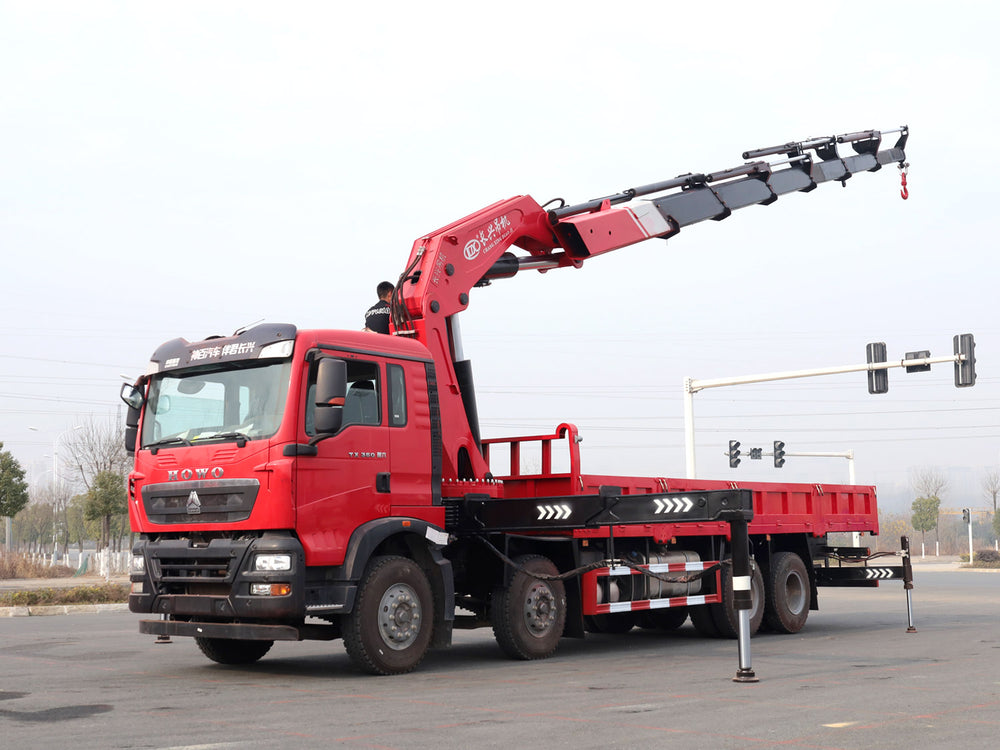

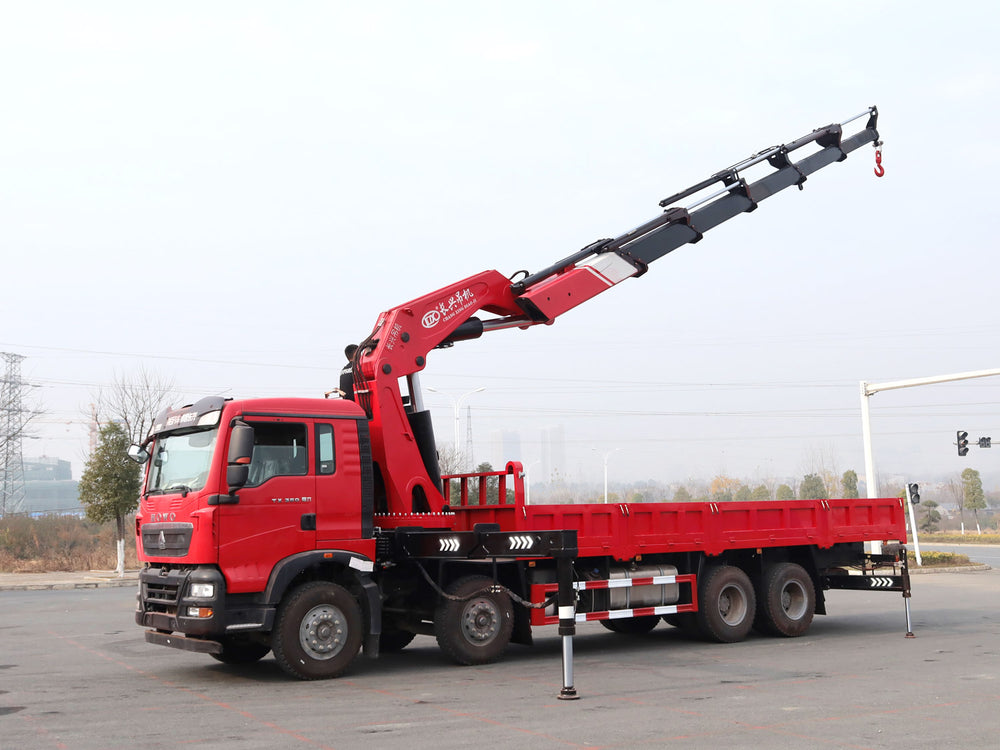

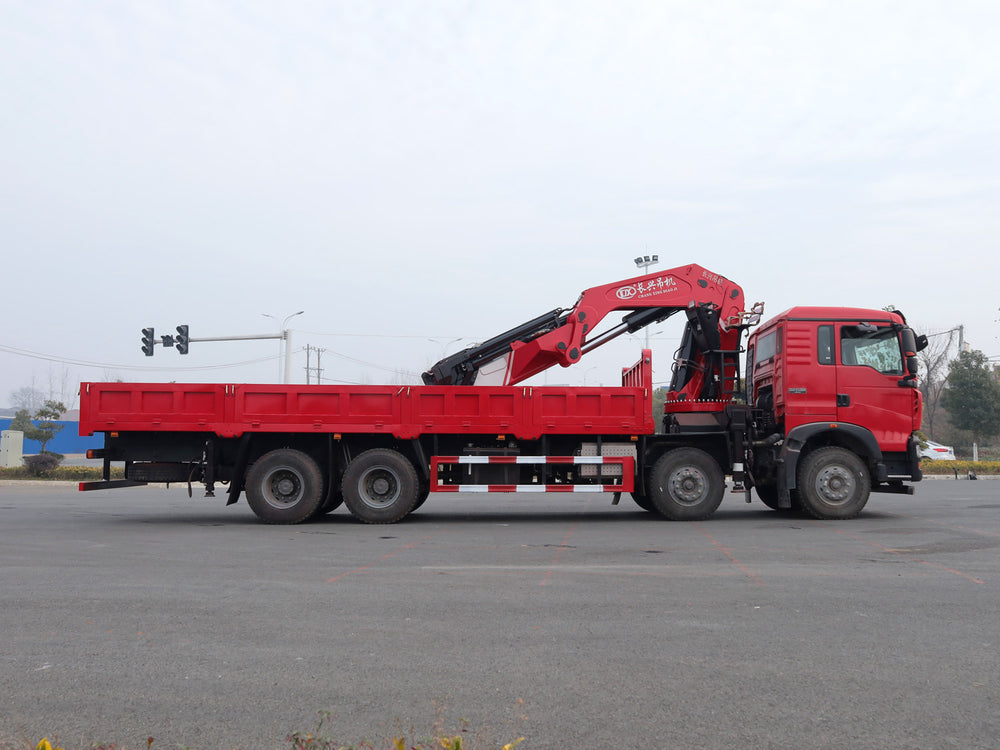

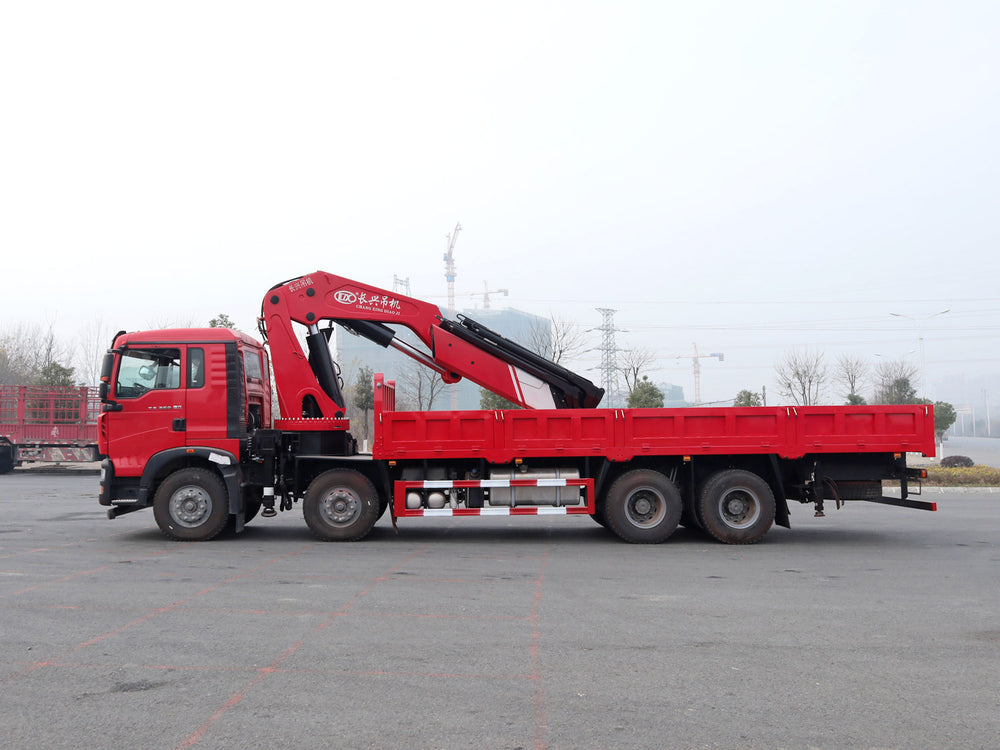

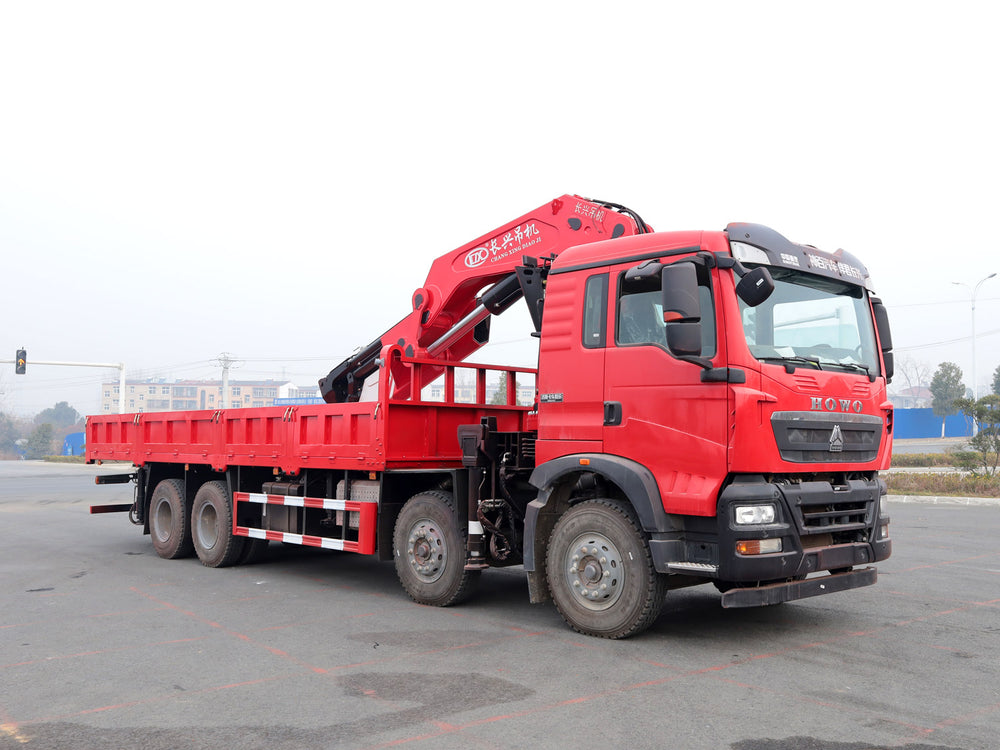

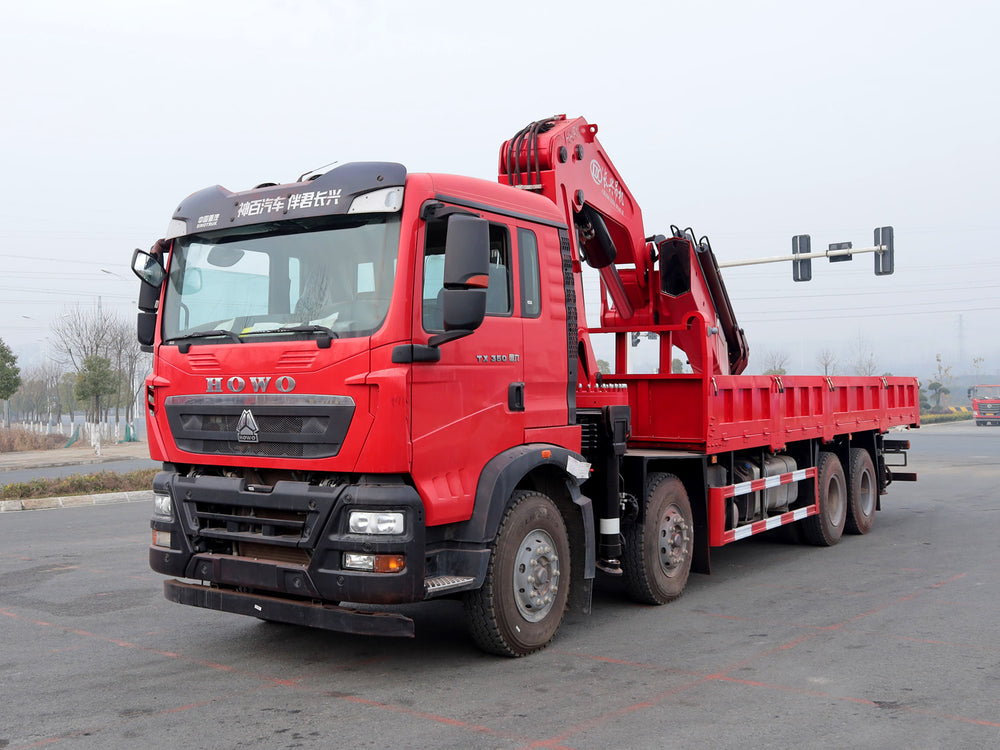

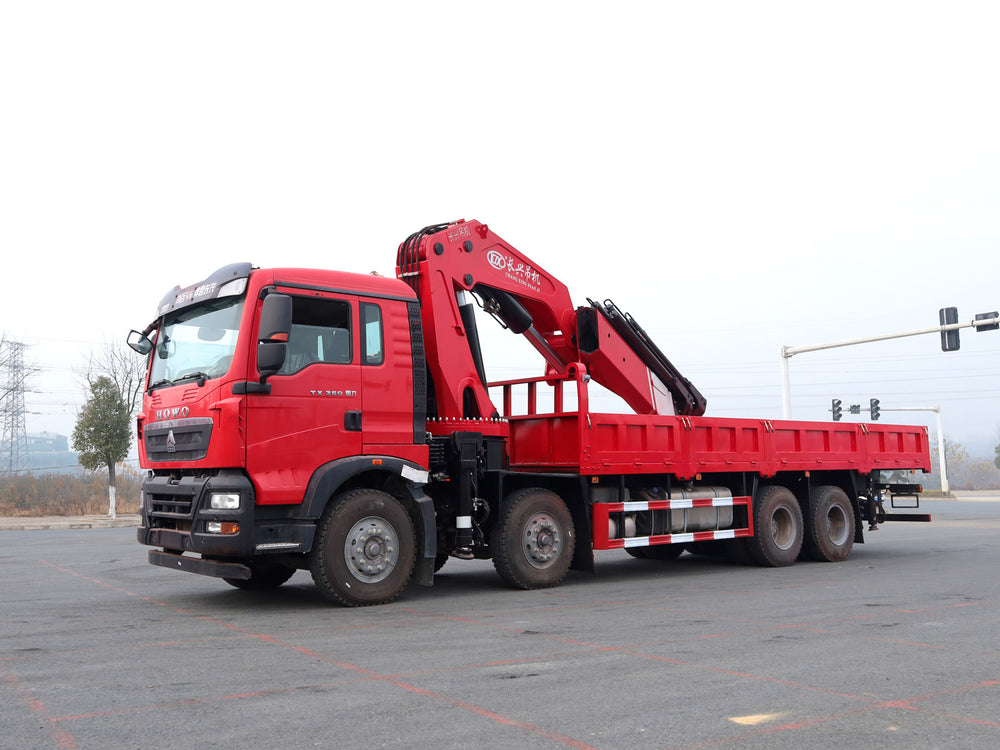

Sinotruk Howo 30-ton Knuckle Boom Crane (8x4)

1 / 8

Sinotruk Howo 30-ton Knuckle Boom Crane (8x4)

Overall vehicle size and performance
Chassis Brand	Howo 8x4
Driving type	left-hand drive
Total vehicle weight	31 tons
curb weight	20.2 tons
Rated effective load	10.6 tons
Overall vehicle dimensions	12000×2500×3990 mm
Cargo box dimensions	7600×2500×550 mm
Chassis parameters
engine	WP8.350E61
horsepower	350 horsepower
Speed gearbox	HW25712XSTL
wheelbase	2100+4300+1350mm
axis	7.5 ton/16 ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	400 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	Changxing CXSQZ600 30-ton folding boom crane
Maximum lifting capacity	30 tons
Maximum working radius	15 meters
Maximum lifting height	17.5 meters
boom type	7-section folding arm
Rotation angle	360° rotation
Crane weight	7.5 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
