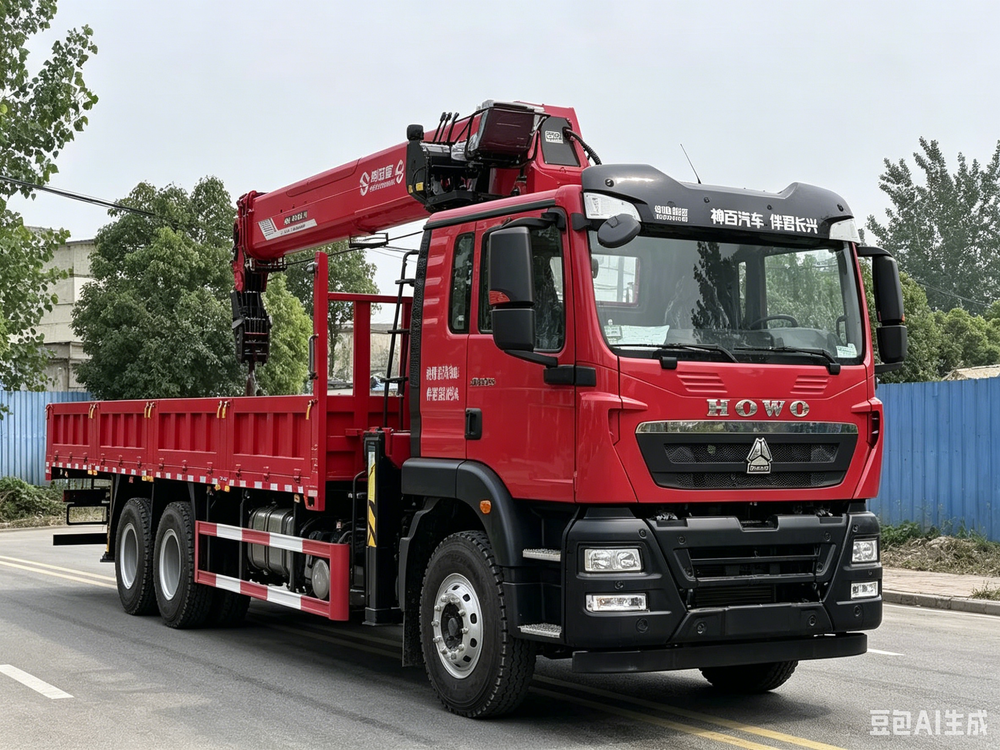

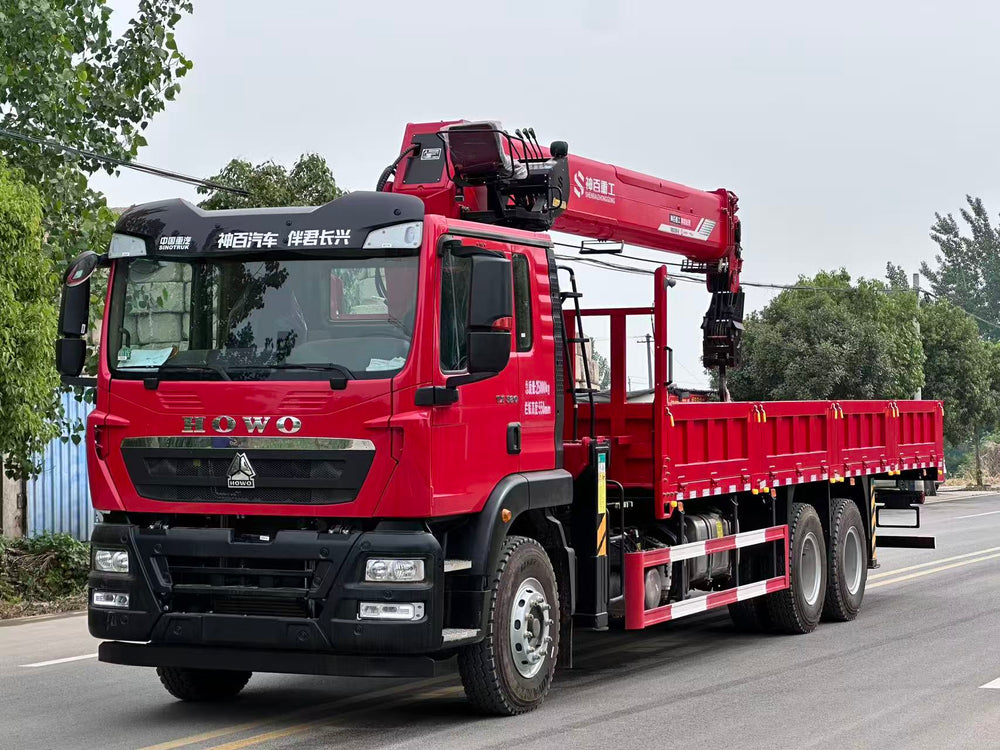

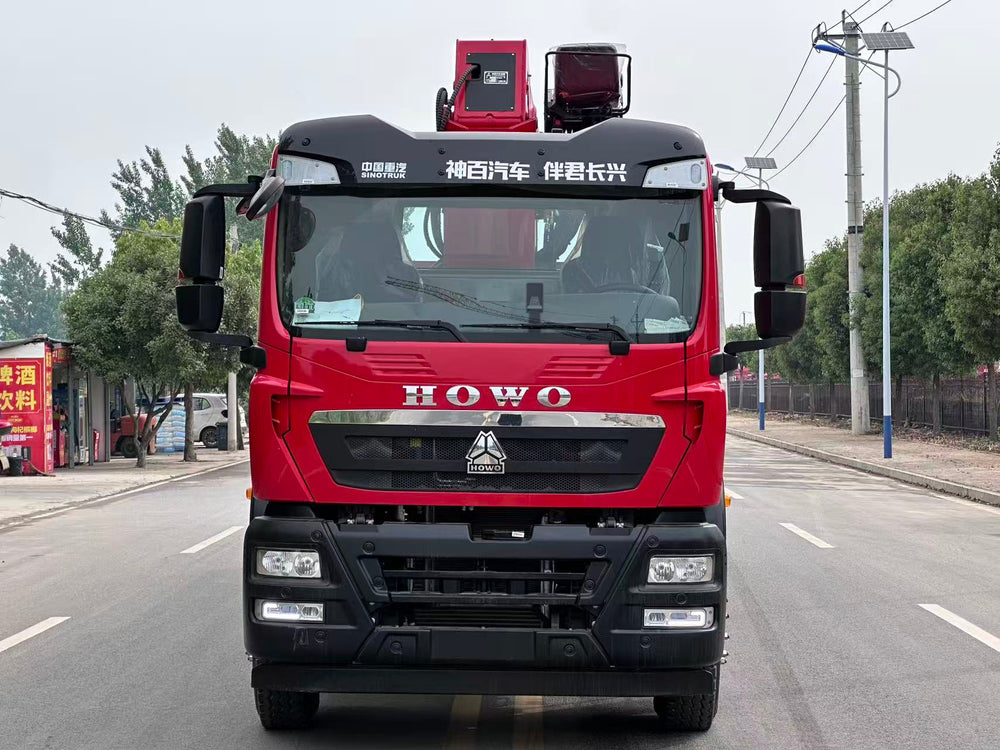

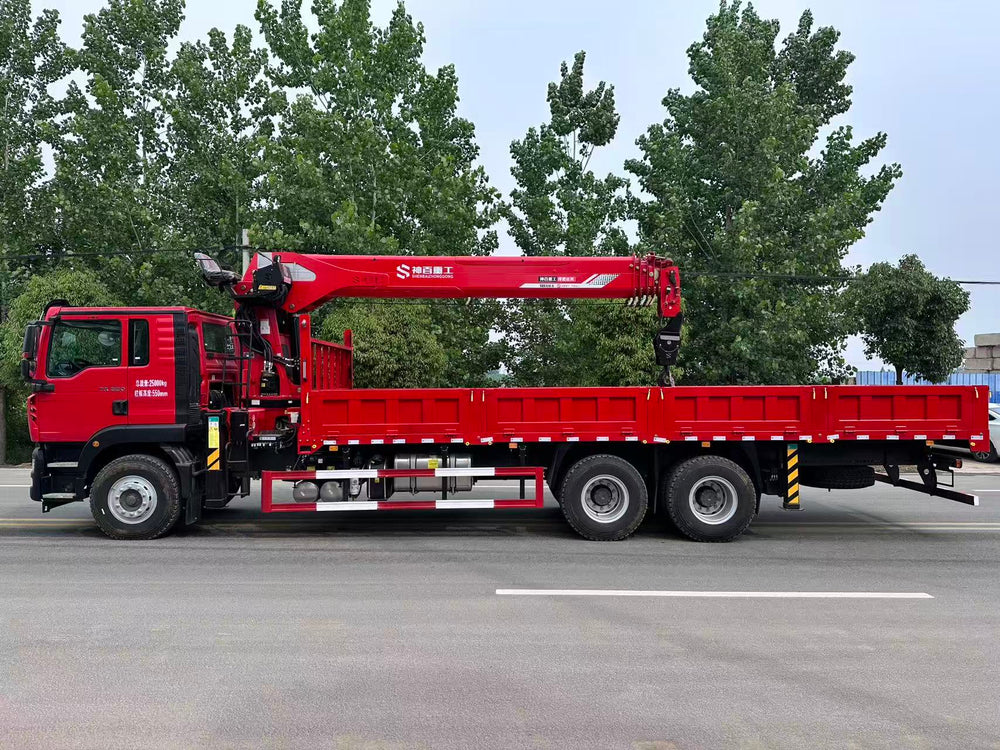

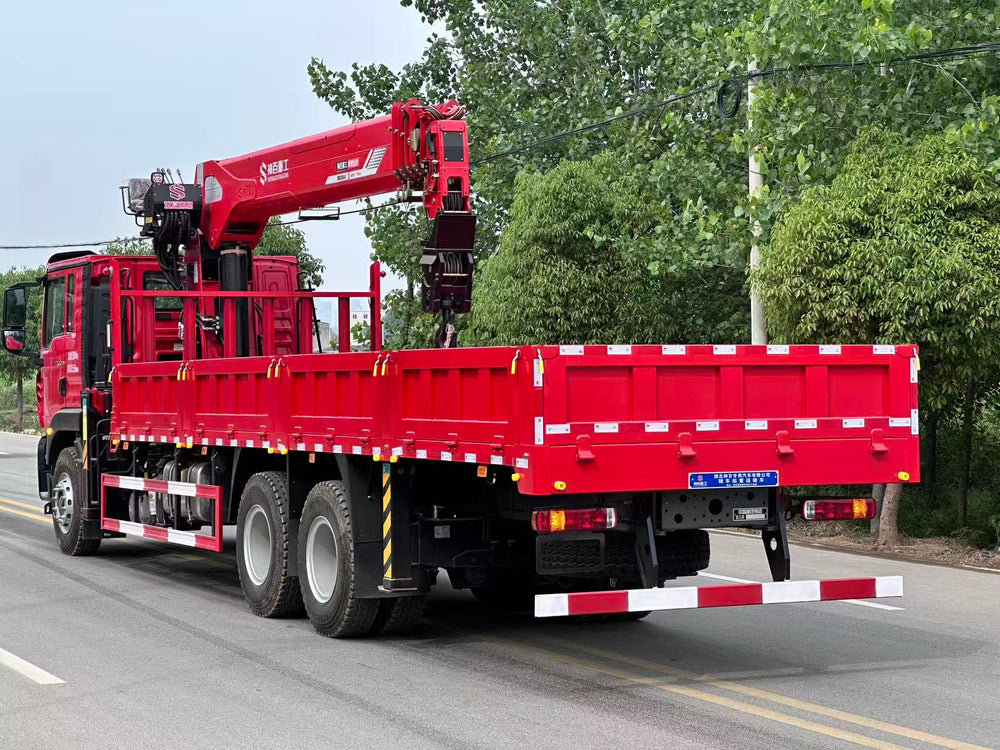

Sinotruk Howo 14-ton 6-section boom truck-mounted crane

1 / 7

Sinotruk Howo 14-ton 6-section boom truck-mounted crane

Overall vehicle size and performance
Total vehicle weight	31000kg
curb weight	16670kg
Rated effective load	14200kg
Overall vehicle dimensions	12000×2550×3850mm
Cargo box dimensions	8500×2450×550mm
Chassis parameters
Chassis Brand	Howo
Driving type	6X4 left-hand drive
engine	WeichaiWP8.320E62
horsepower	320 Horsepower
Speed gearbox	Sinotruk HW19712
wheelbase	5800+1350mm
axis	7.5 Ton/2×13Ton
Emission standards	Euro 6
Tire type and size	12.00R20
fuel tank	400 Liters
Top speed	89km/h

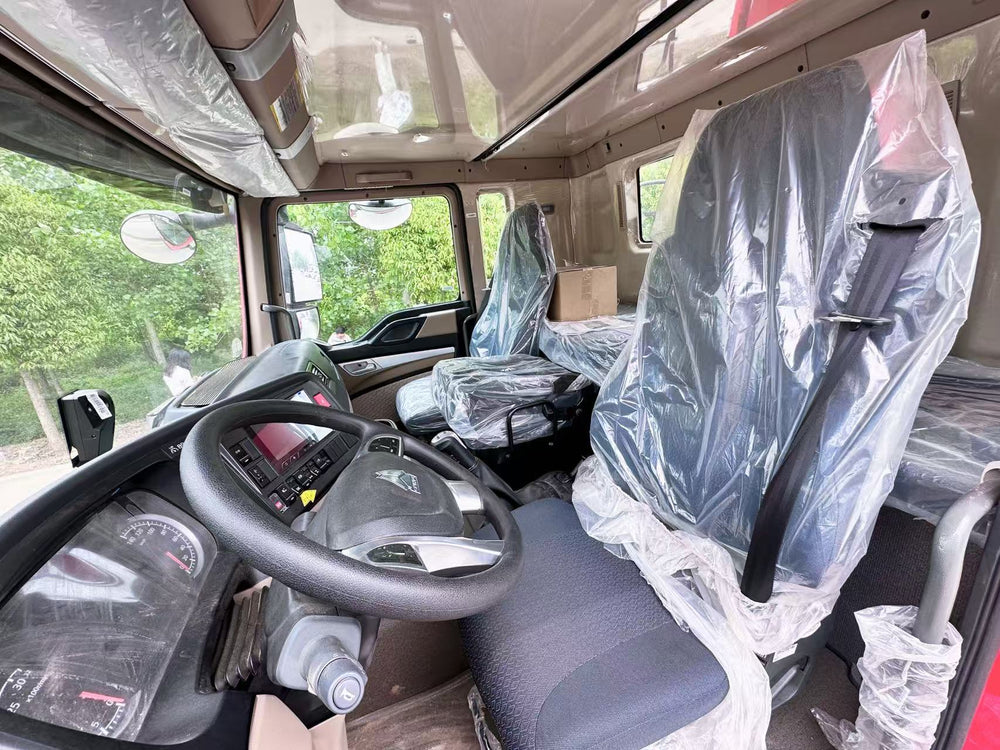

other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing
Maximum lifting capacity	14 Tons
Maximum working radius	22.6m
Maximum lifting height	24.2m

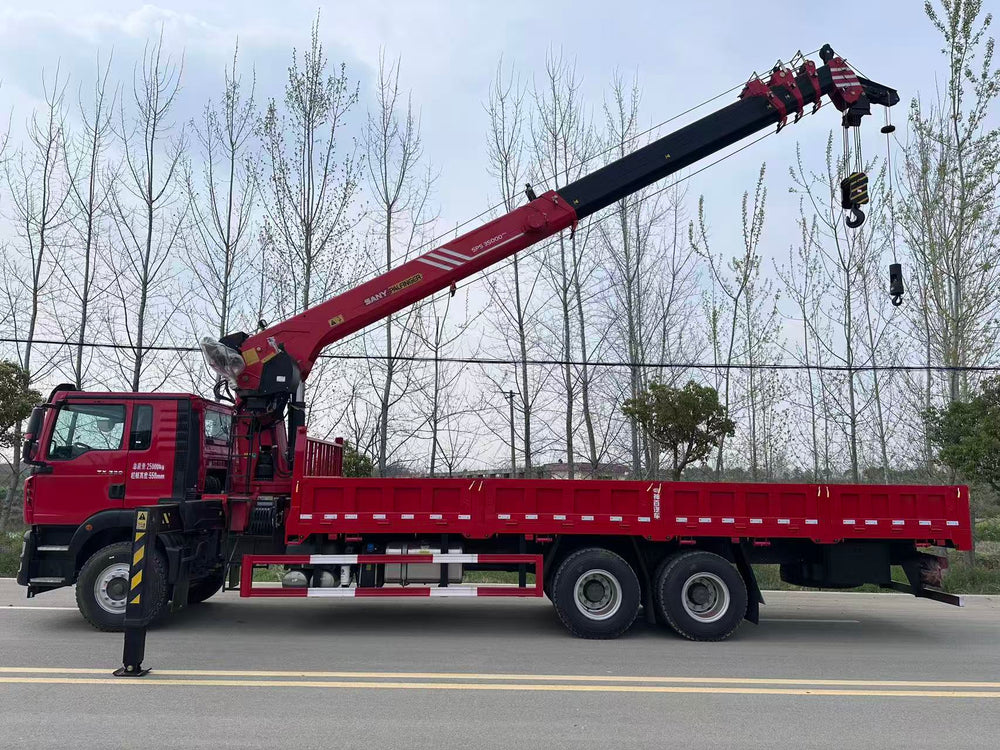

boom type	6-section Straight Boom
Rotation angle	360° rotation
Crane weight	5800kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
