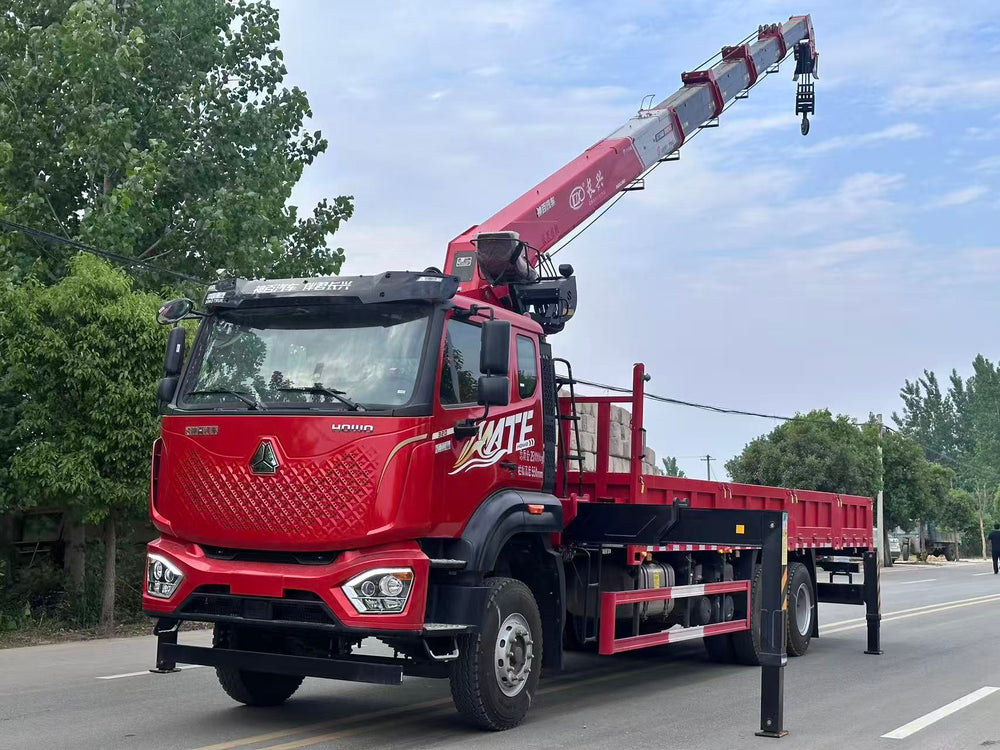

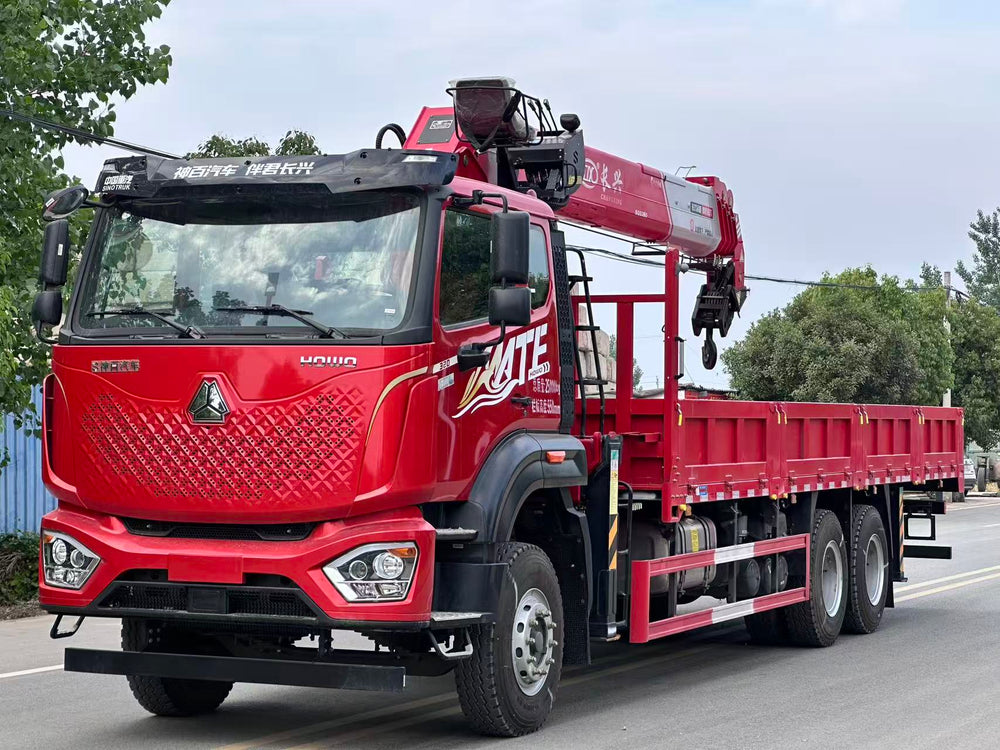

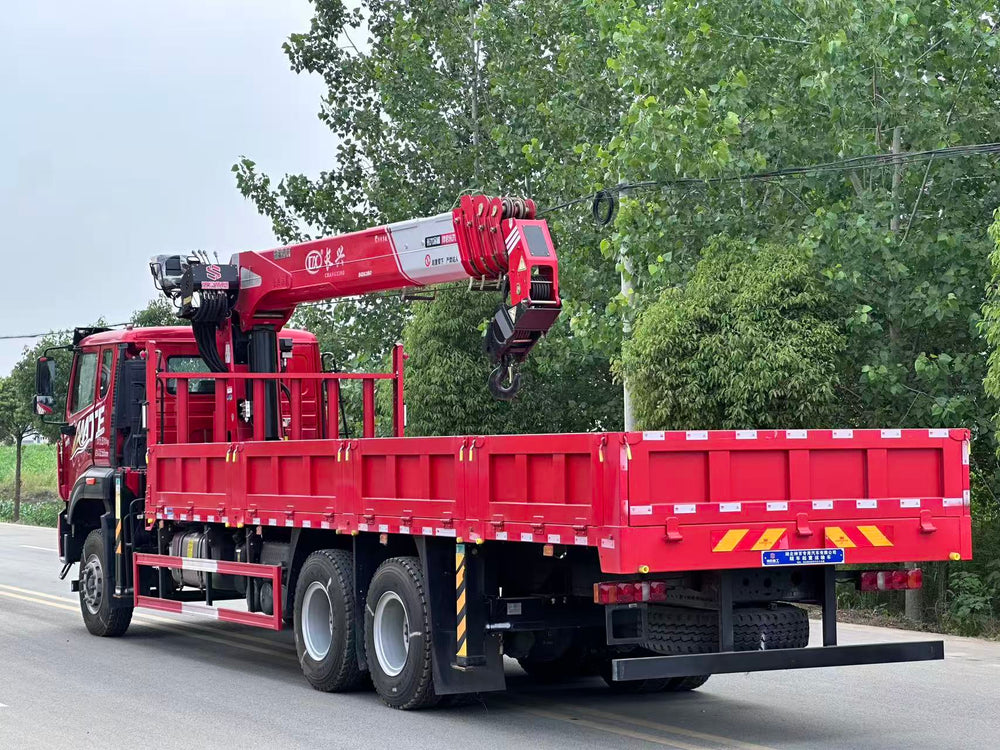

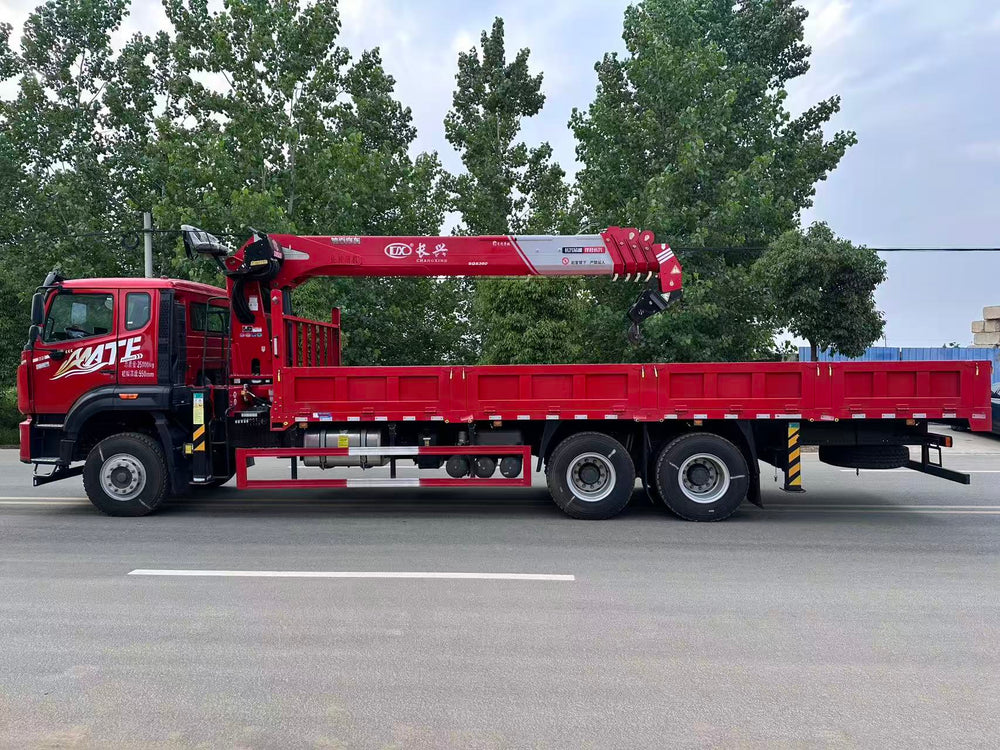

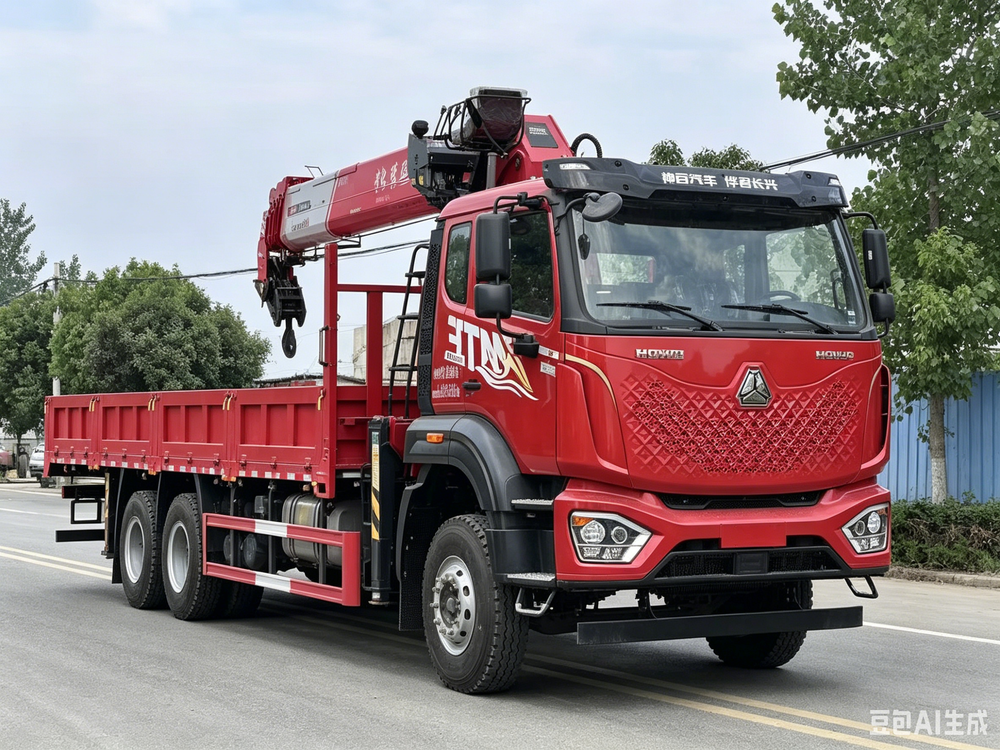

Sinotruk Howo 14-ton 5-section boom truck crane

Overall vehicle size and performance
Total vehicle weight	25000kg
curb weight	17000kg
Rated effective load	6870kg
Overall vehicle dimensions	12000×2550×3950mm
Cargo box dimensions	8400×2450×550mm
Chassis parameters
Chassis Brand	Howo
Driving type	6X4 left-hand drive
engine	Weichai WP7H320E62
horsepower	320 Horsepower
Speed gearbox	Sinotruk HW13709XSTC
wheelbase	5825+1350mm
axis	7.5 Tons/13 Tons
Emission standards	Euro 6
Tire type and size	11.00R20
fuel tank	300 Liters
Top speed	89km/h

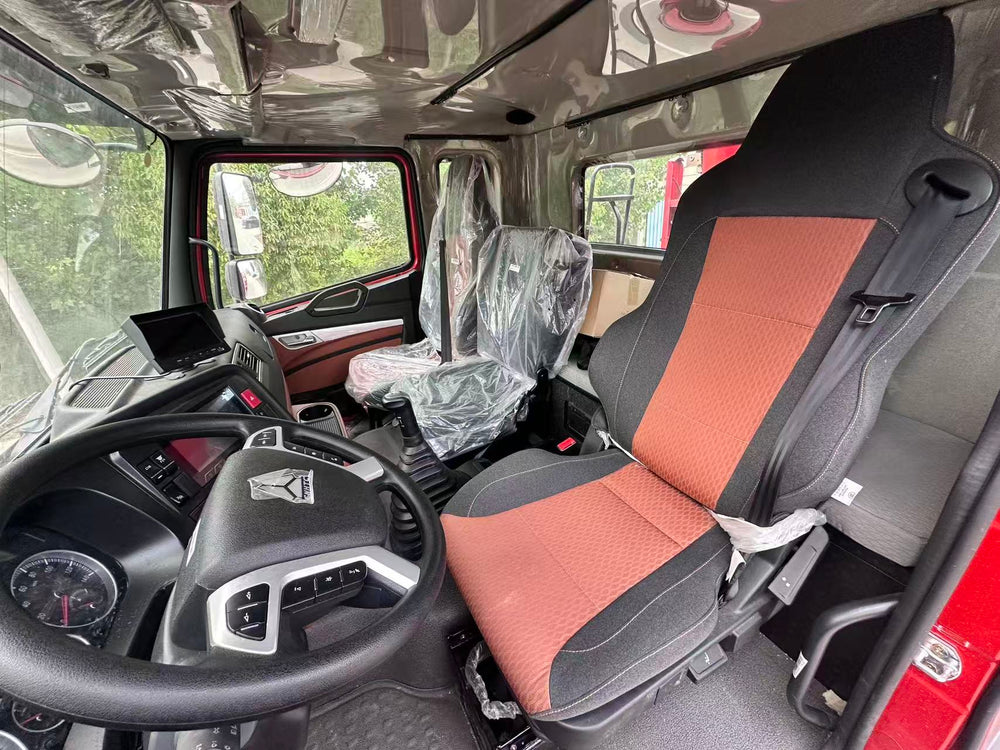

other	Driver's Aviation Airbag Seat with Lumbar Support, Multi-function Steering Wheel, Central Control Entertainment Screen, Power Windows, Remote Key, Driving Recorder
Crane parameters
Crane Model	Changxing
Maximum lifting capacity	14 Tons
Maximum working radius	19.9m
Maximum lifting height	22m

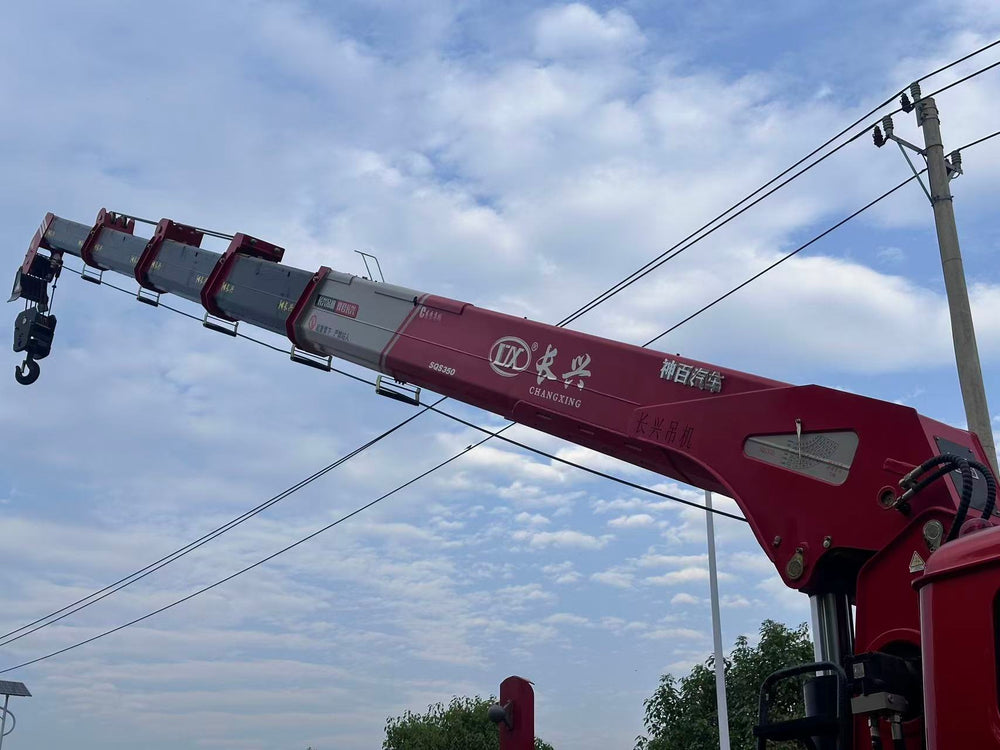

boom type	5-section Straight Boom
Rotation angle	360° rotation
Crane weight	6.7 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator

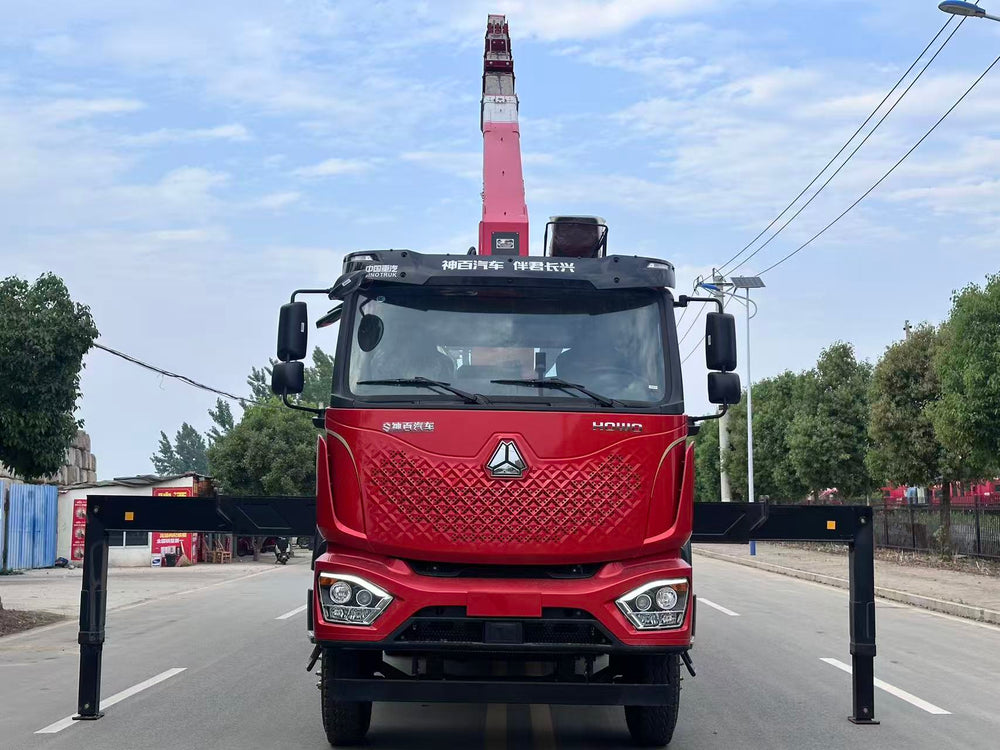

Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
