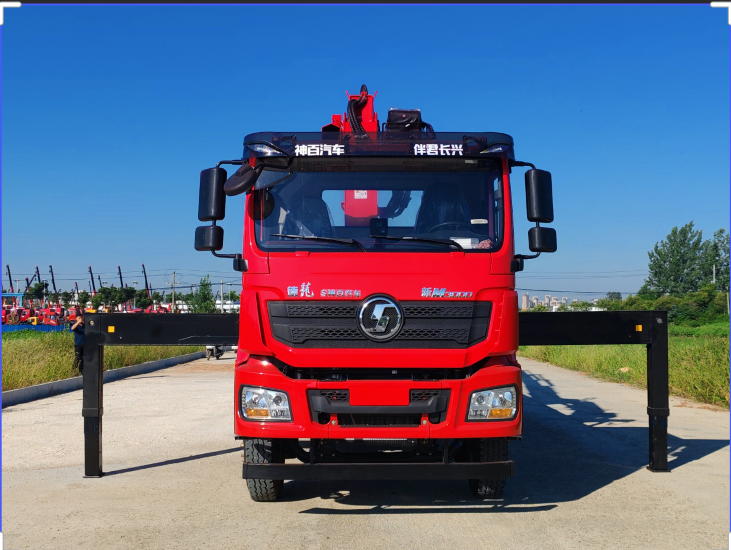

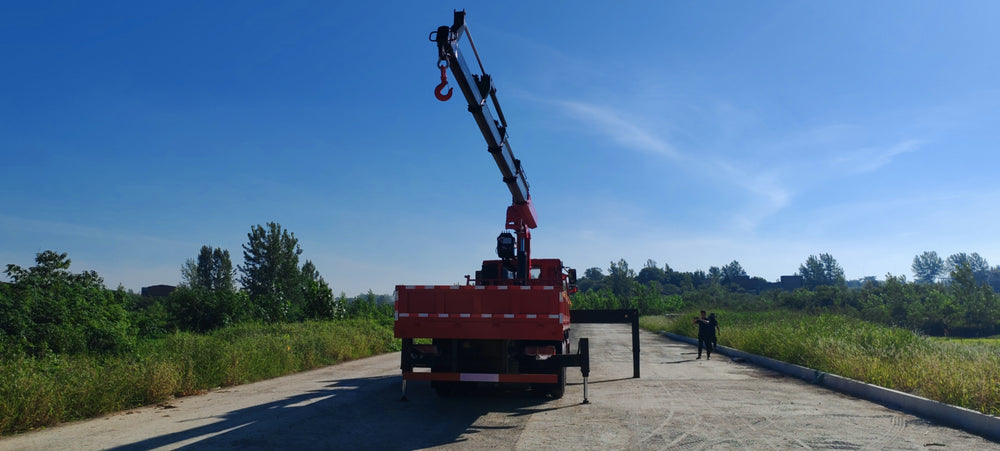

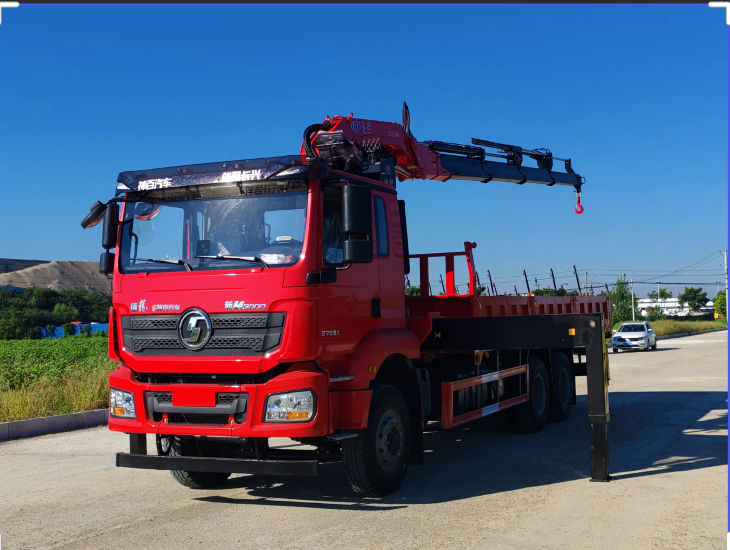

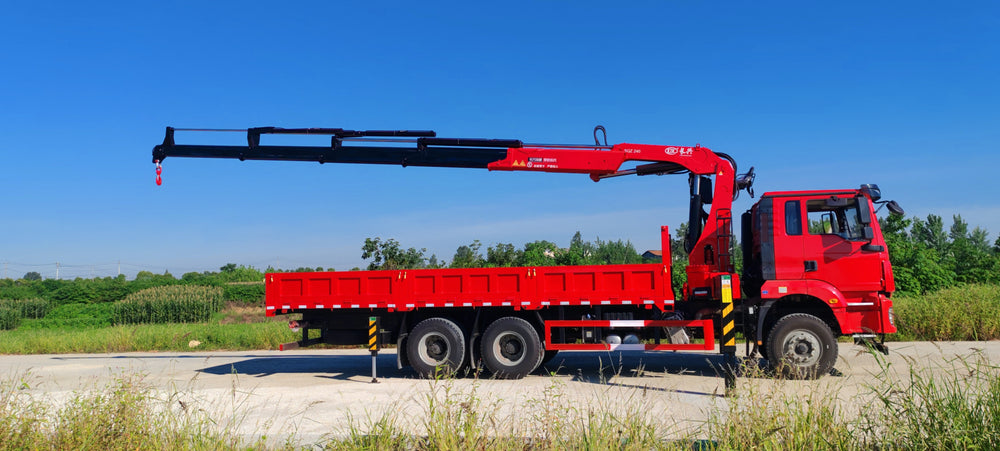

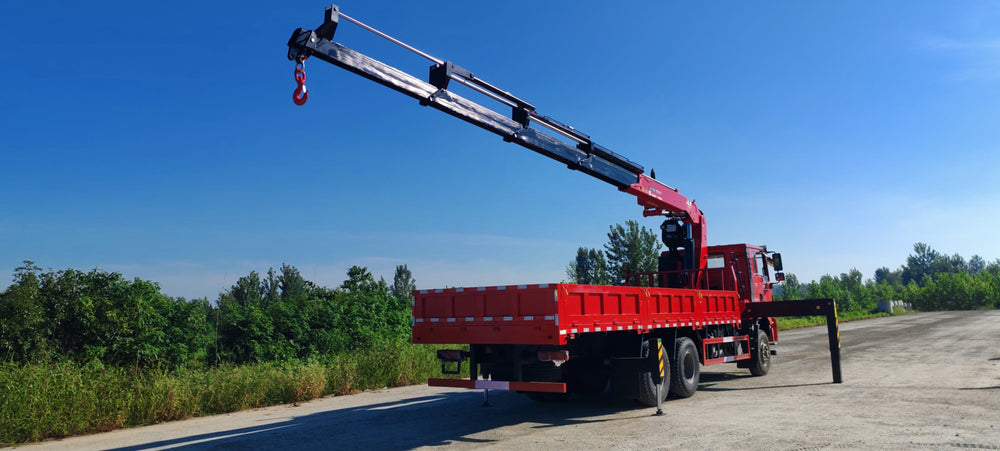

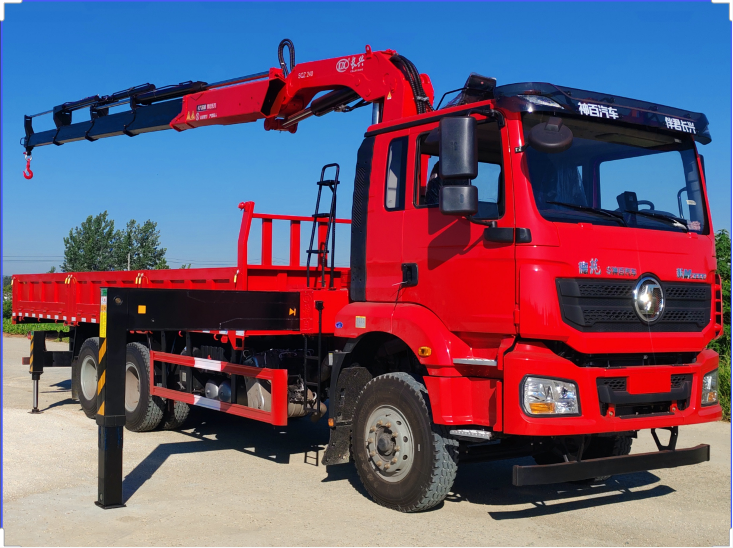

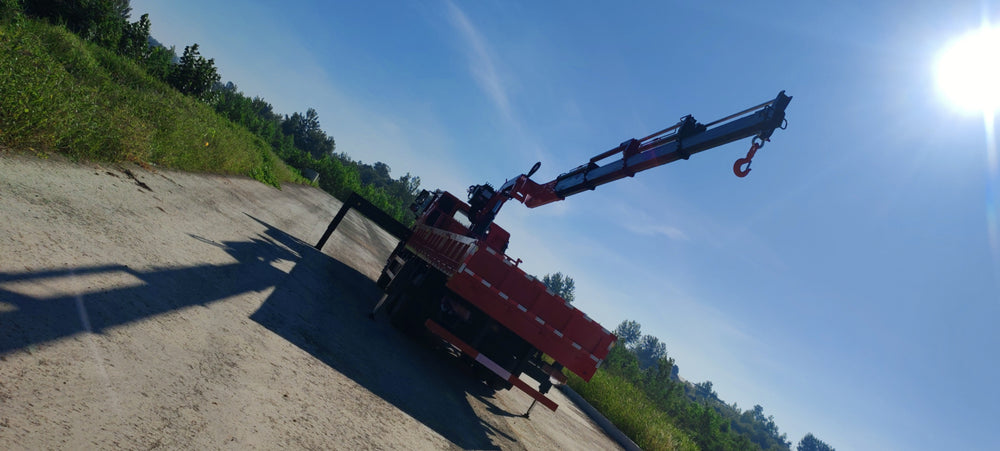

Shaanxi Automobile Delong 12-ton Knuckle Arm Truck Crane

Overall vehicle size and performance
Chassis Brand	Howo 6x4
Driving type	left-hand drive
Total vehicle weight	25 tons
curb weight	16.5 tons
Rated effective load	8.5 tons
Overall vehicle dimensions	12000 × 2550 × 3880 mm
Cargo box dimensions	8200 × 2450 × 600 mm
Chassis parameters
engine	WP7H270E68
horsepower	270 horsepower
Speed gearbox	Fast 9JS119T-B 9-speed
wheelbase	5775+1400mm
axis	5.5 ton/11.5 ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	300 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	Changxing CXSQZ240
Maximum lifting capacity	12 tons
Maximum working radius	15 meters
Maximum lifting height	21 meters
boom type	6-section folding arm
Rotation angle	360° rotation
Crane weight	3.6 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
