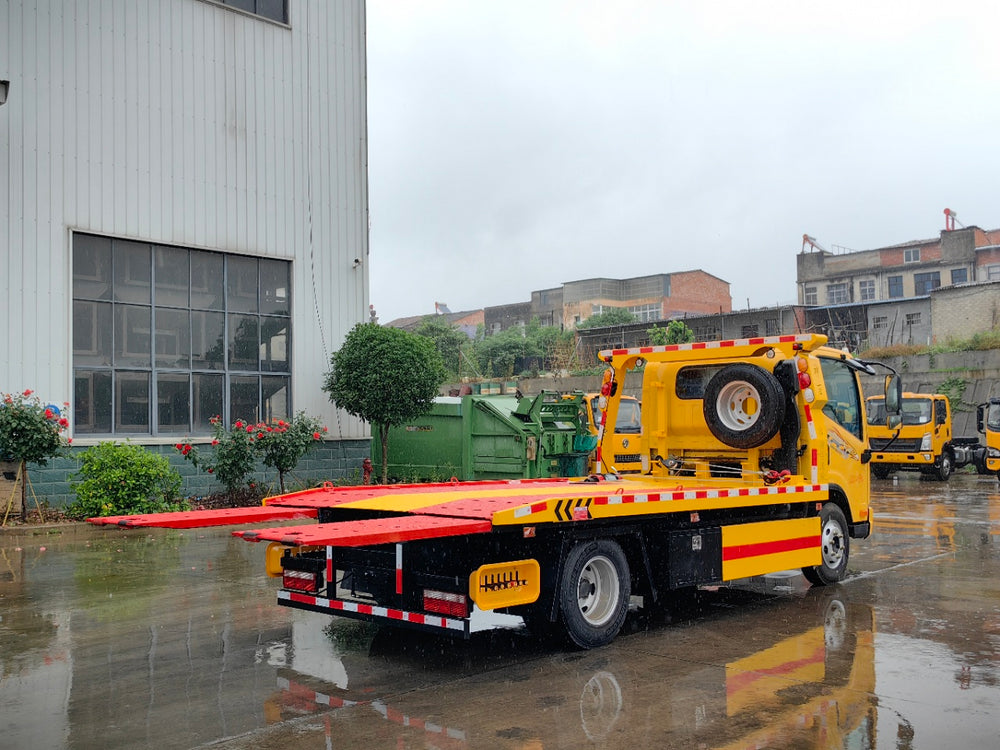

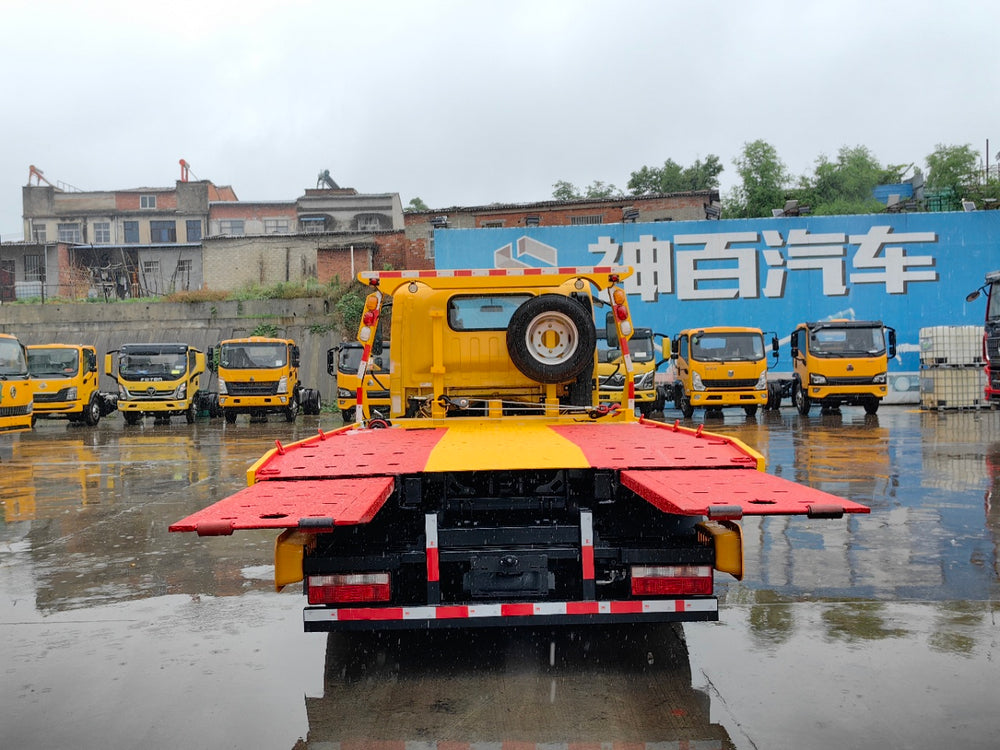

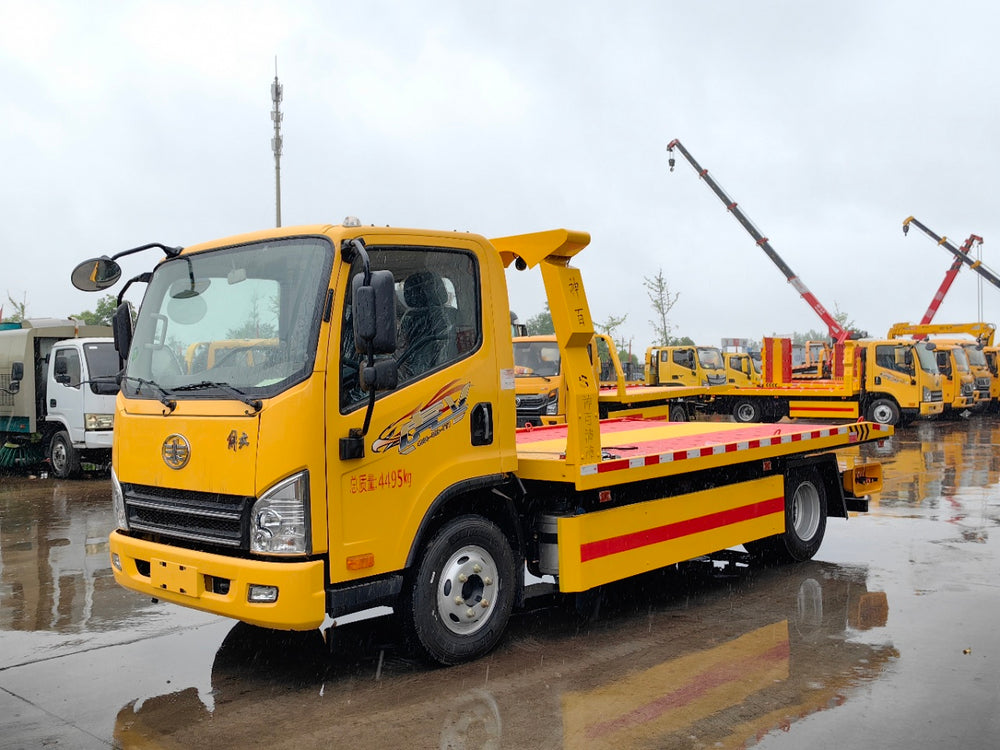

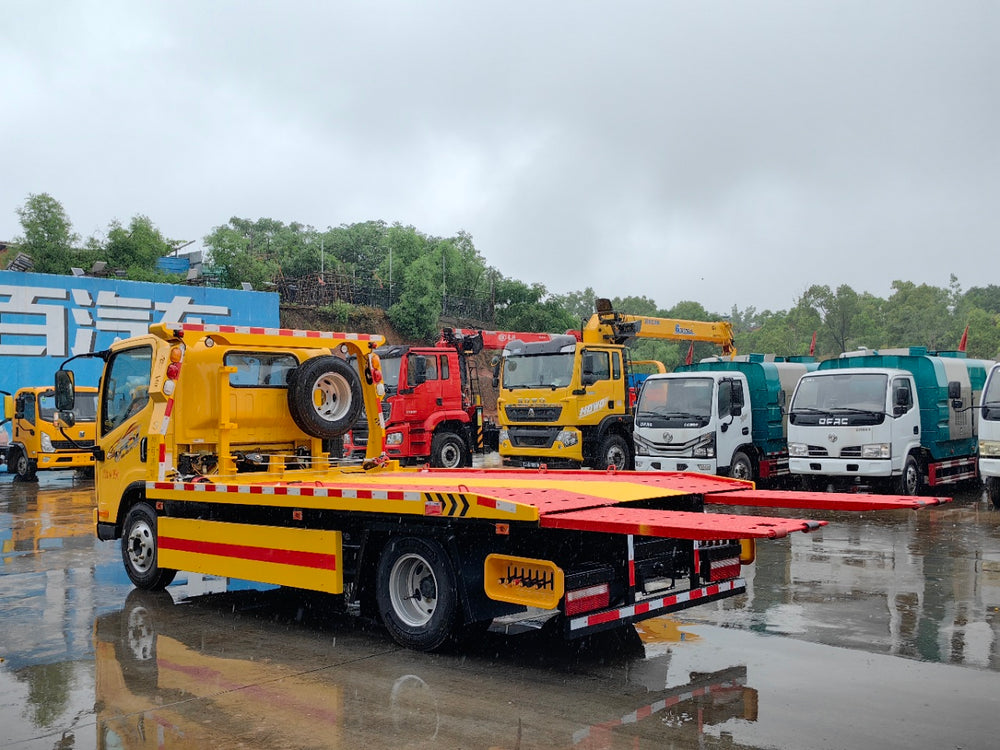

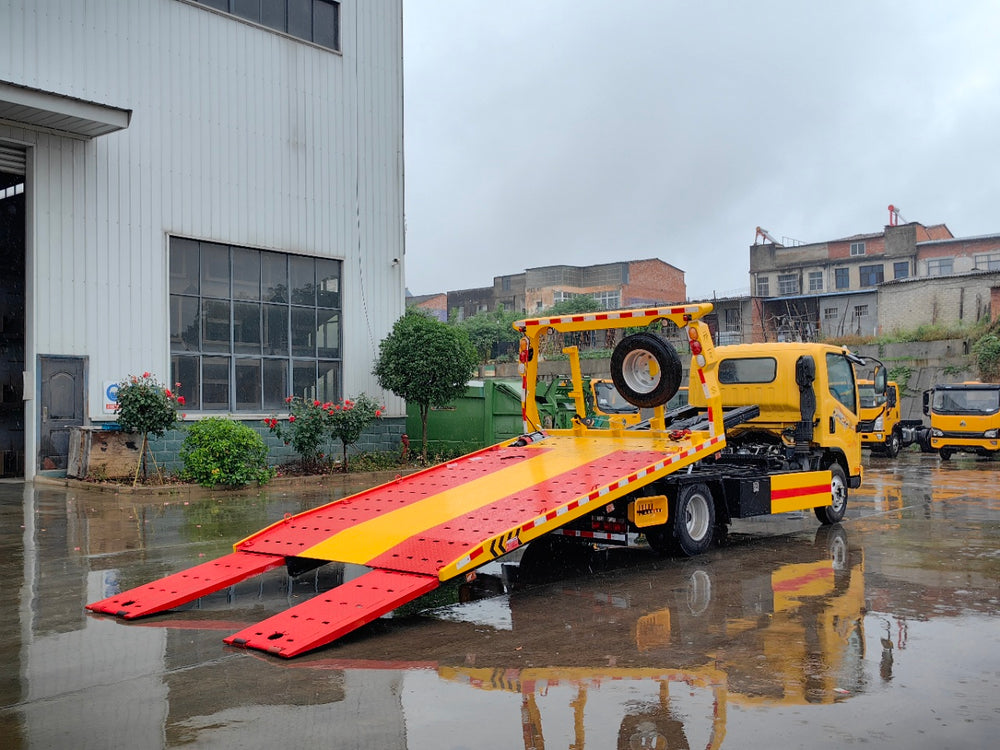

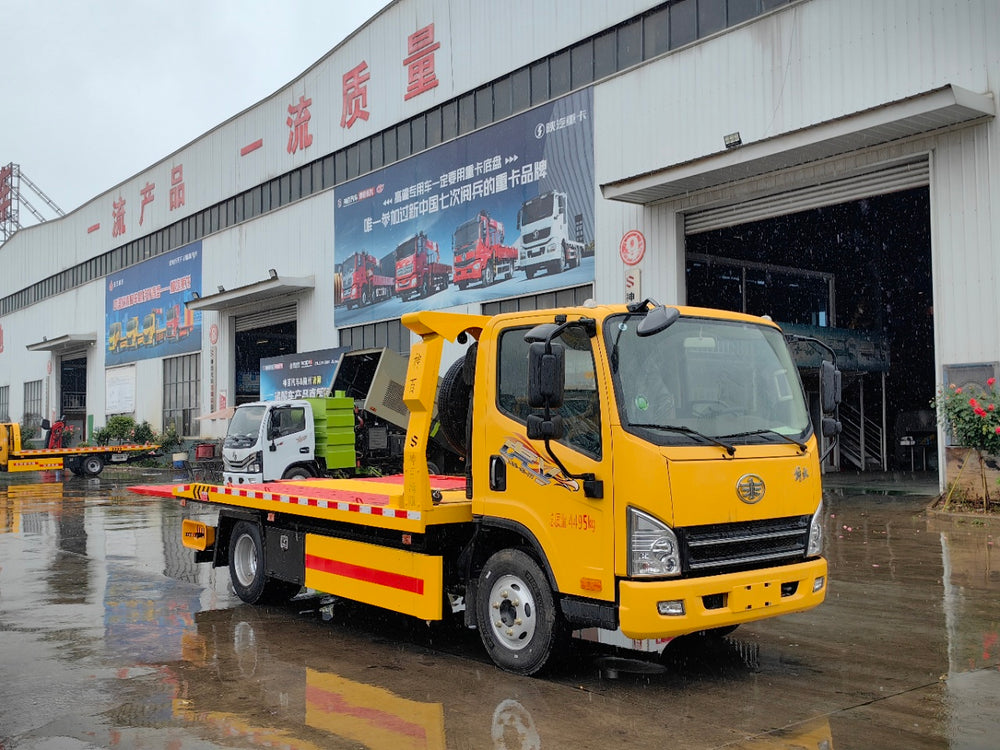

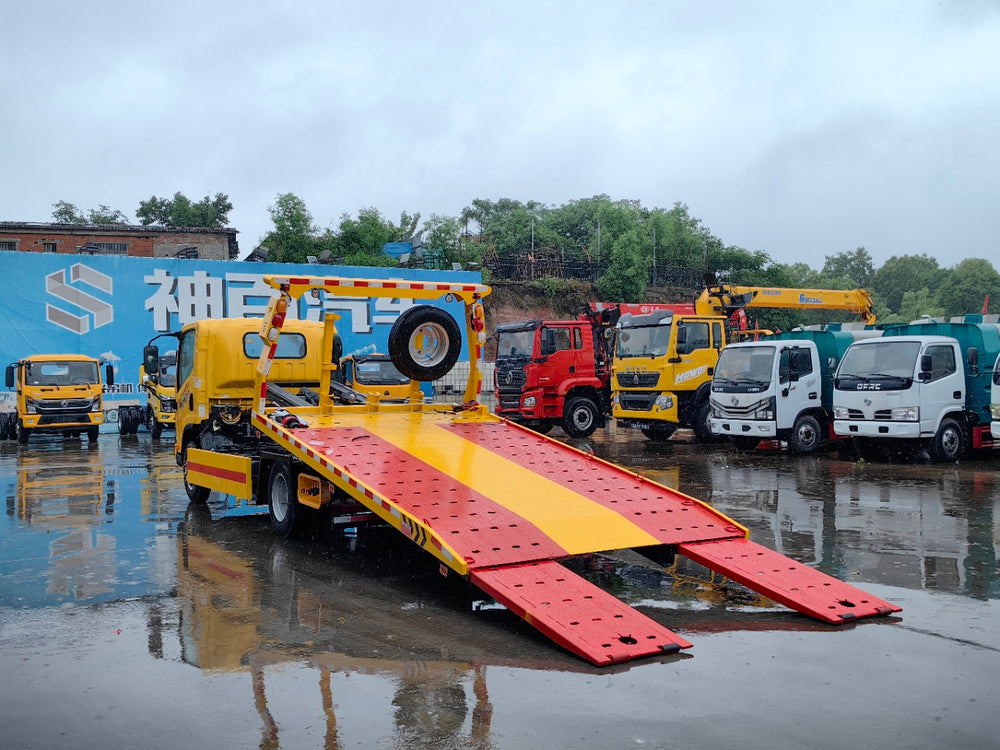

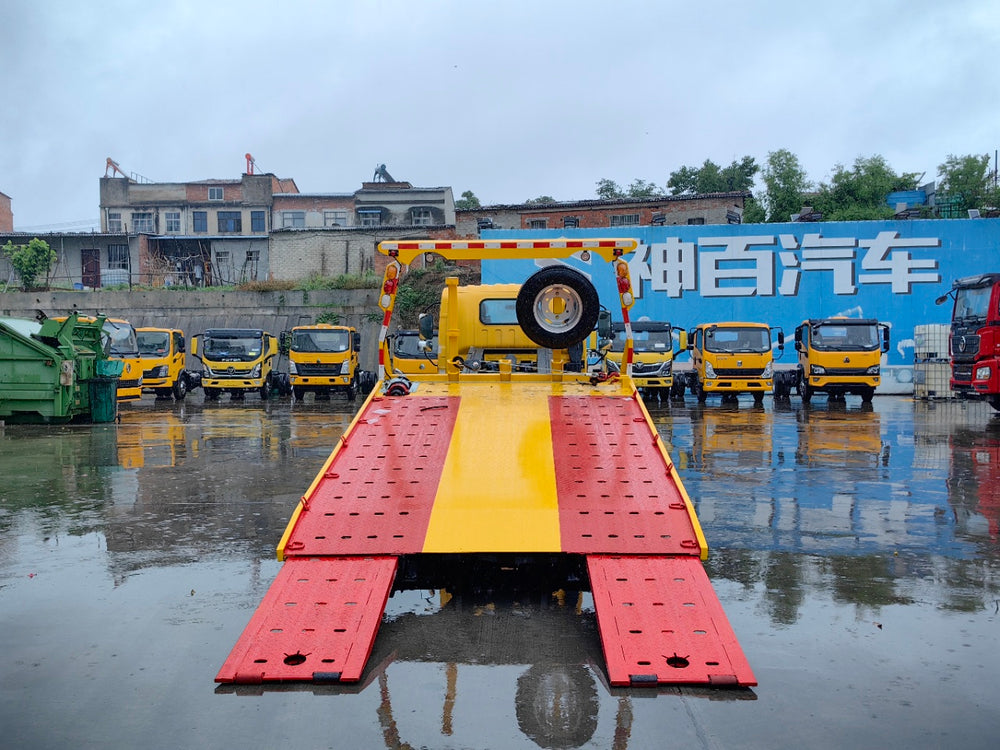

Jiefang 5.5 meter tow truck (telescopic ramp)

Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
1 / 8
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
Jiefang 5.5 meter  tow truck (telescopic ramp)
I. Basic Vehicle Parameters
Vehicle Type Blue License Plate Flatbed Wrecker Truck (Telescopic Plate)
Vehicle Brand Jiefang Hu V
II. Chassis Core Parameters
Cab Jiefang Hu V Medium-body Cab
Engine Model Xichai 150HP Engine
Gearbox Model Wanliyang 6-speed Gearbox
Wheelbase 3600mm
Tire Specification 700 Steel Wire Tire
Frame Specification Original Full-body Double-layer Frame
Seat Configuration Driver's Airbag Seat
Air Conditioning Configuration Original Air Conditioner
Steering Wheel Configuration Multi-function Steering Wheel
III. Upper Mounted Core Parameters
Upper Mounted Specification 6-ton Upper Mounted · Rear Telescopic Plate
Total Flatbed Length 5.5m
Flatbed Width 2.4m
Upper Mounted Process Sunken Process Manufacturing
Frame Specification Square Tube Frame
Flatbed Base Plate Material 4mm Thick High-strength Wear-resistant Pattern Steel Plate
Slideway Specification 8mm Thick Manganese Steel Reinforced Slideway
Under-plate Structure Grid Reinforcement, Triangular Inclined Support Reinforcement
Main Oil Cylinder Specification 95
Lifting Oil Cylinder Specification 95
Multi-way Valve Brand Domestic Brand Hydraulic Multi-way Valve
Rear Outrigger Configuration Custom Hydraulic Hidden Rear Outriggers
Optional Configuration 4-ton Rear Tow Arm Can Be Added
IV. On-board Accessories Configuration
Accessory 1 One Pair of Triangular Tire Blocking Plates
Accessory 2 Four Binding Belts
Accessory 3 One Pair of Auxiliary Trolleys
Accessory 4 One Pair of Square Tire Holding Cylinders
Accessory 5 One Pair of Seven-shaped Forks
