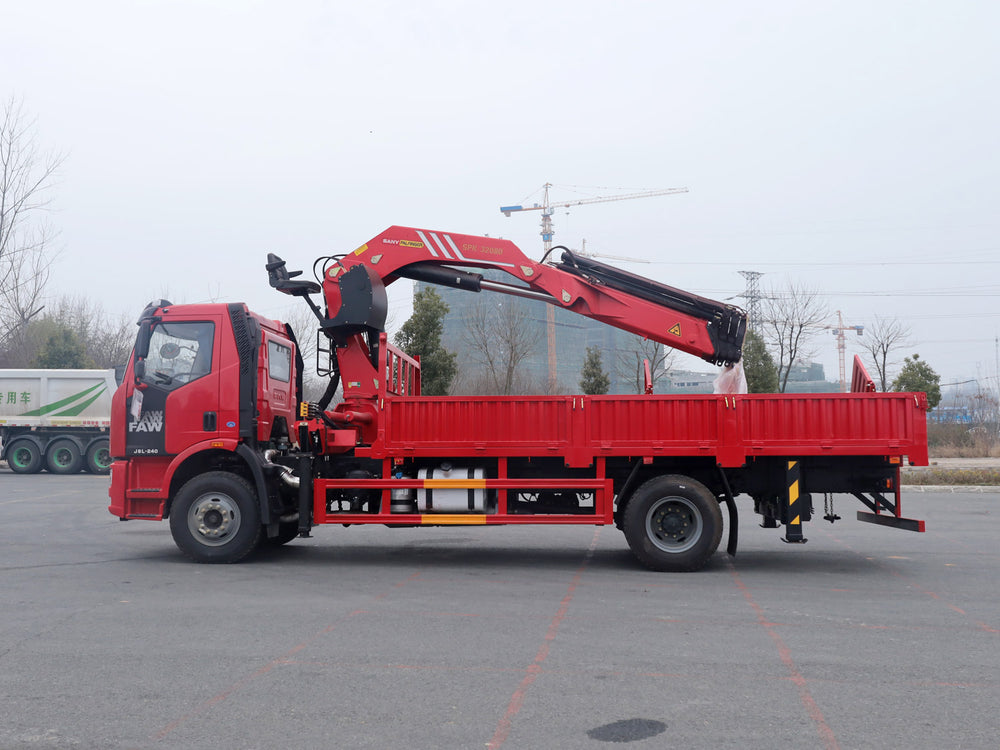

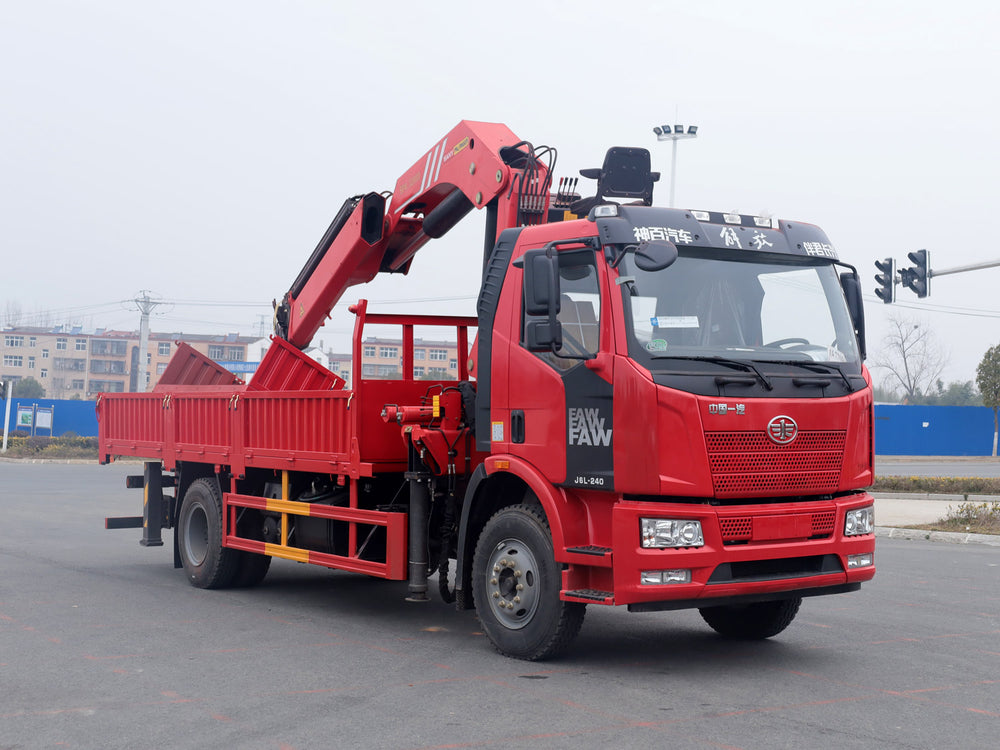

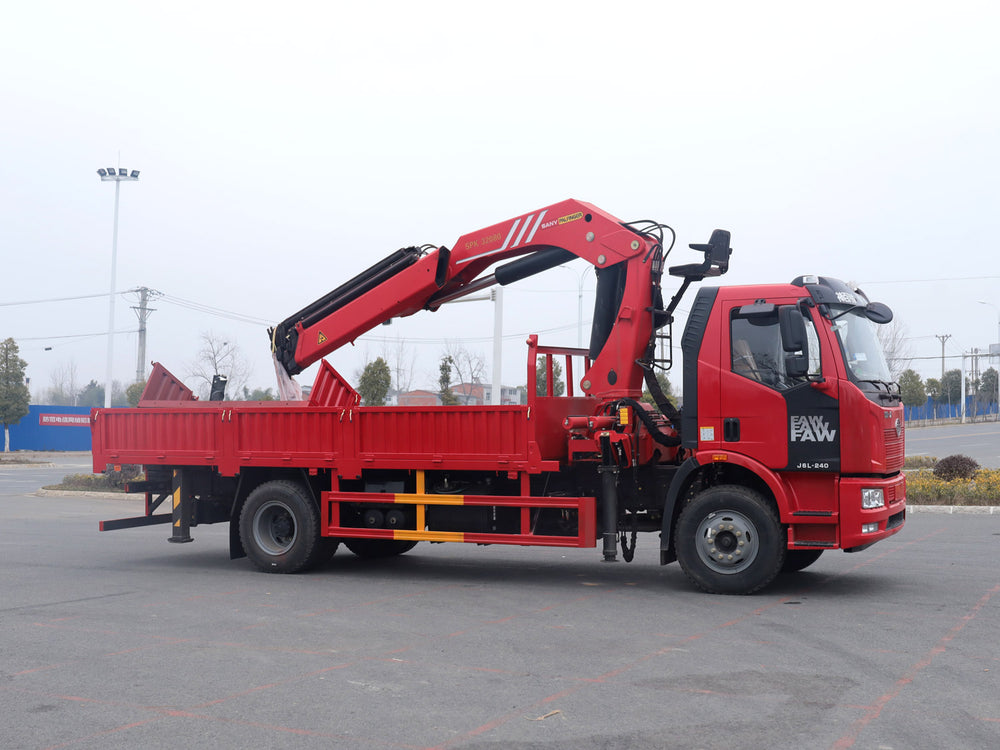

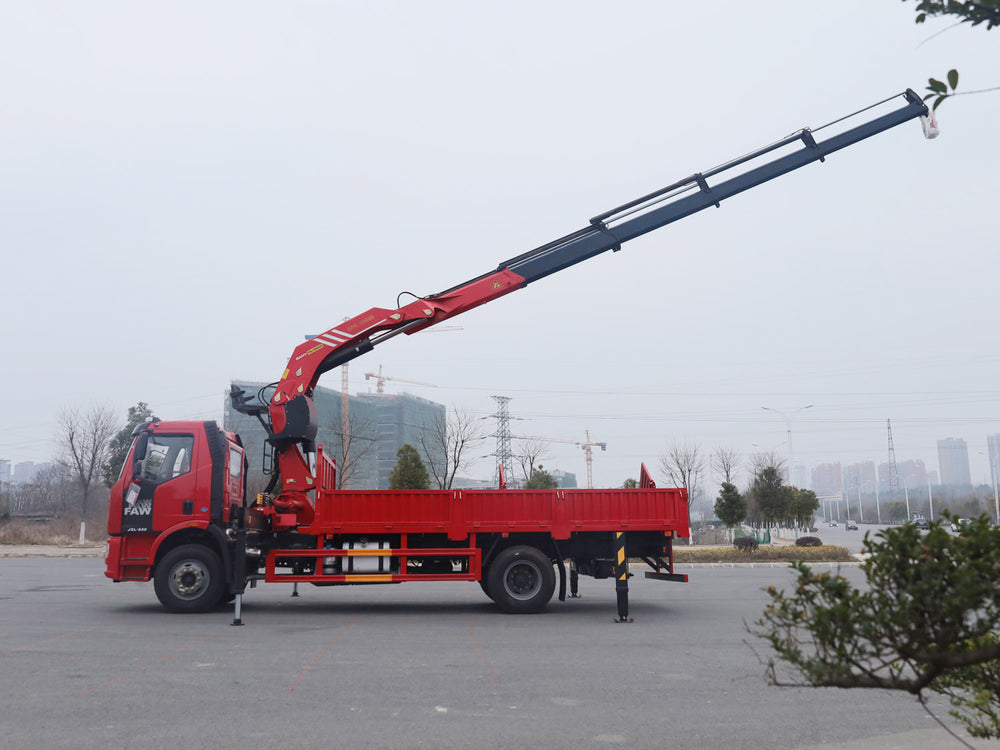

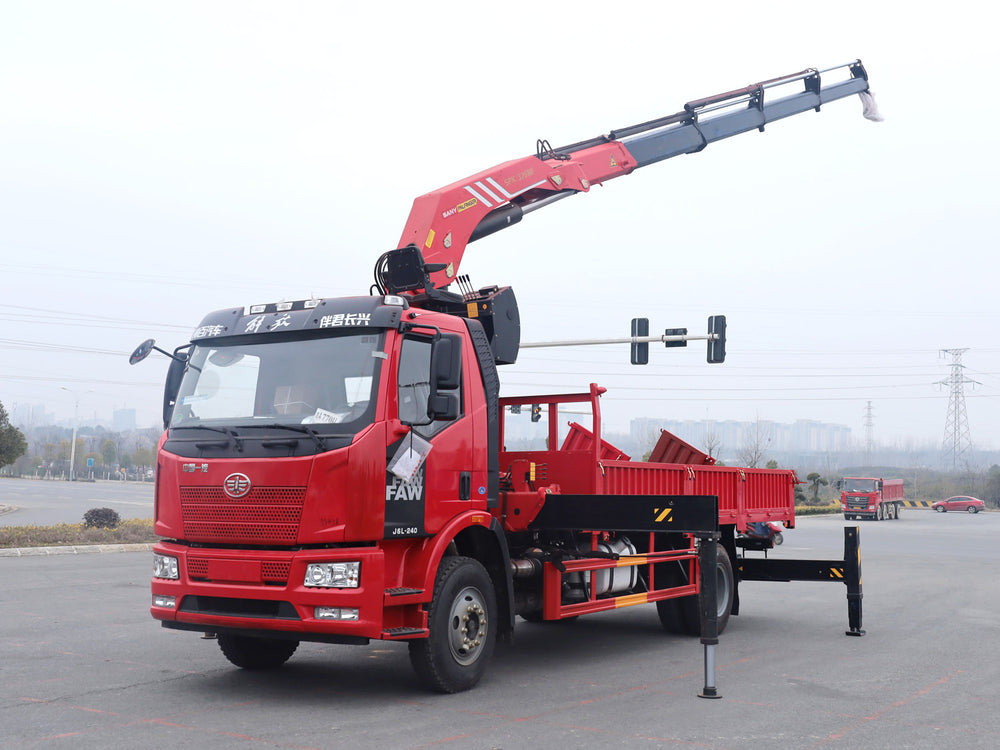

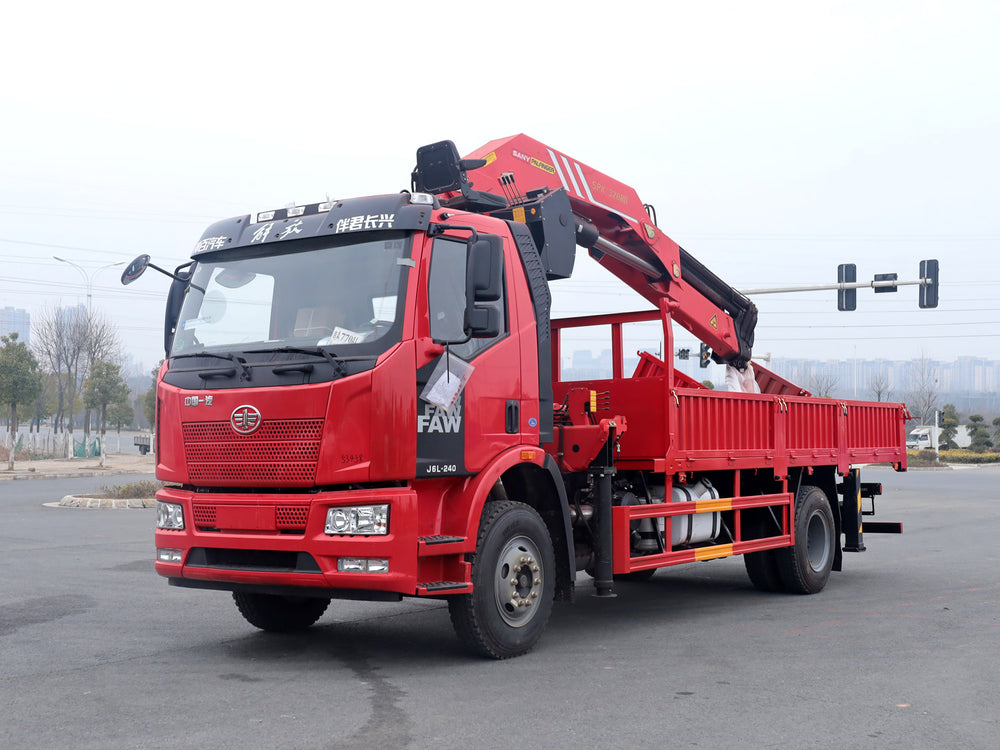

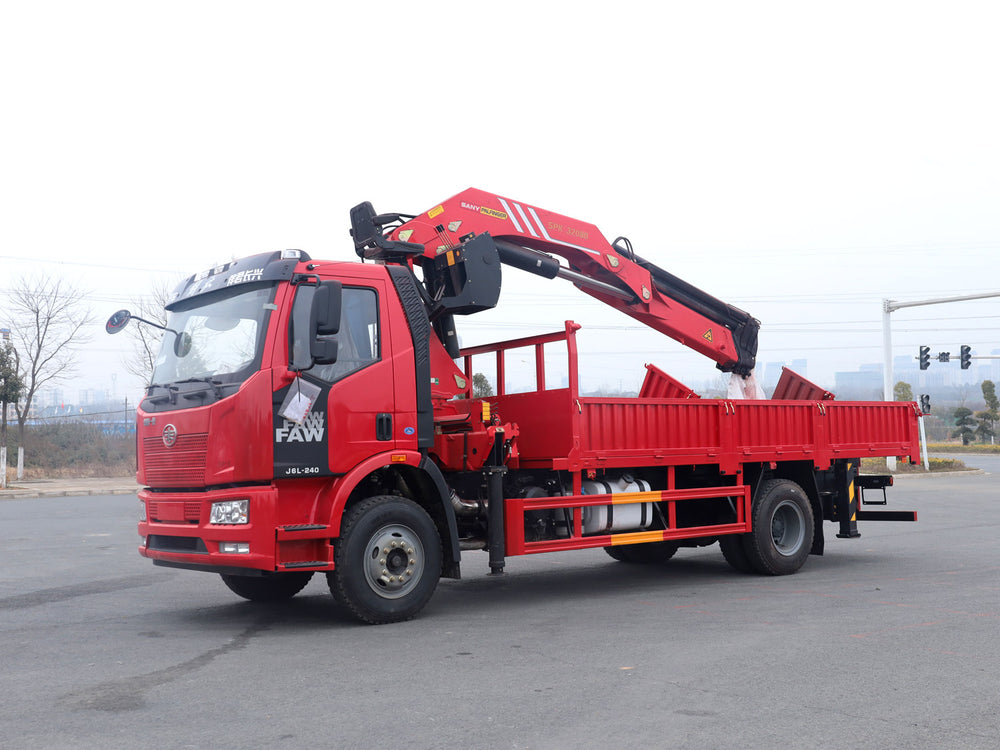

Jiefang single-row Sany 16-ton folding boom crane

Overall vehicle size and performance
Chassis Brand	Jiefang
Driving type	4x2 left-hand drive
Total vehicle weight	18 tons
curb weight	7.8 tons
Rated effective load	9.5 tons
Overall vehicle dimensions	9000×2500×3800mm
Cargo box dimensions	7000×2500×550mm
Chassis parameters
engine	CA6DK1-22E6
horsepower	220 horsepower
Speed gearbox	CA6T138 6-speed manual
wheelbase	5300mm
axis	6 ton/10 ton
Emission standards	Euro 6
Tire type and size	275/70R22.5 18PR
fuel tank	300 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	SPS40000C-PRO
Maximum lifting capacity	16 tons
Maximum working radius	18 meters
Maximum lifting height	21.5 meters
boom type	5-section folding arm
Rotation angle	360° rotation
Crane weight	4.8 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
