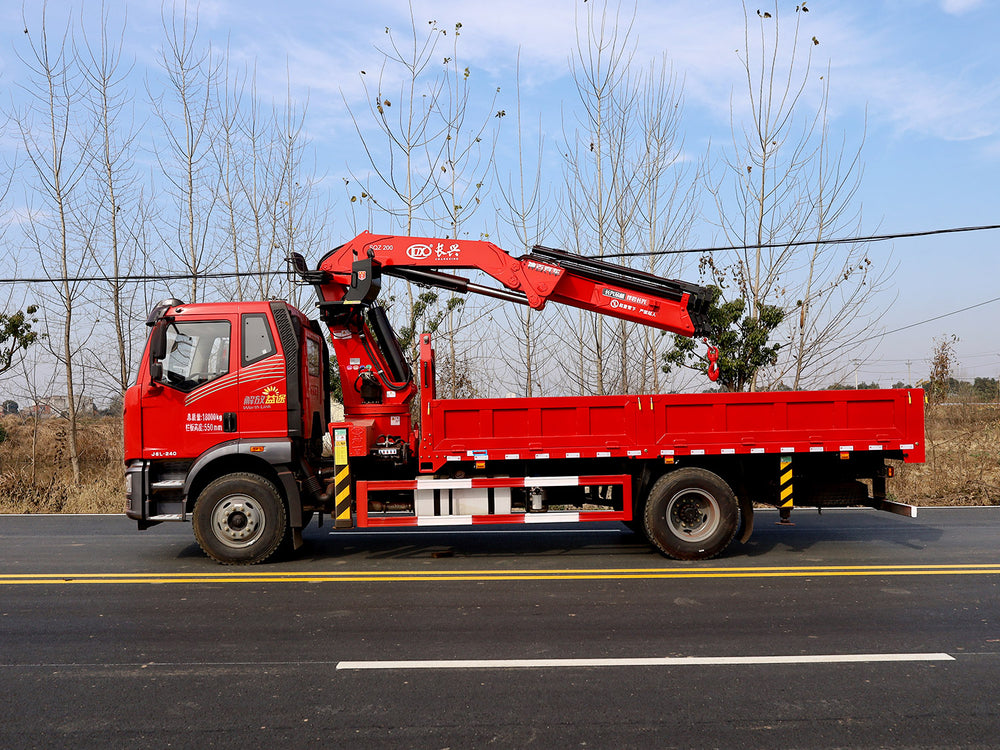

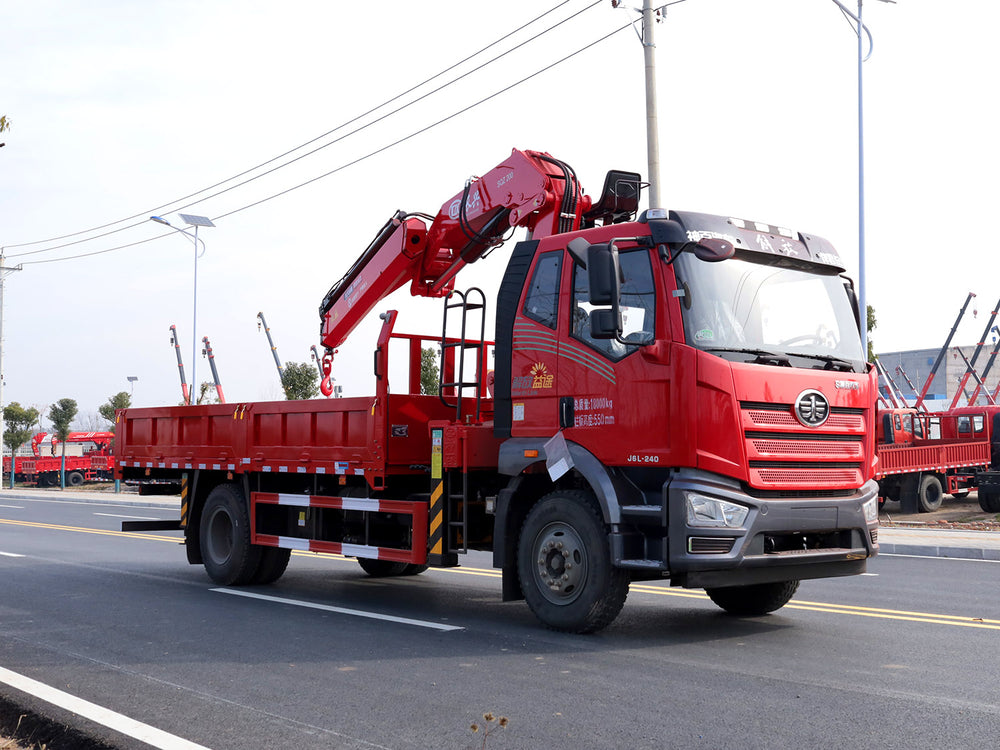

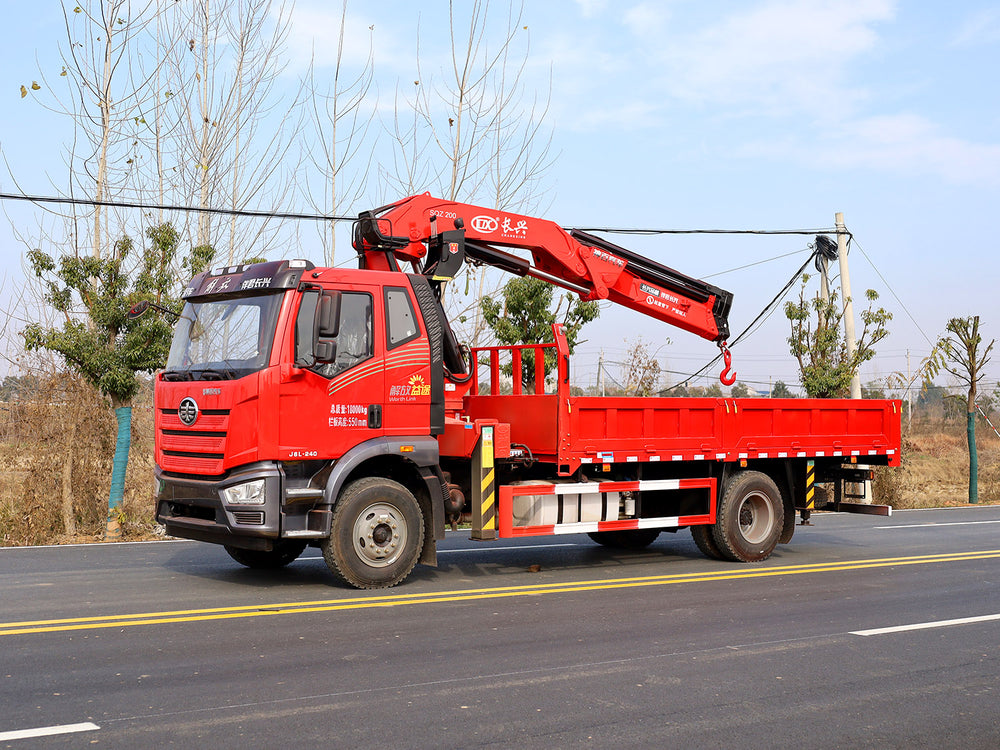

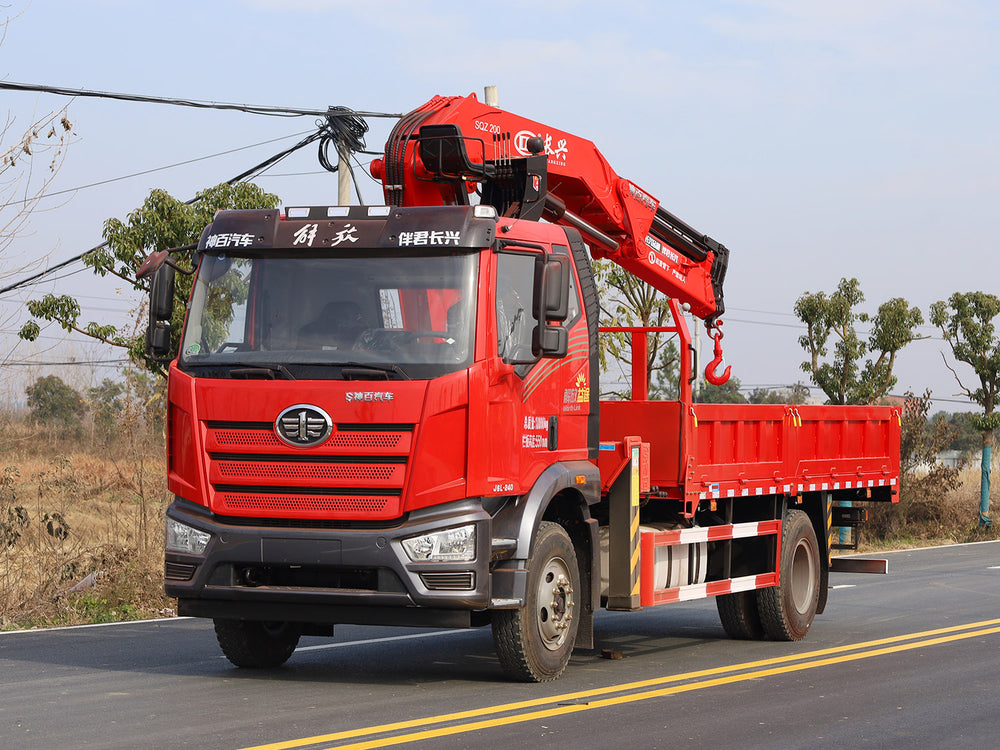

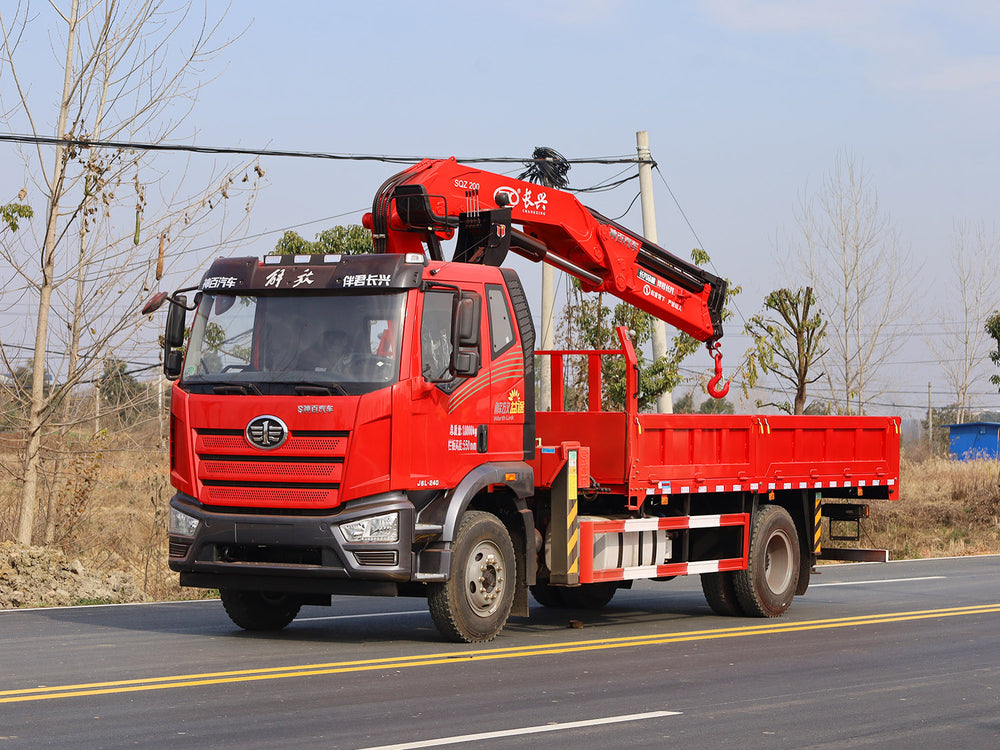

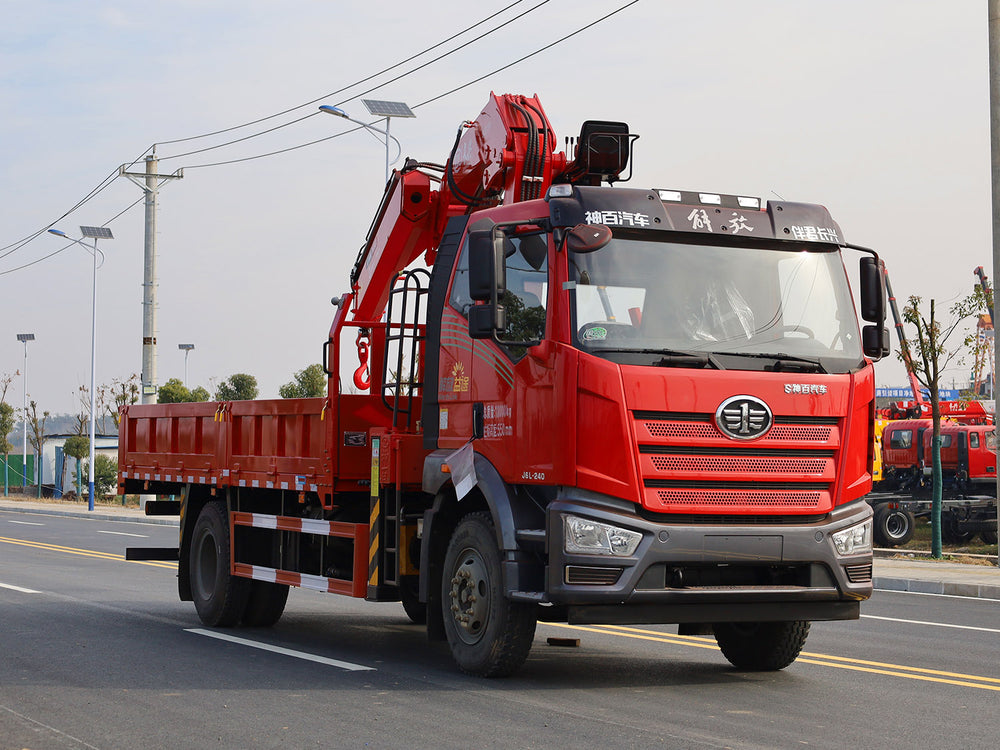

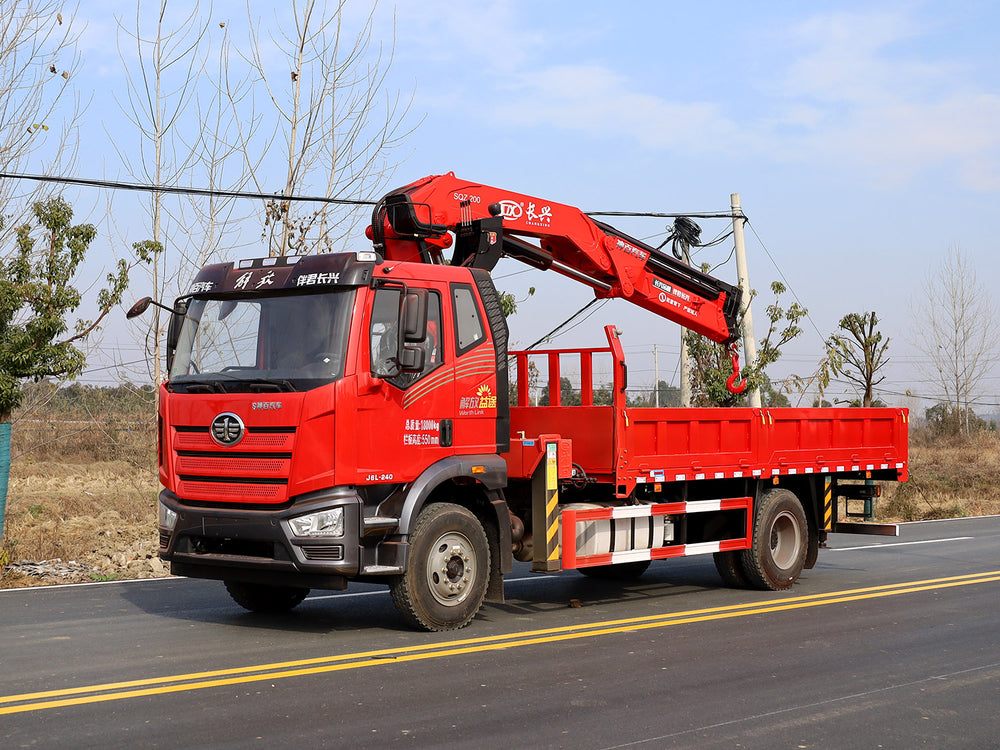

Jiefang J6L Changxing 10-ton Knuckle Arm Truck Crane

Overall vehicle size and performance
Chassis Brand	Jiefang 4x2
Driving type	left-hand drive
Total vehicle weight	18000 kg
curb weight	11500 kg
Rated effective load	6500 kg
Overall vehicle dimensions	9000×2500×3800mm
Cargo box dimensions	6800×2450×550 mm
Chassis parameters
engine	CA6DH1-26E65
horsepower	260 horsepower
Speed gearbox	CA8TAX100AFS 8-speed manual
wheelbase	5300mm
axis	6.5 ton/10 ton
Emission standards	Euro 6
Tire type and size	10.00R20 18PR
fuel tank	300 liters
Top speed	90 km/h

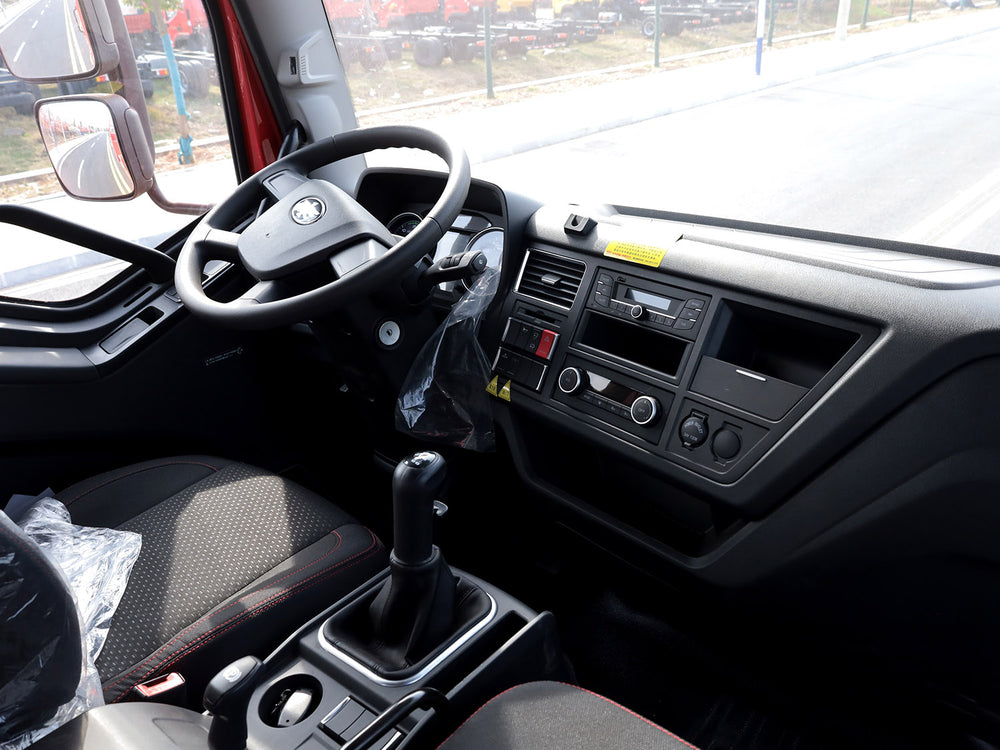

other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	CXSQZ200
Maximum lifting capacity	10 tons
Maximum working radius	11.5 m
Maximum lifting height	14.6 m
boom type	4-section folding arm
Rotation angle	360° rotation
Crane weight	3.3 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
