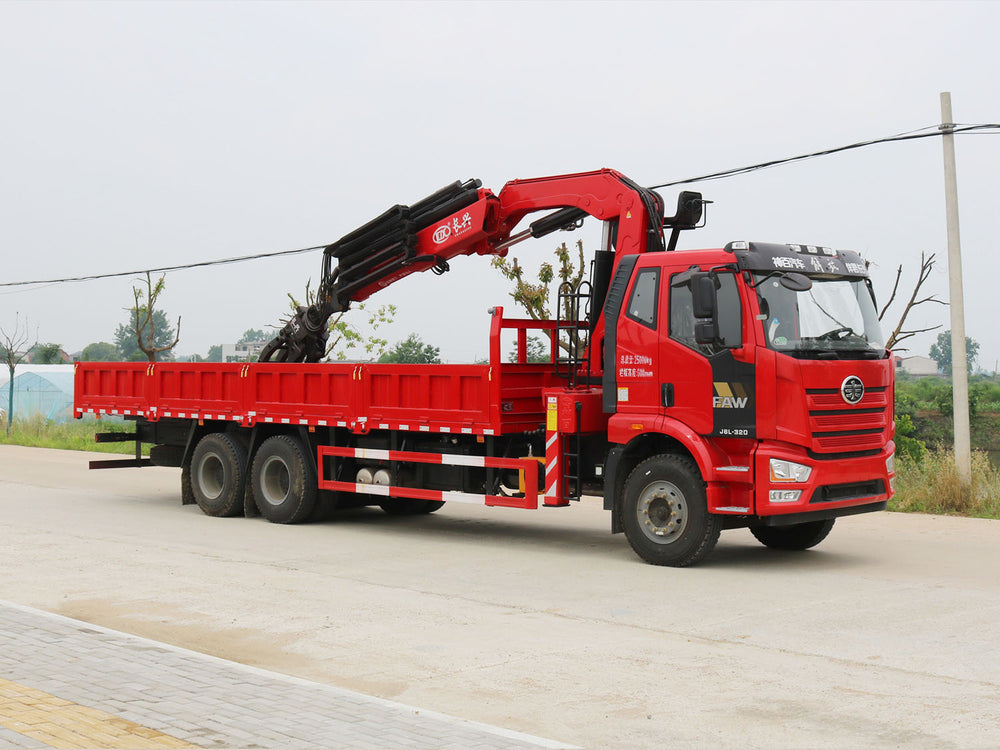

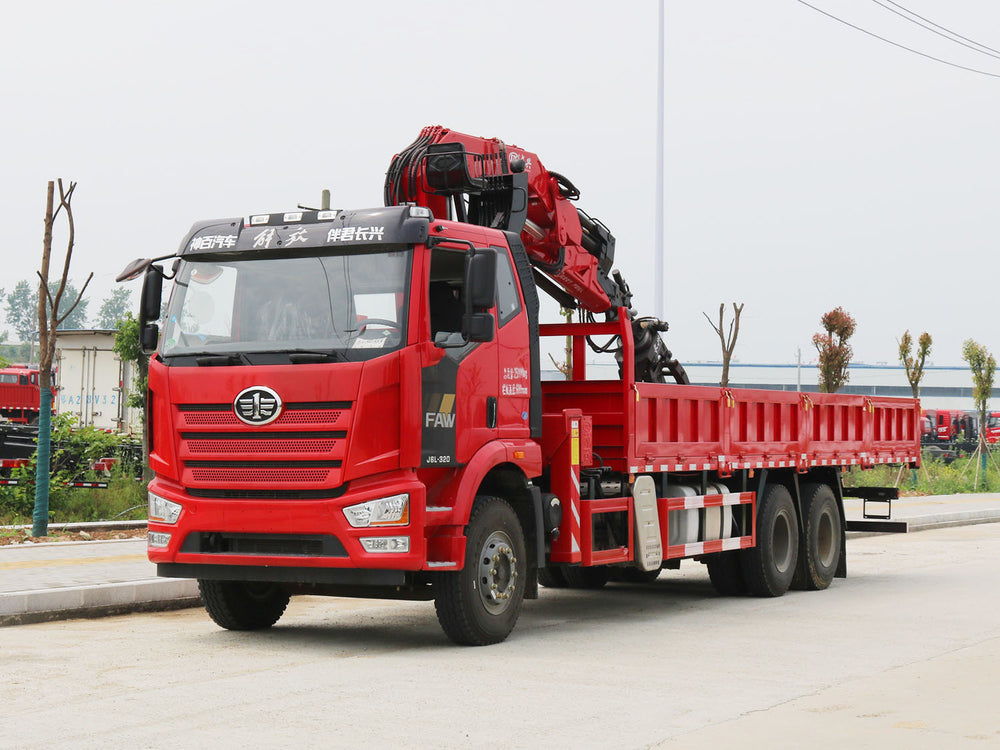

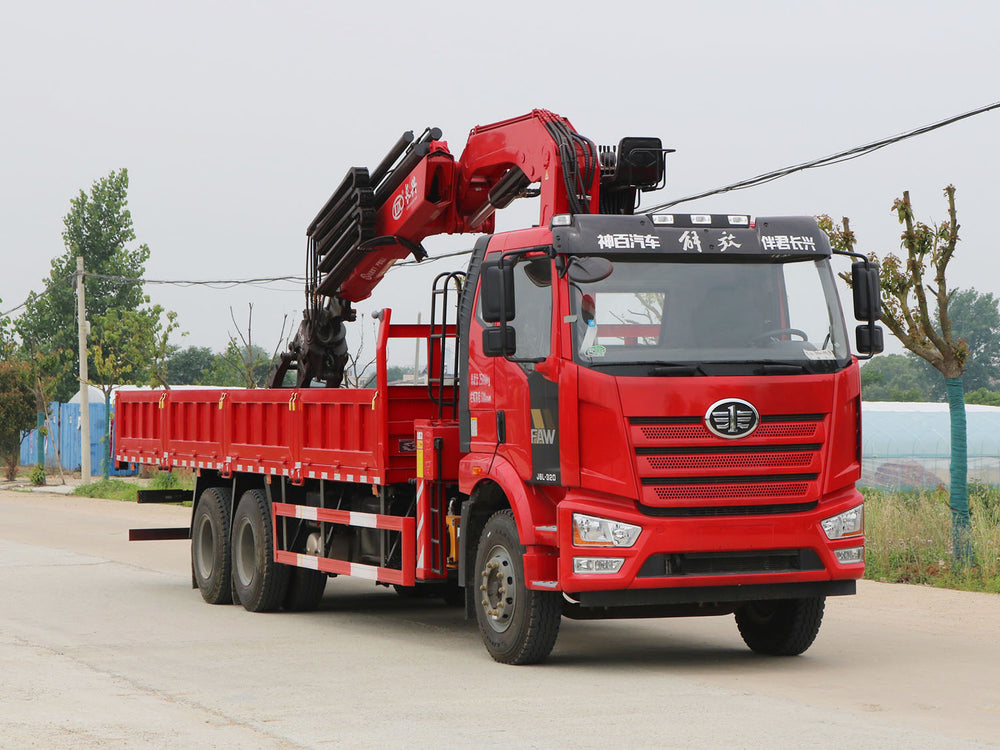

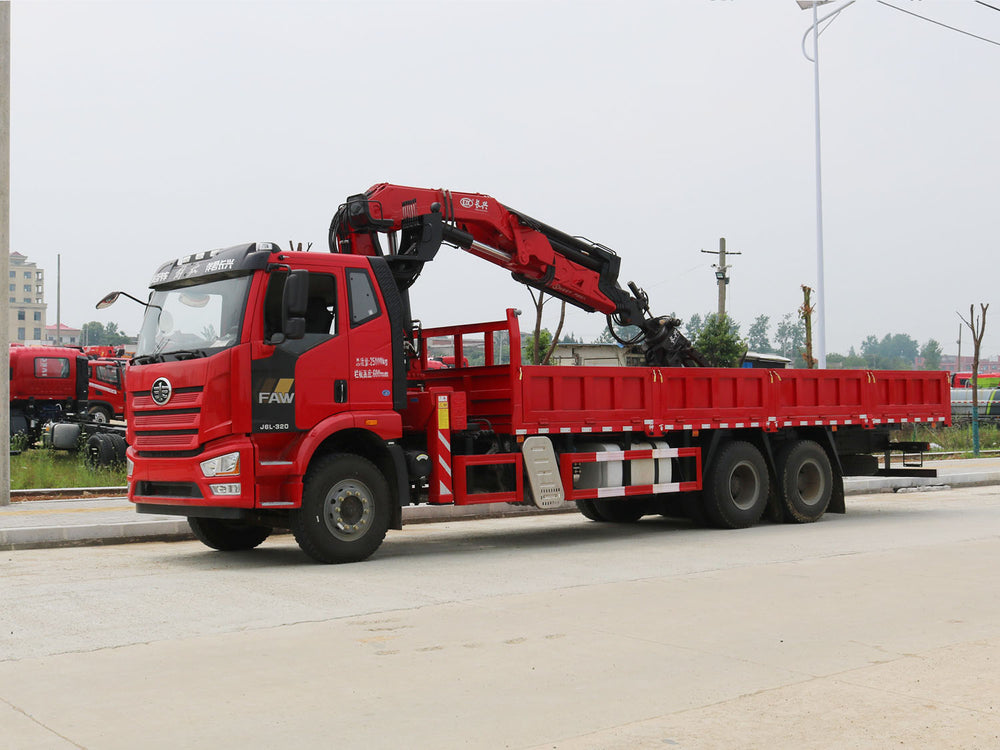

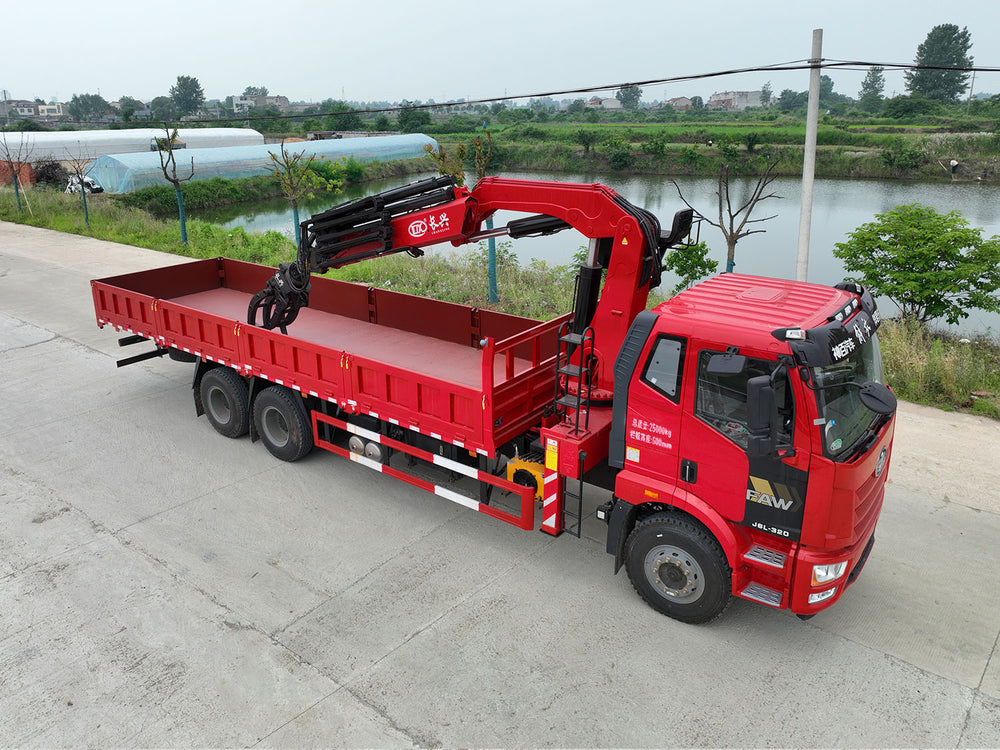

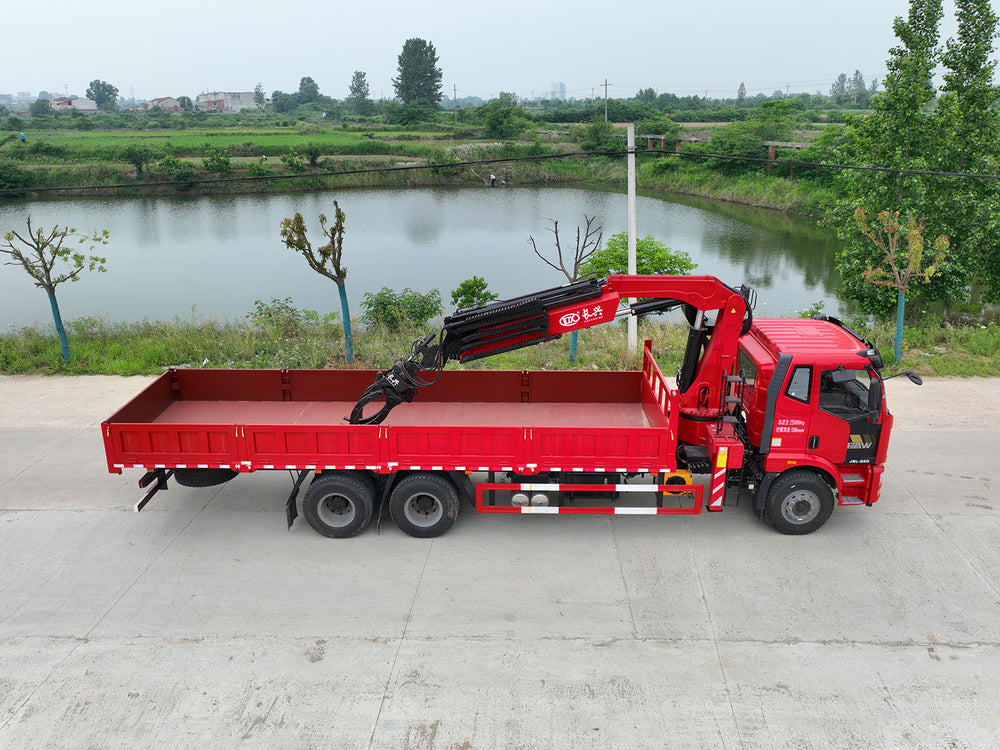

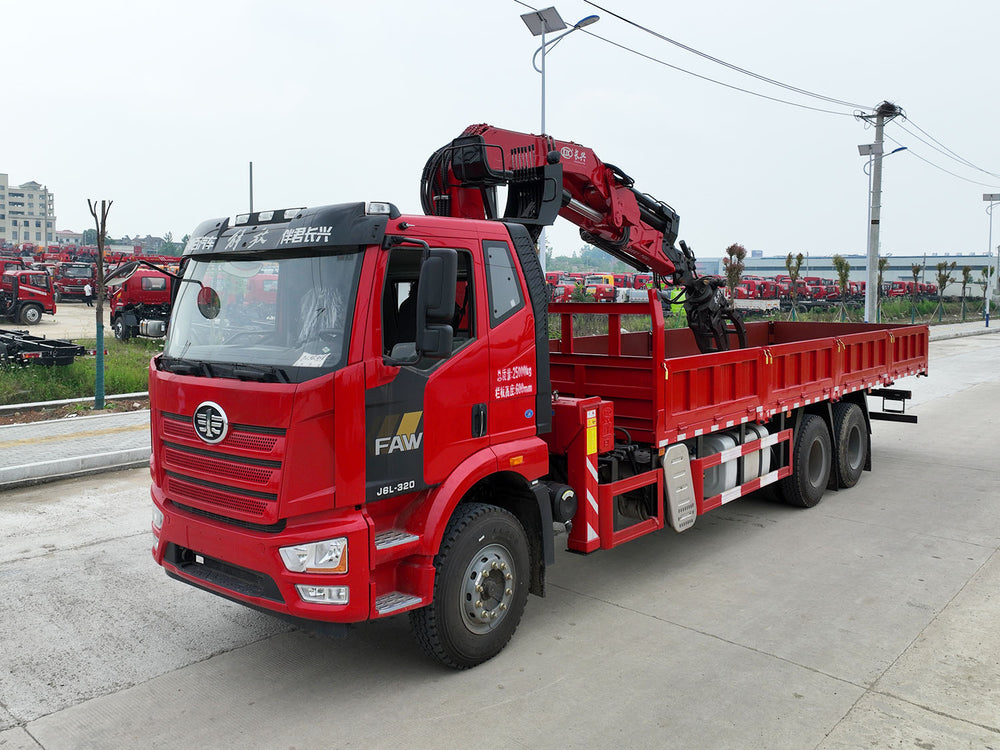

Jiefang J6L 6*4 Changxing 16-ton Knuckle Arm Crane

Overall vehicle size and performance
Chassis Brand	Jiefang 6x4
Driving type	left-hand drive
Total vehicle weight	25000 kg
curb weight	16500 kg
Rated effective load	8500 kg
Overall vehicle dimensions	12000×2550×3800 mm
Cargo box dimensions	8500×2450×550mm
Chassis parameters
engine	CA6DK2-32E65
horsepower	320 horsepower
Speed gearbox	CA10TA130M 10-speed manual
wheelbase	4800+1350 mm
axis	6.5 ton/11.5 ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	300 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	CXSQZ330
Maximum lifting capacity	16 tons
Maximum working radius	13.7 m m
Maximum lifting height	15.5 m
boom type	5-section folding arm
Rotation angle	360° rotation
Crane weight	4.5 tons
Hydraulic oil tank	200 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
