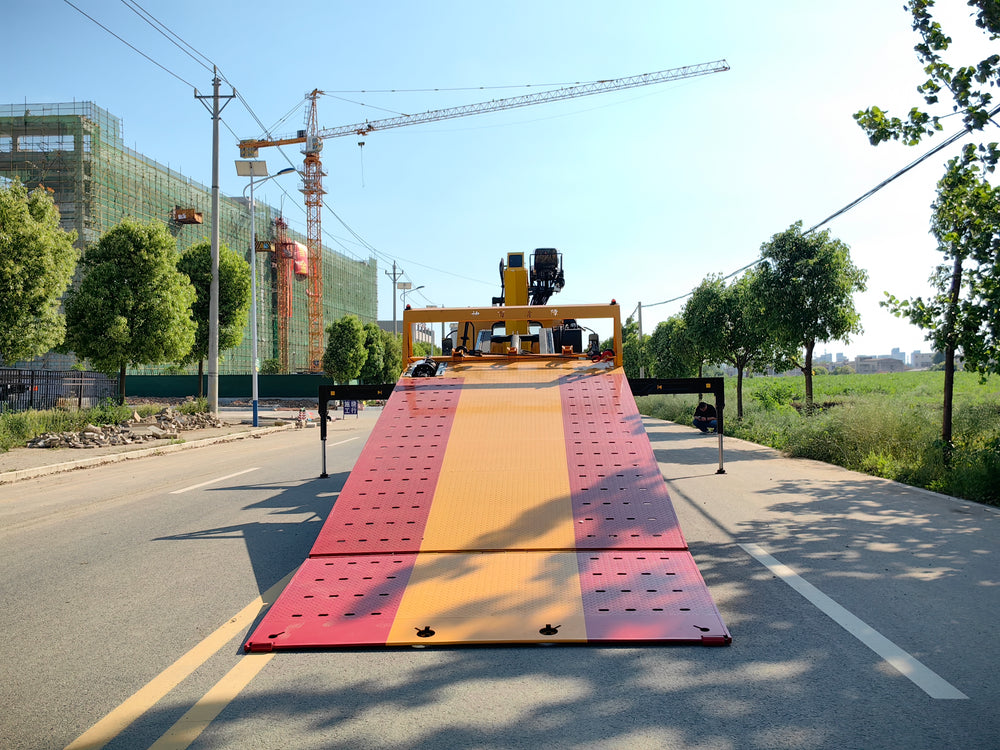

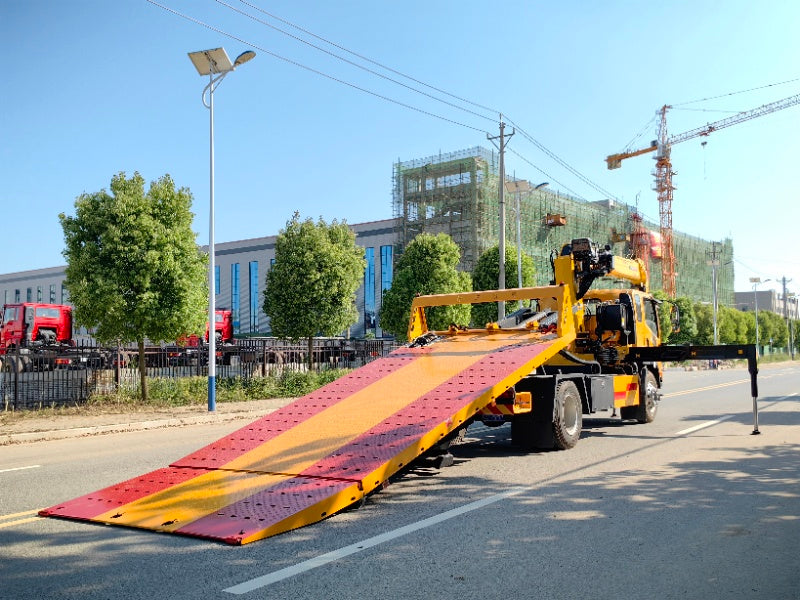

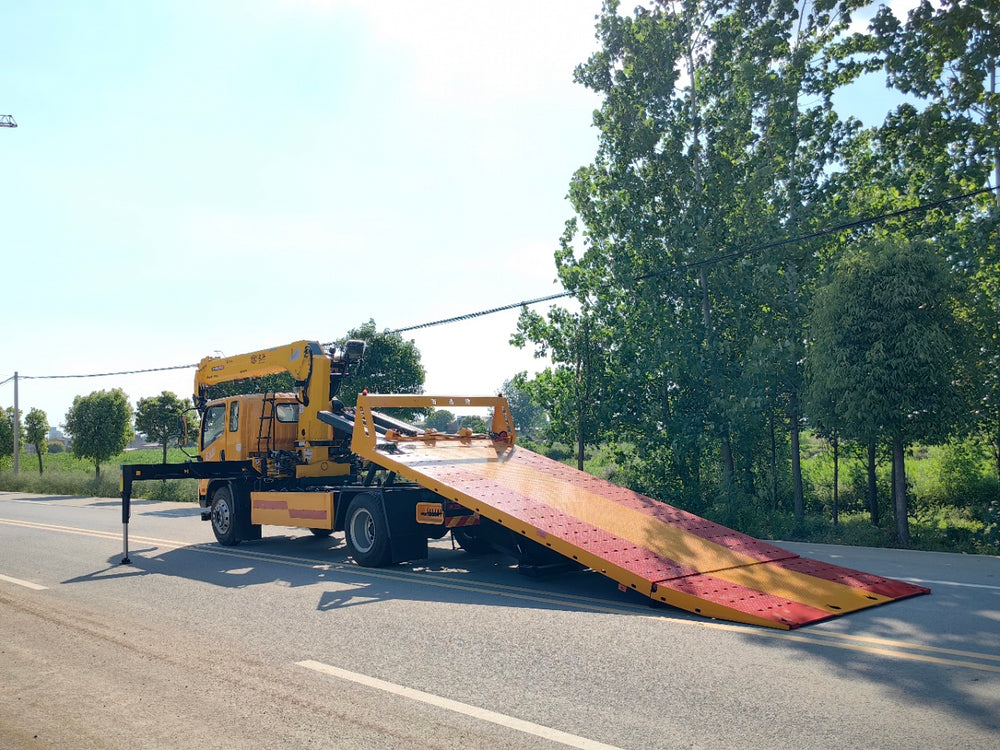

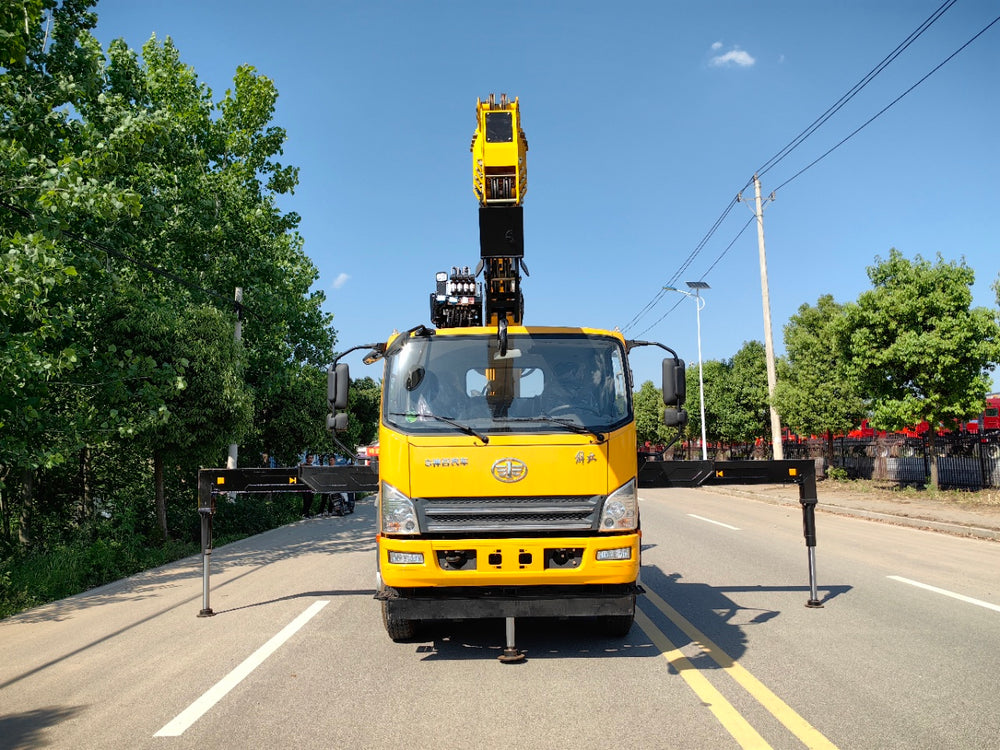

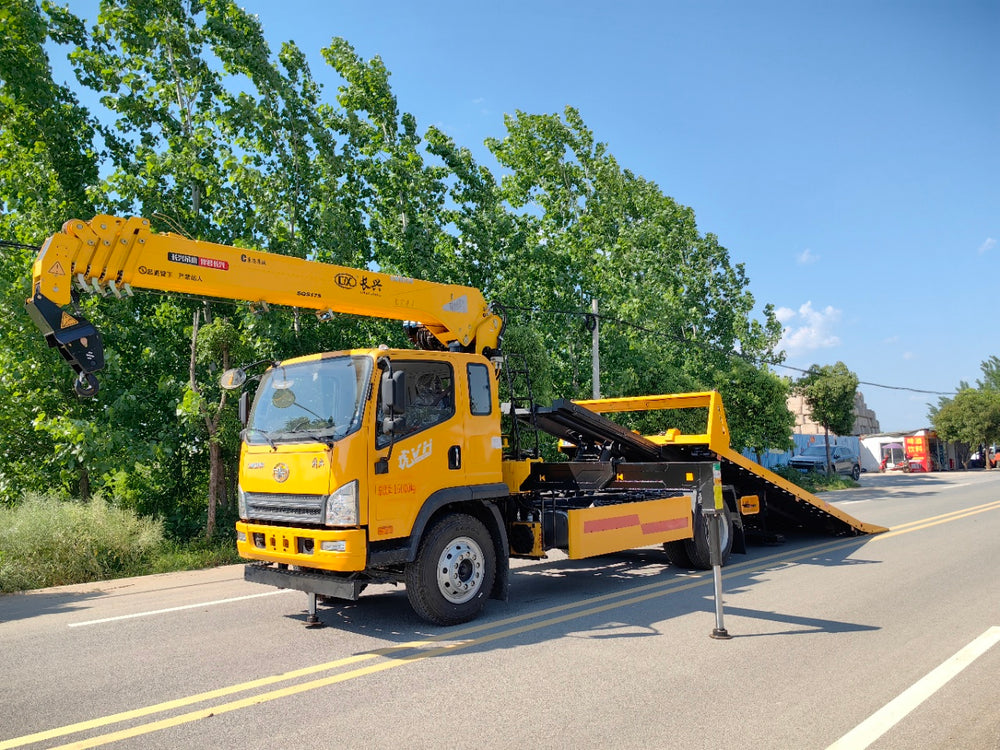

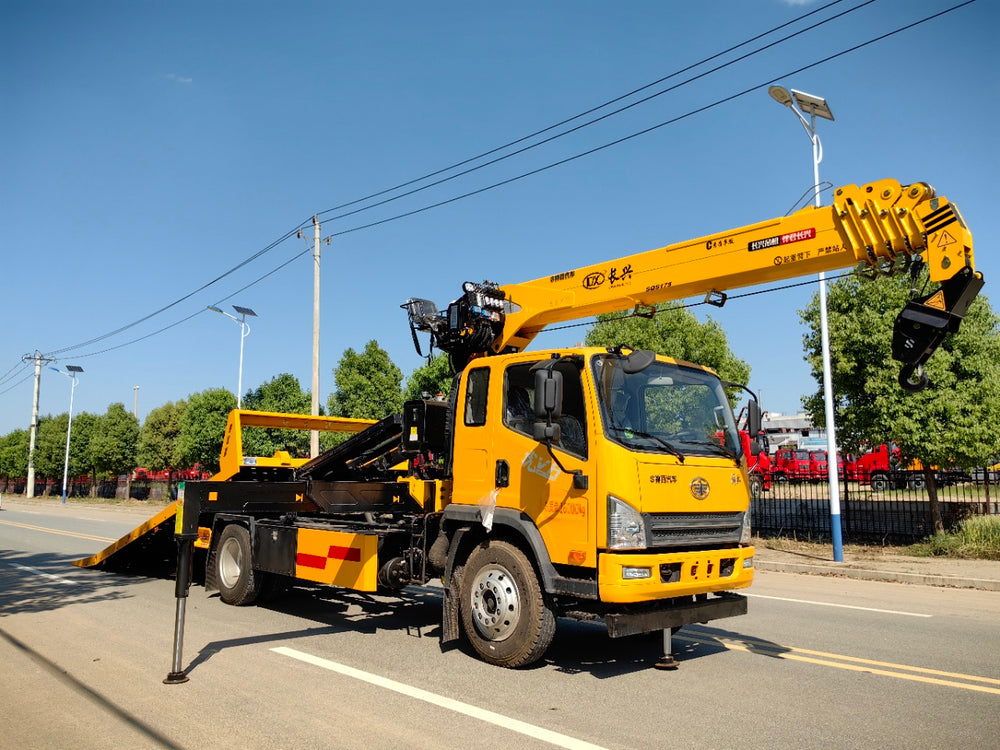

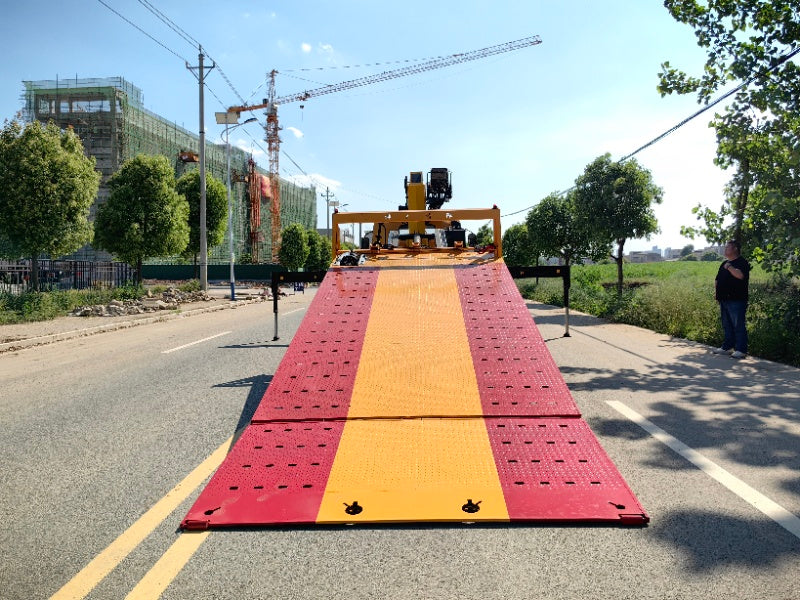

Jiefang 6.2 meter crane Wrecker truck

1 / 7

I. Basic Vehicle Information
Vehicle Name	Jiefang Hu VH Yellow Plate Wrecker with Crane
II. Chassis Configuration
Cab	Jiefang Hu VH Cab with Sleeper
Engine	Yuchai 180HP Engine
Wheelbase	4500mm
Gearbox	Fast 8-speed 8JS85C Gearbox with Overdrive
Rear Axle	8-ton Rear Axle with 5.833 Speed Ratio
Frame	237 Double-layer Girder with Full-length Reinforcement
Tires	900R20 Steel Wire Tires
Seat	Airbag Seat
Power Windows	Standard Configuration
Central Locking	Standard Configuration
Cruise Control	Standard Configuration
Fuel Tank	150L Aluminum Alloy Fuel Tank
III. Upper Body Configuration
Upper Body Type	6-ton One-tow-two Wrecker Upper Body
Upper Body Process	Sunken-type Process (Lower Flatbed Center of Gravity)
Flatbed Total Length	6.2m (including Hydraulic Flip)
Flatbed Width	2.55m
Flatbed Base Plate	5MM Wear-resistant Patterned Steel Plate
Flatbed Frame	16MM Solid Steel Plate Frame with Cutting Holes
Tail Hinge	Hydraulic Flip Hinge at Tail
Under-plate Structure	Encrypted Cross Beams, Encrypted Triangular Inclined Supports
Winch	6-ton Winch
Rear Tow Arm	6-ton Rear Tow Arm
IV. Crane Configuration
Crane Model	Changxing 7-ton 5-section Arm Crane, Upper Operation
Front Outriggers	Double-section Composite Front Outriggers
Arm Length	14.8m
Maximum Lifting Height	15.8m
V. On-board Accessories
Binding Belts	4 pieces
On-board Crowbar	1 piece
Triangular Tire Block	1 pair
Seven-shaped Fork	1 pair
Square Tire Holding Barrel	1 pair
