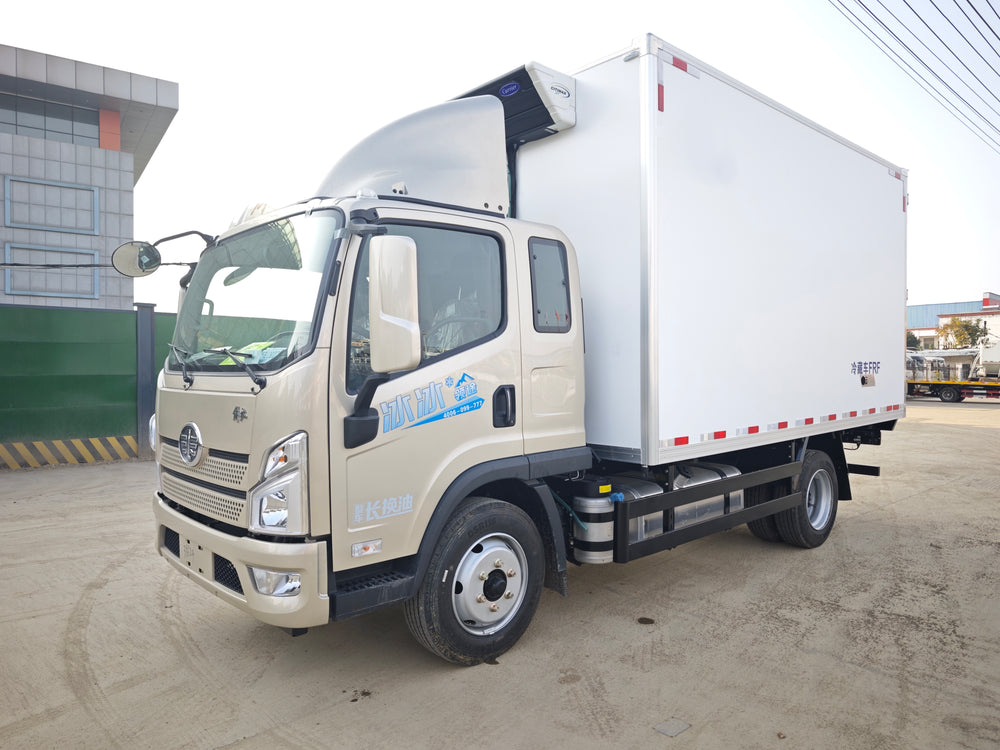

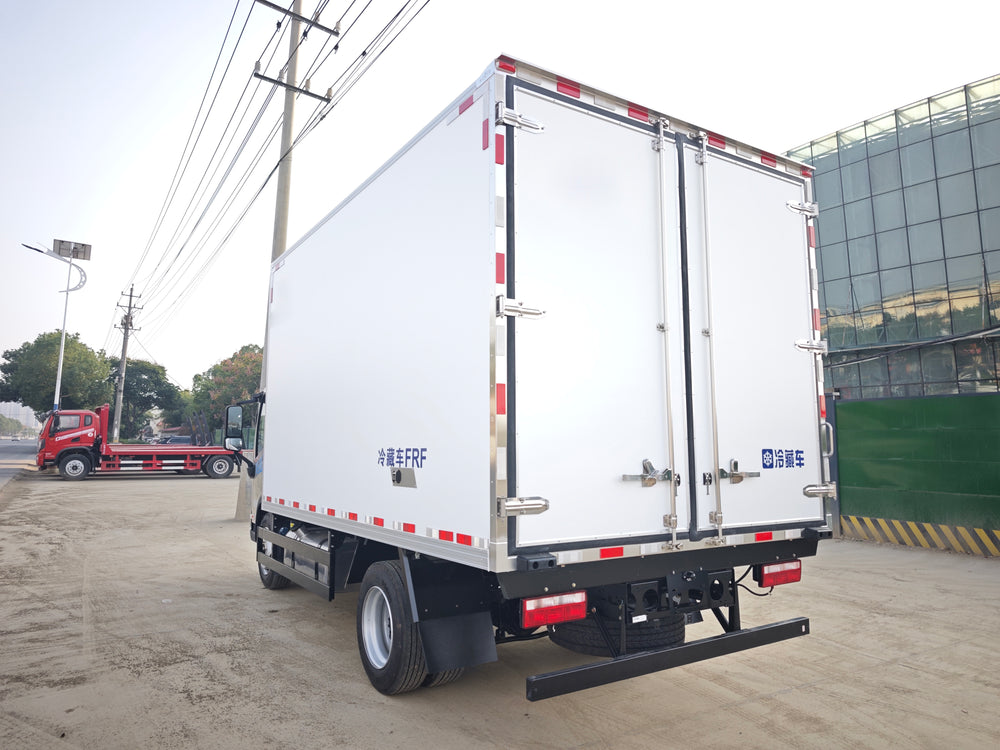

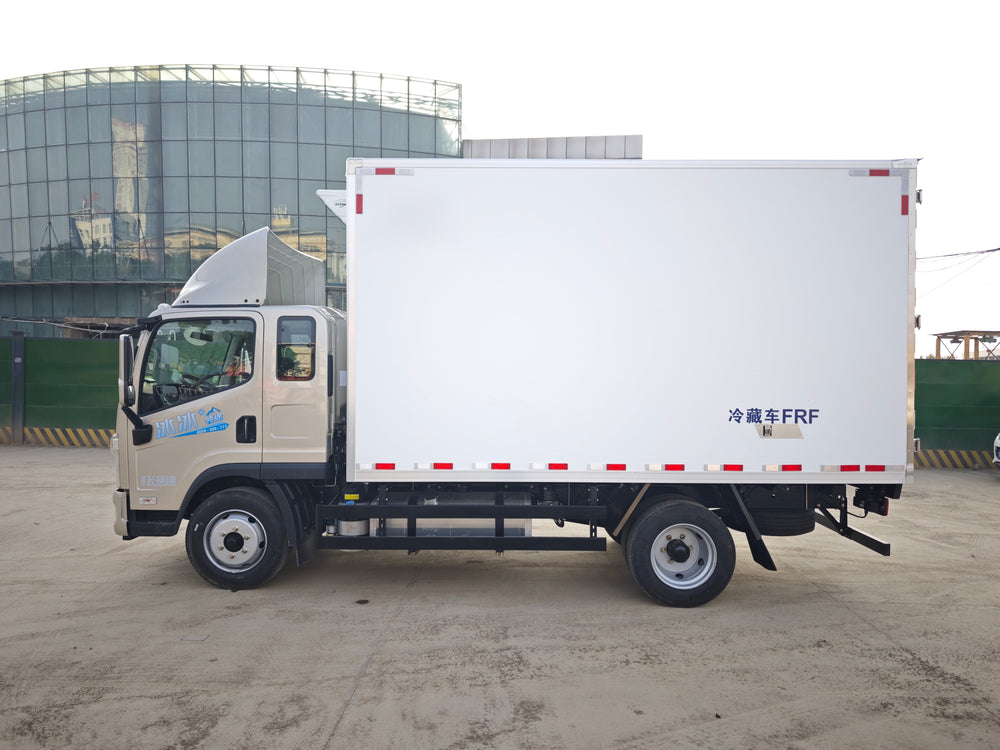

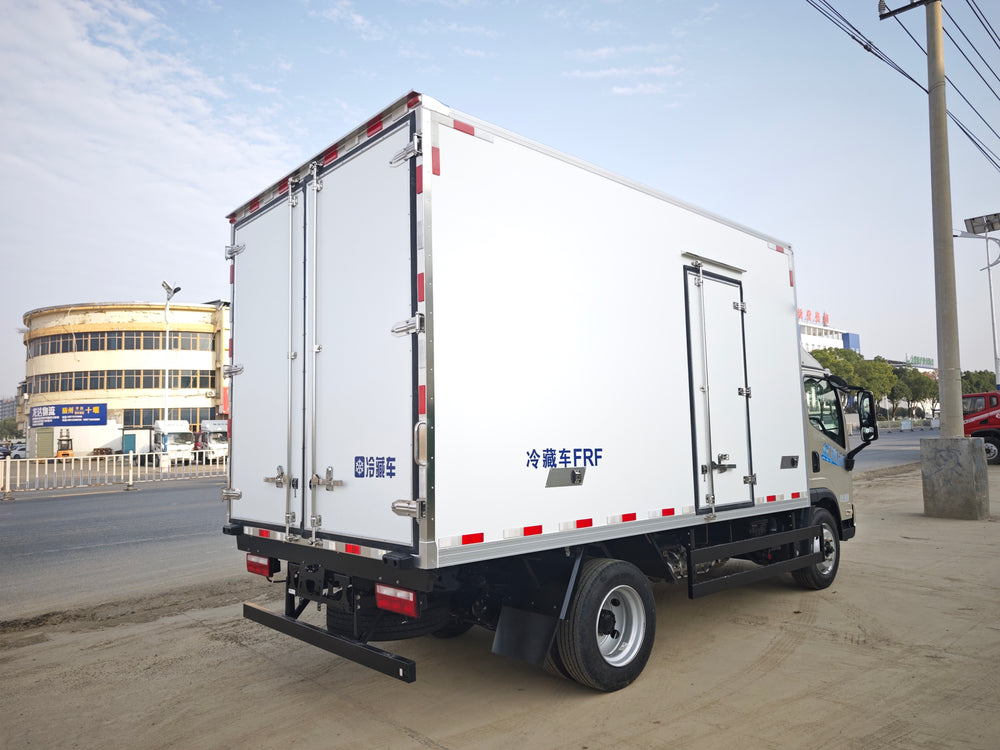

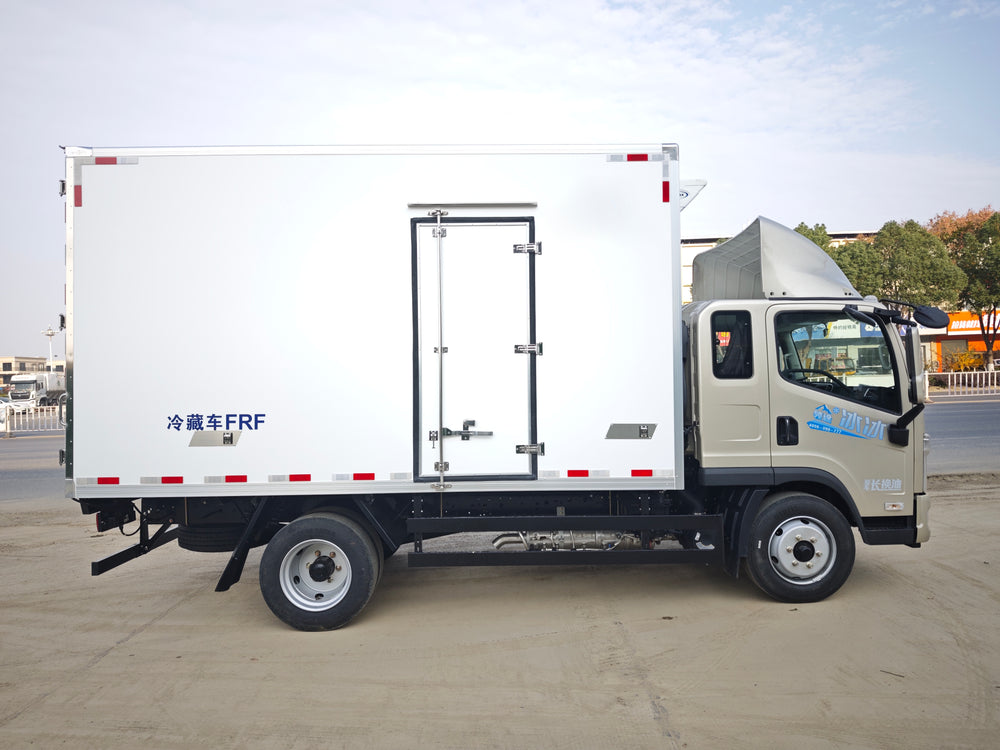

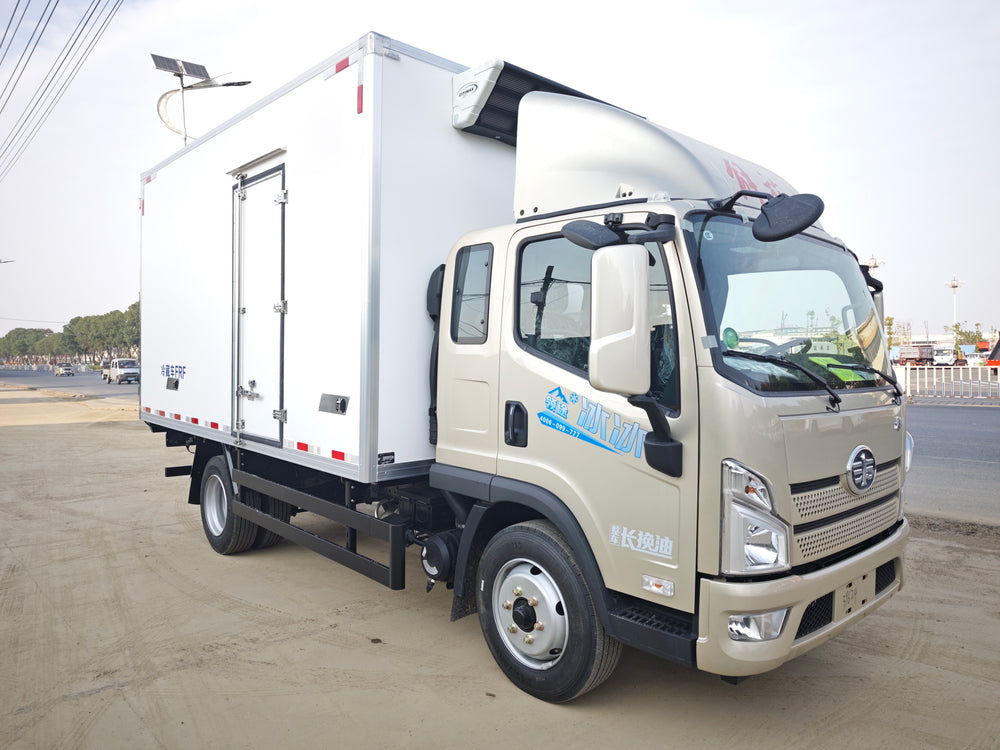

Jiefang 4.2-meter 8-ton refrigerated truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	Jiefang
Total vehicle weight	12000 kg
curb weight	4200 kg
Rated load	7800 kg
Overall vehicle dimensions	6455×2600×3540 mm
Top speed	100 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	CA4DD2-18E6
horsepower	132 kW / 180 HP
gearbox	Fast 8JS75C 8-speed manual
Front axle/Rear axle	4.5 tons / 7 tons
wheelbase	3600 mm
Tire specifications	245/70R19.5 16PR tubeless tire
tank	300L Aluminum Alloy
Emission standards	Euro 6

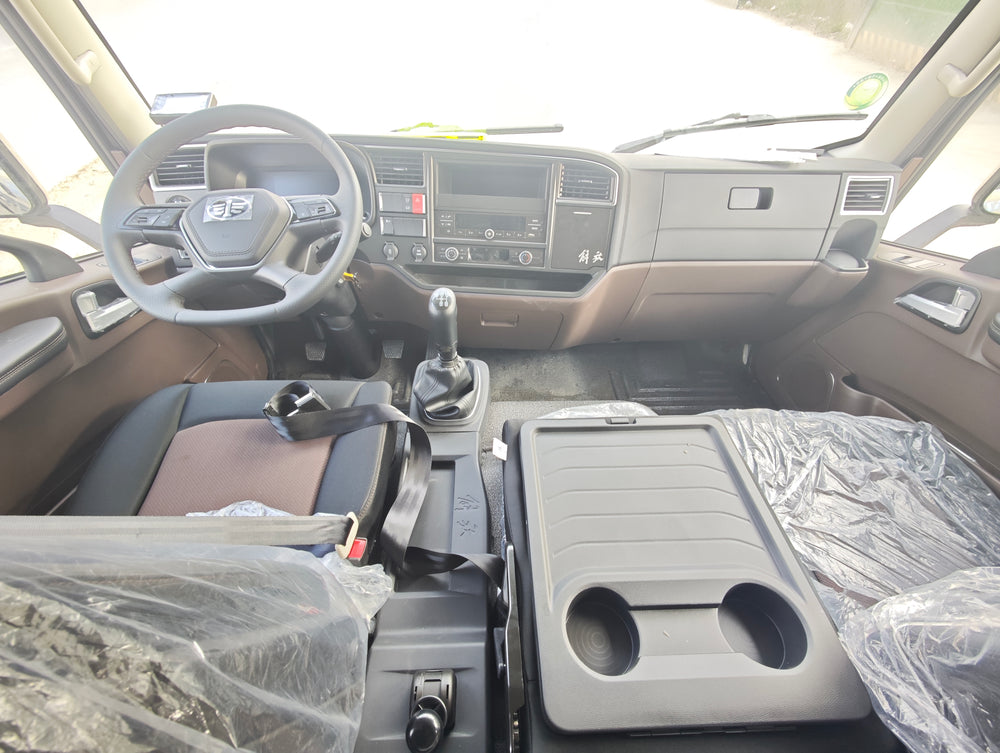

Other configurations	LCD instrument cluster, multi-function steering wheel, cruise control, air-suspension seats (ventilated/heated), automatic air conditioning, power-adjustable and heated side mirrors, ABS, tire pressure monitoring, parking sensors, LED daytime running lights.
3. Basic parameters of the upper part
Cargo box dimensions	4180×2440×2300 mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

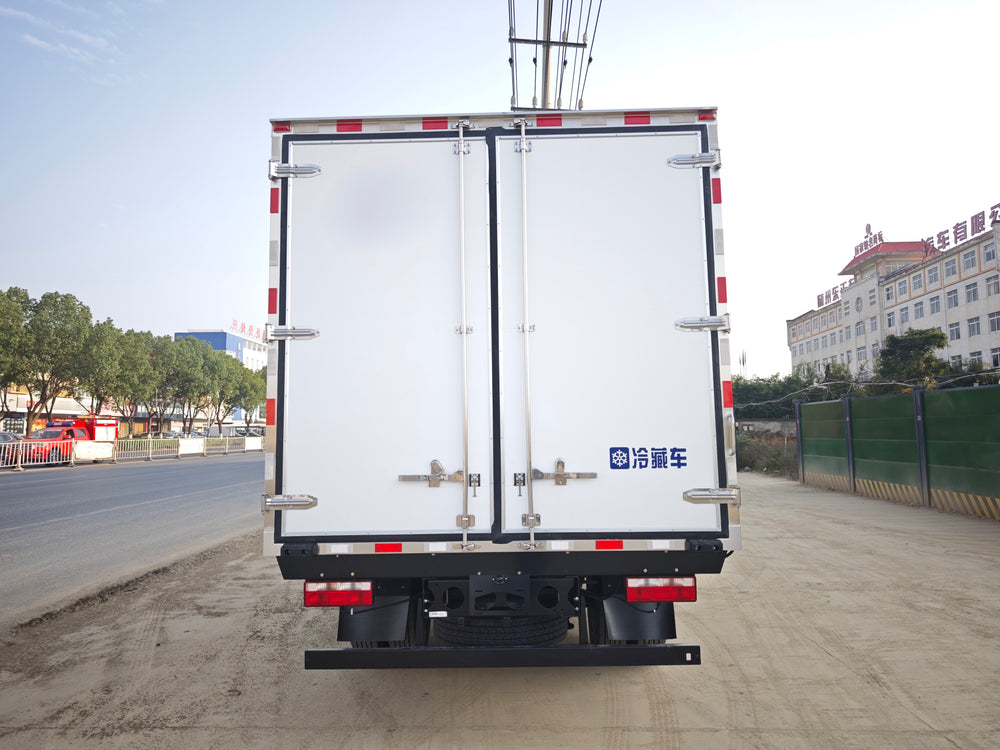

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional	Meat hook guide rail, ventilation slot, LED interior light, hydraulic tailgate
