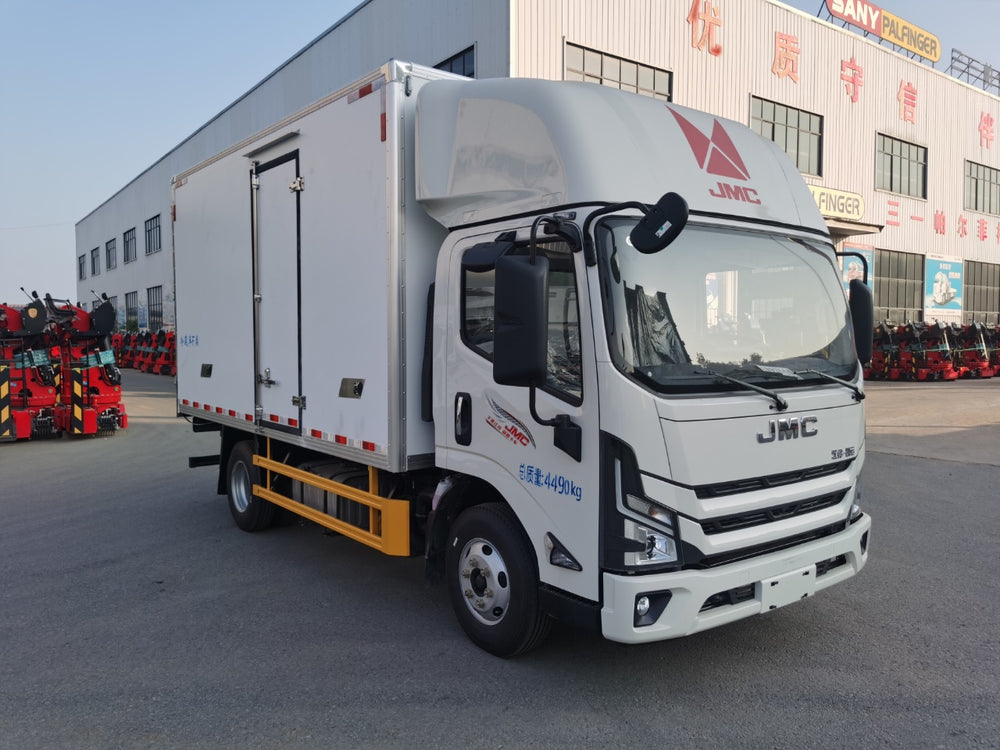

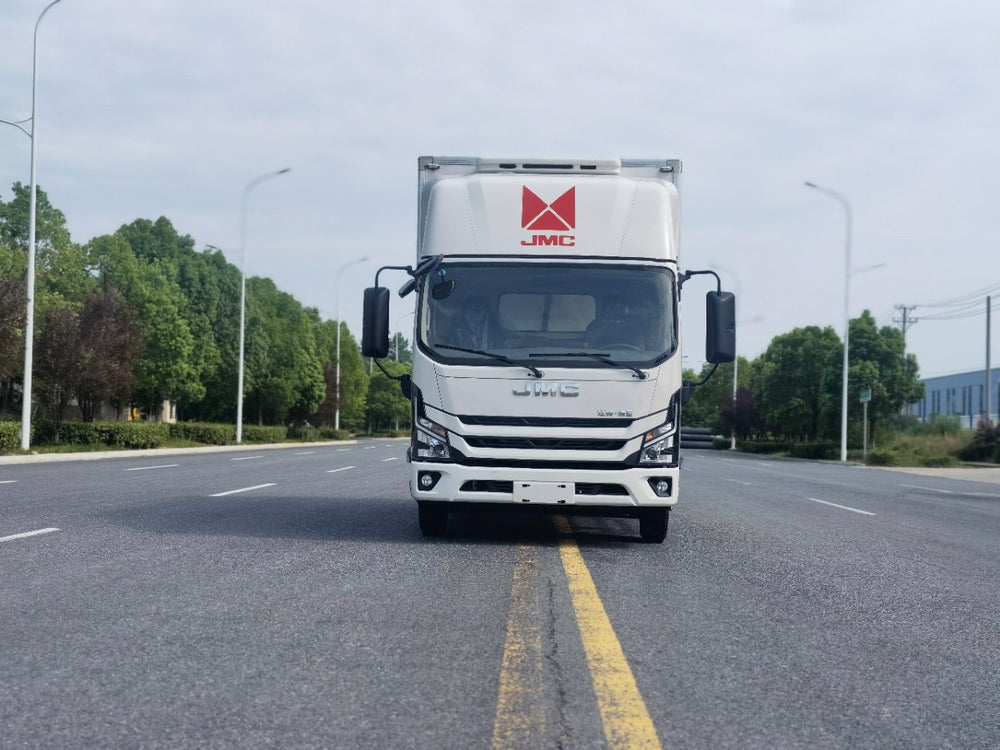

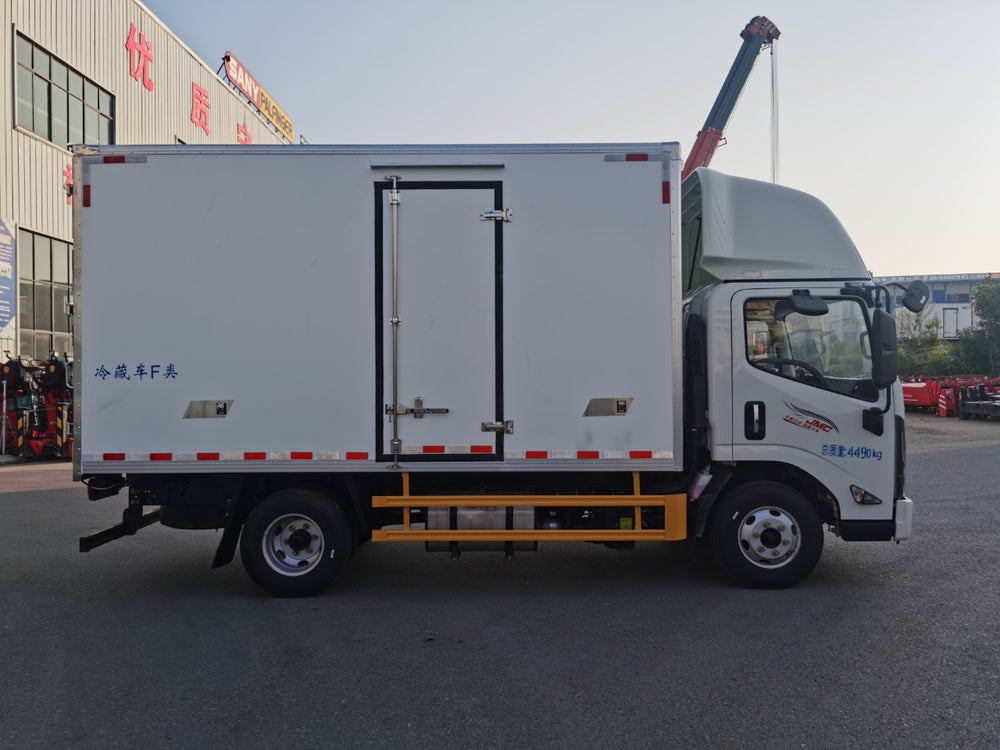

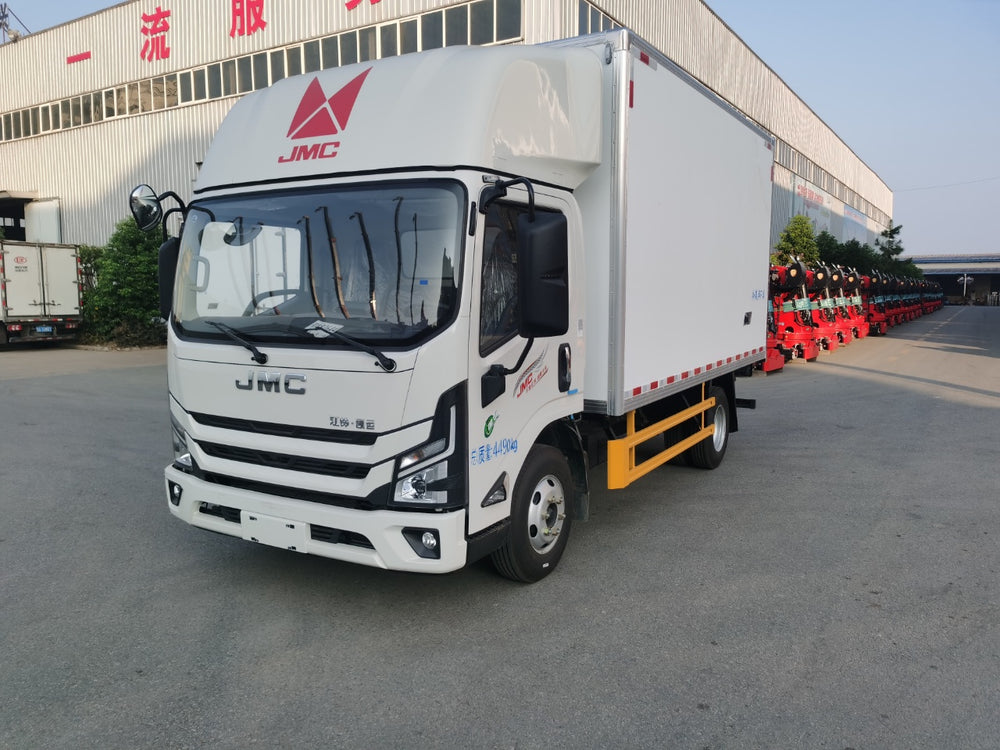

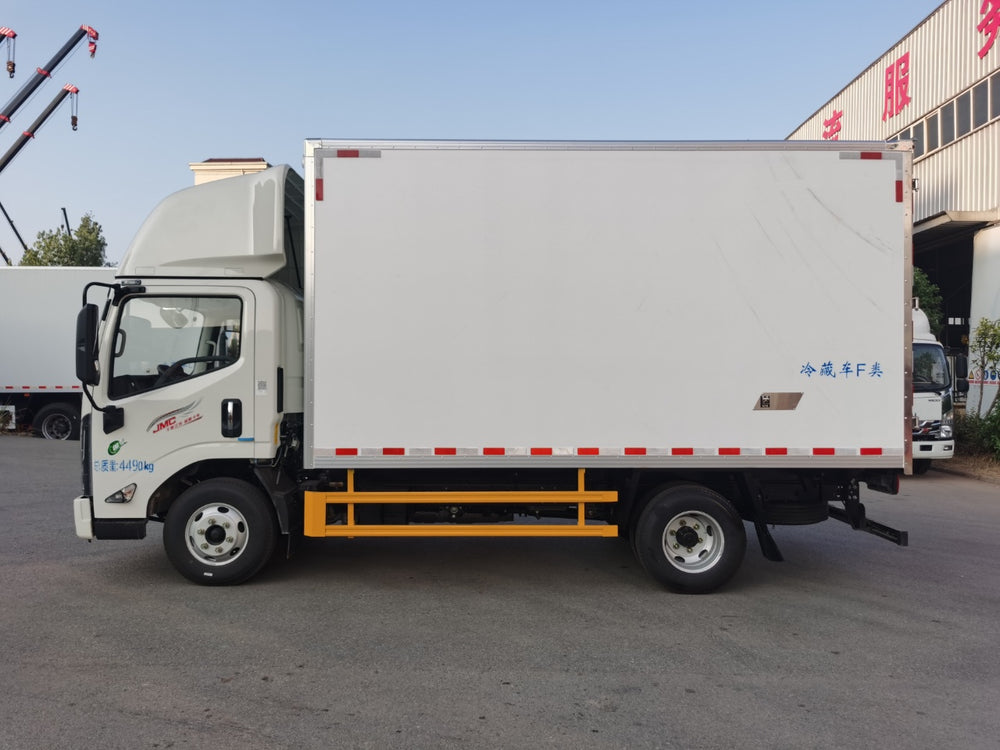

Jiangling 4.2-meter 5 ton wide-body refrigerated truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	JMC
Total vehicle weight	8000 kg
curb weight	3200kg
Rated load	4800 kg
Overall vehicle dimensions	5990×2250×3250 mm
Top speed	110 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	JX4D30F6H
horsepower	121kW/164 HP
gearbox	Wanliyang 6MT 6-speed manual
Front axle/Rear axle	3.5 tons / 5 tons
wheelbase	3360 mm
Tire specifications	7.00R16 14PR tubeless tire
tank	120L Aluminum Alloy
Emission standards	Euro 6

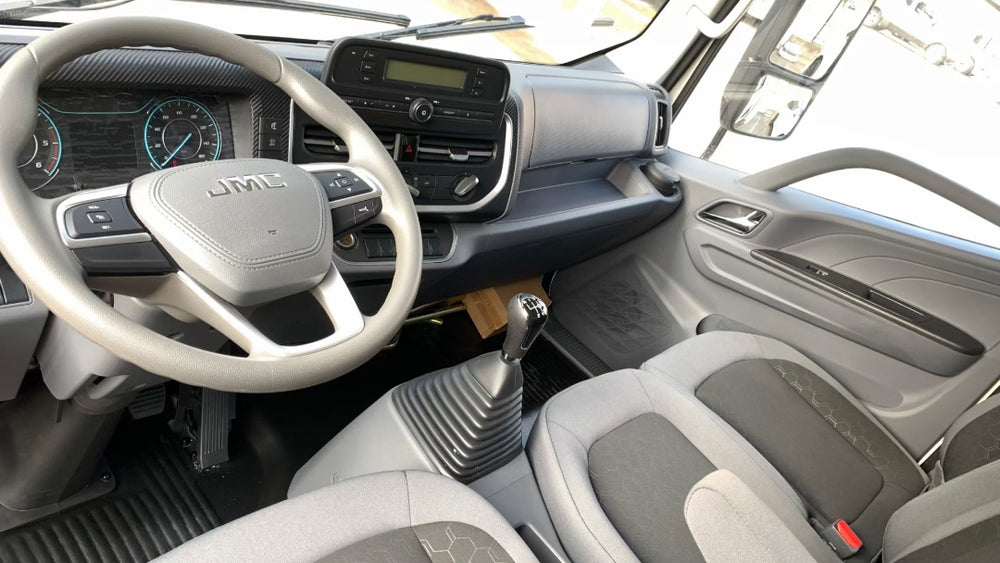

Other configurations	LCD instrument cluster, multi-function steering wheel, cruise control, air-suspension seats (ventilated/heated), automatic air conditioning, power-adjustable and heated side mirrors, ABS, tire pressure monitoring, parking sensors, LED daytime running lights.
3. Basic parameters of the upper part
Cargo box dimensions	4020×2100×2100mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

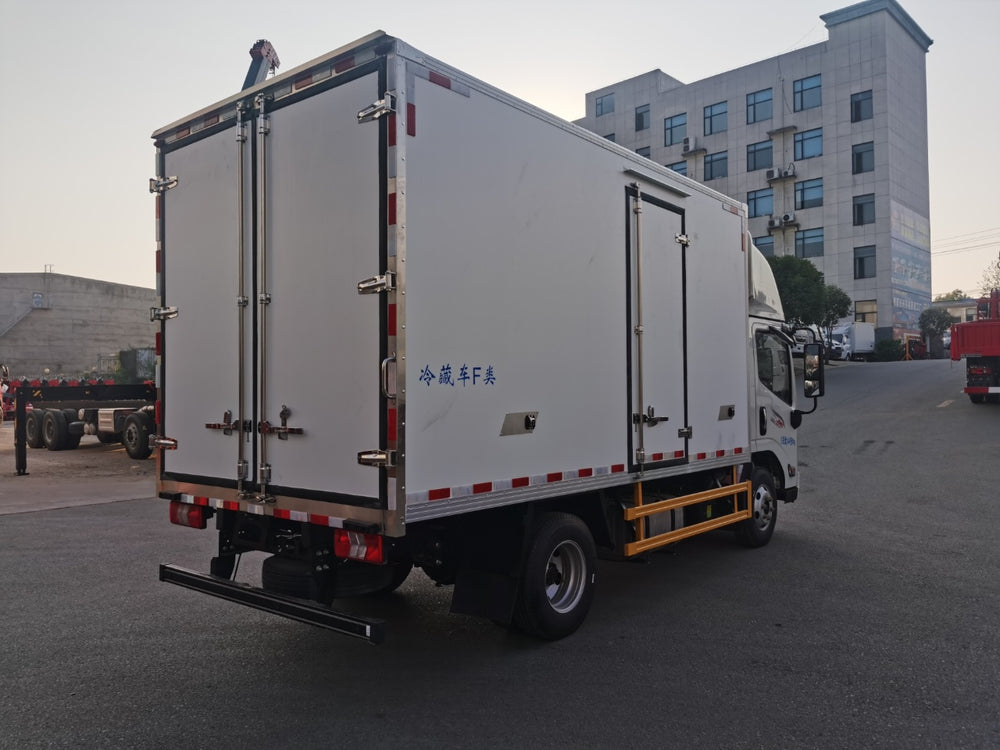

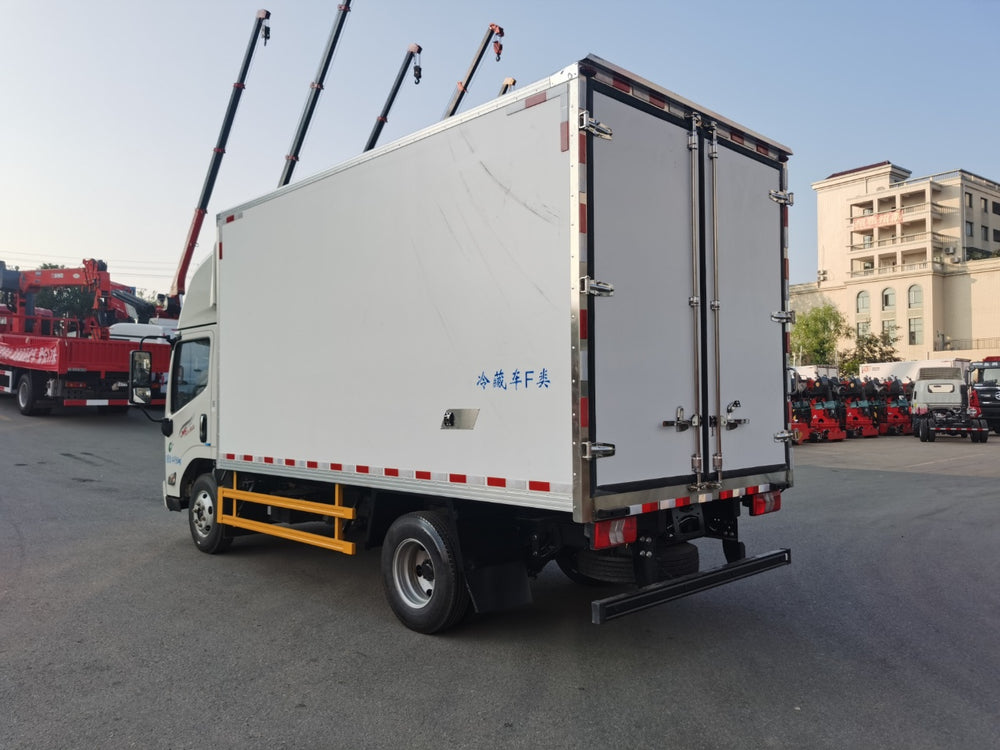

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional	Meat hook guide rail, ventilation slot, LED interior light, hydraulic tailgate
