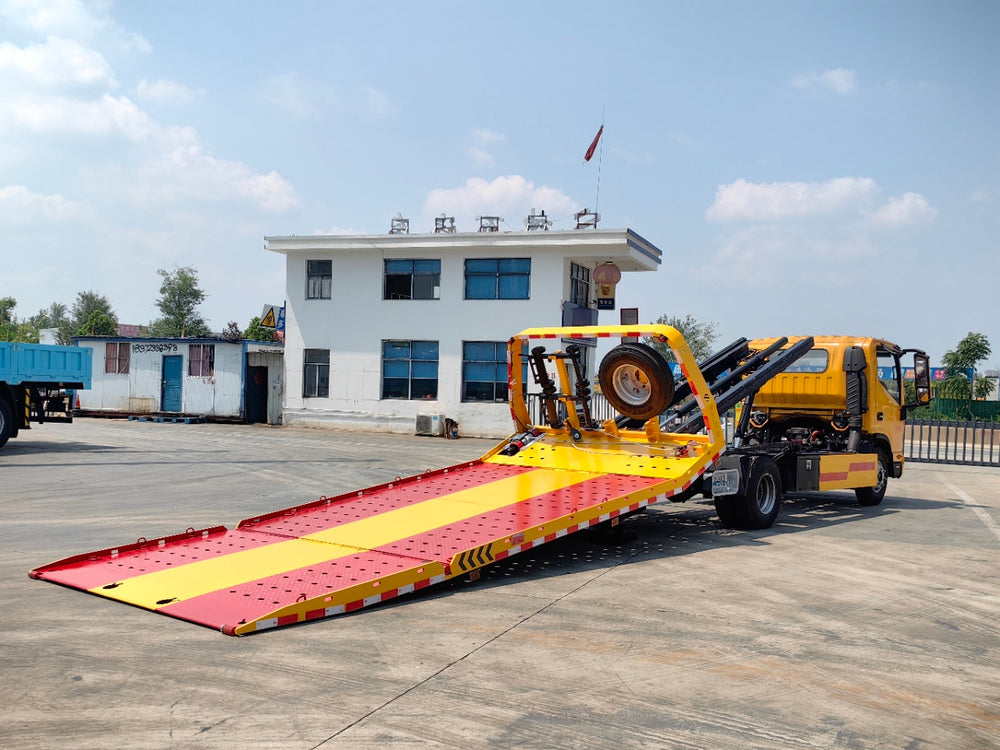

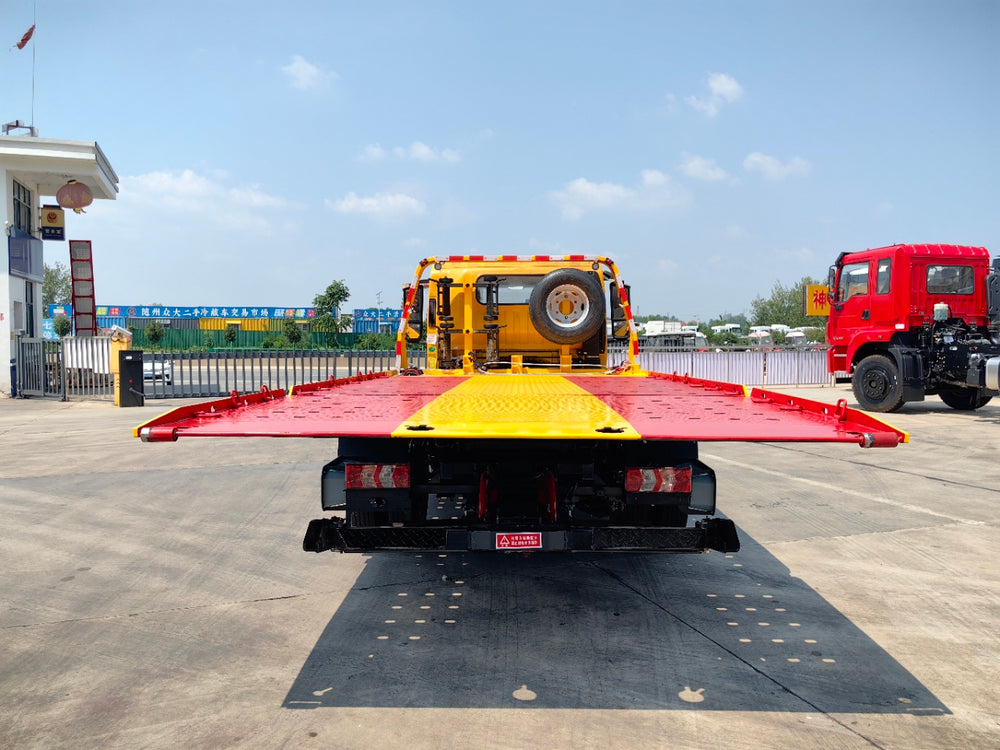

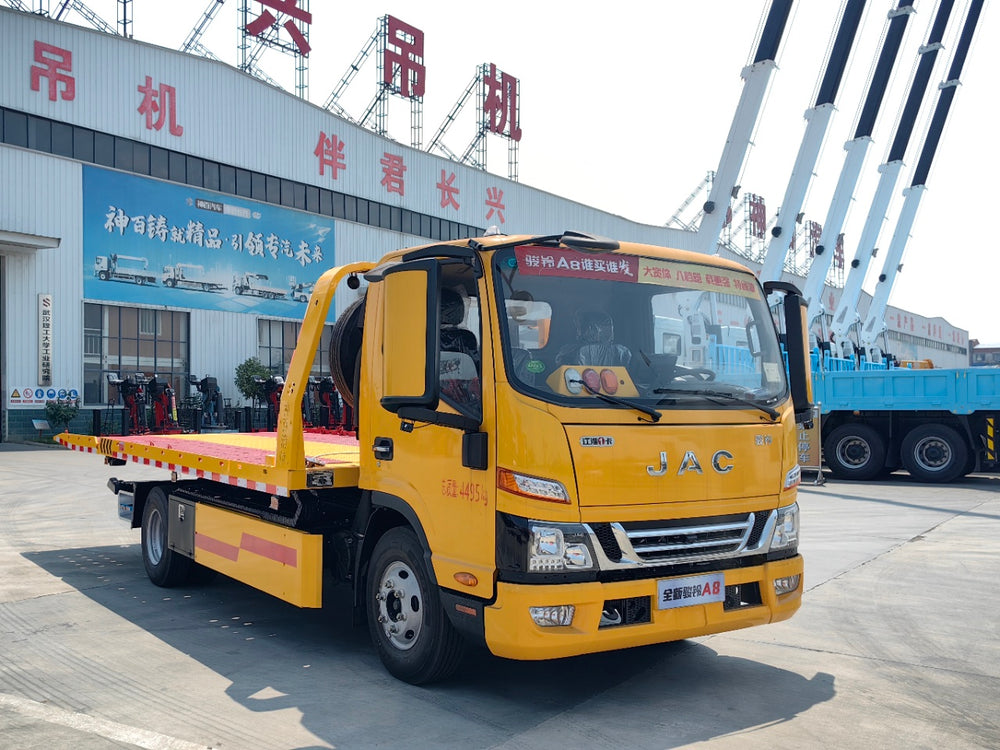

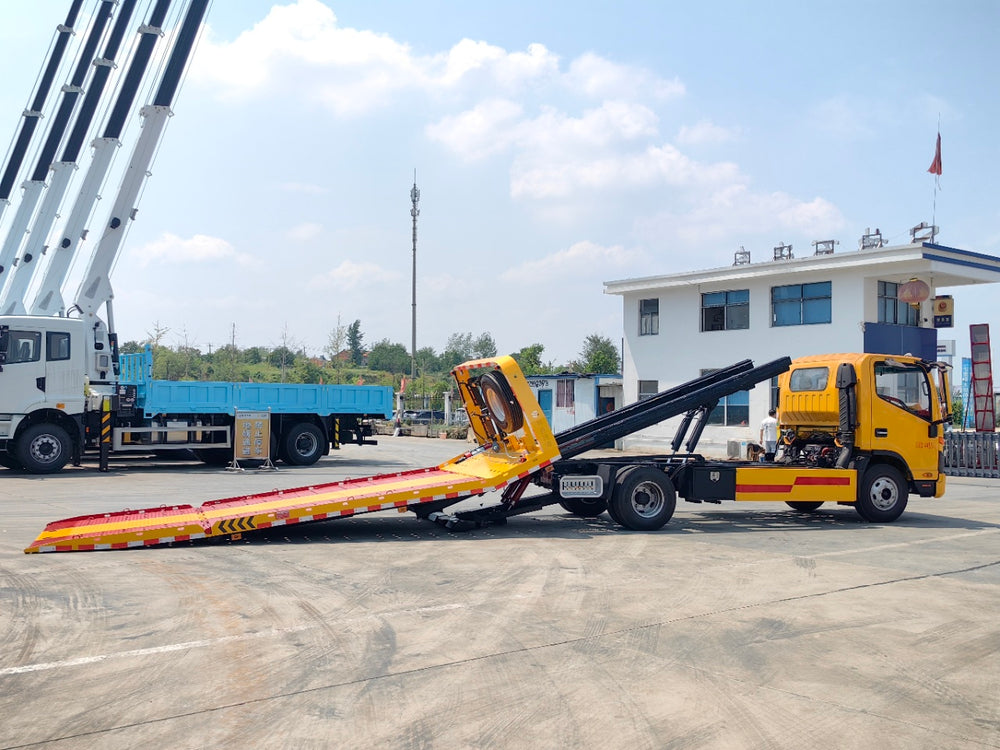

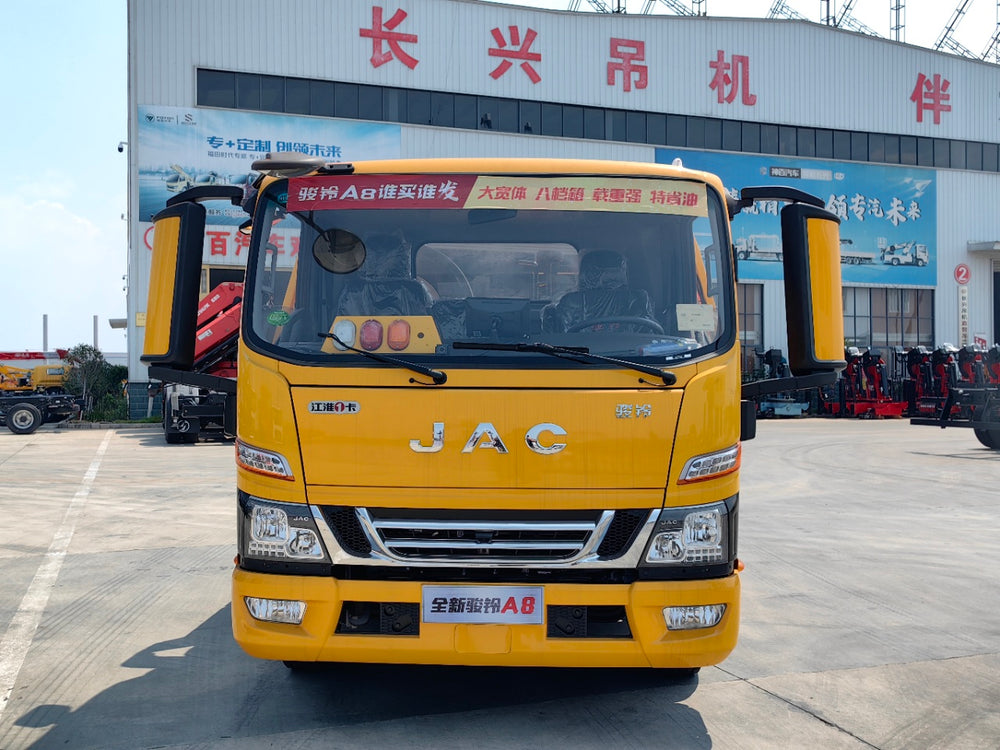

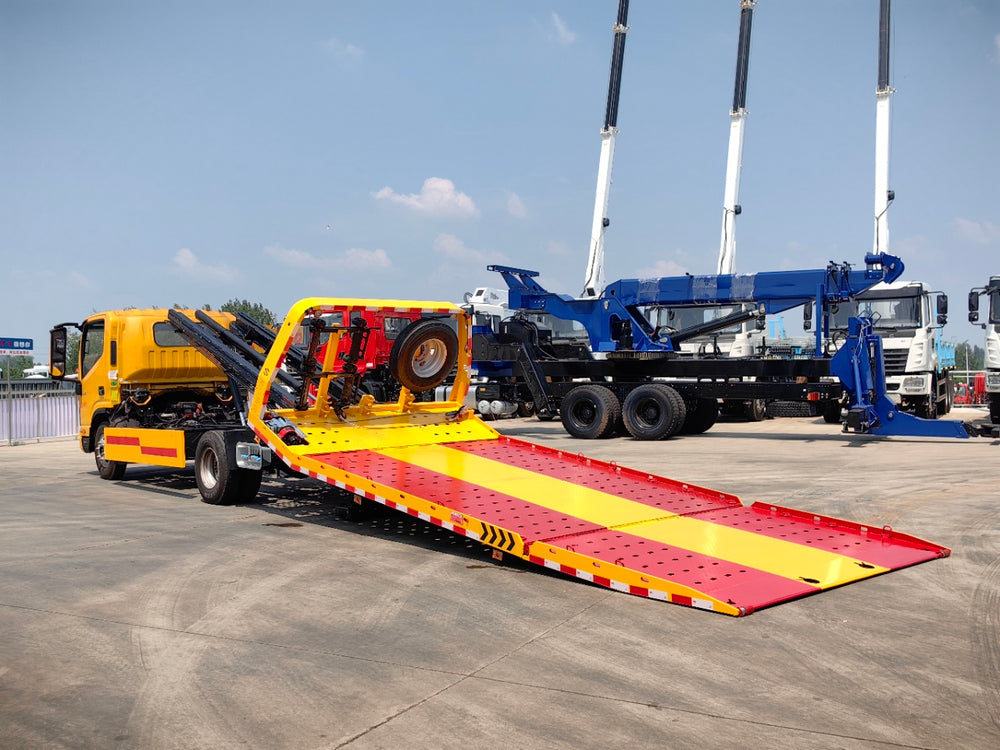

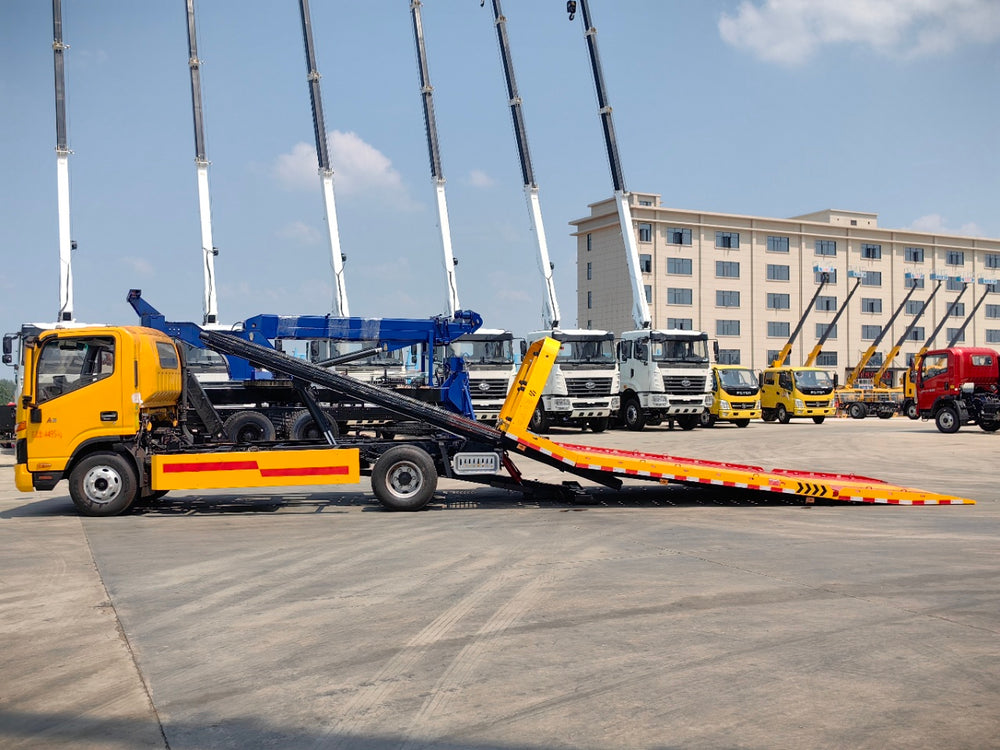

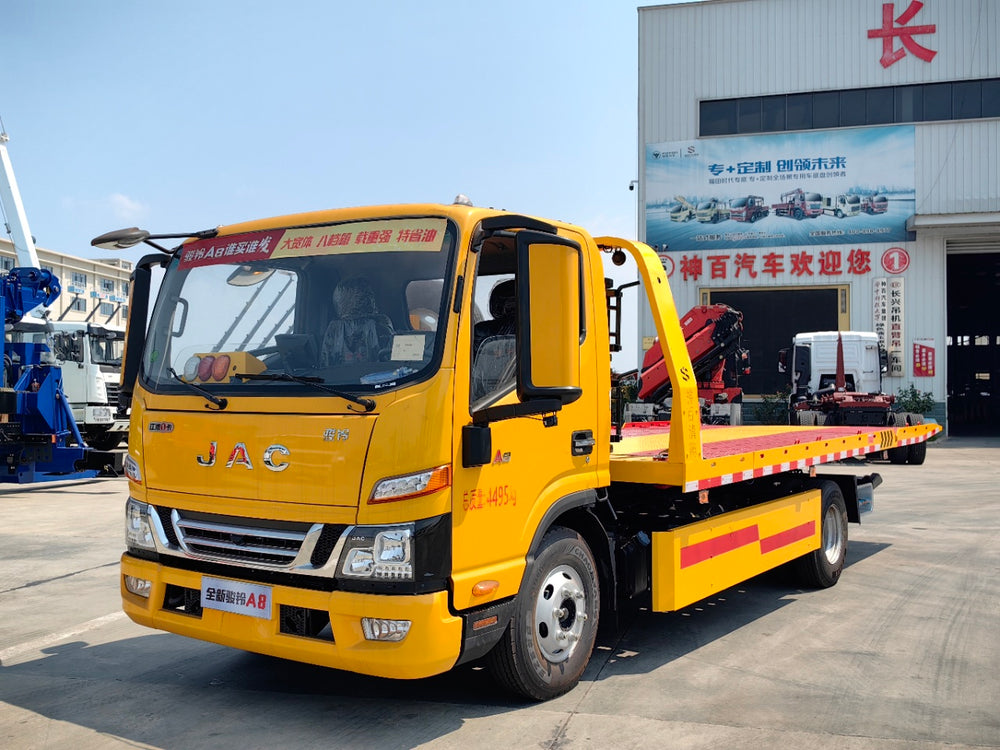

JAC 5.6 Meter tilting and dropping integrated Wrecker truck
| I. Basic Vehicle Information | |
| Model Name | JAC Junling A8 Blue Plate Inclined Integrated Wrecker Truck |
| II. Chassis Configuration | |
| Cab | Junling A8 Deluxe 2100 Wide Body Cab |
| Engine | Q25 Quanchai 162HP High Power Engine |
| Transmission | Wanliyang 8-speed Gearbox with High/Low Speed |
| Wheelbase | 3600mm |
| Frame | Factory Original Double Layer Frame (Lifetime Warranty for Frame) |
| Tires | 700R16 Steel Wire Tires, 750 Steel Wire Tires Optional |
| Rear Axle | 7.2 Ton Load Bearing Rear Axle |
| Axle Ratio | 4.33 |
| Power Windows | Standard Configuration |
| Remote Key | Standard Configuration |
| Leather Seats | Standard Configuration |
| Factory Original Heating & Cooling Air Conditioner | Standard Configuration |
| Multi-function Steering Wheel | Standard Configuration |
| Electrically Heated Rearview Mirrors | Standard Configuration |
| Exhaust Brake | Standard Configuration |
| Brown Interior | Standard Configuration |
| III. Upper Body Configuration | |
| Upper Body Type | Heavy Duty 6 Ton Inclined Integrated Upper Body |
| Total Flatbed Length | 5.6 Meter |
| Flatbed Width | 2.3-2.55 Meters Customizable According to User Demand |
| Subframe Assembly | Dual Subframe Assembly |
| Main Flatbed Telescopic Oil Cylinder | 110 Specification |
| Lifting Oil Cylinder | 95 Specification |
| Flatbed Chute Material | 10MM Thick Manganese Steel |
| Under Flatbed Structure | Dense Grid Pattern, Dense Triangular Inclined Supports |
| Flatbed Frame | 14MM Solid Steel Plate Frame with Cut Holes |
| Flatbed Base Plate | 5MM Patterned Wear-resistant Base Plate |
| Rear Hinge | Rear Hydraulic Flip Hinge |
| Hydraulic Multi-way Valve | Domestic Brand Hydraulic Multi-way Valve |
| Winch | Standard 4 Ton Winch |
| Rear Tow Arm | 4 Ton Rear Tow Arm (Mounted on Main Beam) |
| IV. On-board Accessories | |
| Gantry Side Lights | One Set |
| Rear LED Working Lights | Two Pieces |
| Tool Box | One Piece |
| Triangular Tire Blocking Plates | One Pair |
| Tie Down Straps | Four Pieces |
| On-board Crowbar | One Piece |
| Square Tire Holding Cylinders | One Pair |
| Seven-shaped Forks | One Pair |
