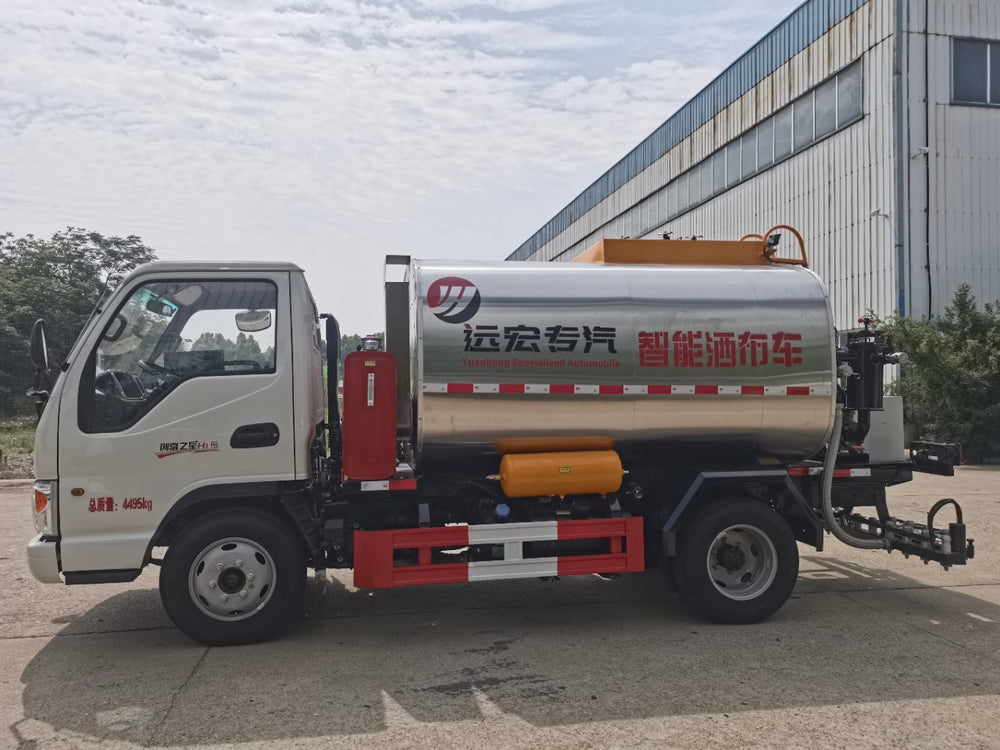

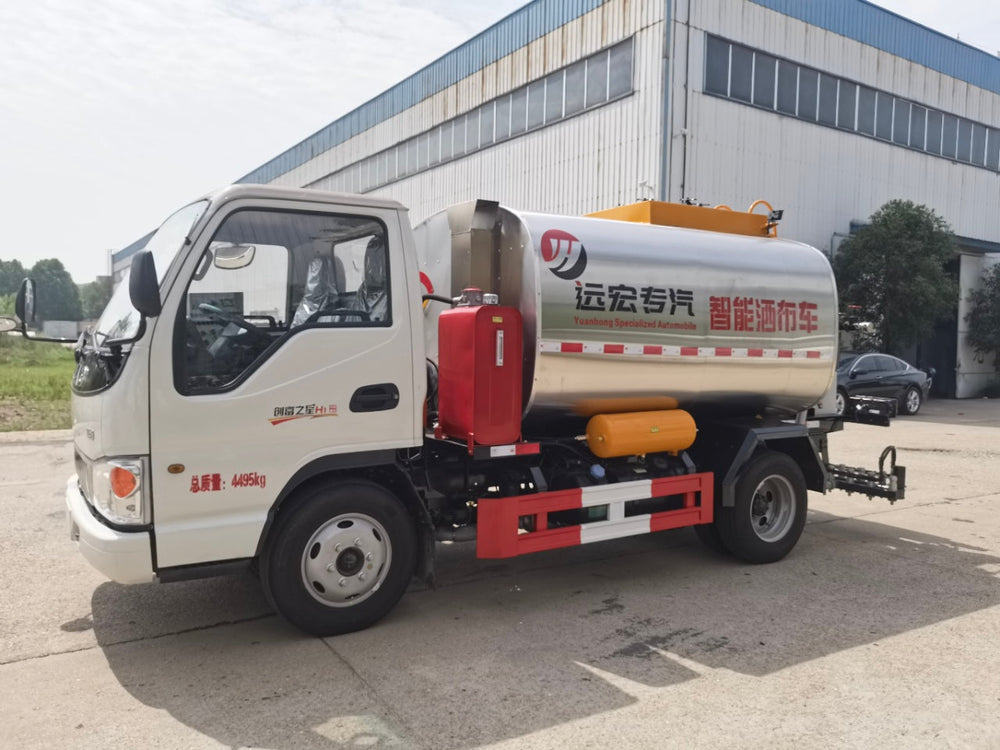

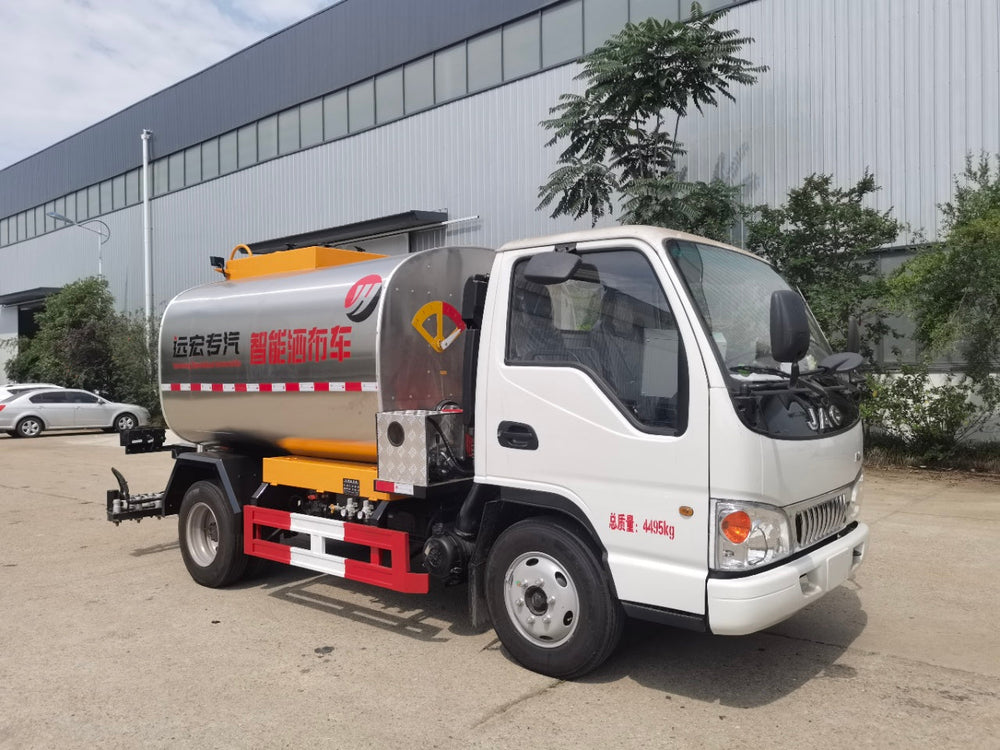

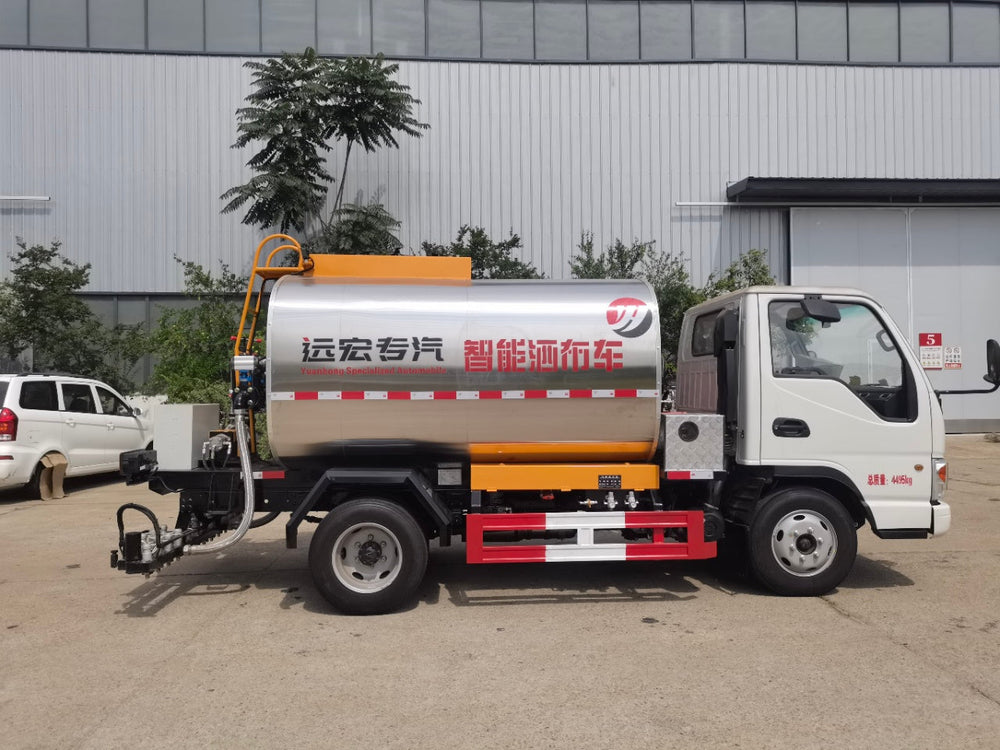

JAC 5T Asphalt Distributor Truck
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Brand | JAC Original Factory (National VI) |
| Wheelbase | 2850 mm |
| Engine Power | Yunnei 140 HP |
| Transmission | Wanliyang 5-Speed Gearbox |
| Tire Specification | 6.50R16 |
| Brake System | Air Brake |
| ABS | Equipped |
2. Tank Body & Insulation System
| Parameter | Value |
|---|---|
| Tank Material | 4mm Carbon Steel Plate |
| Actual Tank Volume | 5 m³ |
| Insulation Type | Stainless Steel Mirror Finish Insulation |
| Insulation Thickness | 30 mm |
3. Asphalt Pump & Heating System
| Parameter | Value |
|---|---|
| Asphalt Pump Type | Hydraulically Driven High-Power Impeller Emulsified Asphalt Pump |
| Pump Operating Temperature | Operates normally at room temperature |
| Heating Method | Direct Combustion Heating |
| Burner Brand & Model | Riyadh G10 (Imported from Italy) |

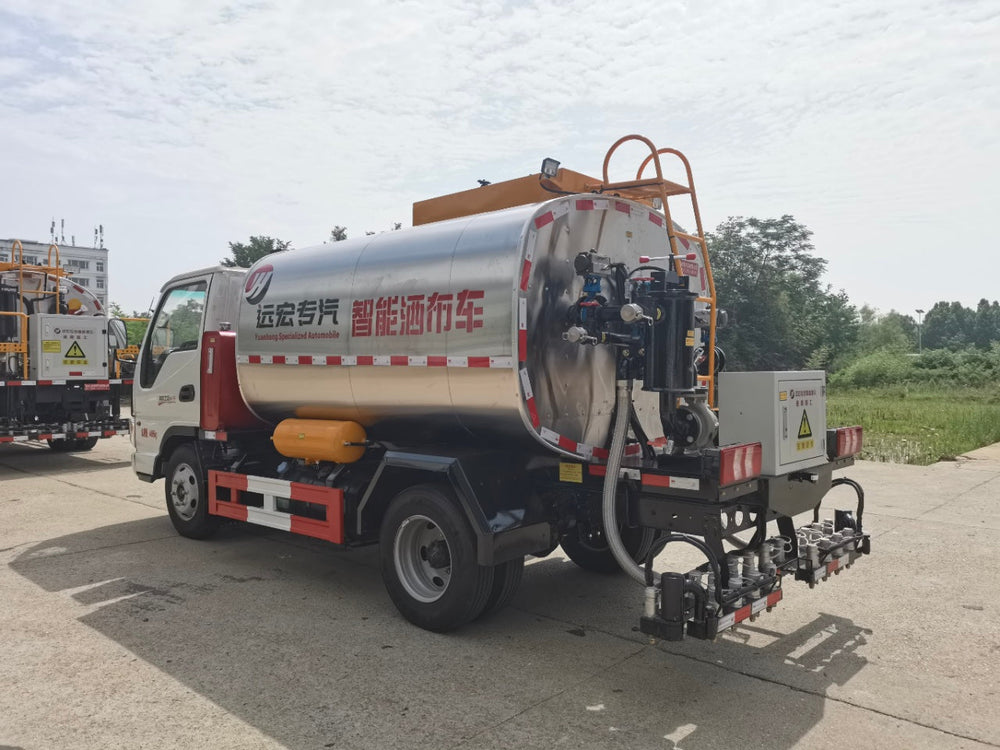

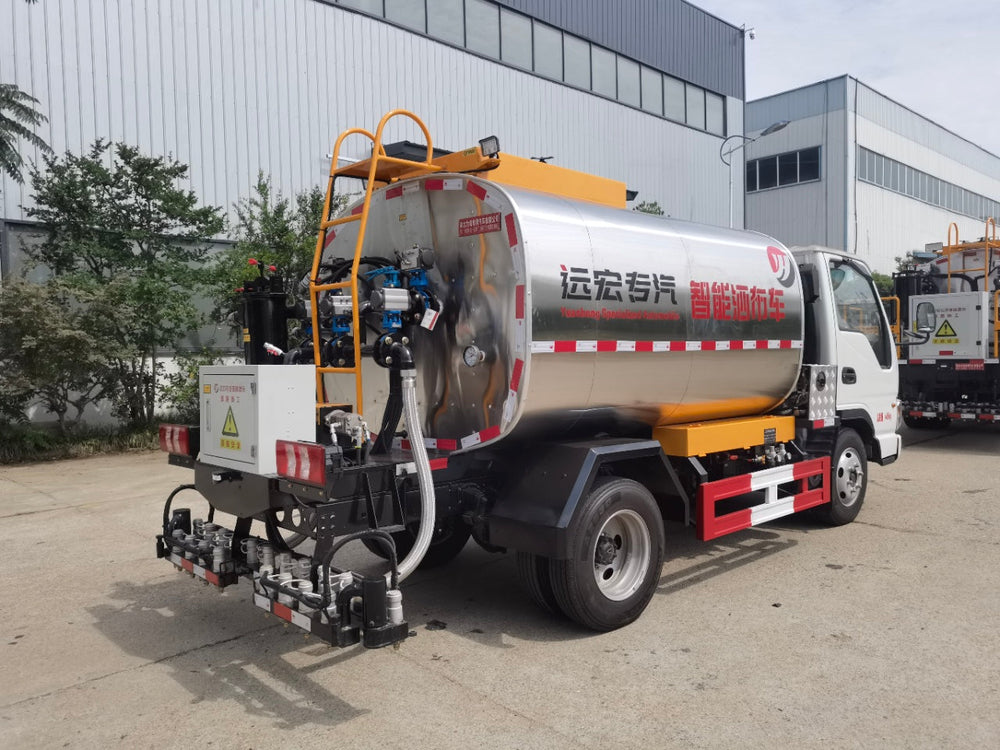

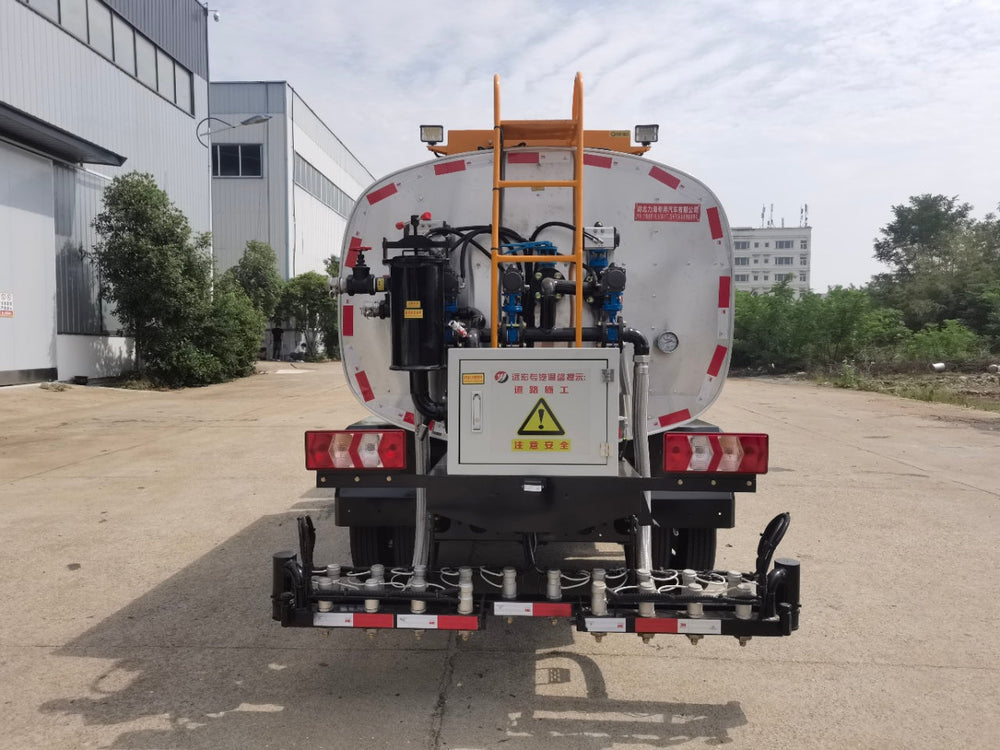

4. Spray Bar & Nozzle System
| Parameter | Value |
|---|---|
| Number of Pneumatic Nozzles | 20 units |
| Maximum Spray Width | 4 m |
5. Control System
| Parameter | Value |
|---|---|
| Control Panel | Front Electric Box with Knob Control |
| Temperature Display | Equipped |
| Nozzle Control | Individual nozzle control (1 nozzle / 1 control) |
| Spray Volume Adjustment | Freely adjustable |
| Operation | Single-person operation |
6. Standard Features & Functions
| Feature | Description |
|---|---|
| Asphalt Circulation | Full circulation with pump suction/discharge function |
| Asphalt Recovery | Asphalt recovery function |
| Cleaning System | High-pressure air cleaning + diesel cleaning function |
7. Applicable Spray Medium
| Medium Type | Description |
|---|---|
| Emulsified Asphalt | Suitable |
