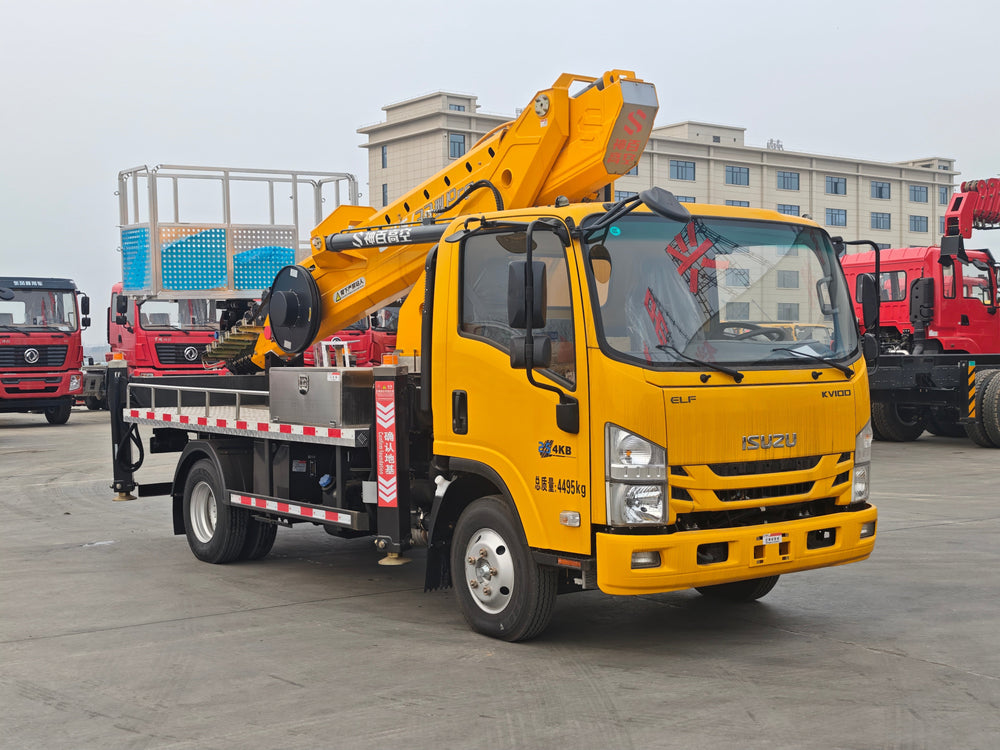

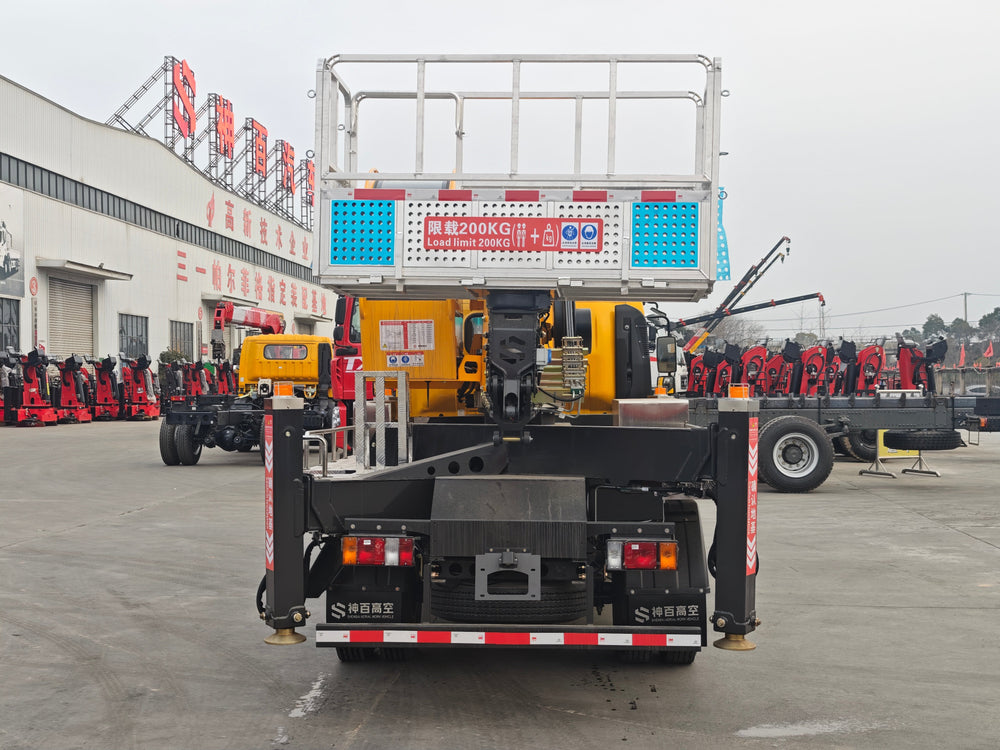

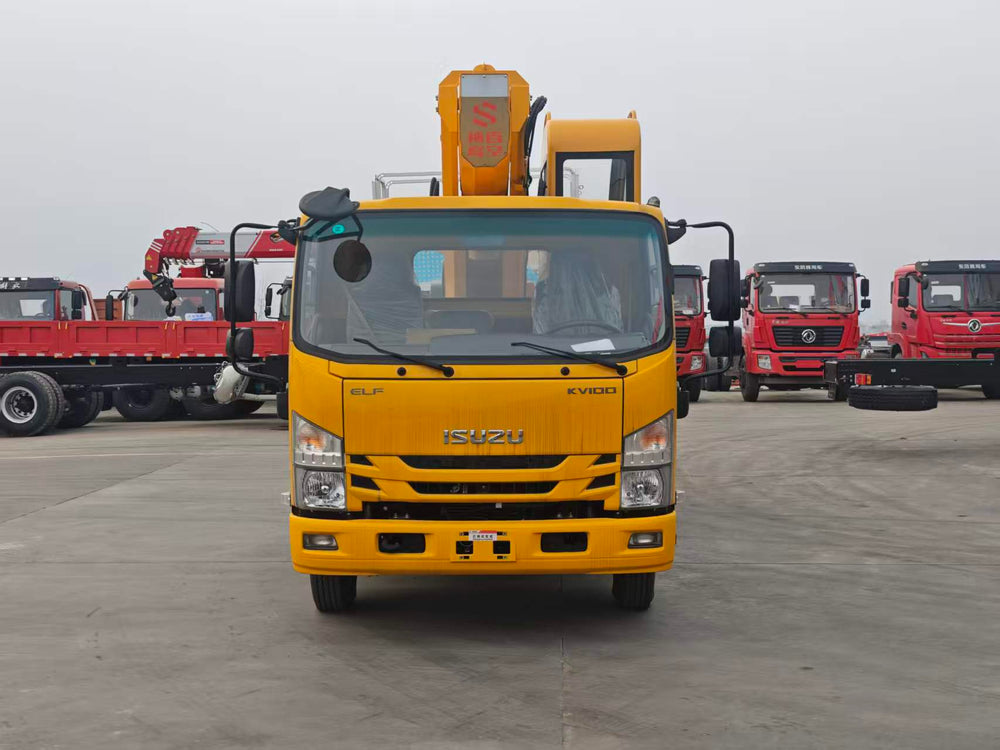

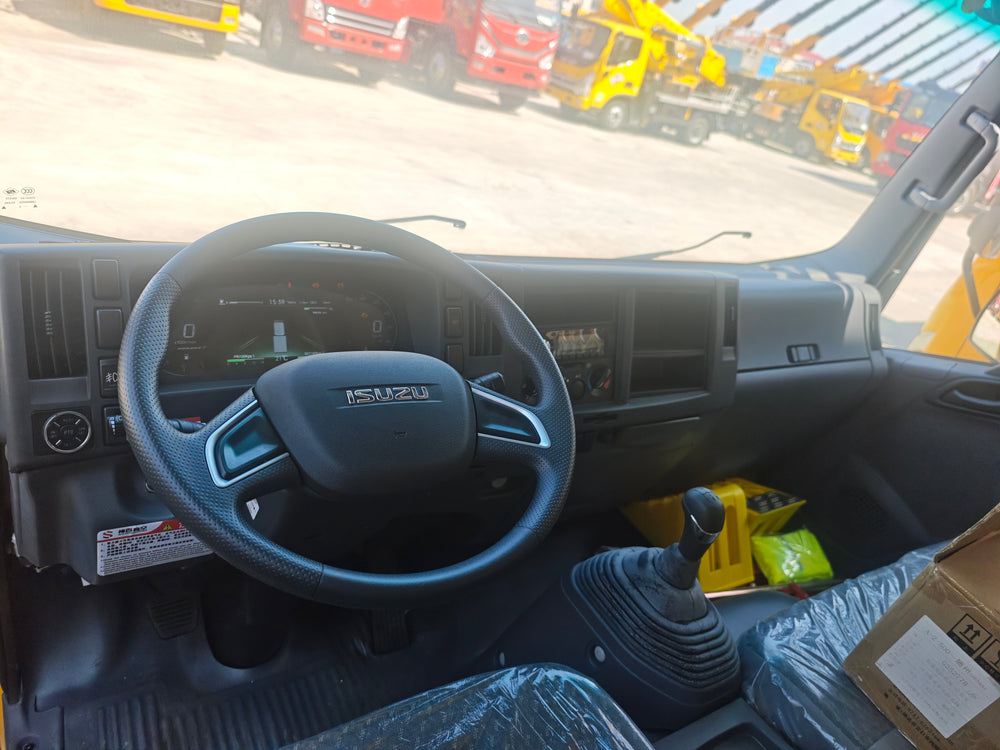

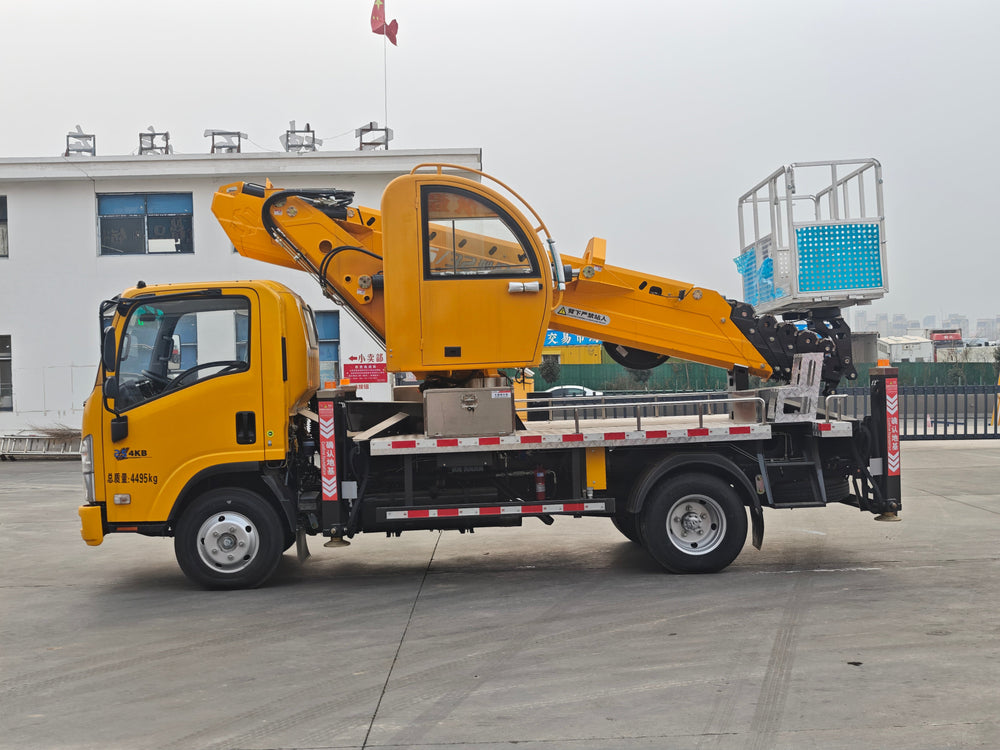

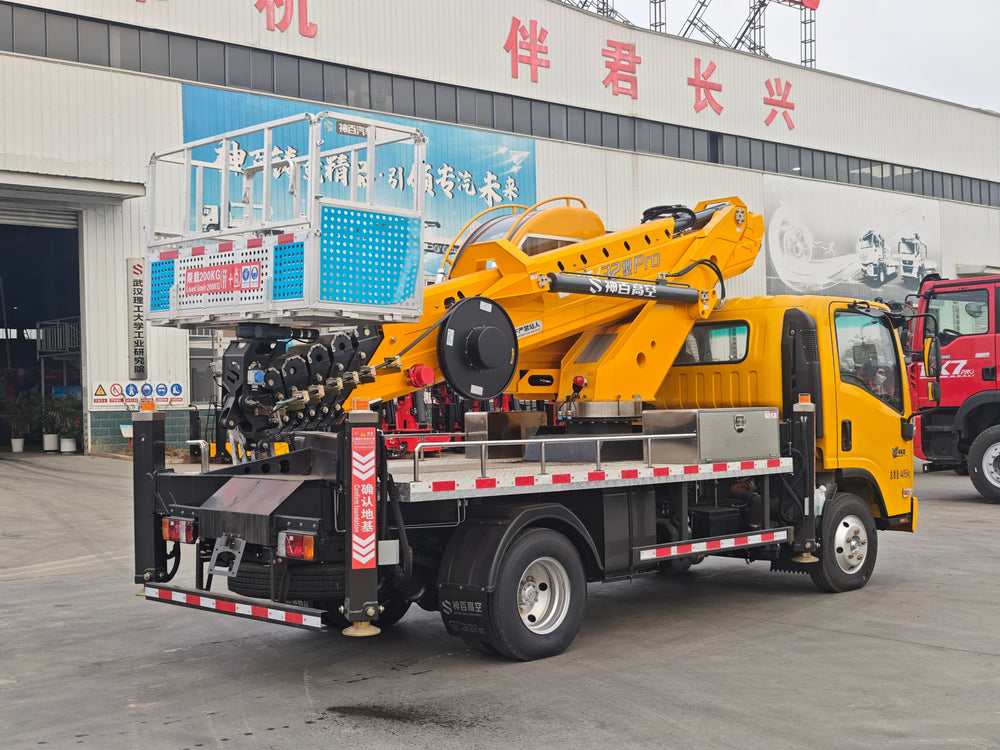

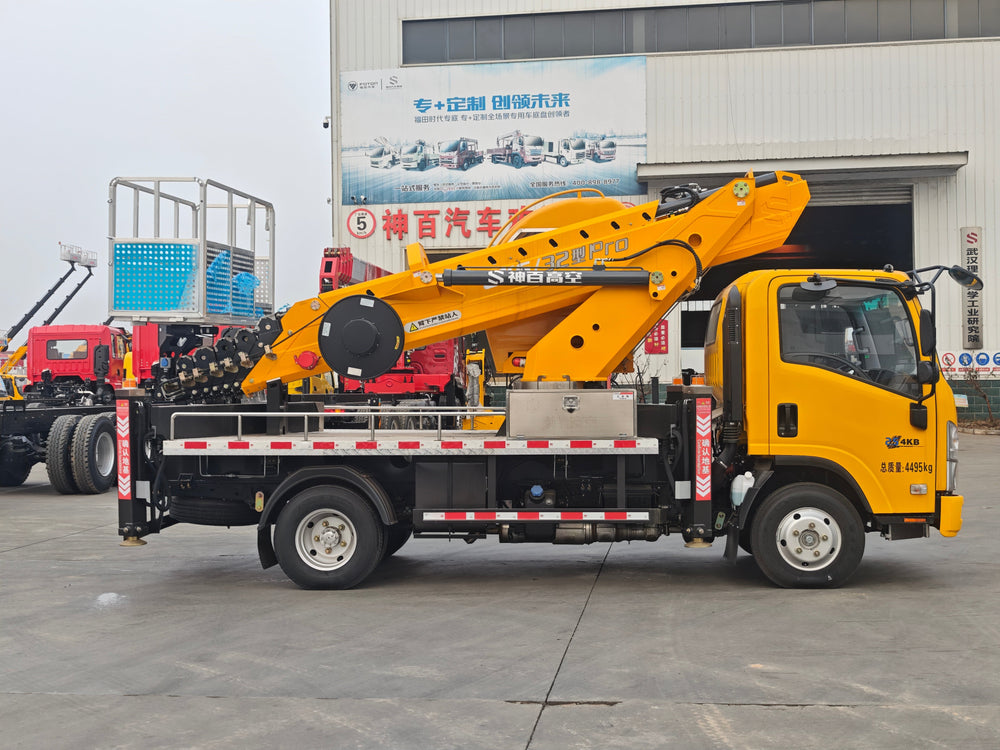

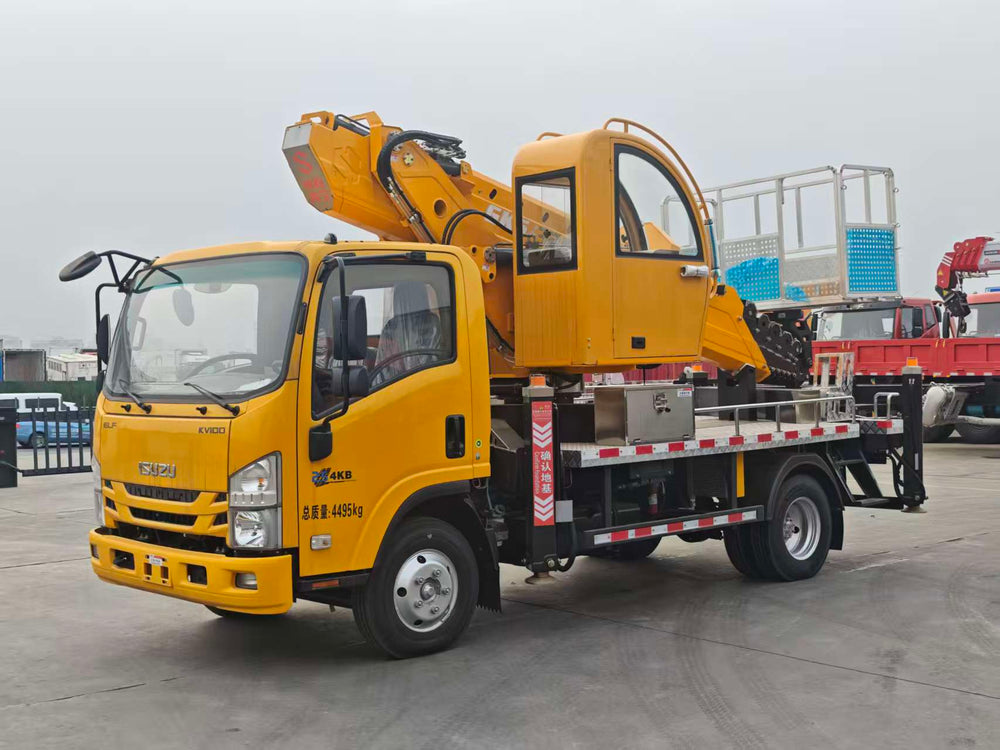

ISUZU KV100 GKS32Pro Aerial Work Platform Truck
- Chassis Configuration
| Item | Parameter |
|---|---|
| Chassis Model | Isuzu KV100 |
| Gross Vehicle Weight | 4495 kg |
| Engine | Isuzu 4KB1-TCG60, 130 HP Diesel Engine |
| Transmission | Isuzu 5-speed Manual Gearbox |
| Wheelbase | 3360 mm |
| Overall Dimension | 5995×2200×3100 mm |
| Tire Spec | 700R16LT 10PR |
| Brake | Air Cut-off Brake |
| Standard Fittings | Power Window, Air Conditioner, Central Door Lock |
2. Superstructure (GKS32 Pro)
| Item | Parameter |
|---|---|
| Max Working Height | 30.6 m |
| Max Working Radius | 17 m |
| Rated Platform Load | 200 kg |
| Boom Slewing | 360° Full Rotation |
| Platform Dimension | 1800×700×1000 mm with flip plate |
| Platform Rotation | Unlimited 360° Rotation |
| Boom Structure | 7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering |
| Boom Material | 960 High-strength Steel Plate |
| Lifting Cylinder | Dual Lifting Cylinders |
| Outrigger | X-type, 4 independent double-stage legs; Span: Trans 5770mm / Long 6120mm |
| Subframe | Exclusive Box-type Subframe + 3-layer Trapezoidal Slewing Support |
| Control System | Domestic Famous ECU, Wireless Remote + Central Control with Display Screen |
| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit |
| Walkway | Anti-slip Aluminum Alloy Walkboard |
| Safety Devices | Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection, Radiator, 220V External Power |
| Optional Parts | Upper Operation Cabin, 1T Winch |
| Total Boom Length | 27 m |
| Overall Vehicle Height | 3.1 m |
| Core Advantage | 7-section boom for 30.6m blue-plate certification, stable structure with fewer boom sections |
