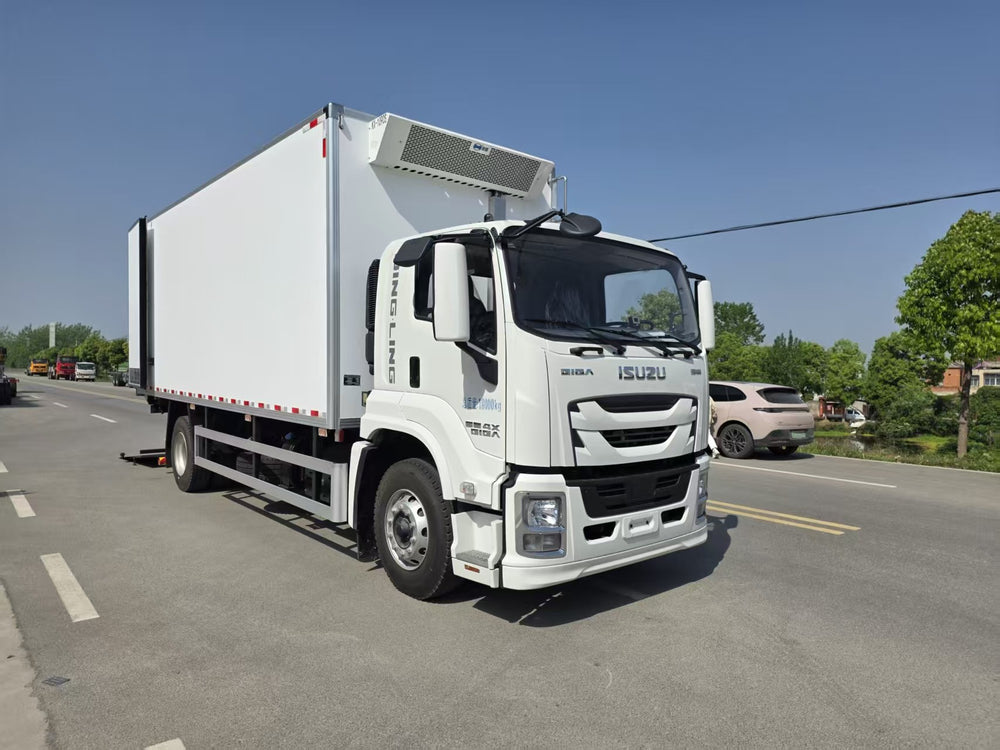

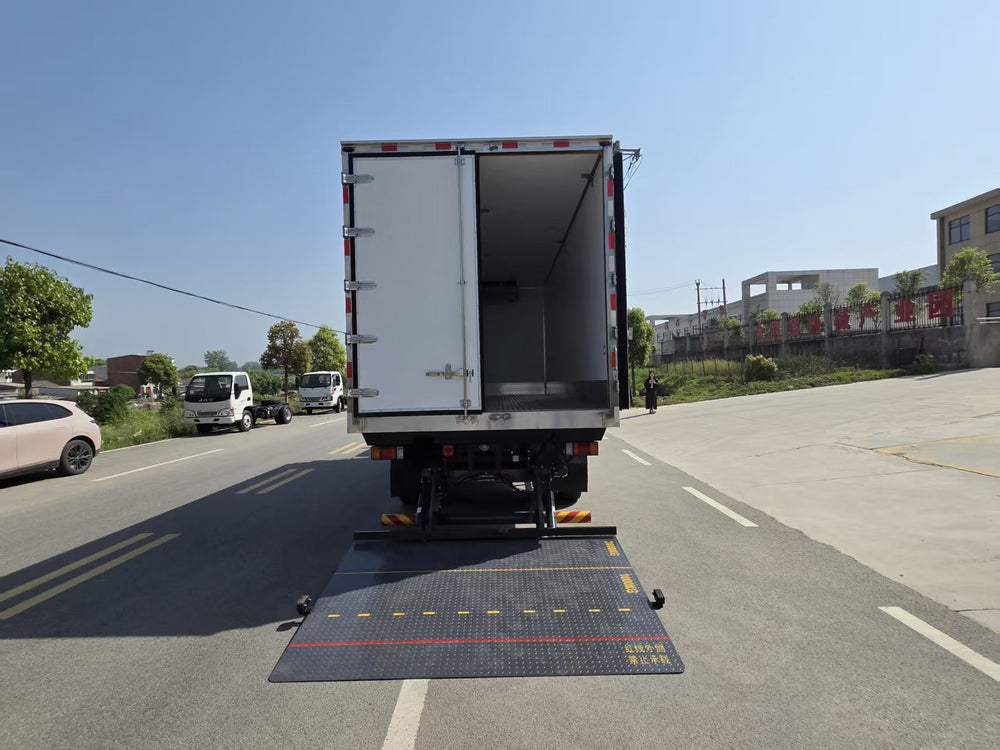

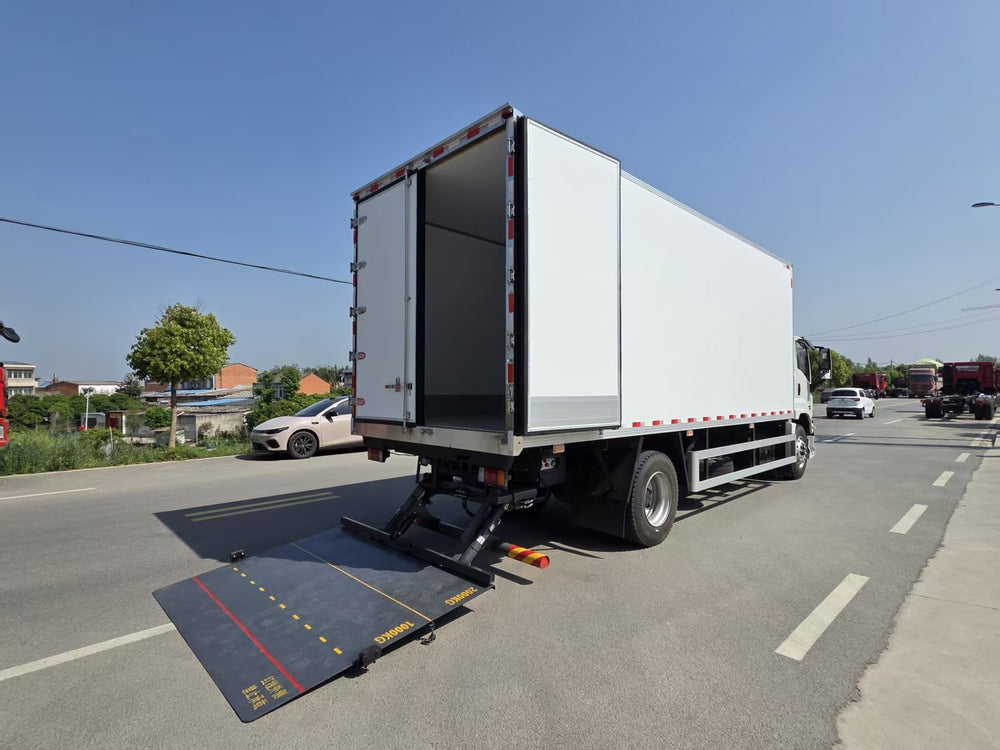

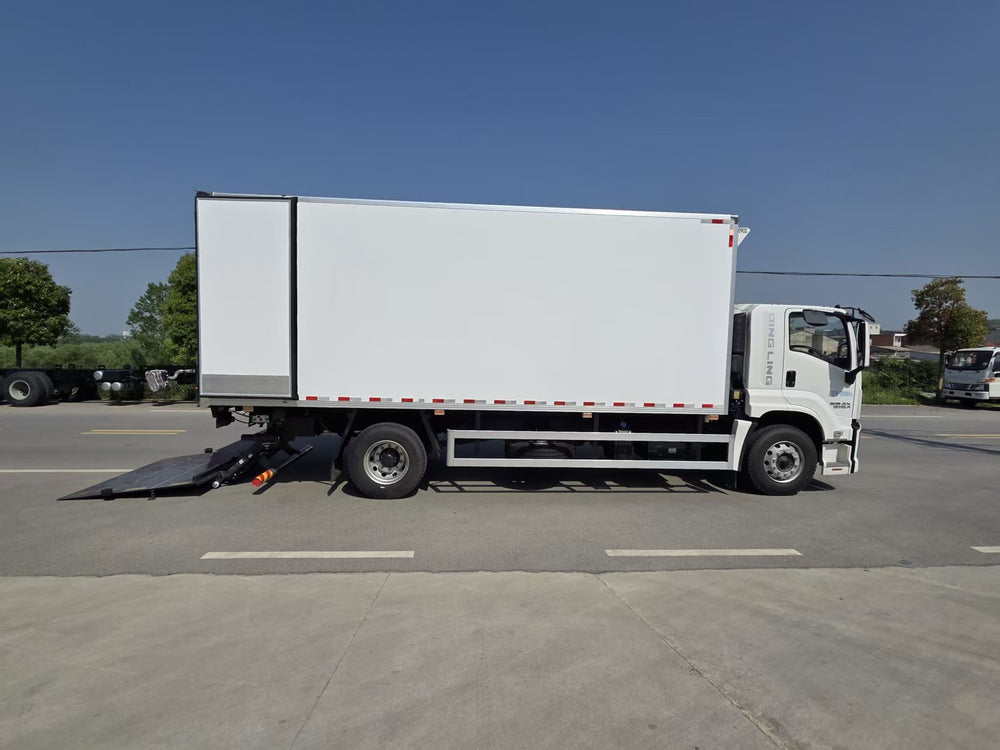

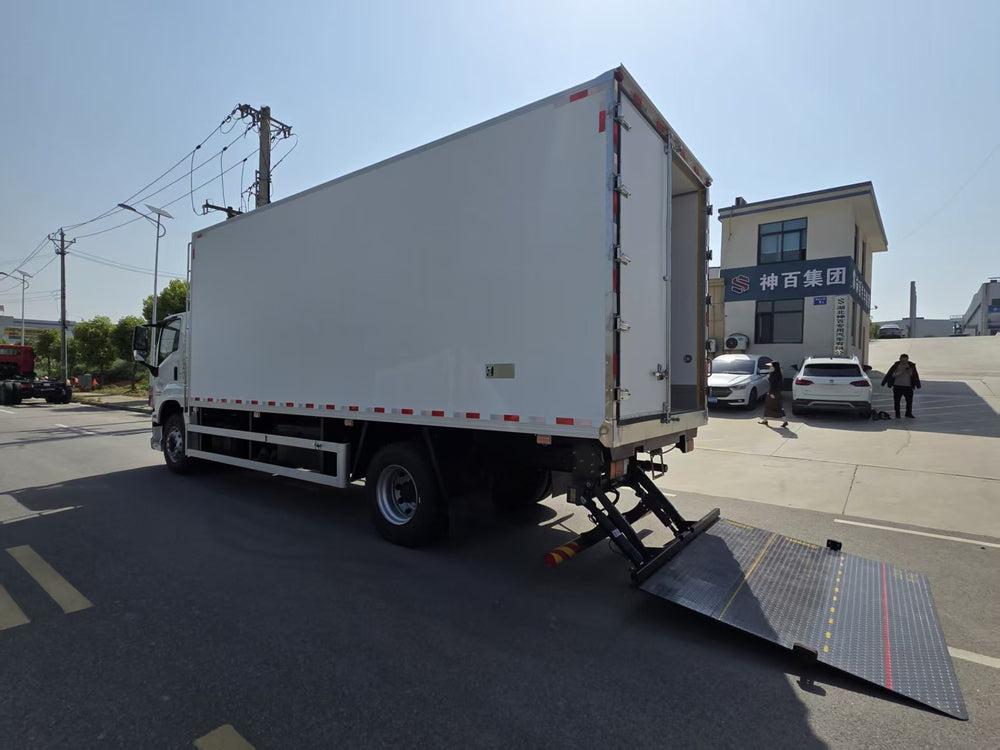

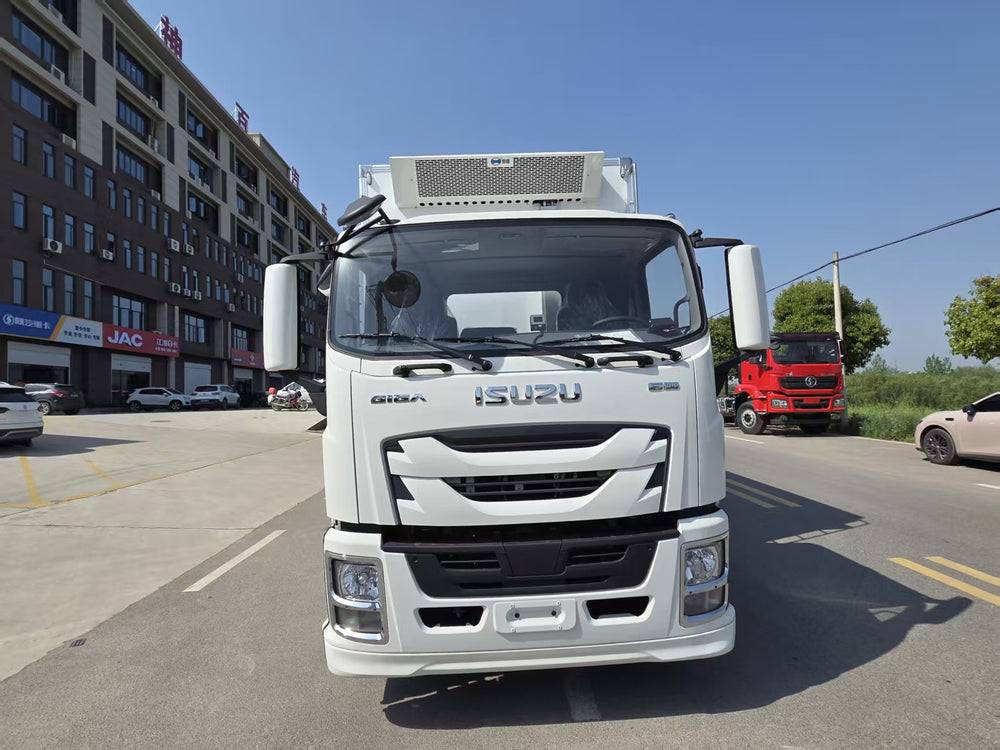

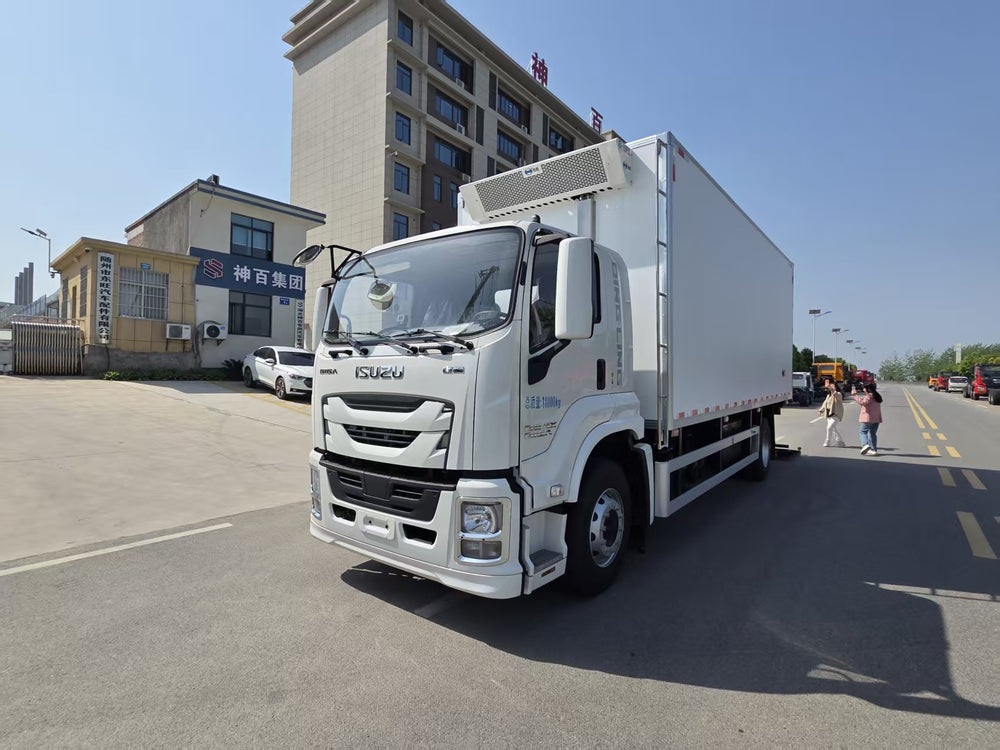

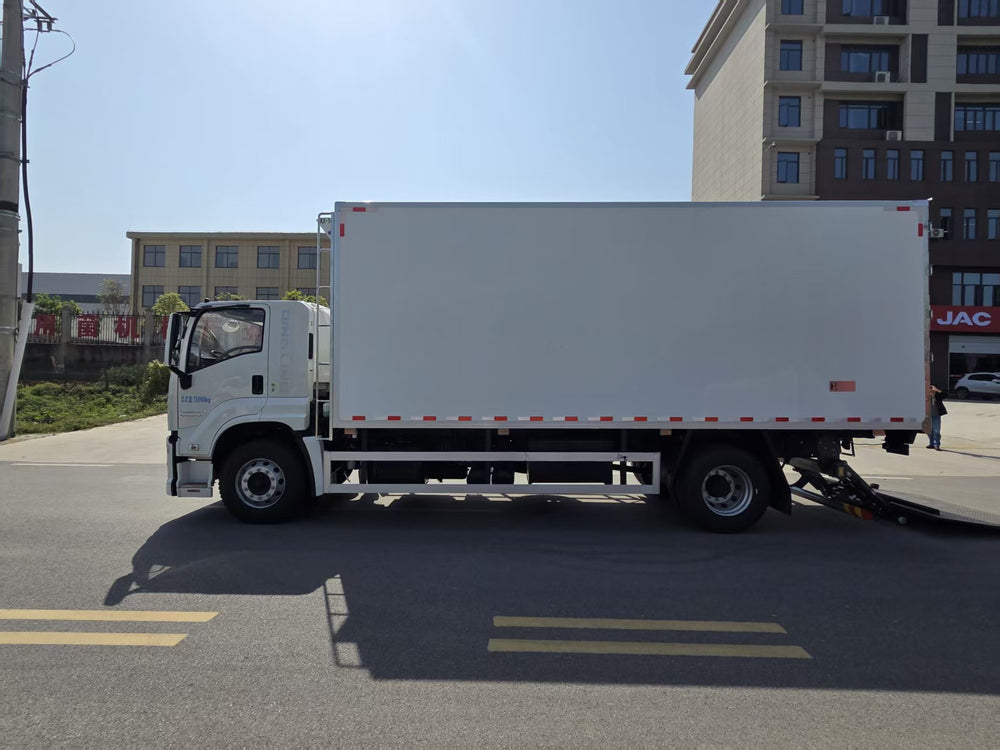

Isuzu 6.8-meter refrigerated truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	Isuzu
Total vehicle weight	18000kg
curb weight	8500 kg
Rated load	9500kg
Overall vehicle dimensions	9200×2600×3960 mm
Top speed	89 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	Isuzu 4HK1-TC60 Diesel Engine
horsepower	150 kW / 205 HP
gearbox	Fast 8-speed gearbox
Front axle/Rear axle	6.3 tons / 13tons
wheelbase	5550 mm
Tire specifications	275/80R22.5 18PR tubeless tire
tank	600L Aluminum Alloy
Emission standards	Euro 6
Other configurations	Air suspension seats, automatic air conditioning, power and heated side mirrors, cruise control, multi-function LCD instrument cluster, multi-function steering wheel, ABS, parking sensors, remote central locking, power windows.
3. Basic parameters of the upper part
Cargo box dimensions	6800×2440×2500 mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm
Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
