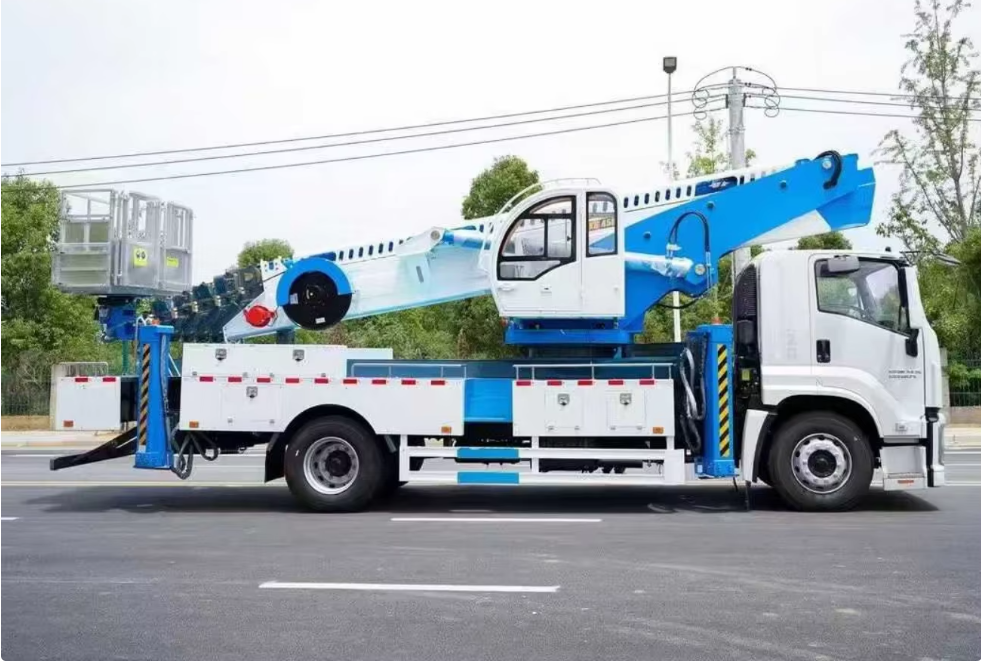

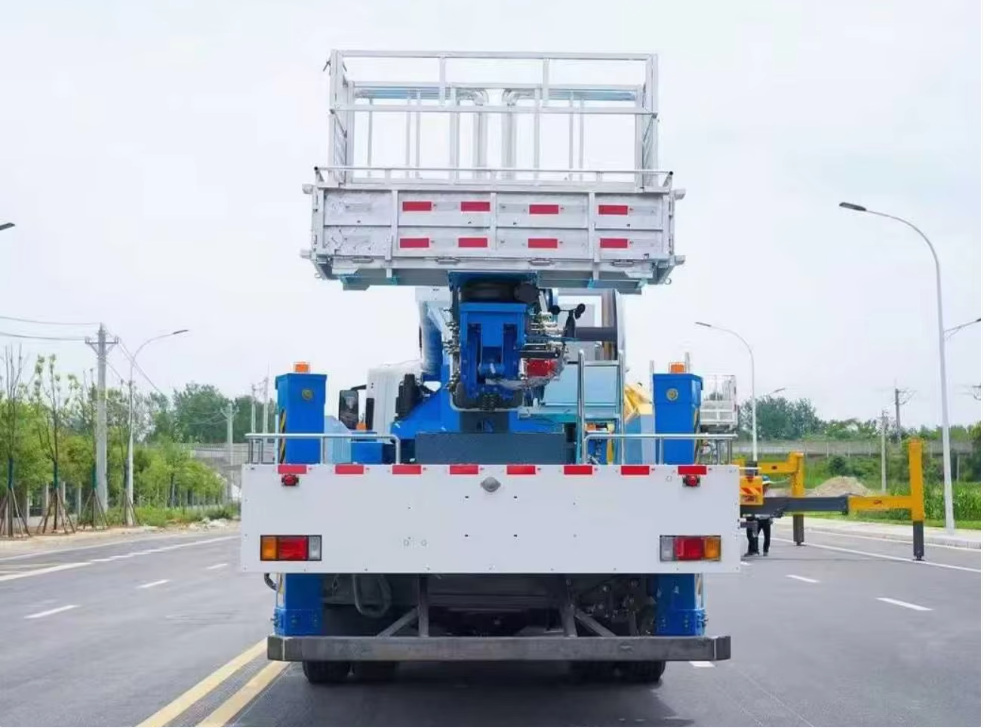

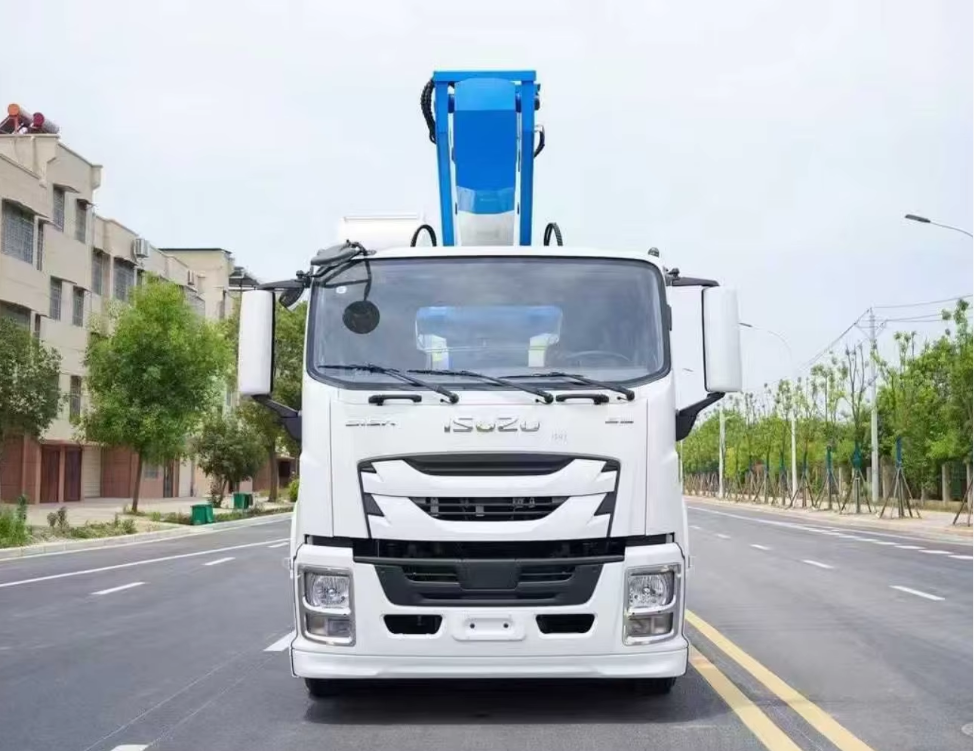

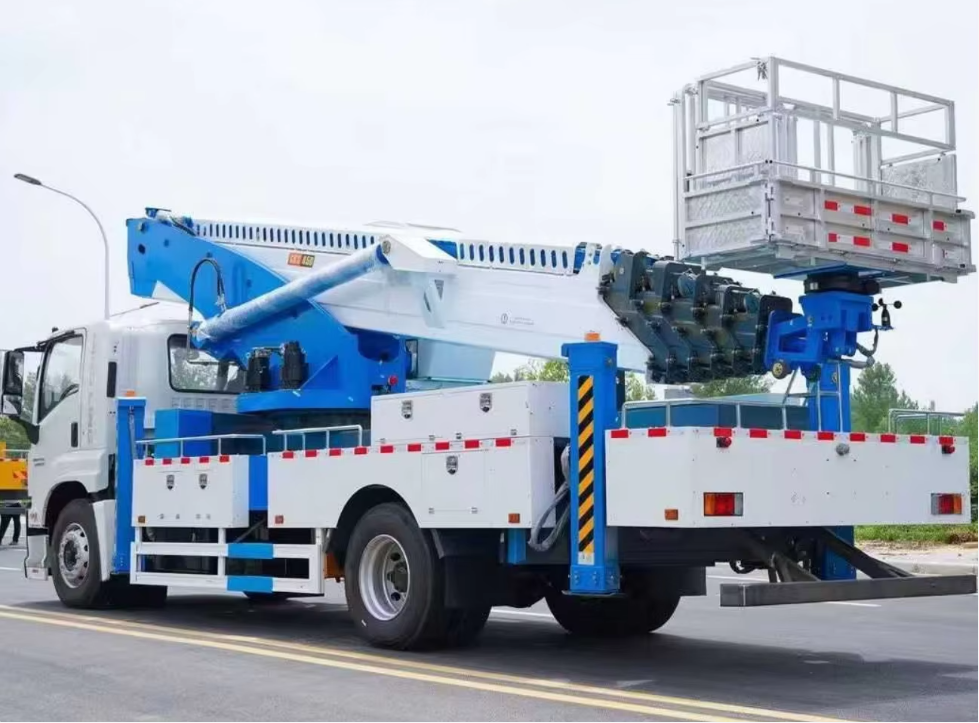

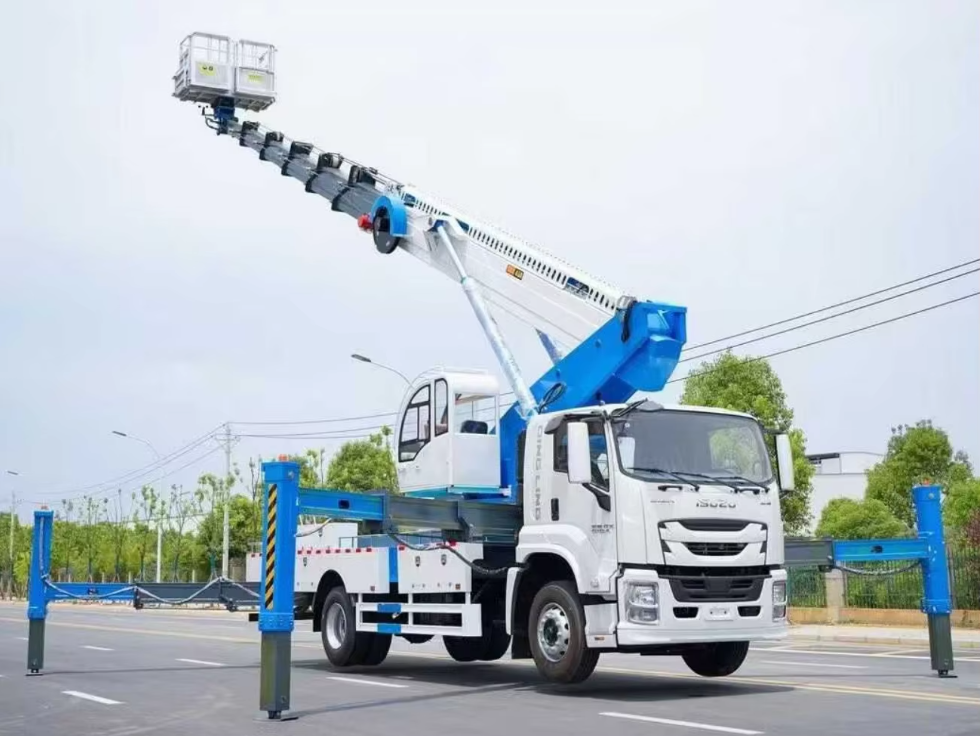

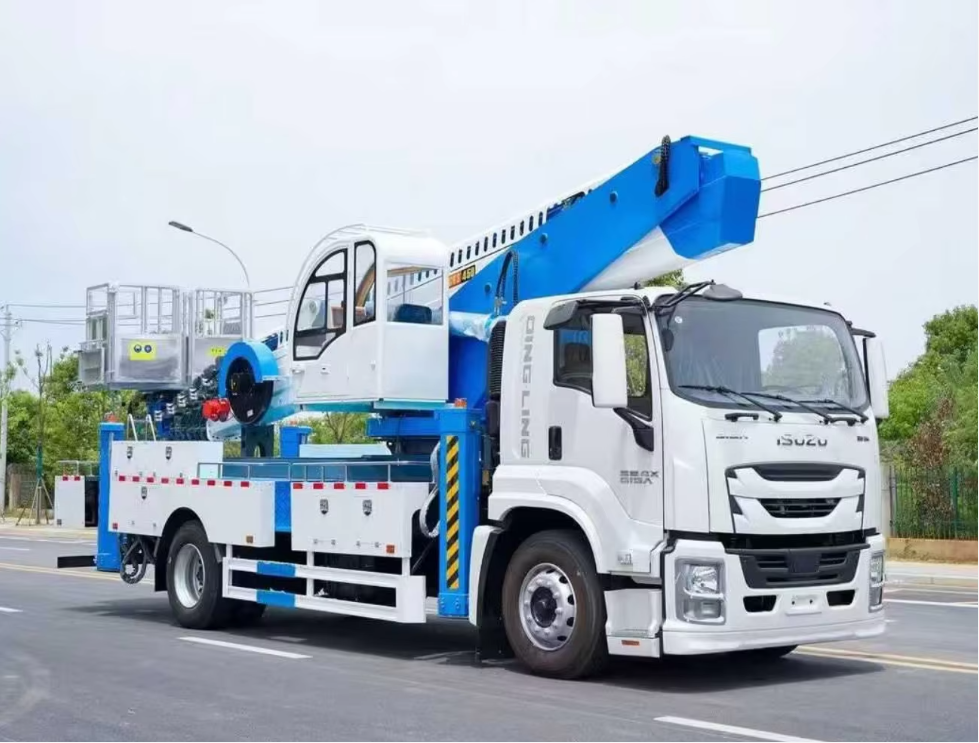

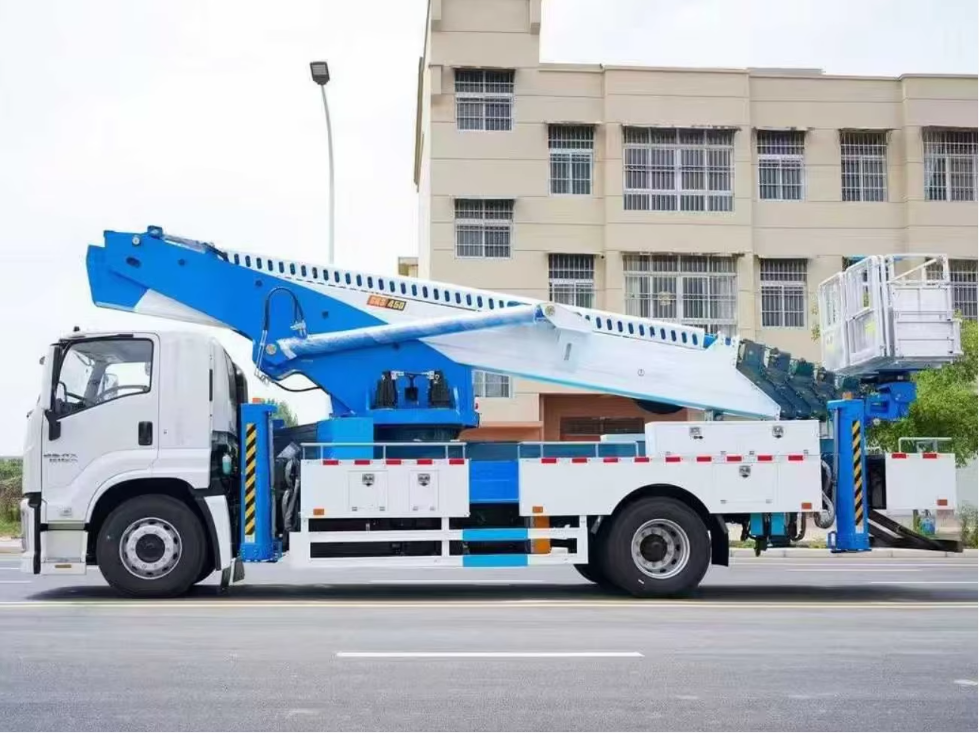

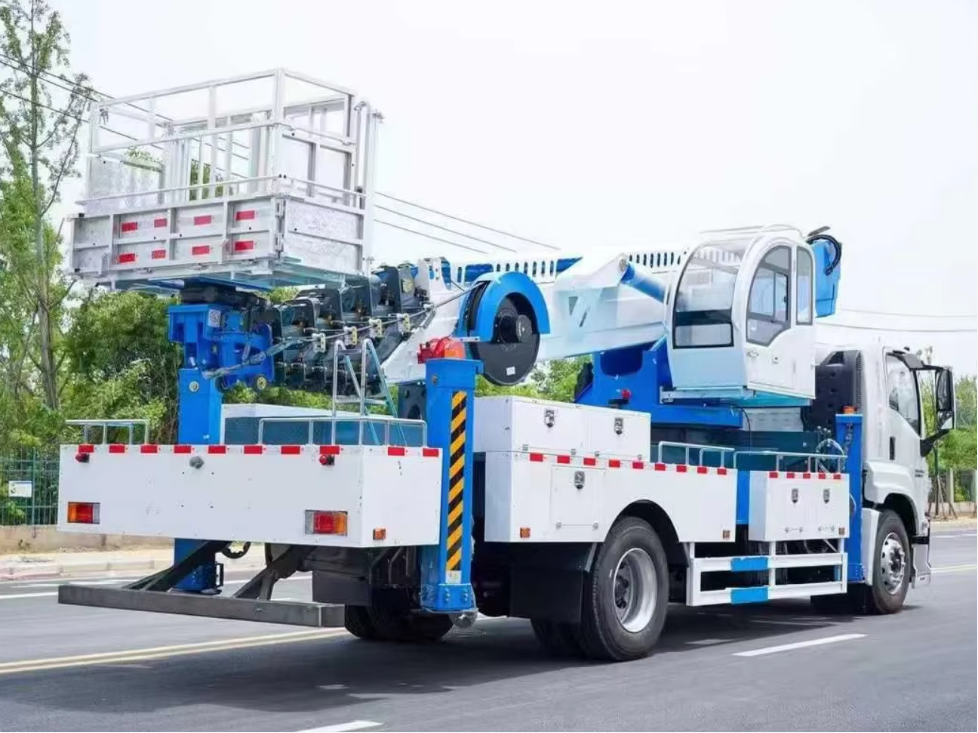

Isuzu 45-meter aerial work platform truck - factory direct sales

1. Basic Vehicle Parameters
Chassis Brand	Isuzu
Total vehicle weight	18000kg
Curb weight	17200kg
Overall vehicle dimensions	9820×2590×3950mm
Engine Model	Isuzu 6HK1-TCG61
Horsepower	205horsepower
Gearbox	Fast 8-speed manual
Wheelbase	4500mm
Tire specifications	11R22.5 tubeless tire
Braking System	Air Brake
Emission standards	Euro 6
Top speed	110km/h
Fuel tank capacity	200 liters
Lateral support leg span (front/rear)	6120mm/5800mm
Standard configuration	Air conditioning (heating and cooling), power steering, central locking, power windows and doors, multi-function steering wheel, multi-function LCD instrument cluster, with ABS.
2. Basic parameters of the upper part
Maximum working height	45m
Maximum working radius	25m
Rated load of the work platform	200 kg
Boom slewing angle	360° rotation
Overall platform dimensions	320010001100mm
Platform rotation range	±180°
Boom structure	9Section Boom，8Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily
Control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply
