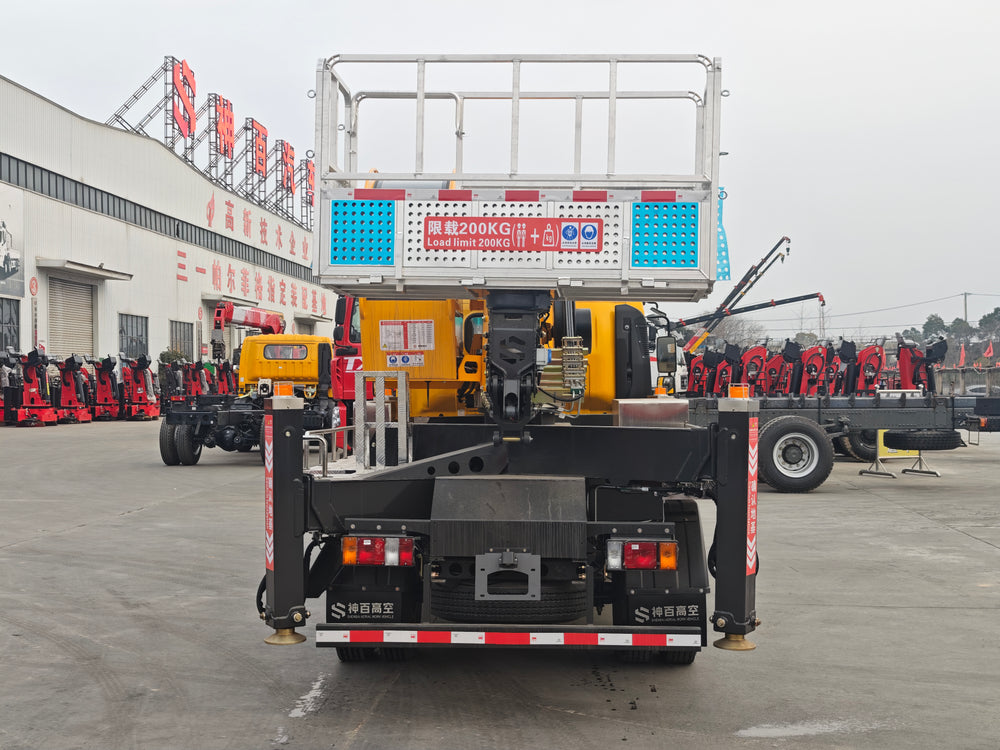

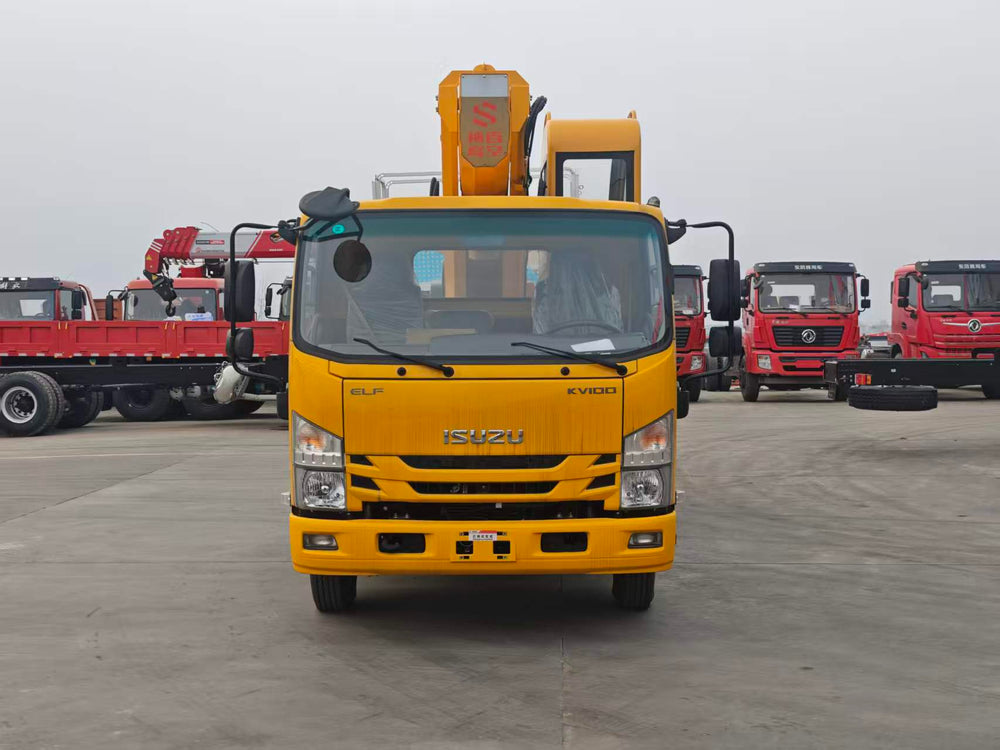

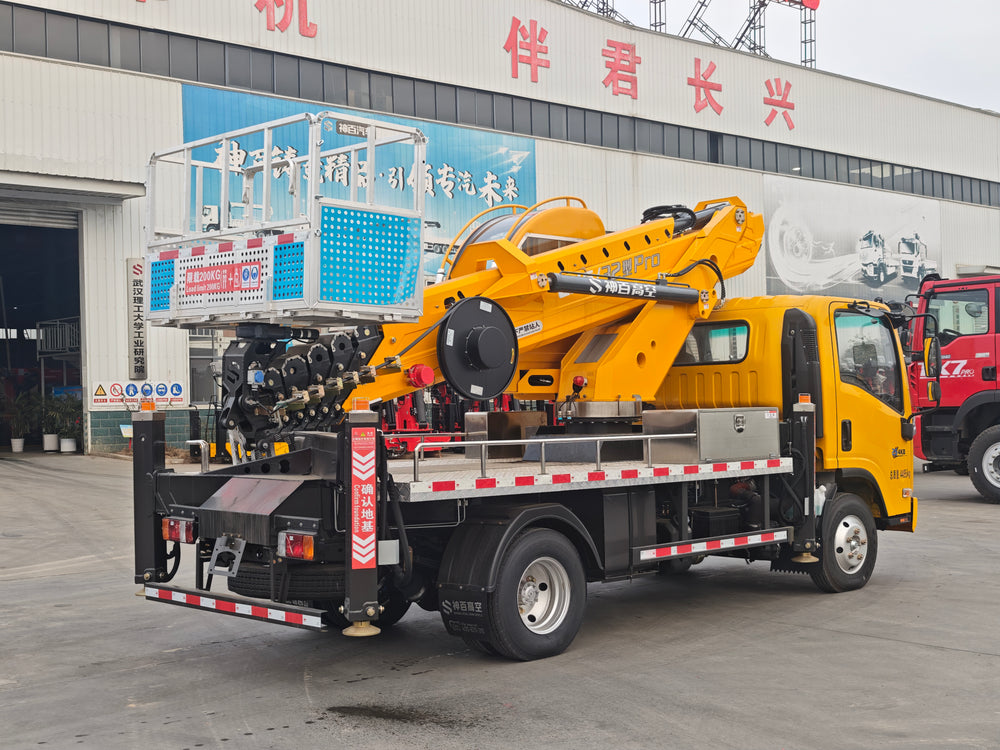

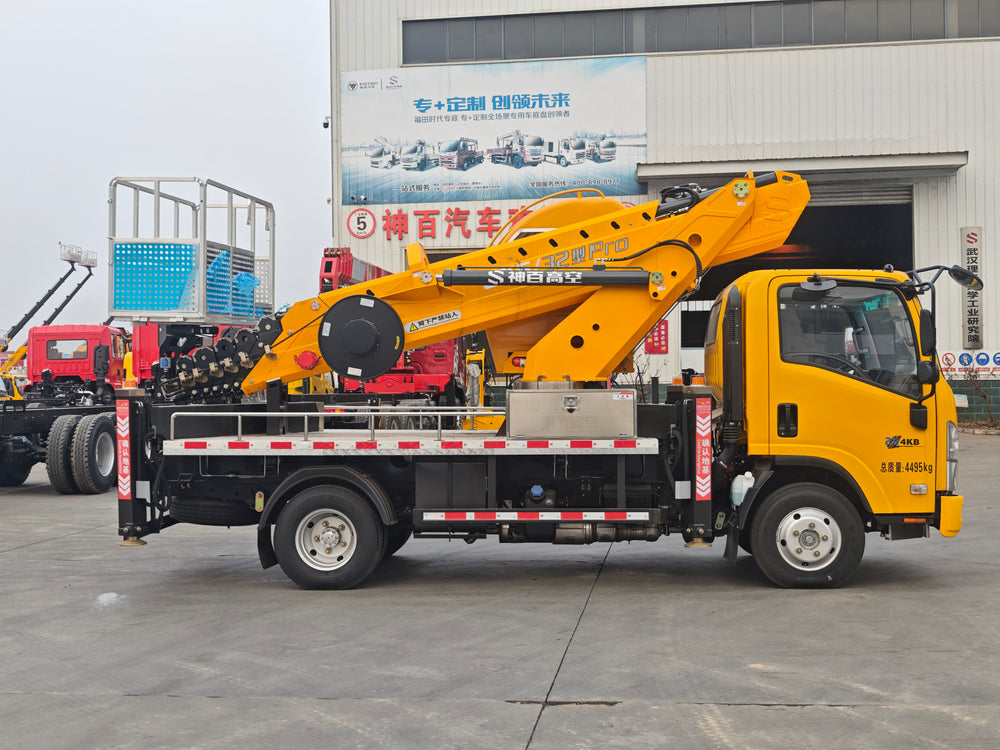

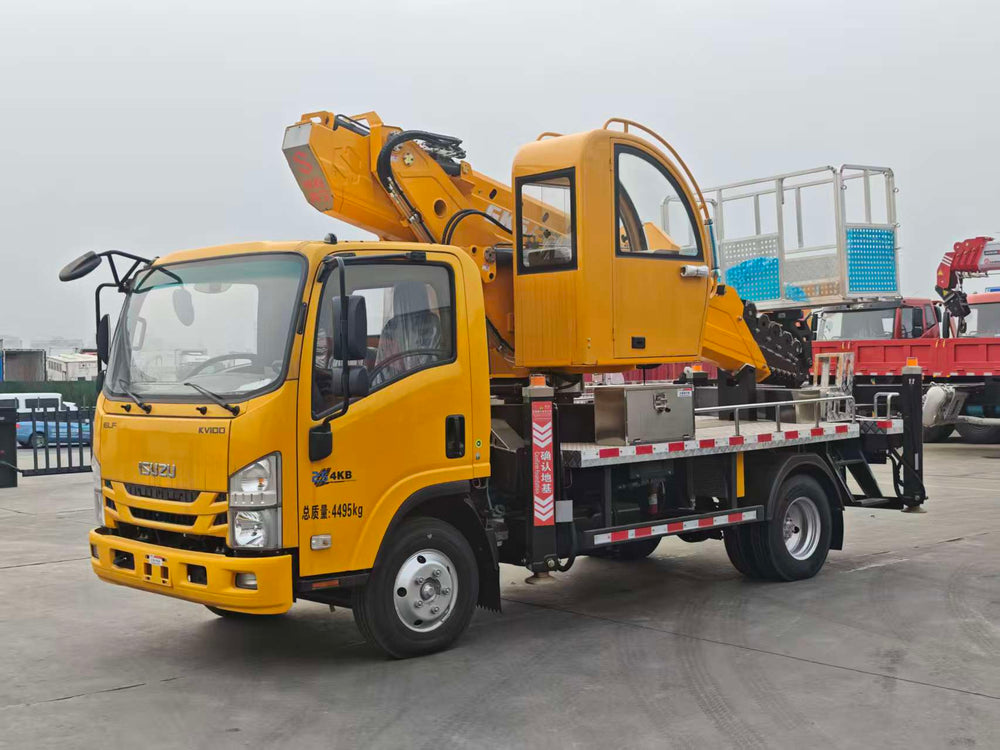

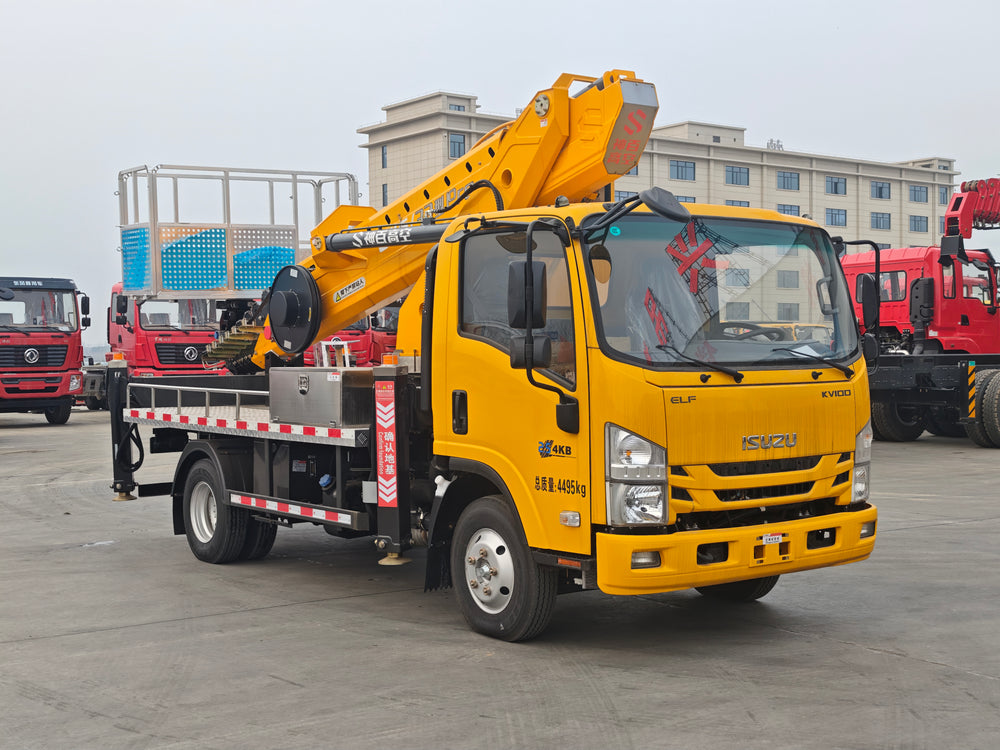

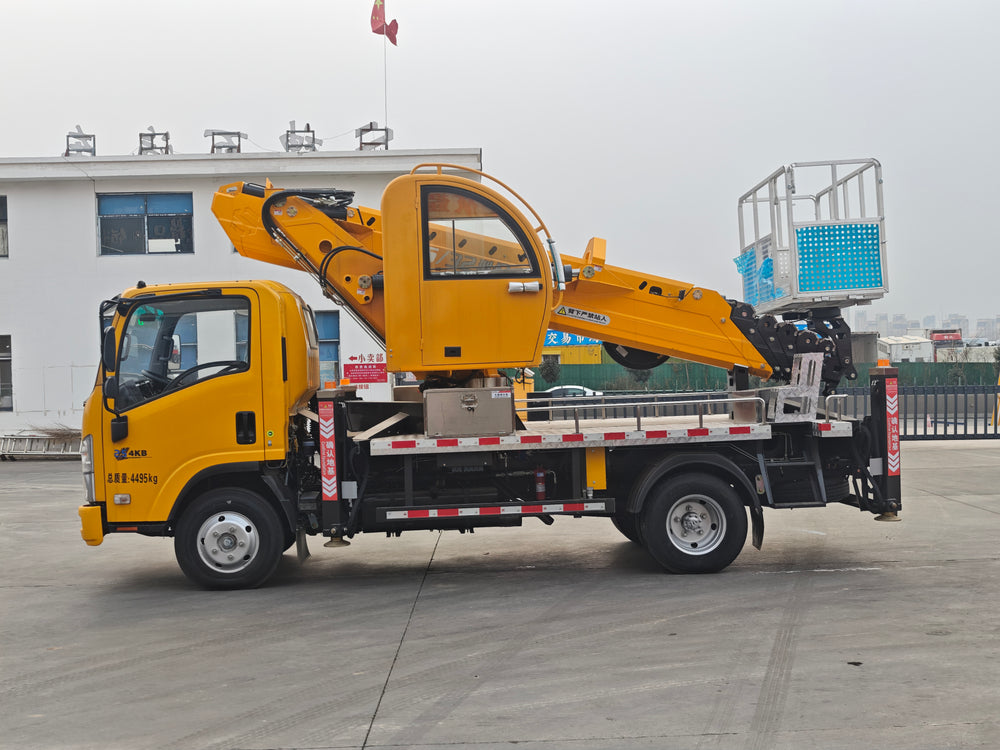

Isuzu 32-meter aerial work platform

1 / 8

1. Basic Vehicle Parameters
Chassis Brand	Isuzu
Total vehicle weight	4495 kg
curb weight	4300 kg
Overall vehicle dimensions	5995mm2200mm3100mm
Engine Model	130HP 4KB1-TCG60
horsepower	130horsepower
gearbox	Isuzu 5-speed Transmission
wheelbase	3360mm
Tire specifications	700R16
Braking System	Air-over-hydraulic Brakes
Emission standards	Euro 6
Top speed	110km/h
fuel tank capacity	75liters
Lateral support leg span (front/rear)	6120mm/5800mm
Standard configuration	Power Windows, Air Conditioner, Central Lock
2. Basic parameters of the upper part

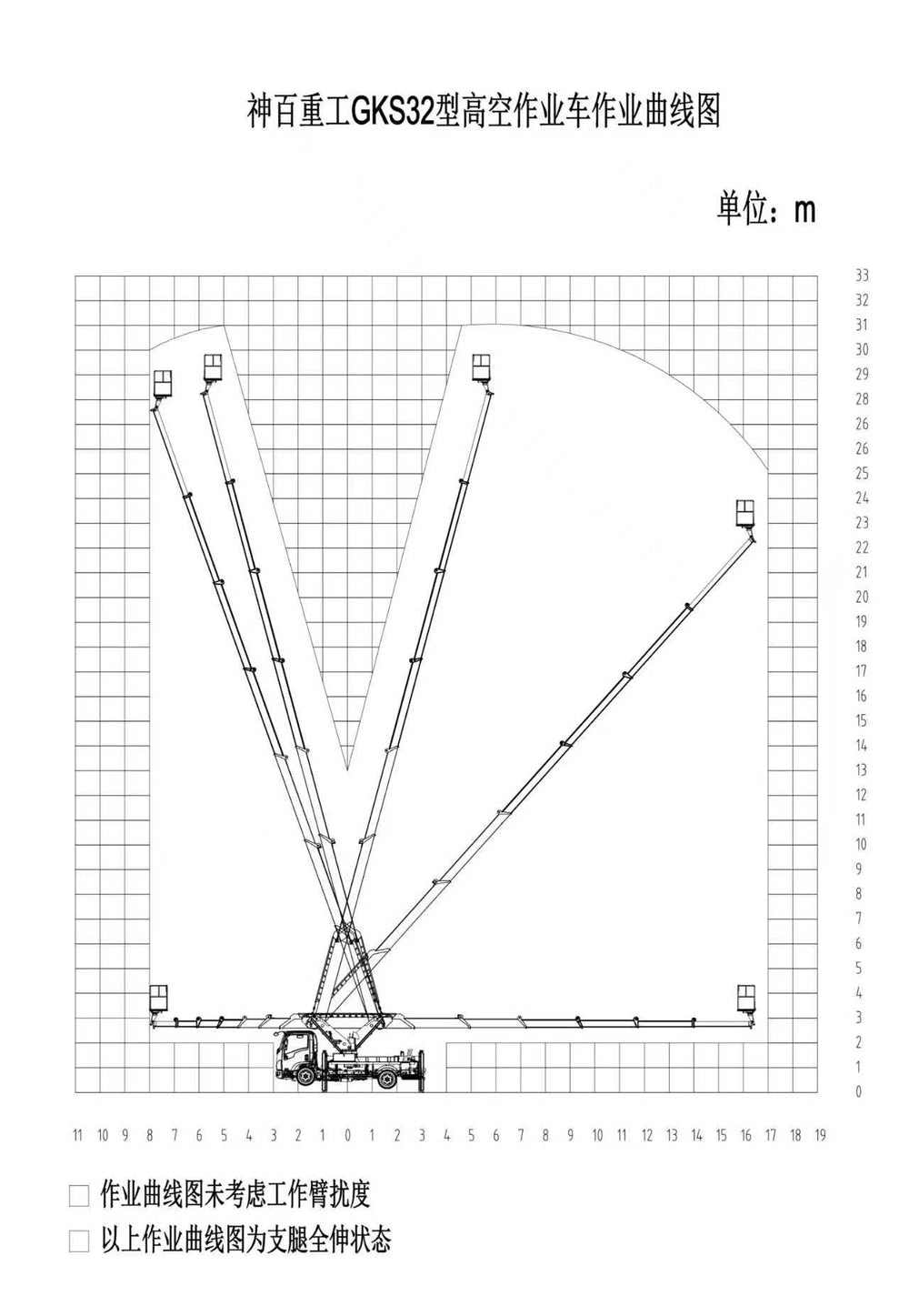

Maximum working height	30.6m
Maximum working radius	17m
Rated load of the work platform	200 kg
boom slewing angle	360° rotation
Overall platform dimensions	1800 × 700 × 1000 mm
Platform rotation range	±180°
boom structure	7Section Boom，6Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily
control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply
