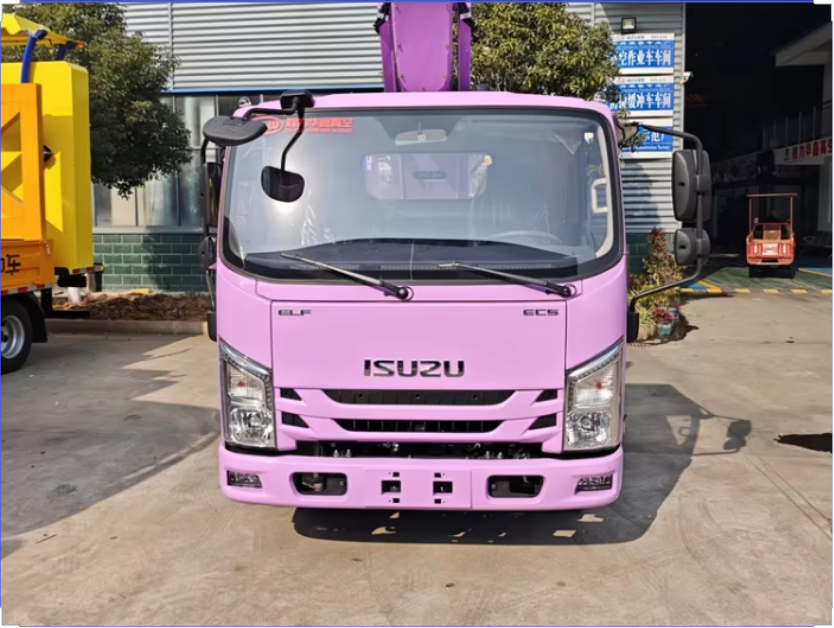

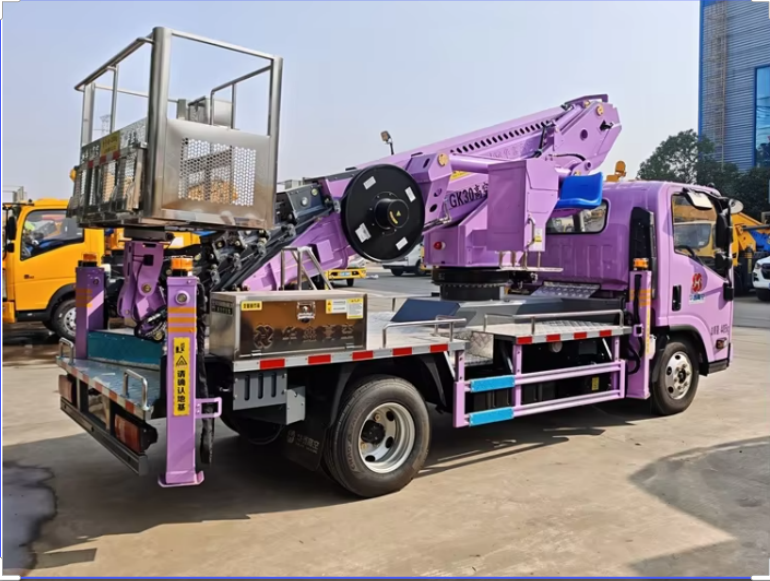

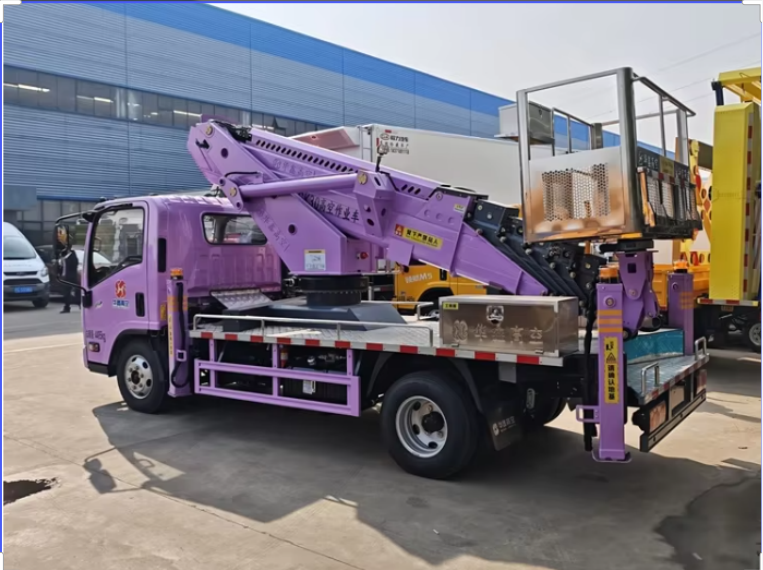

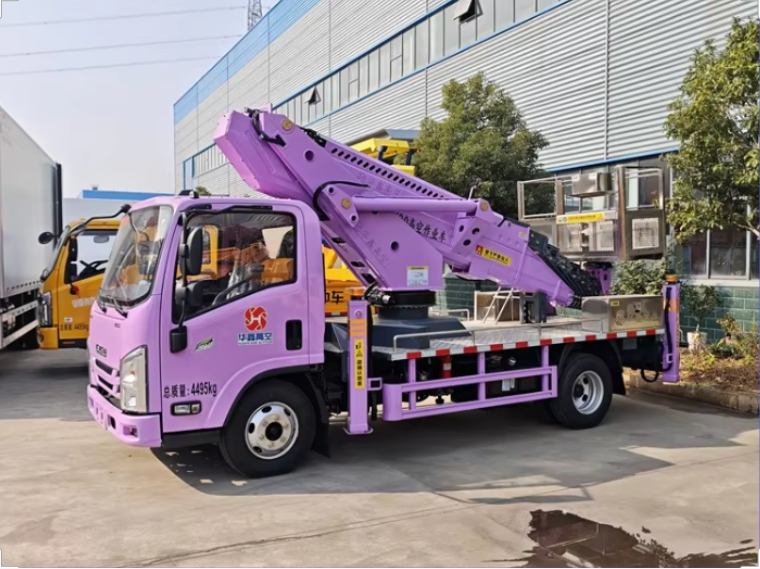

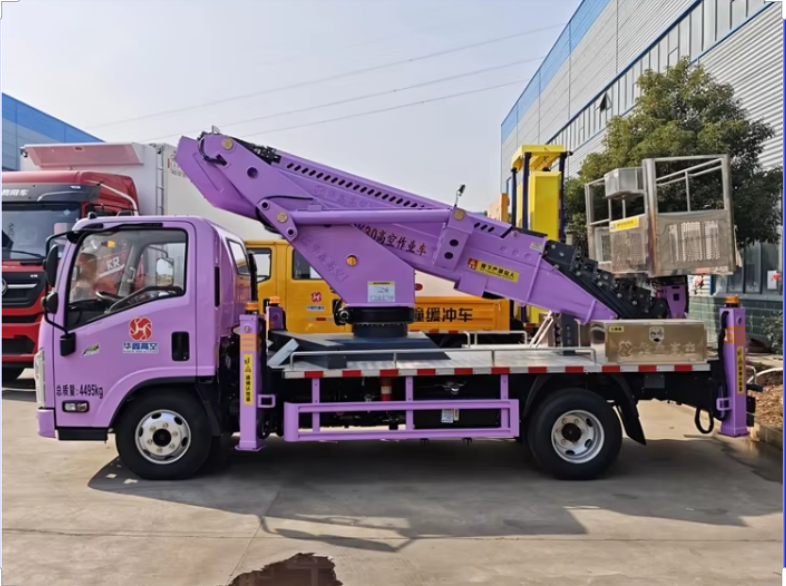

Isuzu 30-meter aerial work platform truck - factory direct sales

1. Basic Vehicle Parameters
Chassis Brand	Isuzu
Total vehicle weight	7500 kg
Curb weight	7000kg
Overall vehicle dimensions	7200×2250×3100 mm
Engine Model	Isuzu 4HK1-TCG61
Horsepower	160 horsepower
Gearbox	6-speed manual
Wheelbase	3380 mm
Tire specifications	7.00R16
Braking System	Air Brake
Emission standards	Euro 6
Top speed	110km/h
Fuel tank capacity	100 liters
Lateral support leg span (front/rear)	5600 mm laterally / 5400 mm longitudinally
Standard configuration	Air conditioning (heating and cooling), power steering, central locking, power windows and doors, multi-function steering wheel, multi-function LCD instrument cluster, with ABS.
2. Basic parameters of the upper part
Maximum working height	30m
Maximum working radius	14m
Rated load of the work platform	200 kg
Boom slewing angle	360° rotation
Overall platform dimensions	1600 × 700 × 1000 mm
Platform rotation range	±180°
Boom structure	7Section Boom，6Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily
Control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply
