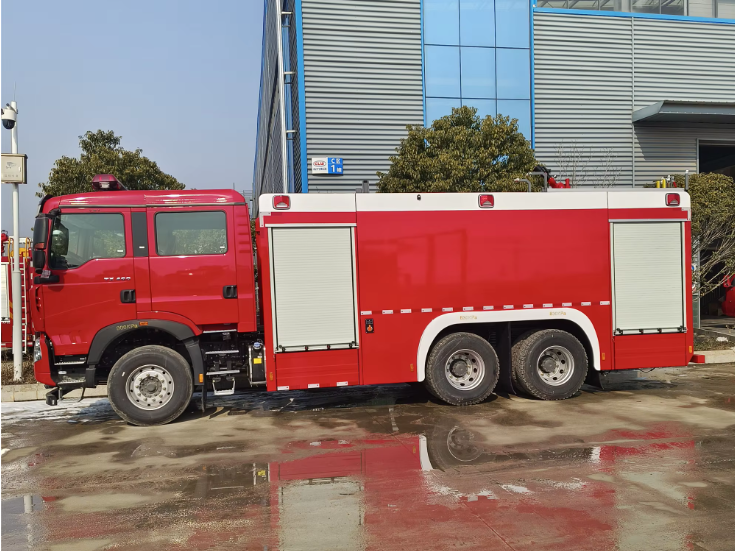

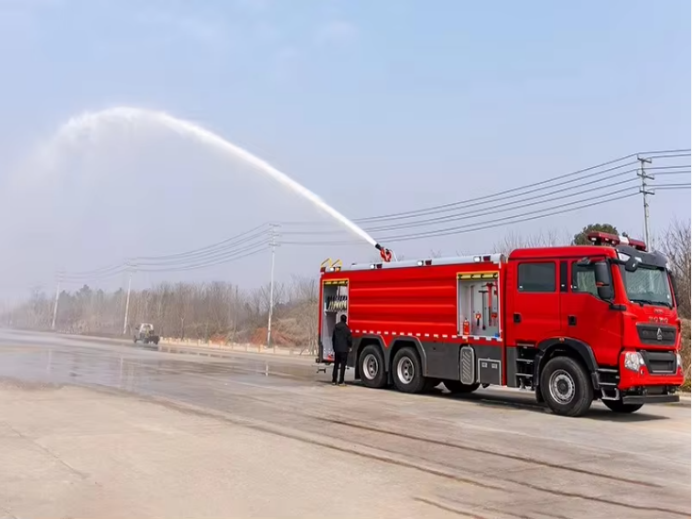

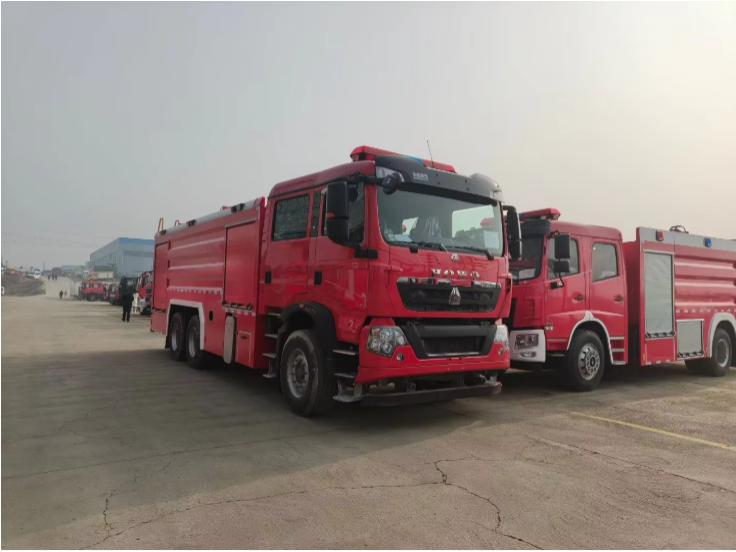

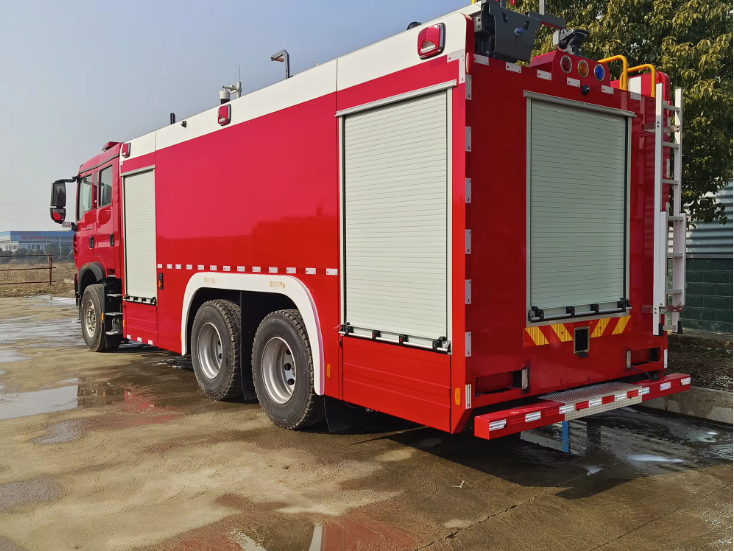

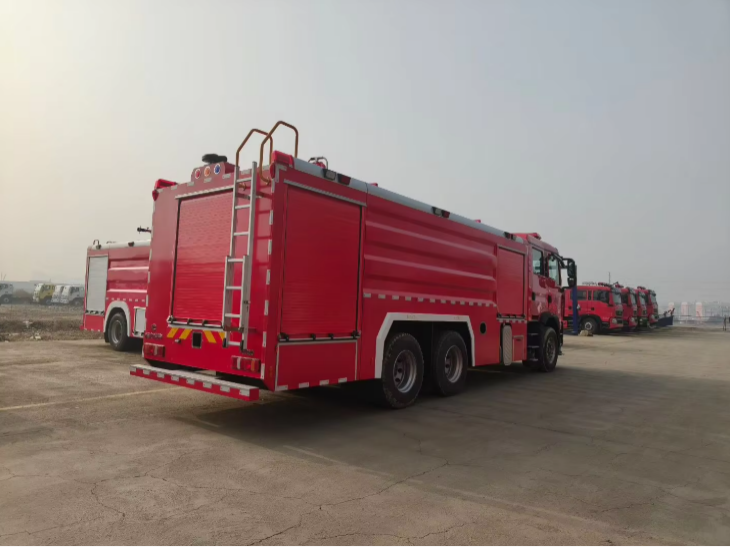

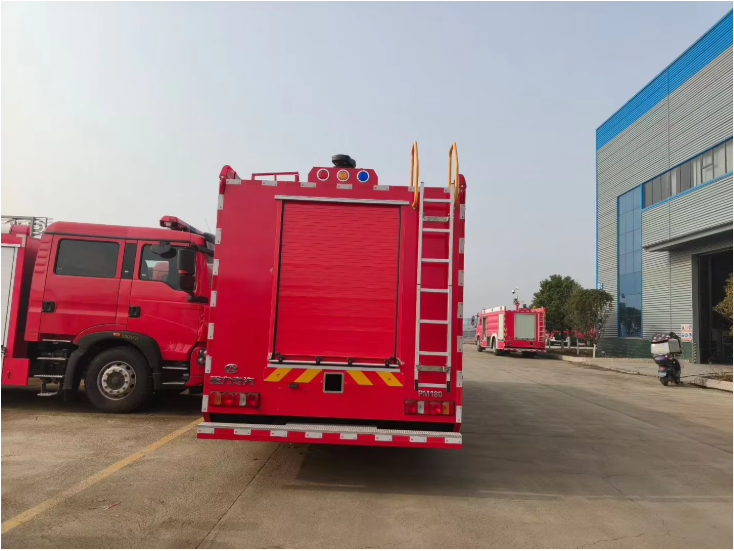

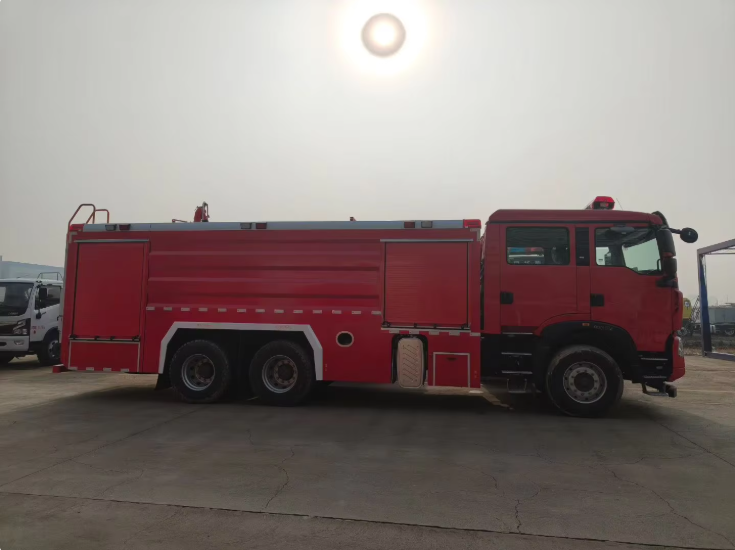

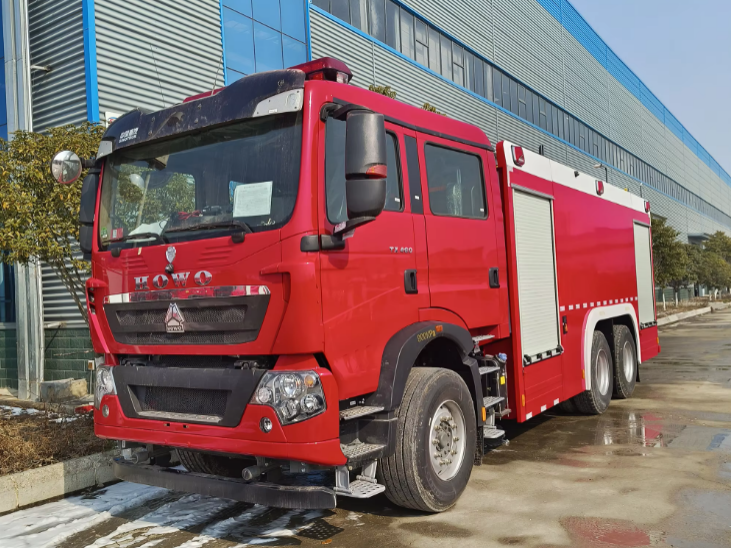

HOWO6*4 12 m³ foam water tanker fire truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	HOWO 6*4
Total vehicle weight	27600 kg
Curb weight	15600kg
Rated water capacity	12000 kg
Overall vehicle dimensions	10025×2520×3790 mm
Top speed	90 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	MC11.46-61
Horsepower	460HP / 341kWkW
Gearbox	12-speed manual
Front axle/Rear axle	9 tons / 2*13 tons
Wheelbase	4600+1400 mm
Tire specifications	12.00R20
Emission standards	Euro 2、Euro 3、Euro 4、Euro 5、Euro 6
3. Basic parameters of the upper part
Water tank capacity	1200L(Water tank: 9m³ carbon steel, corrosion resistant; foam tank:3m³ 304 stainless steel)
Water tank material	5mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish.
Fire pump rated flow	60L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	48L/s
Fire monitor rated pressure	0.8MPa
Fire monitor range	Water ≥ 70m, Foam ≥ 60m
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Standard equipment	Fire hoses, fire axes, fire extinguishers, demolition tools, etc.
