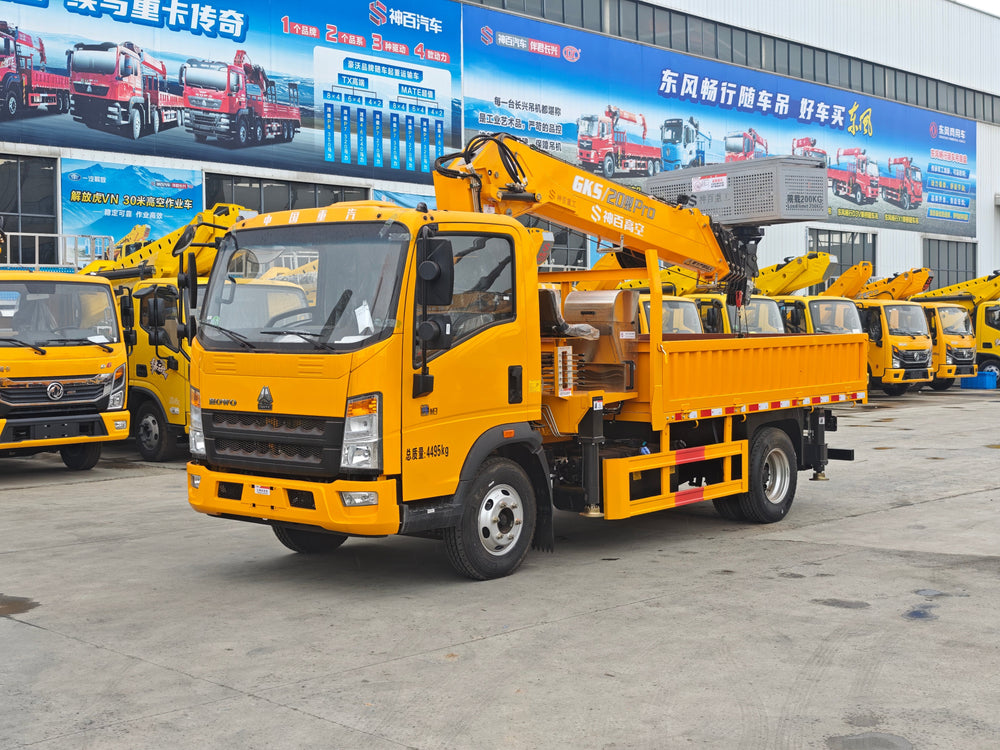

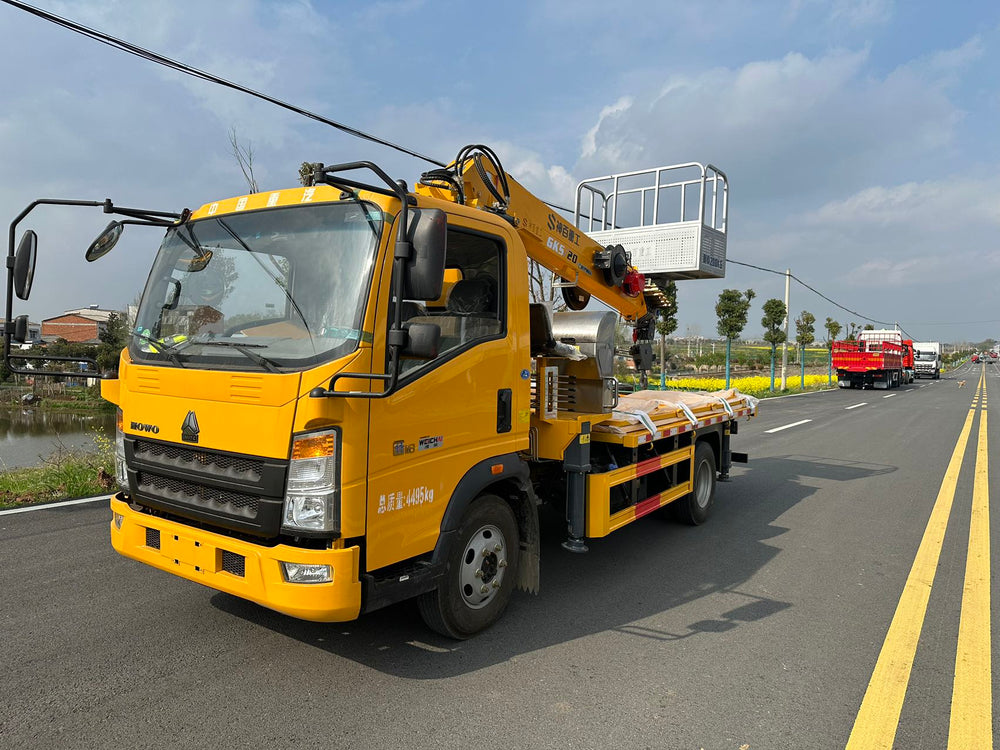

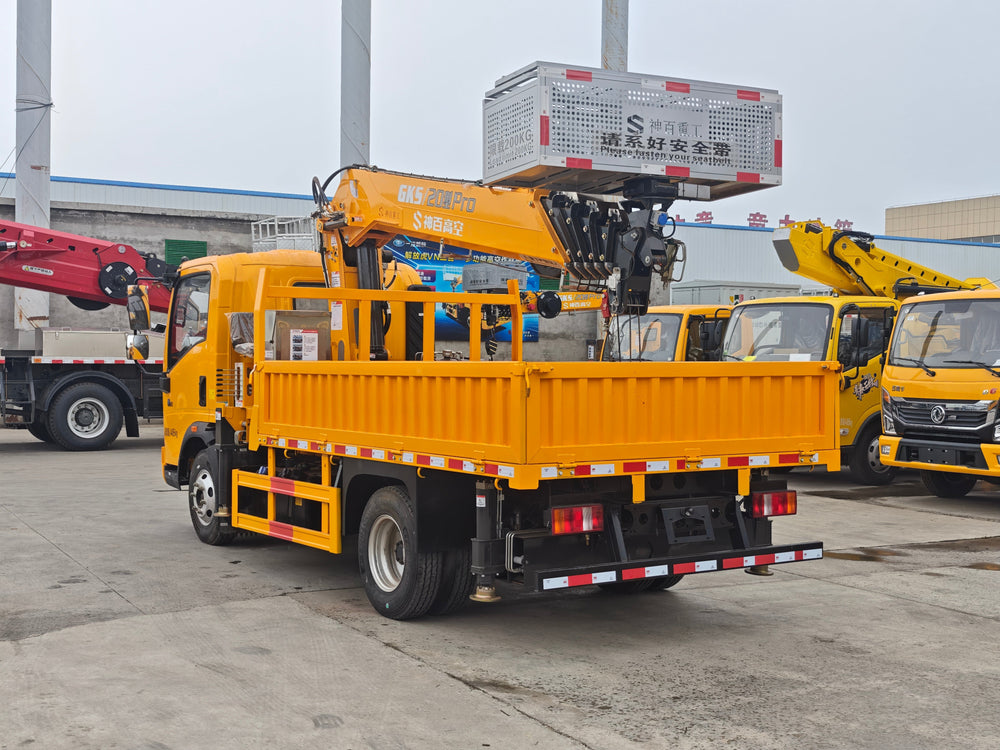

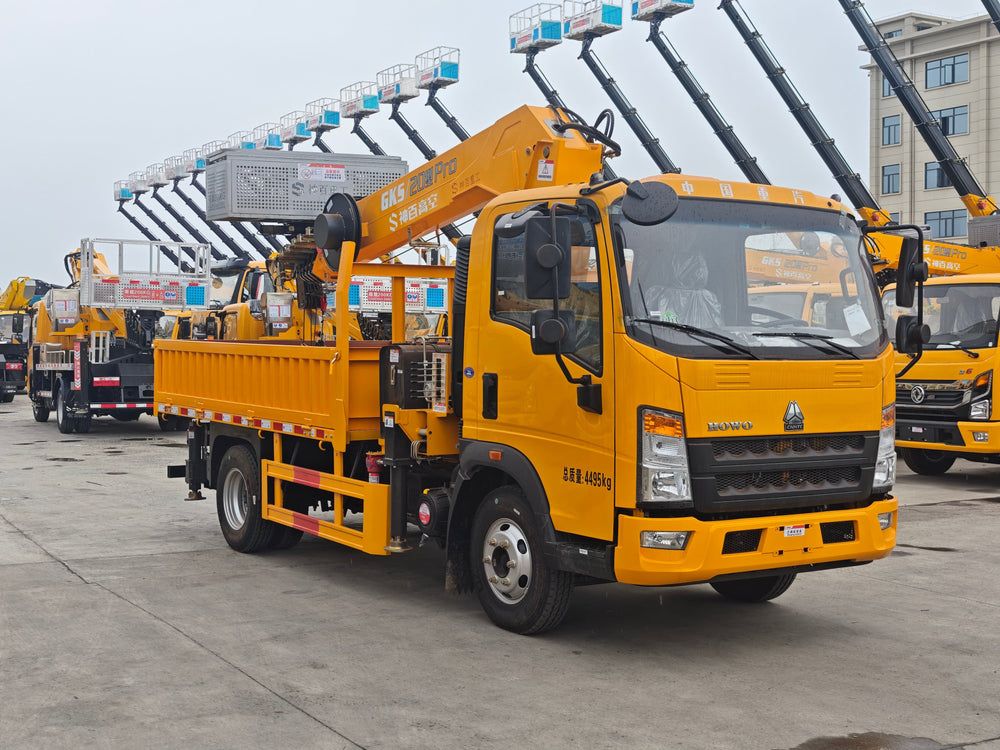

HOWO GK20 3-in-1 Aerial Work Platform Truck
Request a Quote Now
- Chassis Parameters
| Item | Parameter |
|---|---|
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Engine | Weichai WP2.3NQ160E61, 160 HP |
| Transmission | Wanliyang 6-speed / Small 8-speed (oil change every 120,000km) |
| Wheelbase | 3280 mm |
| Overall Dimension | 5998×2200×2950 mm |
| Front/Rear Axle | 2T / 3.5T |
| Tire Spec | 7.00R16LT 10PR Steel Radial Tire |
| Brake | Air Cut-off Brake |
| Standard Fittings | Air Conditioner, Power Window, Central Door Lock |
| Outrigger Span | Transverse:5150/4500mm; Longitudinal:3400mm |
2. Aerial Work Superstructure (GK20)
| Item | Parameter |
|---|---|
| Max Working Height | 19.2 m |
| Max Working Reach | 12 m |
| Rated Platform Load | 200 kg |
| Boom Slewing | 360° Full Rotation |

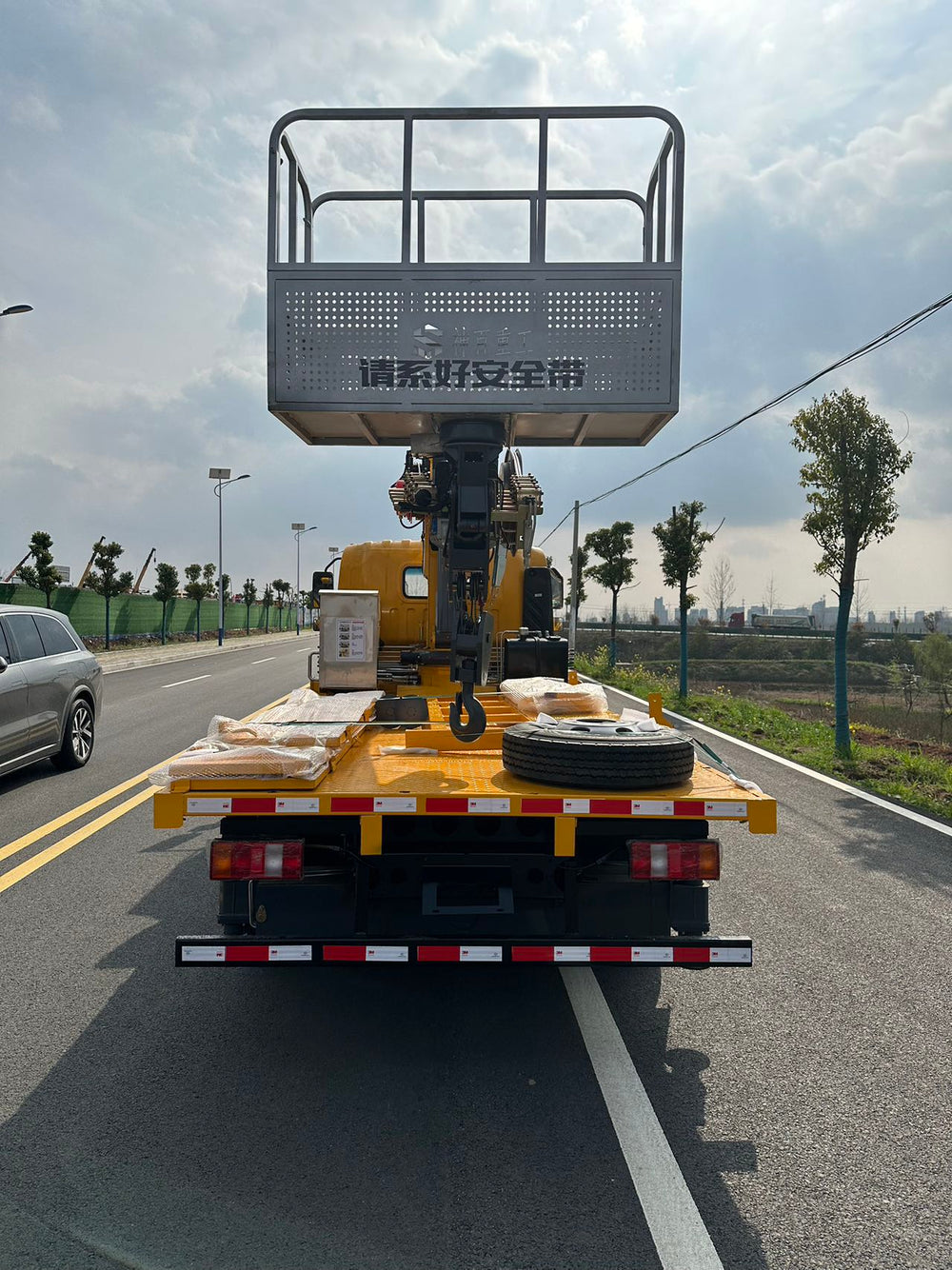

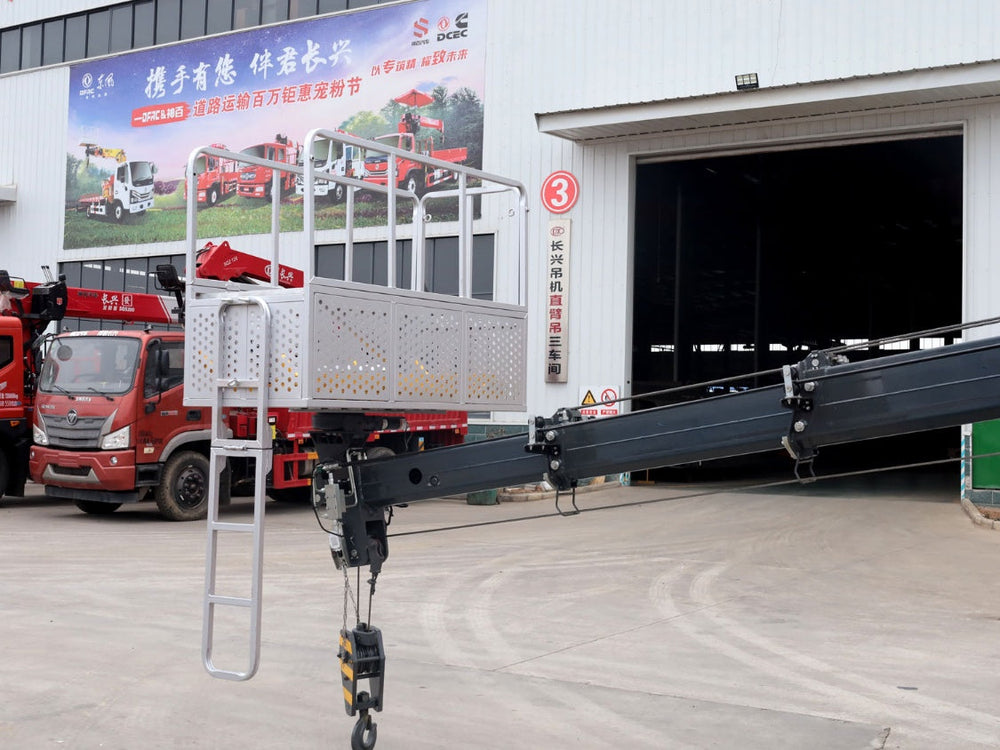

| Platform Size | 1500×700×1100 mm |
| Platform Rotation | ±180° |
| Boom Structure | 6-section boom, 5-section synchronous extension; spare steel cable for emergency lowering |

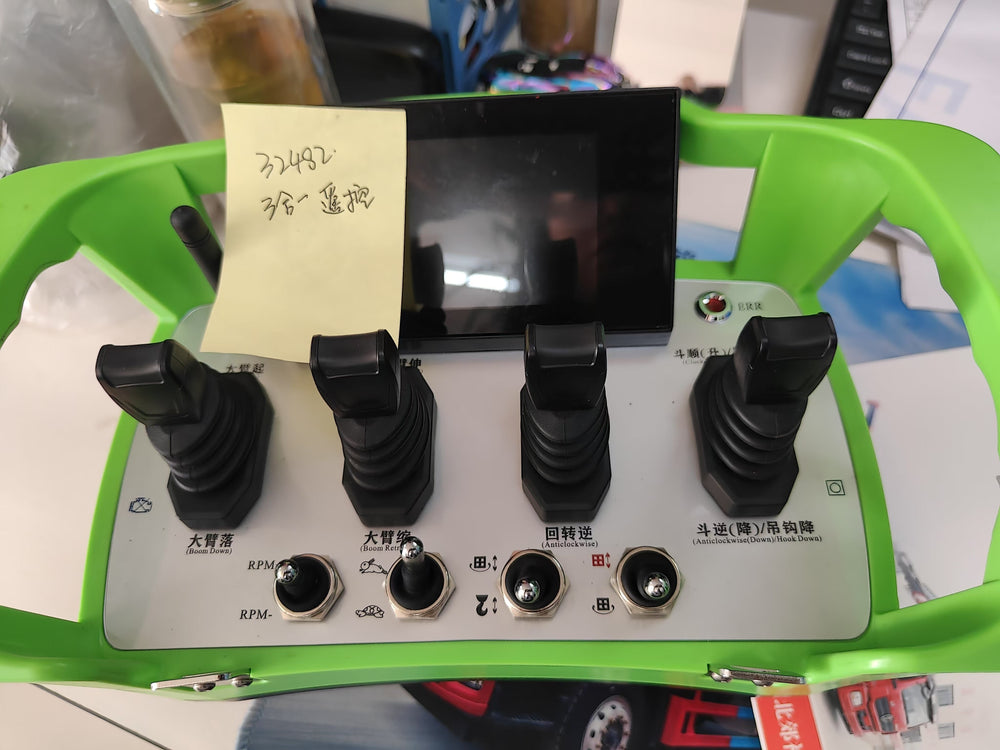

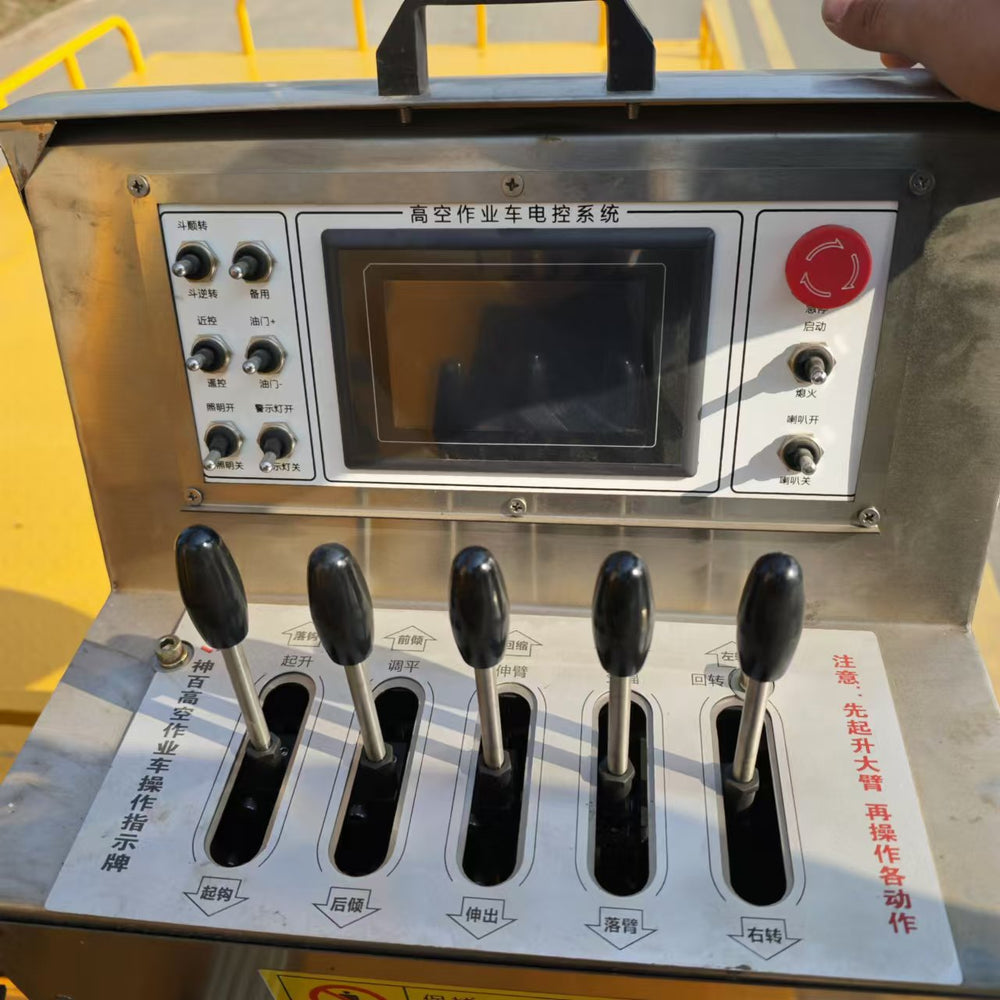

| Control System | Domestic Famous ECU, Wireless Remote + Central Control with Display |
| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed Regulation |
| Outrigger | H-type, 4 independently adjustable full-surround legs |
| Safety Devices | Upper-lower Interlock, Limit Protection, Bi-directional Hydraulic Balance Valve |
3. Truck-mounted Crane Part
| Item | Parameter |
|---|---|
| Max Lifting Capacity | 5000 kg |
| Main Winch Rating | 5 T |
| Crane Boom | 6-section Internal Routing Boom |
| Max Lifting Height | 17 m |
| Slewing Range | 360° Unlimited Rotation |
| Hydraulic Pump | Single Pump |
4. Cargo Transport Section
| Item | Parameter |
|---|---|
| Cargo Box Dimension | 3300×2200 mm |
| Operation Mode | Central Manual Control |
