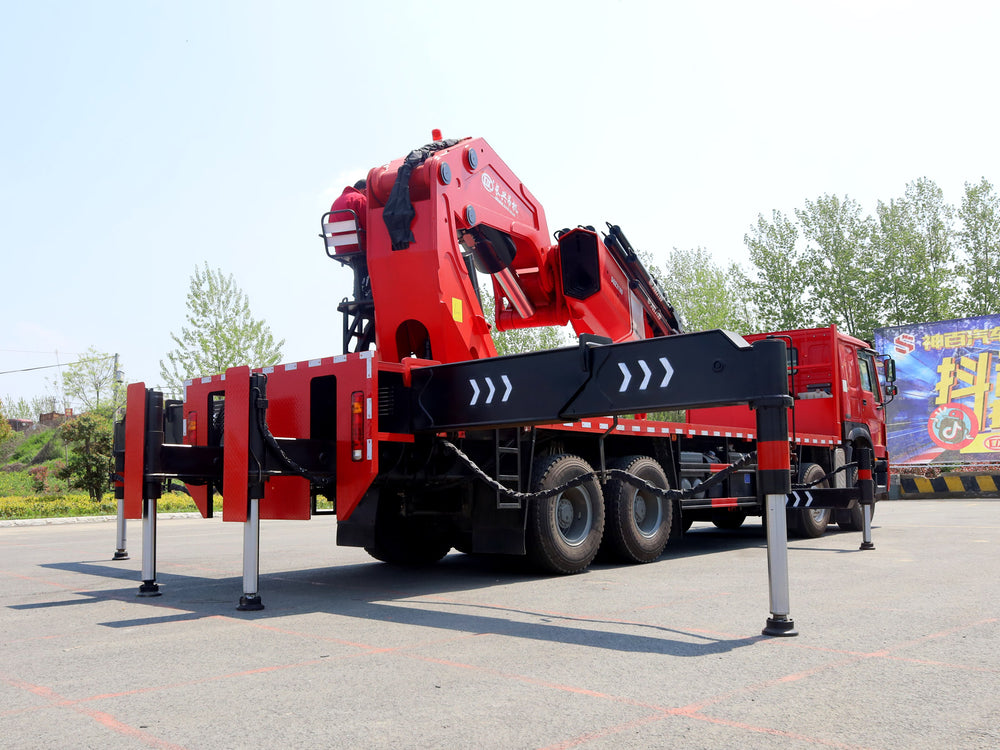

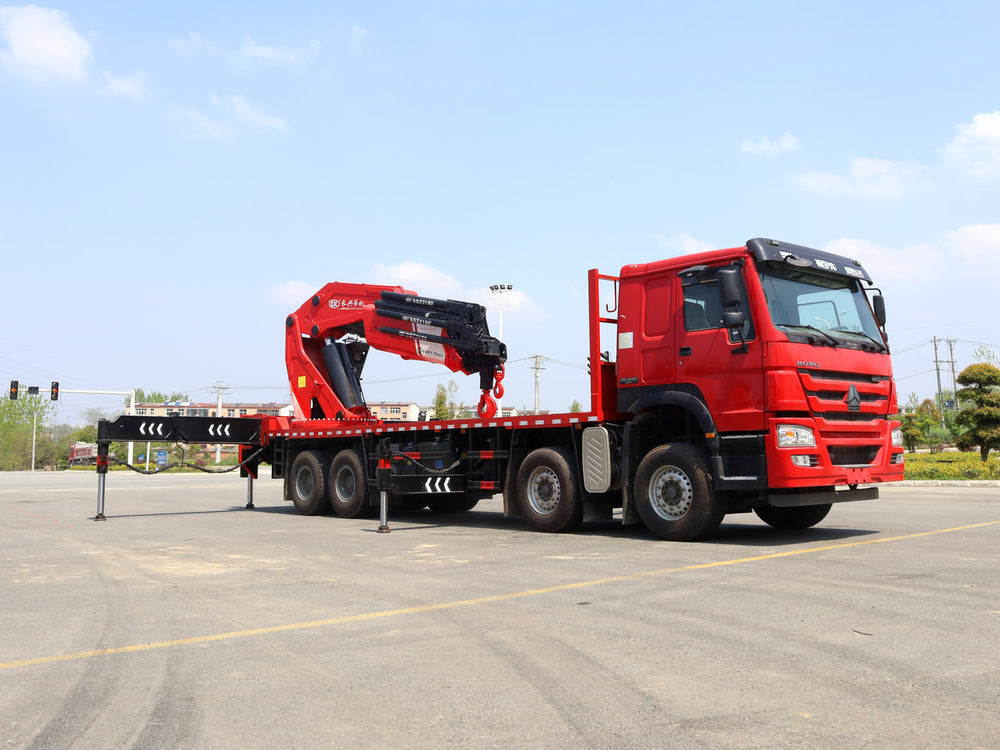

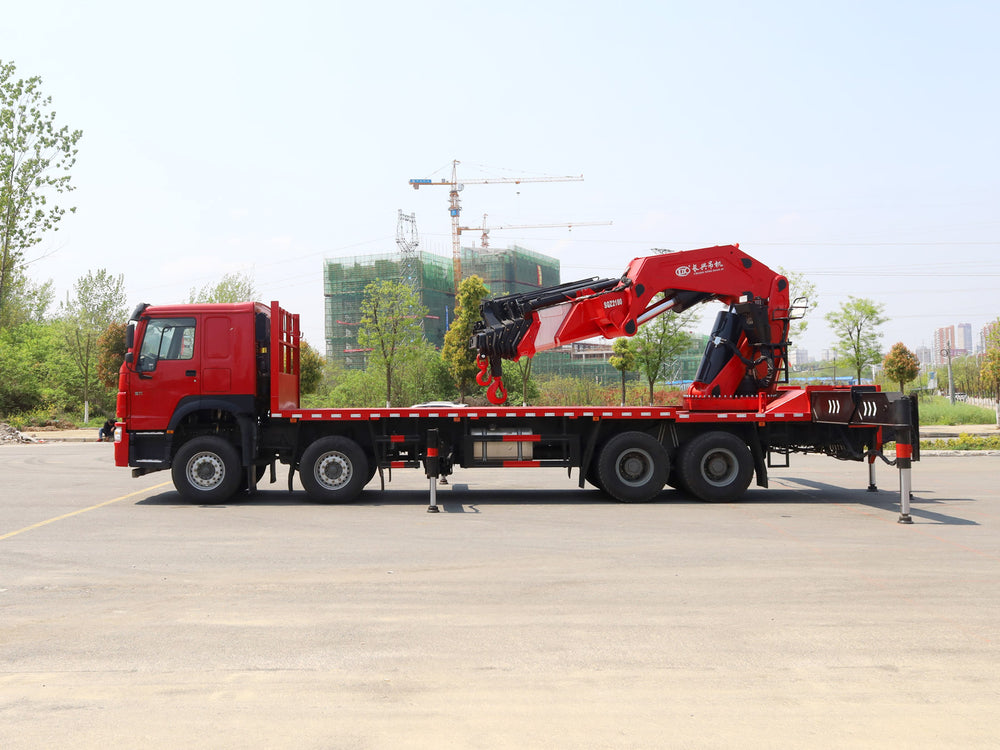

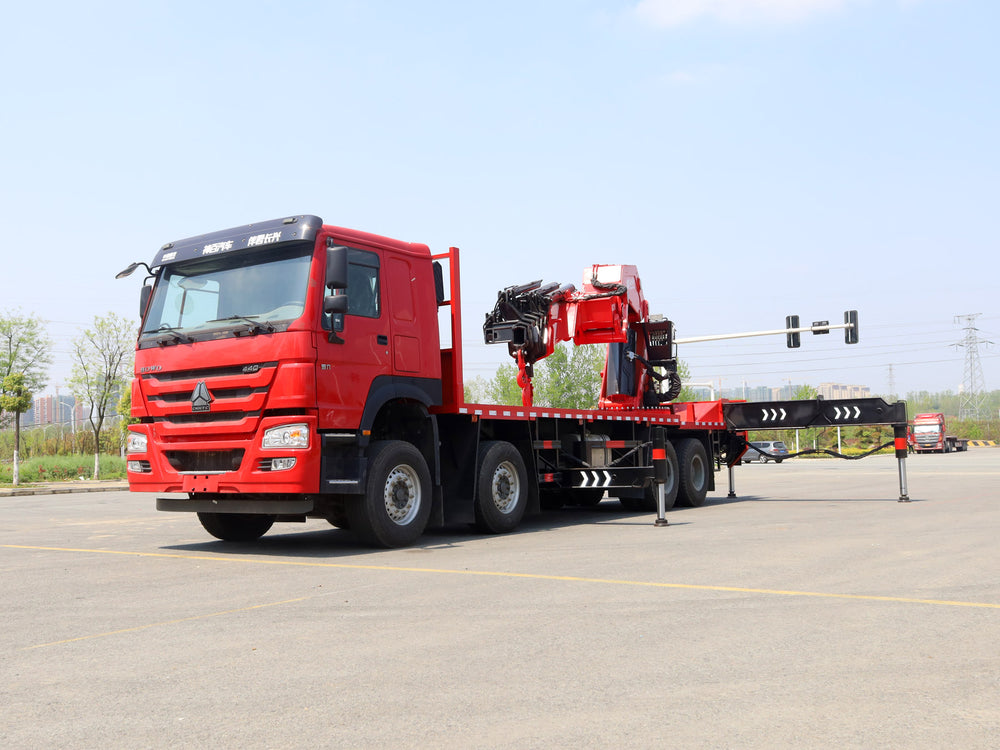

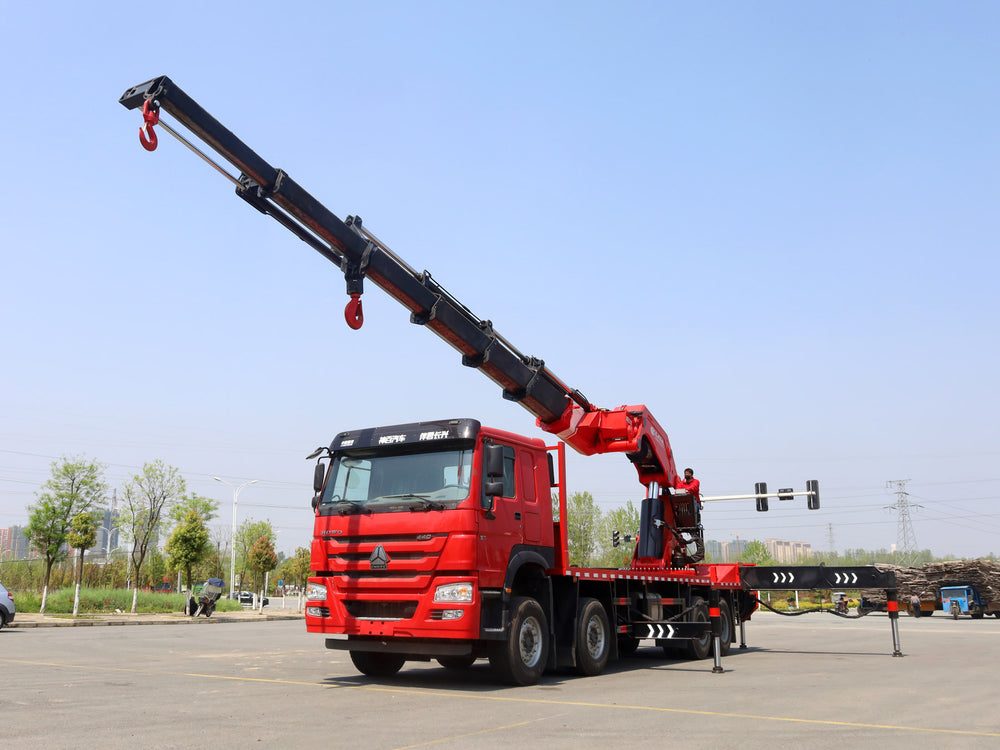

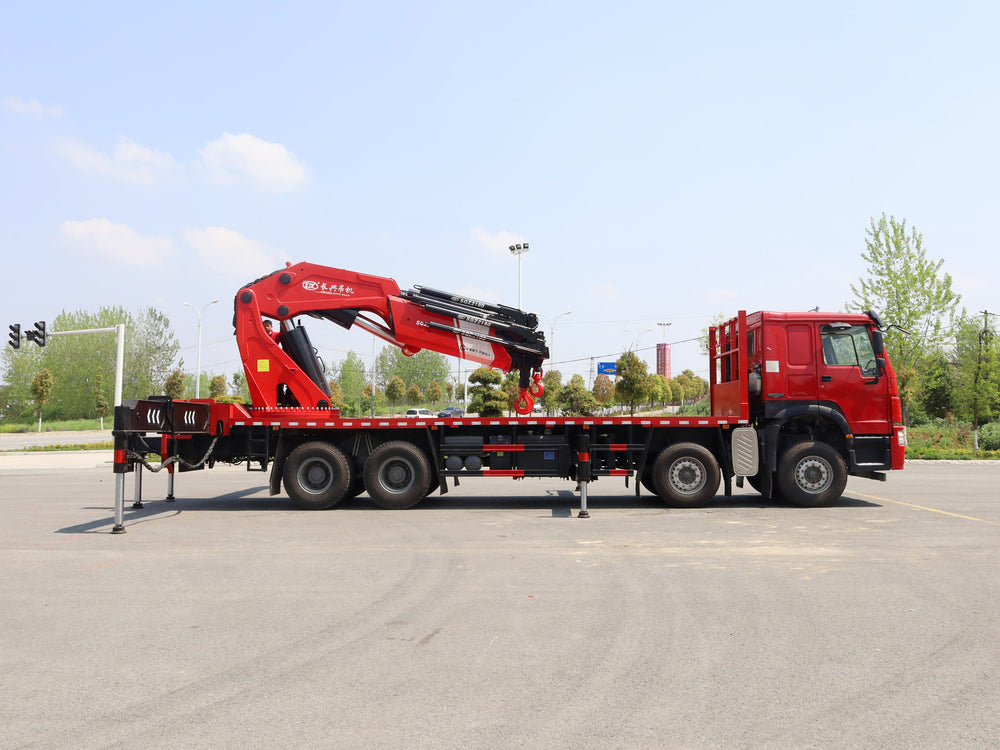

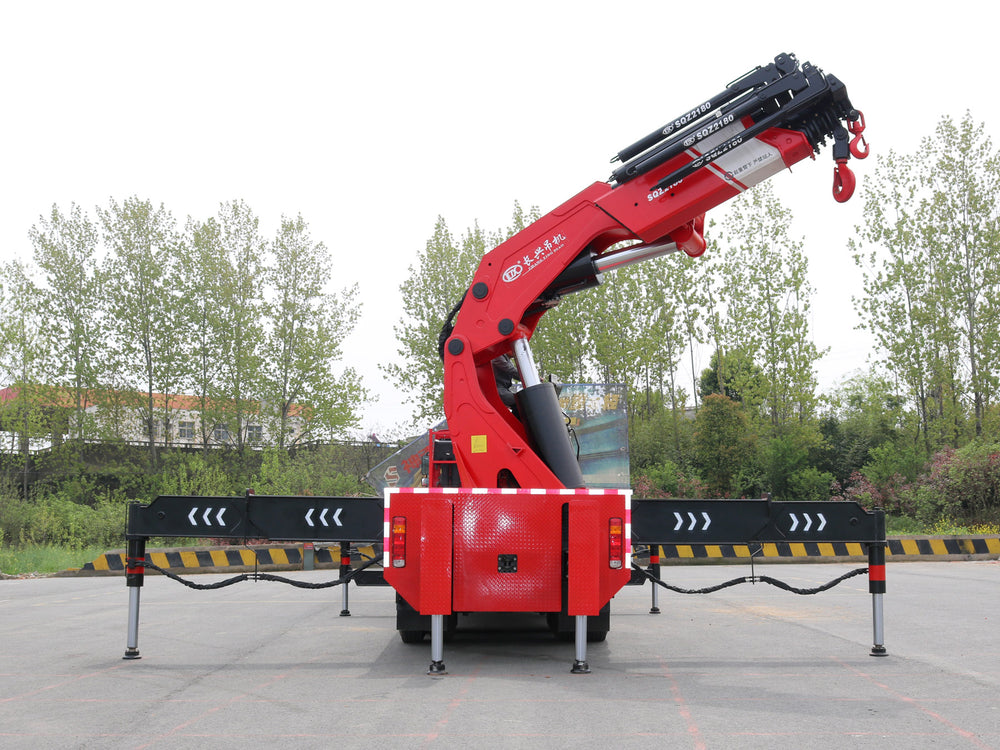

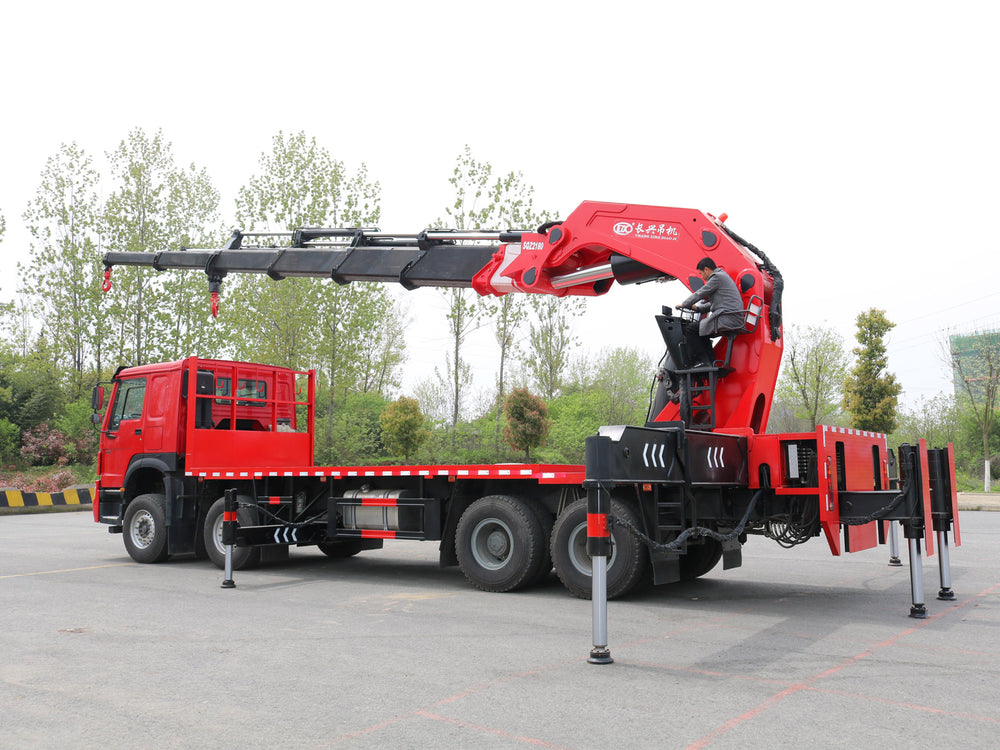

Howo 8x4 Changxing 110-ton Knuckle-Boom Truck-Mounted Crane
Howo 8x4 Changxing 110-ton Knuckle-Boom Truck-Mounted Crane
Overall vehicle size and performance |
|
Chassis Brand |
Howo 8x4 |
Driving type |
left-hand drive |
Total vehicle weight |
31 tons |
curb weight |
19.5 tons |
Rated effective load |
10.6 tons |
Overall vehicle dimensions |
11980 × 2550 × 3880 mm |
Cargo box dimensions |
8000×2450×550 mm |
Chassis parameters |
|
engine |
Sinotruk MC11.44-60 |
horsepower |
440 horsepower |
Speed gearbox |
HW19710 |
wheelbase |
1800+4600+1350 mm |
axis |
7.5 ton/16 ton |
Emission standards |
Euro 4、Euro 5、Euro 6 |
Tire type and size |
12.00R20 |
fuel tank |
400 liters |
Top speed |
90 km/h |
other |
Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam. |
Crane parameters |
|
Crane Model |
Changxing SQZ2180 110-ton folding boom crane |
Maximum lifting capacity |
110 tons |
Maximum working radius |
16.5 m meters |
Maximum lifting height |
19.8 m meters |
boom type |
7-section folding arm |
Rotation angle |
360° rotation |
Crane weight |
6.2 tons |
Hydraulic system |
Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator |
Outboard support configuration |
Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity |
Operation Function |
Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional. |
Optional configuration |
|
Crane Additional Configuration |
Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket |
Application scenarios |
Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling |
