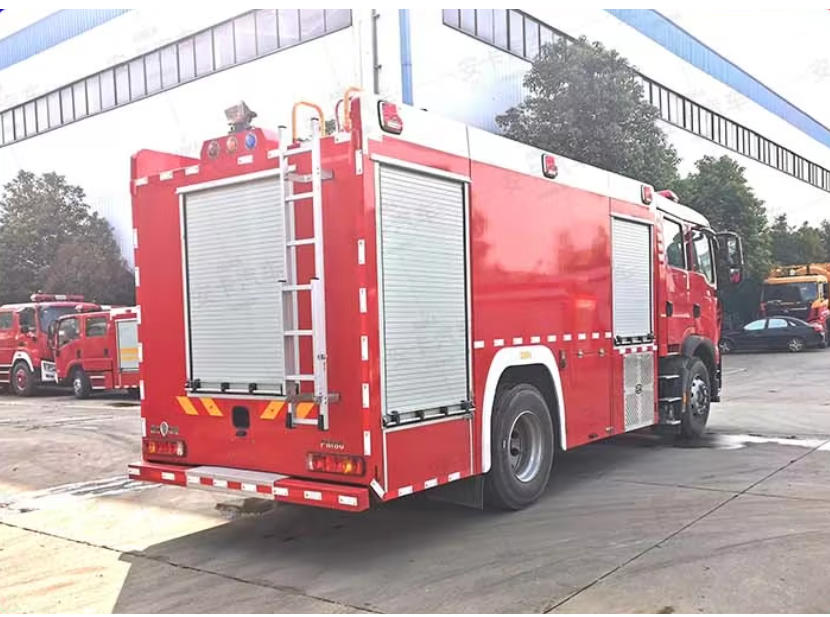

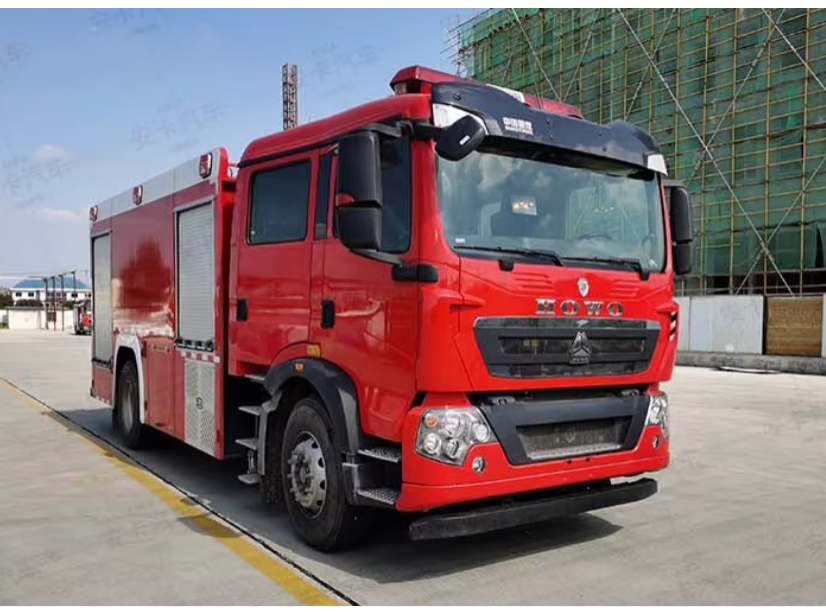

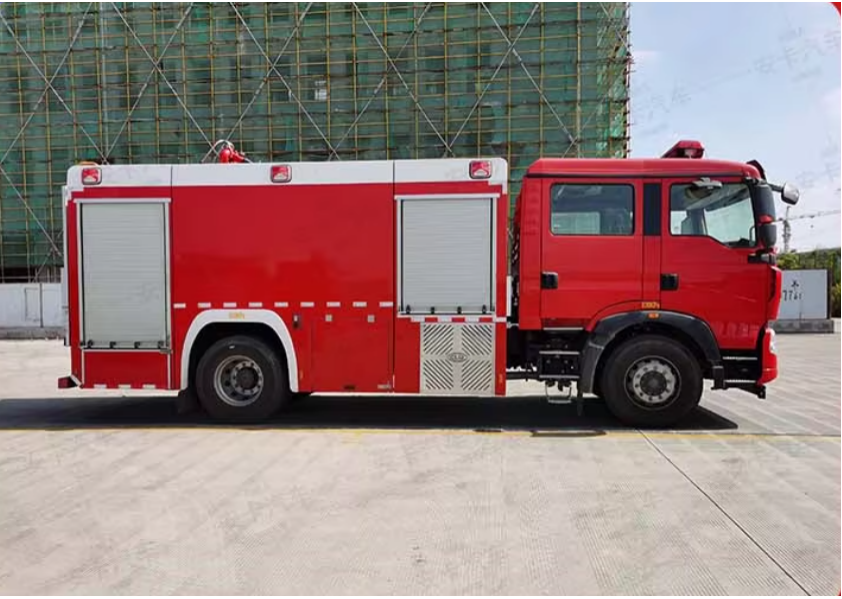

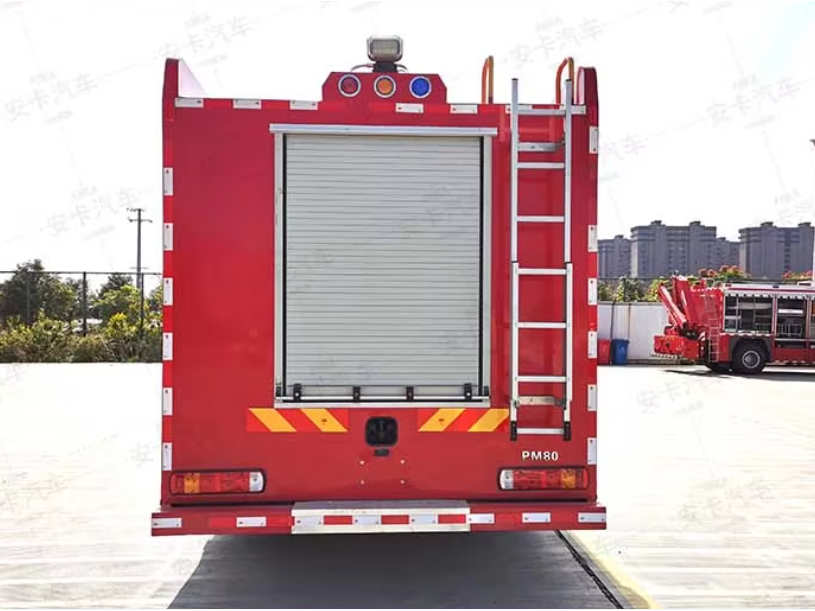

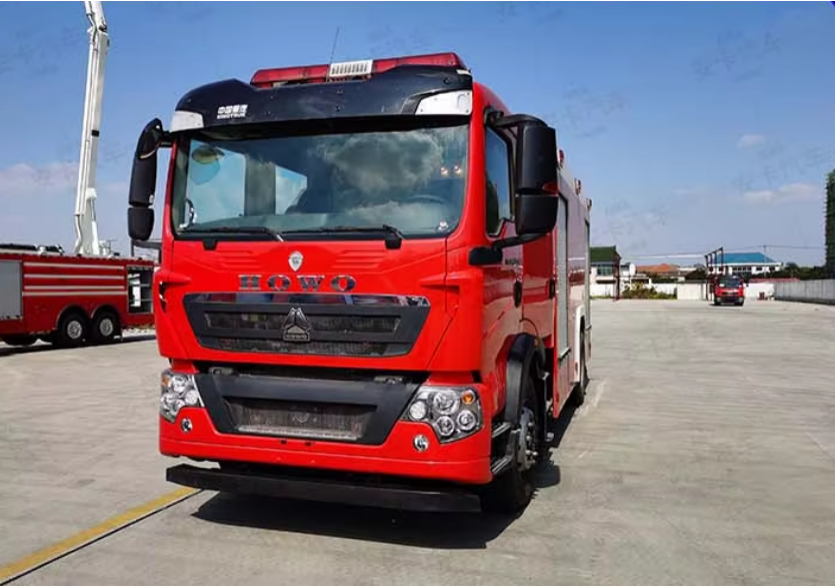

Howo 4x2 8m³ foam water tanker fire truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	HOWO 4*2
Total vehicle weight	20000 kg
Curb weight	11000kg
Rated water capacity	8000 kg
Overall vehicle dimensions	8600 × 2500 × 3500mm
Top speed	95 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	MC07.35-60
Horsepower	350HP / 257kWkW
Gearbox	10-speed manual
Front axle/Rear axle	7 tons / 2*13 tons
Wheelbase	4700 mm
Tire specifications	80R22.5
Emission standards	Euro 2、Euro 3、Euro 4、Euro 5、Euro 6
3. Basic parameters of the upper part
Water tank capacity	800L(Water tank: 6m³ carbon steel, corrosion resistant; foam tank:2m³ 304 stainless steel)
Water tank material	5mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish.

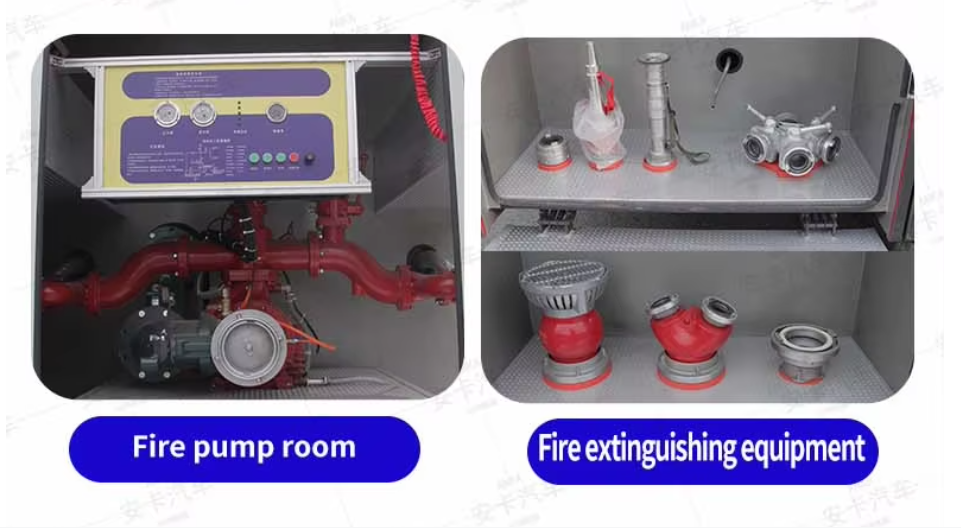

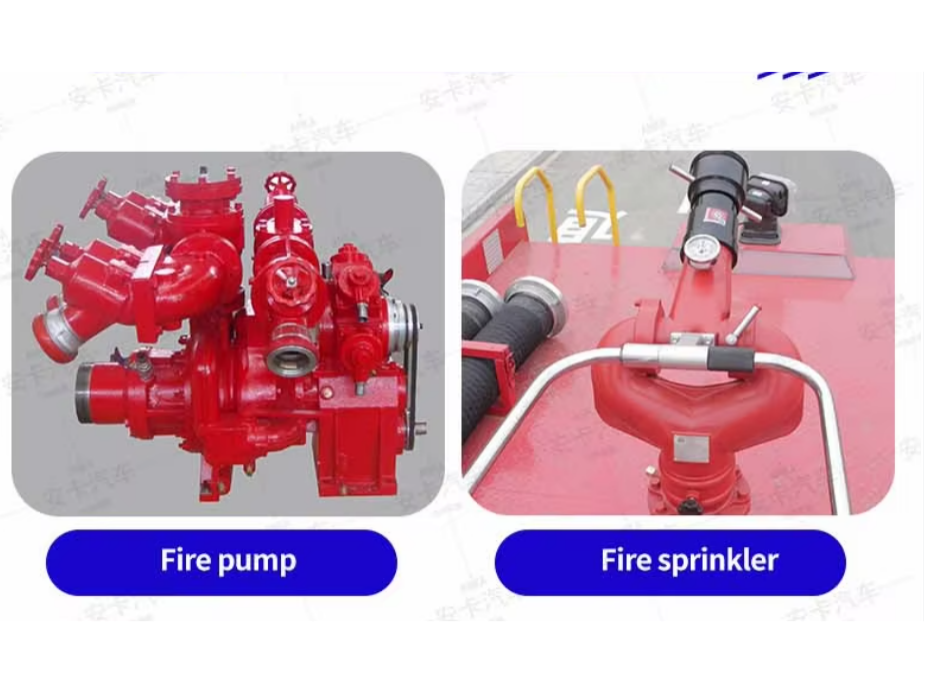

Fire pump rated flow	60L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	48L/s
Fire monitor rated pressure	0.8MPa
Fire monitor range	Water ≥ 60m, Foam ≥ 50m
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Standard equipment	Fire hoses, fire axes, fire extinguishers, demolition tools, etc.
