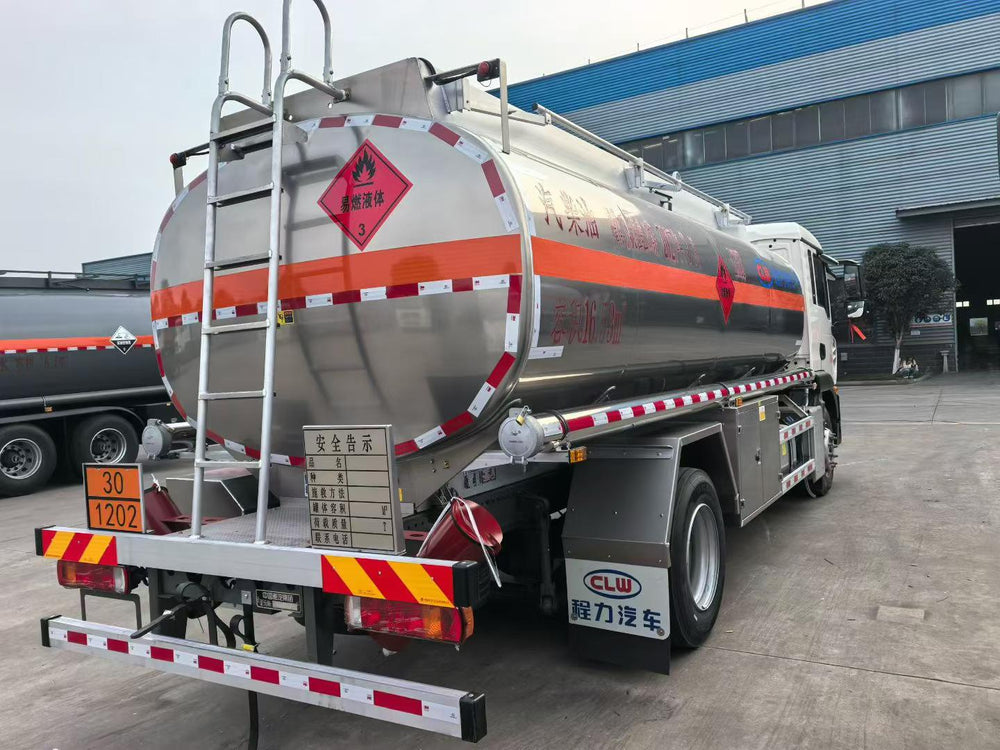

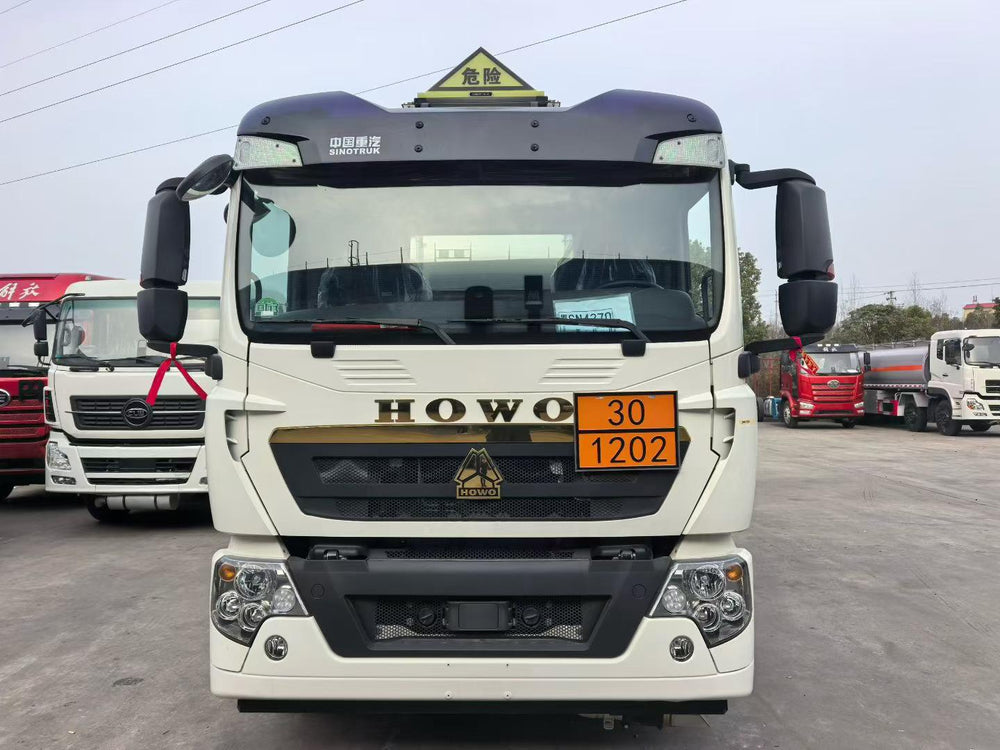

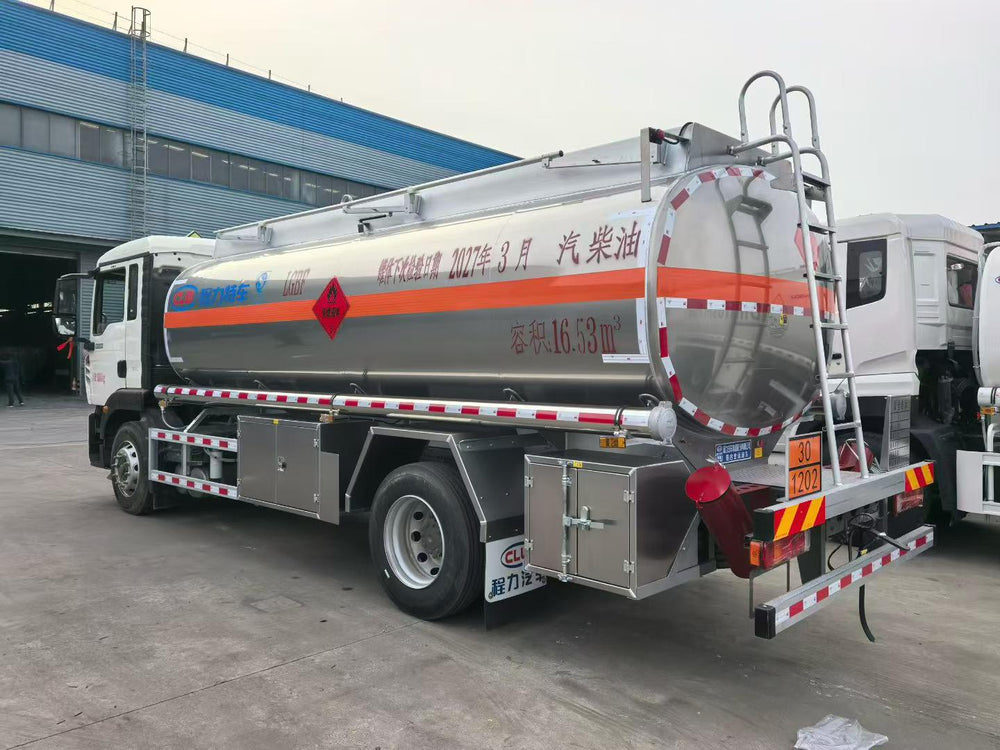

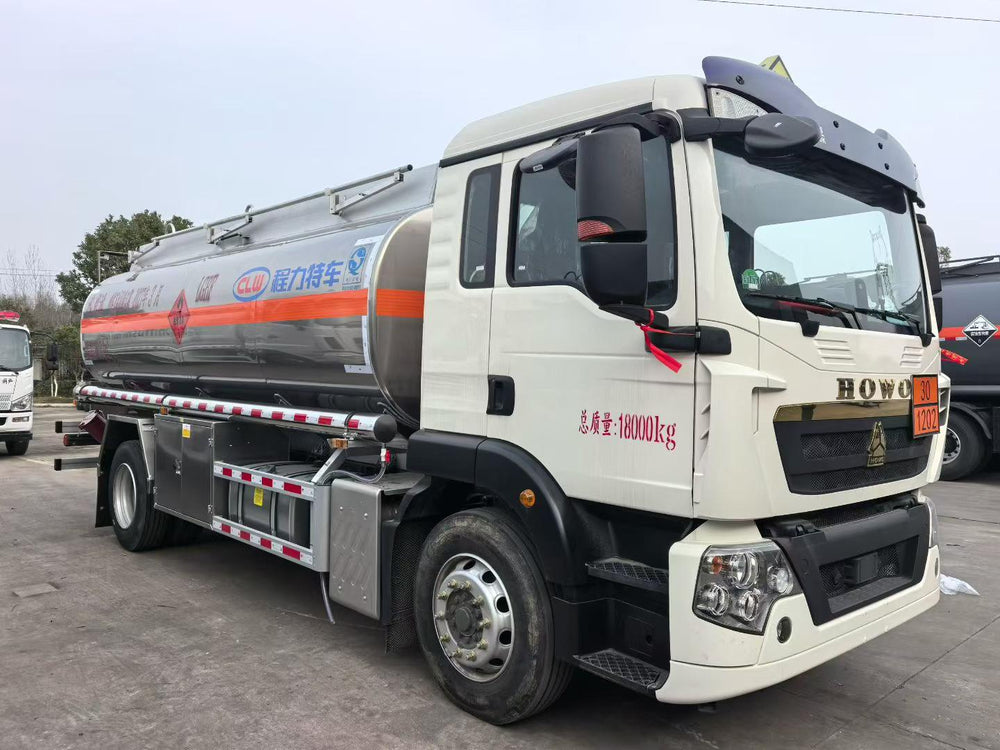

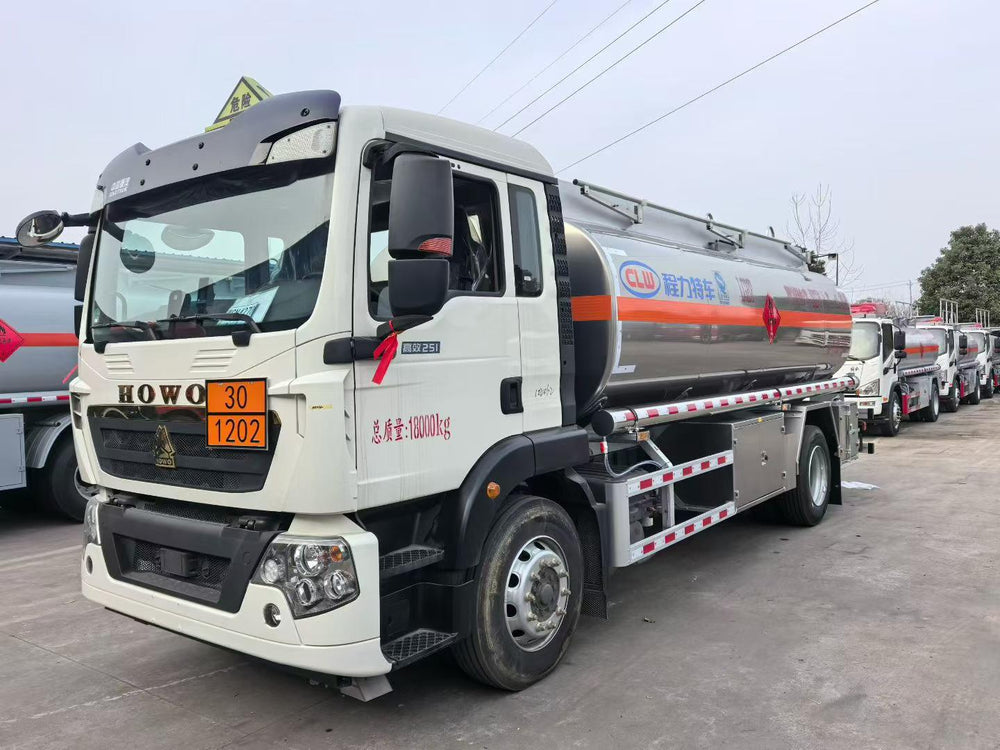

Howo 16m³ aluminum alloy tanker truck
Sinotruk Howo 16m³ Aluminum Alloy Fuel Tanker
General Vehicle Parameters
|
Item |
Specification |
|
Product Name |
Aluminum Alloy Fuel Tanker / Oil Transport Truck |
|
Chassis Brand |
Sinotruk HOWO |
|
Drive Mode |
6×4 (3axle, 10 tires) |
|
Overall Dimension (L×W×H) |
9850 × 2500 × 3350 mm |
|
Wheelbase |
4600+1400 mm |
|
Gross Vehicle Weight (GVW) |
26000 kg |
|
Curb Weight |
9200 kg |
|
Rated Payload |
16500 kg |
|
Cab |
HOWO TX single sleeper cab, 3 seats |
|
Max. Speed |
80 km/h (hazardous goods speed limiter installed) |
|
Emission Standard |
Euro VI / China 6, Euro 25 optional |
|
Steering |
Lefthand Drive (LHD), RHD optional |
Chassis & Powertrain
|
Item |
Specification |
|
Engine Model |
MC07H.3560 diesel engine |
|
Rated Power / Horsepower |
257 kW / 350 HP |
|
Gearbox |
HW25712XSTL 12speed manual transmission |
|
Front Axle |
7.5 t discbrake front axle |
|
Double Rear Axle |
16 t MAT16ZG selfadjusting drum rear axle |
|
Rear Axle Ratio |
5.32 |
|
Frame |
280 mm doublelayer beam frame |
|
Tire Spec. |
12R22.5 vacuum tire, 10+1 spare |
|
Fuel Tank |
400 L aluminum fuel tank |
|
Brake System |
Full air brake, exhaust brake, ABS, AEBS, LDWS+FCWS collision & lane departure warning |
|
Standard Safety Features |
Tire burst emergency protection device, exhaust pipe frontmounted with flame arrester, airconditioner, electric windows, central lock |
Aluminum Tank Superstructure
|
Item |
Specification |
|
Nominal Tank Capacity |
16 m³ (Announcement volume: 15.8 m³) |
|
Tank Material |
5083 marinegrade aluminum alloy |
|
Shell Plate Thickness |
6 mm |
|
Head / Dish End Thickness |
7 mm |
|
Antislosh Baffle Thickness |
5 mm |
|
Compartment |
Single compartment; multicompartment optional |
|
Transport Medium |
Diesel, gasoline, kerosene |
|

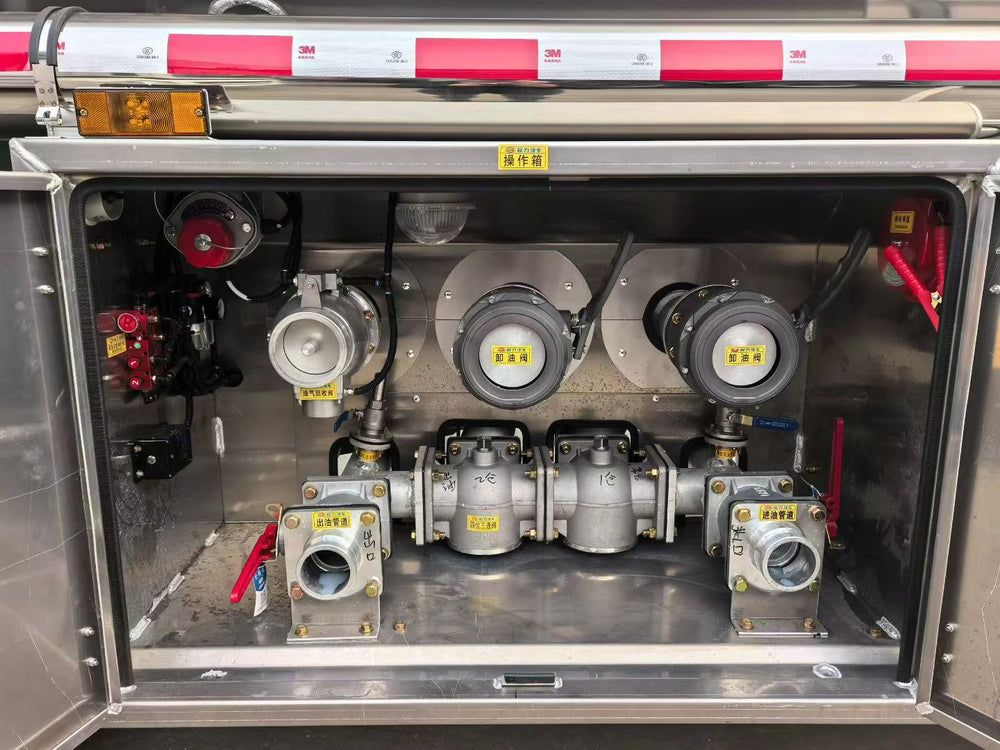

European Standard Fittings |
Europeanstyle manhole cover, emergency bottom valve with remote cutoff, bottom loading adaptor, overfill prevention probe socket, vapor recovery connector |
|
Oil Pump |
Gear oil pump, pumpin & pumpout function |
|
Dispensing Unit (Optional) |
Highflow fuel dispenser, 15 m reinforced hose reel + fuel nozzle |
|
Safety Accessories |
Rear access ladder, antislip top walkway & safety guardrail, toolbox, staticelectric grounding reel, fire extinguishers, flame arrester, side & rear protective devices, flammable liquid warning signs, reflective marking tapes |
