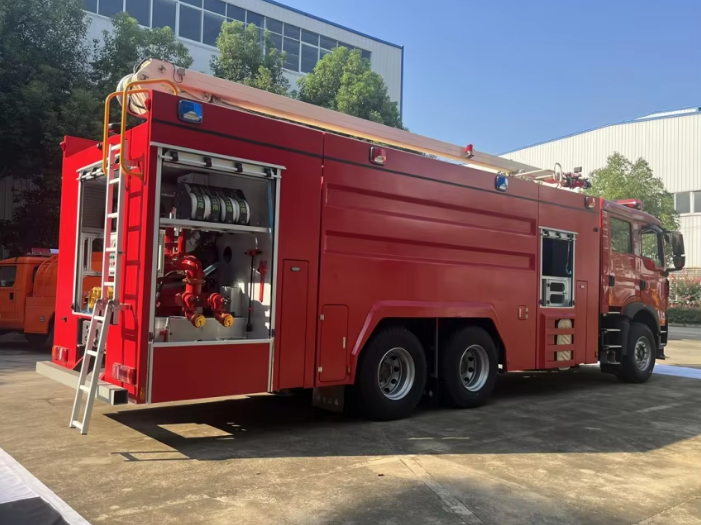

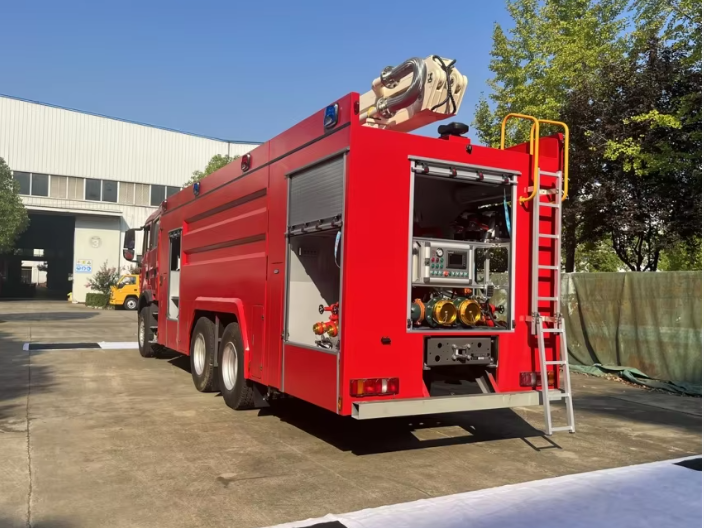

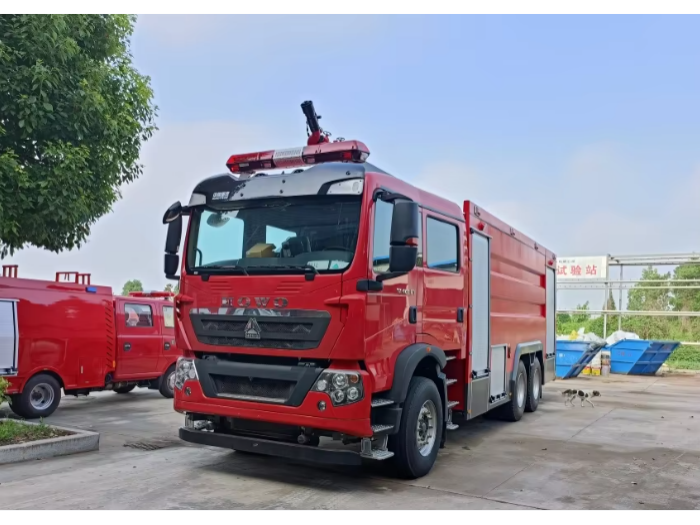

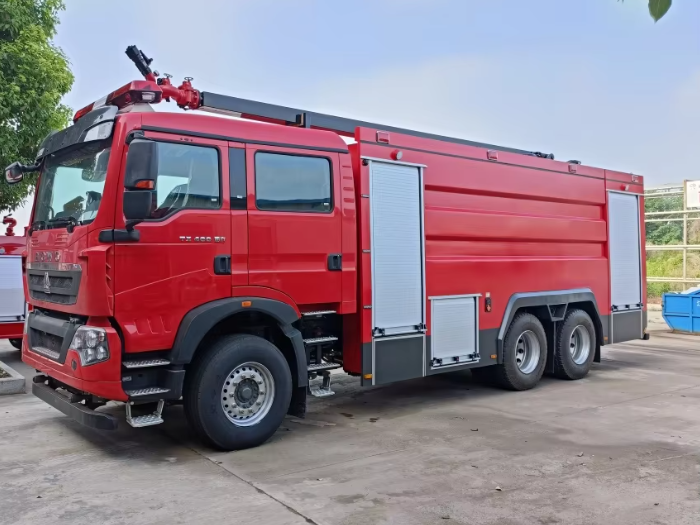

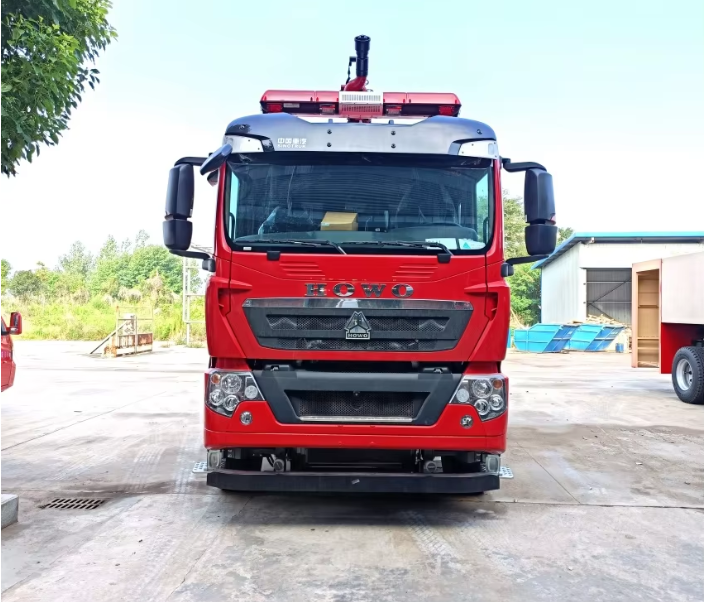

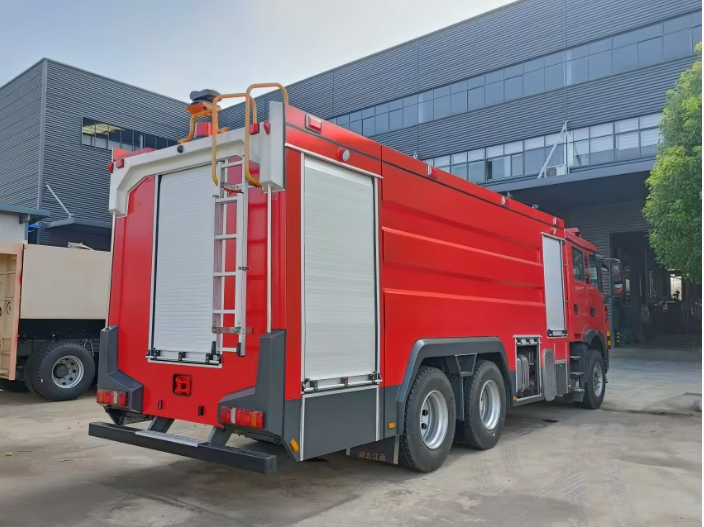

Howo 16 cubic meters aerial ladder fire truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	HOWO 6*4
Total vehicle weight	30900 kg
Hurb weight	22000kg
Rated water capacity	16000kg
Overall vehicle dimensions	10655 × 2500 × 3850 mm
Top speed	95 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	Weichai WP12.400E62
Horsepower	400 HP / 294 kW
Gearbox	10-speed manual
Front axle/Rear axle	9.5 tons / 16 tons
Wheelbase	4325+1350 mm
Tire specifications	315/80R22.5
Emission standards	Euro 6
3. Basic parameters of the upper part
Water tank capacity	16000 L (water); optional 13000 L water + 3000 L foam
Water tank material	High-quality carbon steel / 304 stainless steel, with corrosion-resistant lining.
Tank dimensions	6500×2400×1800 mm
Maximum working height of the ladder	32 m
Maximum working radius of the ladder	22 m
Ladder sections	4–5 sections of high-strength aluminum alloy telescopic ladder
Ladder rotation	360° continuous rotation, hydraulically driven
Fire pump rated flow	60L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	60L/s
Fire monitor rated pressure	1MPa
Fire monitor range	Water ≥ 70m, Foam ≥ 55m
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Standard equipment	Fire hoses, fire axes, fire extinguishers, demolition tools, etc.
