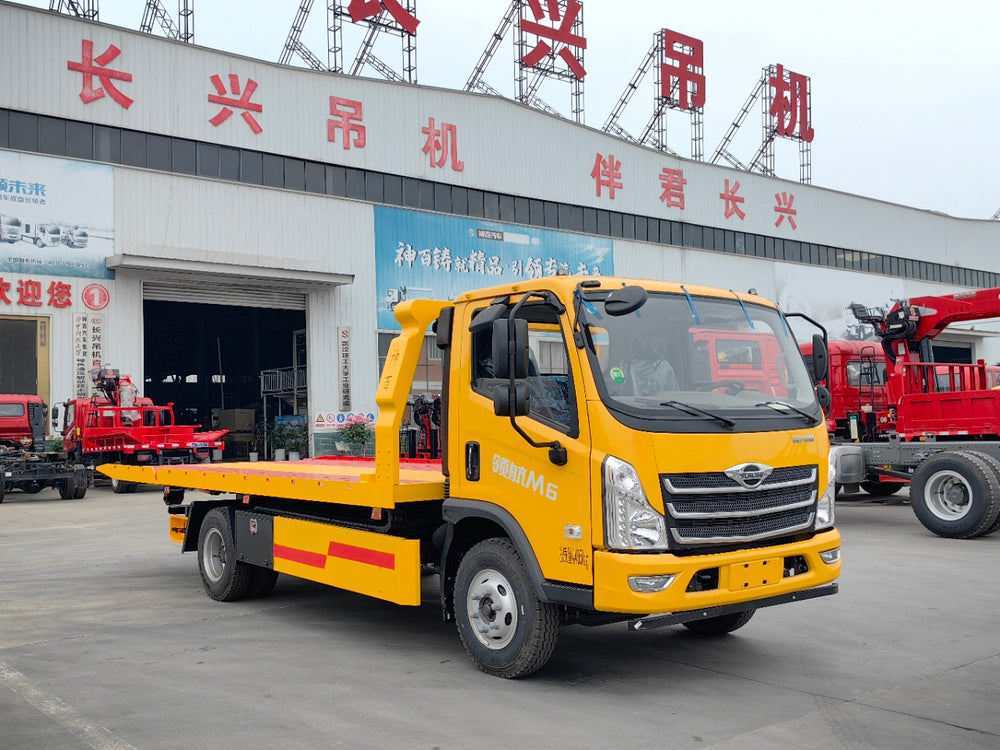

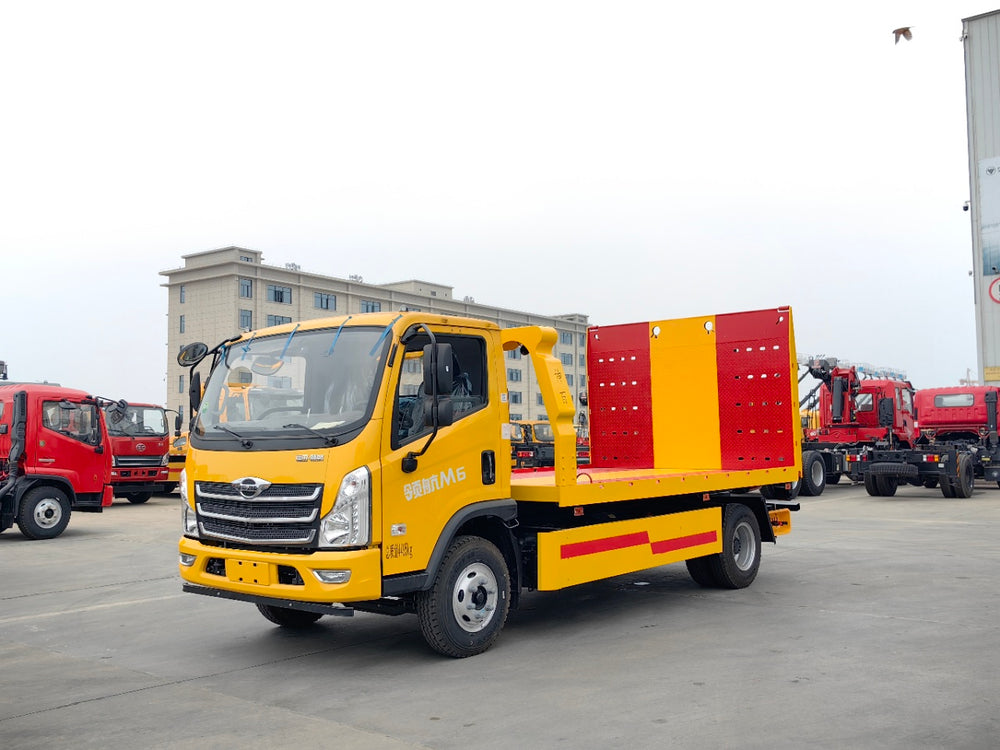

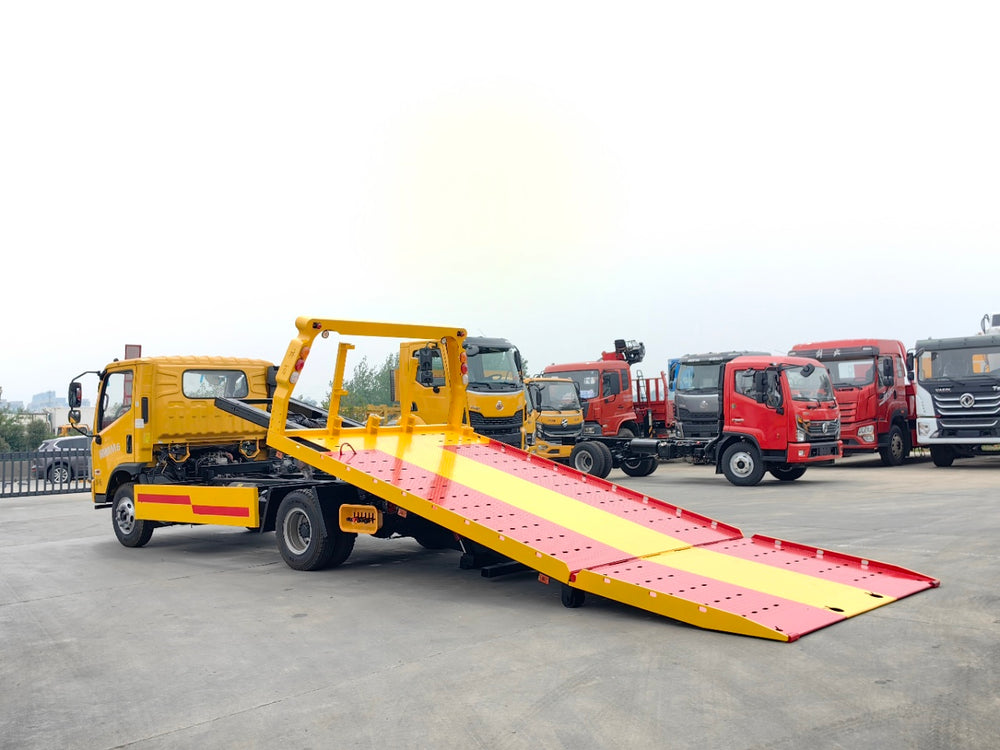

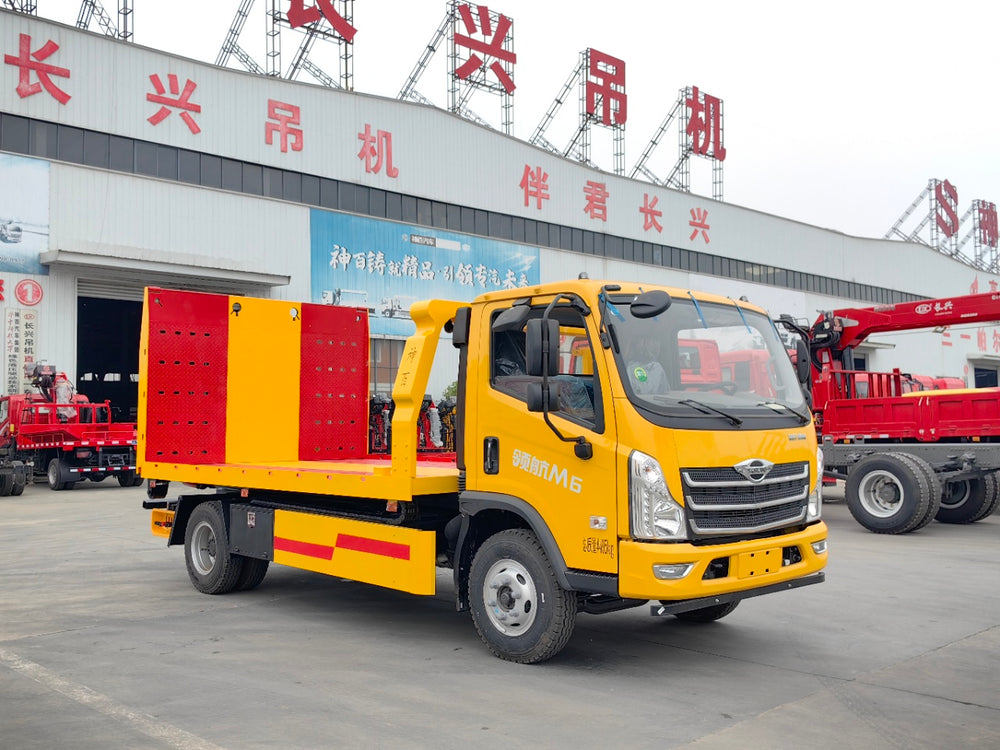

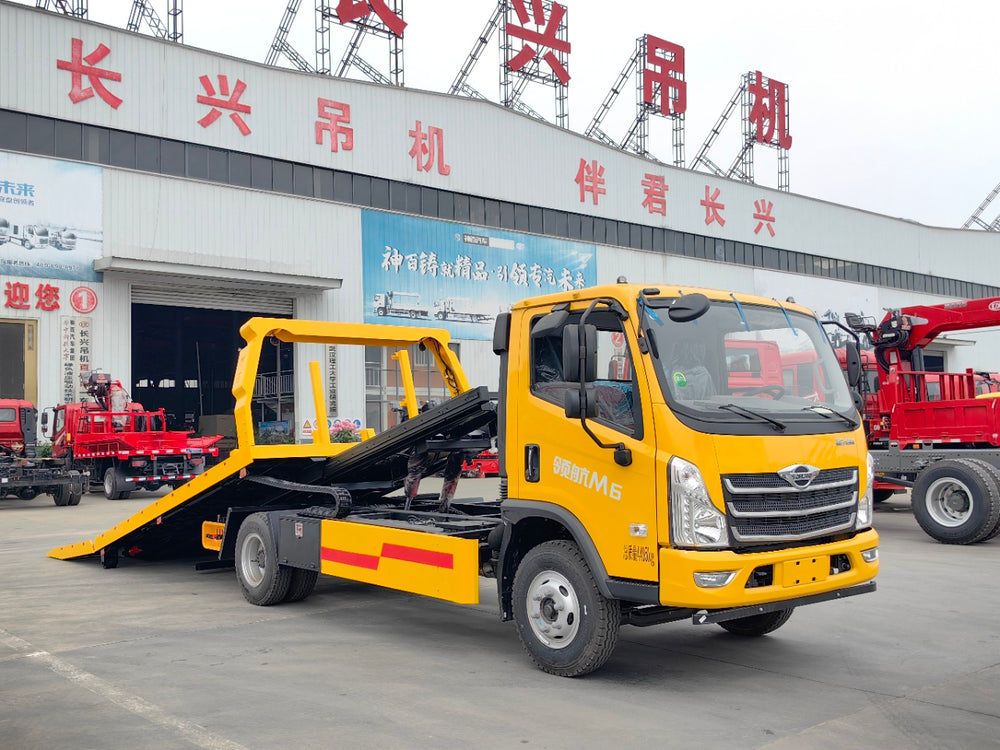

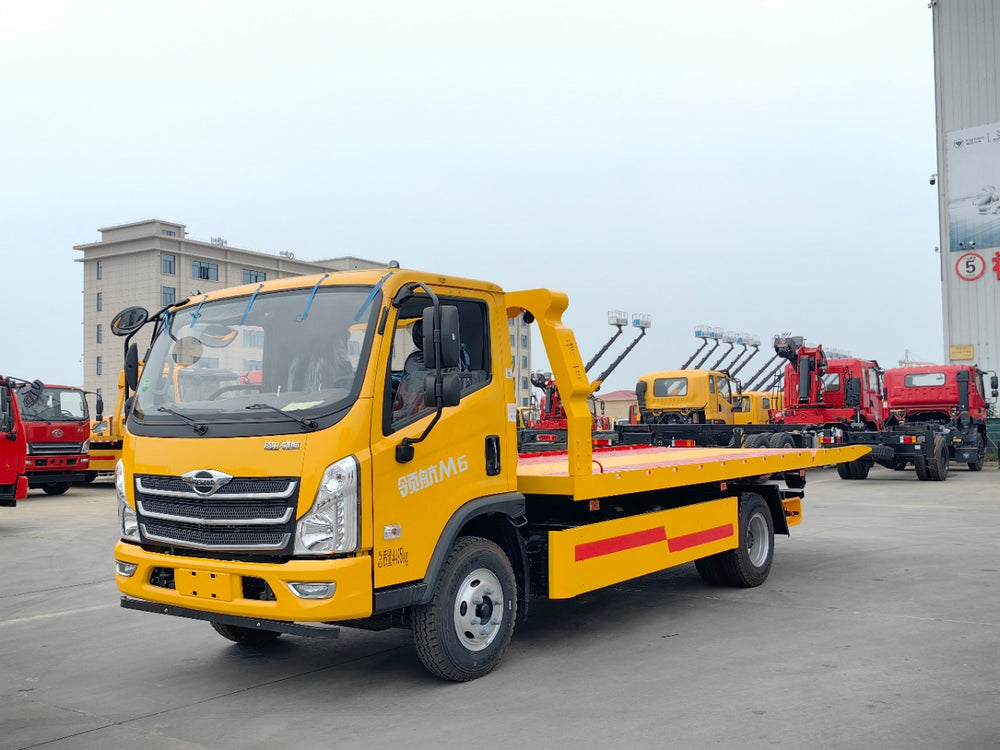

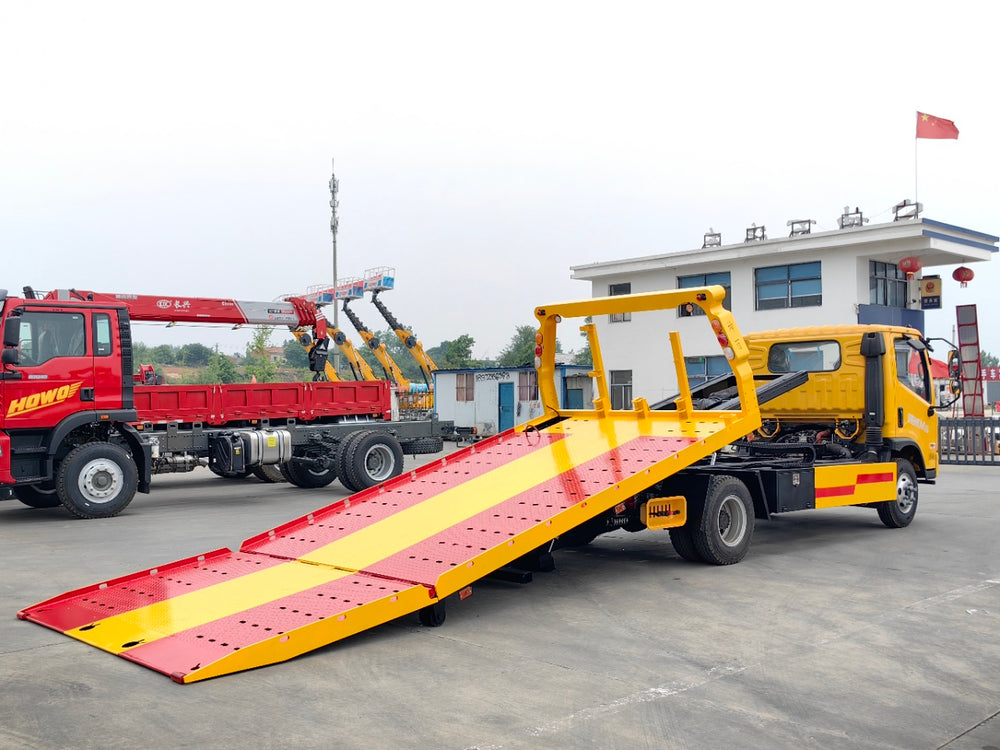

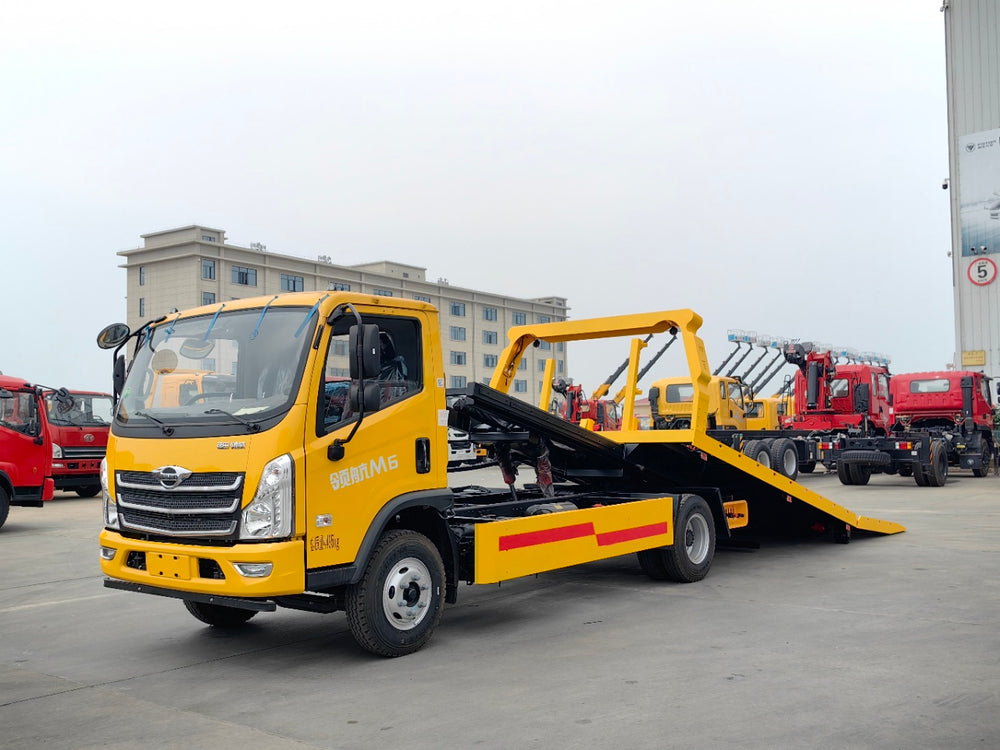

Foton 5.8 meter Wrecker Truck
| I. Basic Vehicle Information | |
| Vehicle Model Name | Foton Pilot M6 Blue Plate Wrecker Truck |
| II. Chassis Configuration | |
| Cab | Foton M6 New 2100 Wide Body Cab (Four-point Hydraulic Suspension Cab) |
| Engine | Yunnei 160 High Power 16-valve Engine, 2.5L Extreme Displacement |
| Gearbox | Wanliyang 8-speed Gearbox with High/Low Range and Synchronizer |
| Wheelbase | Original Factory 3700mm Wheelbase, Stable Heavy Load, No Head Lifting |
| Front Axle | 3T Front Axle |
| Rear Axle | 1080 Large Rear Axle |
| Frame | 865mm Maximum Open Crotch Frame, 2300mm Wide Wheel Spacing, Wide Open Crotch Design for Stable Vehicle Center of Gravity |
| Tires | Original Factory 7.50R16 Tires, Special for Heavy Load, 12 Half Shaft Screws on Front and Rear Axle Heads for Enhanced Load Capacity |
| Girder | Original Factory 215 Double-layer Straight-through Girder (6+4), Special Frame for Engineering Vehicles |
| Leaf Spring | 8-piece Front Leaf Spring, 10+6 Reinforced Rear Leaf Spring, for Ultimate Load Bearing |
| Axle Ratio | Golden Axle Ratio 4.33, Small Axle Ratio, Fast Speed, Low Fuel Consumption |
| Original Factory Air Conditioner | Standard Configuration |
| Electric Windows | Standard Configuration |
| Central Locking | Standard Configuration |
| Remote Key | Standard Configuration |
| Dual Batteries | Standard Configuration |
| 150L Large Fuel Tank | Standard Configuration |
| Shock-absorbing Seat | Standard Configuration |
| Exhaust Brake | Standard Configuration |
| Automatic Door Locking While Driving | Standard Configuration |
| Cruise Control | Standard Configuration |
| III. Upper Body Configuration | |
| Upper Body Type | 7-ton One-tow-two Upper Body |
| Flatbed Total Length | 5.8 meters |
| Flatbed Width | 2.55 meters |
| Upper Body Process | Manufactured with Sinking Process |
| Flatbed Frame | 14mm Thick Solid Steel Plate Frame with Cut Holes |
| Bottom Plate Material | 5mm Thick High-strength Wear-resistant Patterned Steel Plate |
| Slideway Specification | 10mm Thick Manganese Steel Reinforced Slideway (Front Bell Mouth Reinforced with 8mm Thick Steel Plate) |
| Underframe Structure | Grid-shaped Underframe, Encrypted Triangular Inclined Supports |
| Hydraulic Multi-way Valve | Domestic Brand Multi-way Valve |
| Winch Specification | 4-ton Winch |
| Rear Tow Arm Specification | 4-ton Rear Tow Arm |
| IV. On-board Accessories | |
| Auxiliary Trolley | One Pair |
| Triangular Tire Block | One Pair |
| High-quality Binding Strap | Four Pieces |
| Square Tire Holding Tube | One Pair |
| L-shaped Fork | One Pair |
