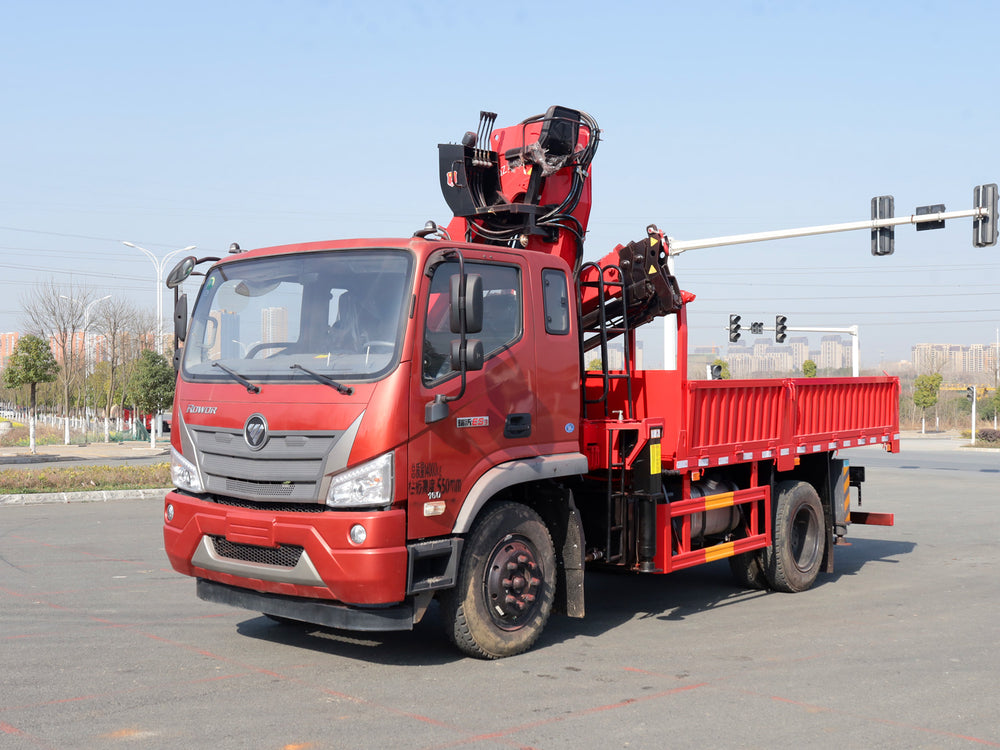

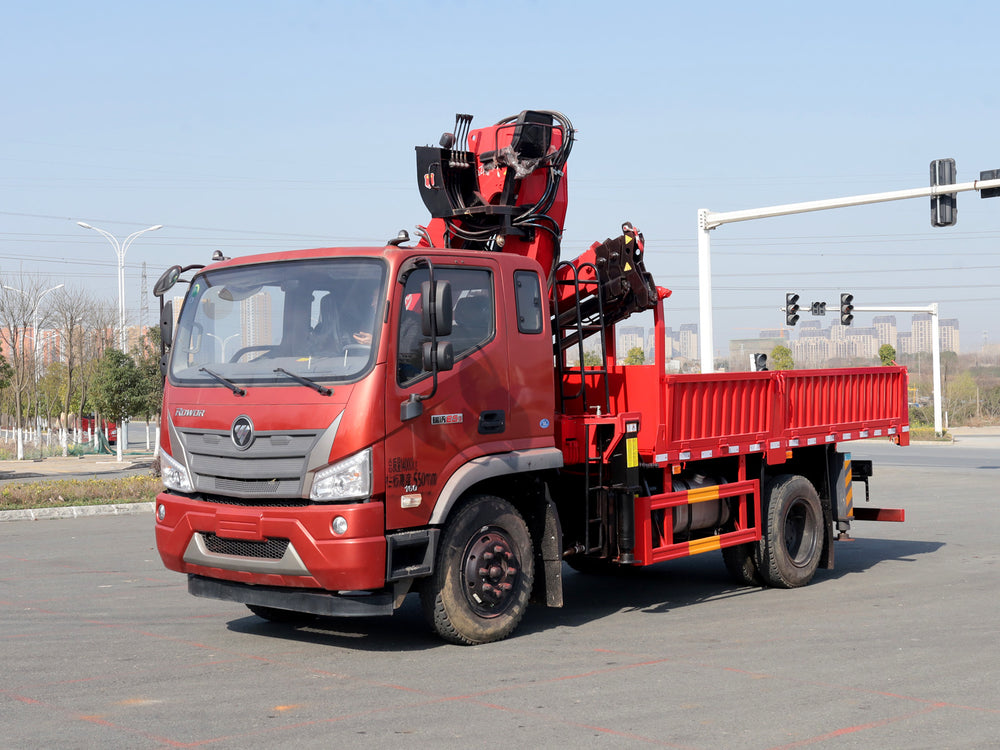

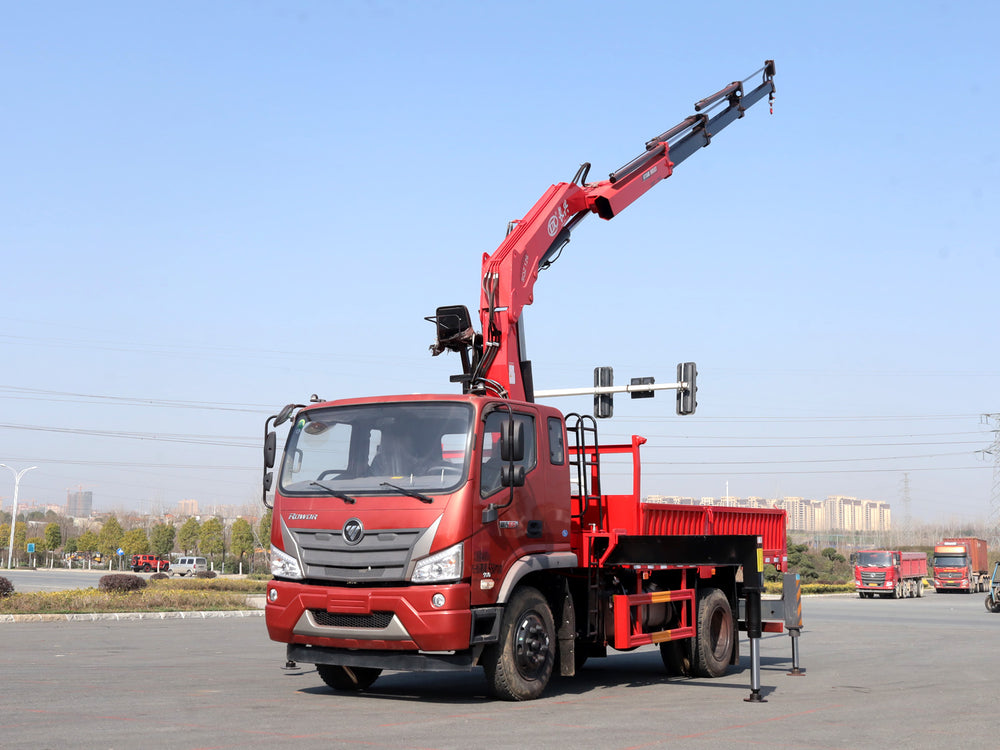

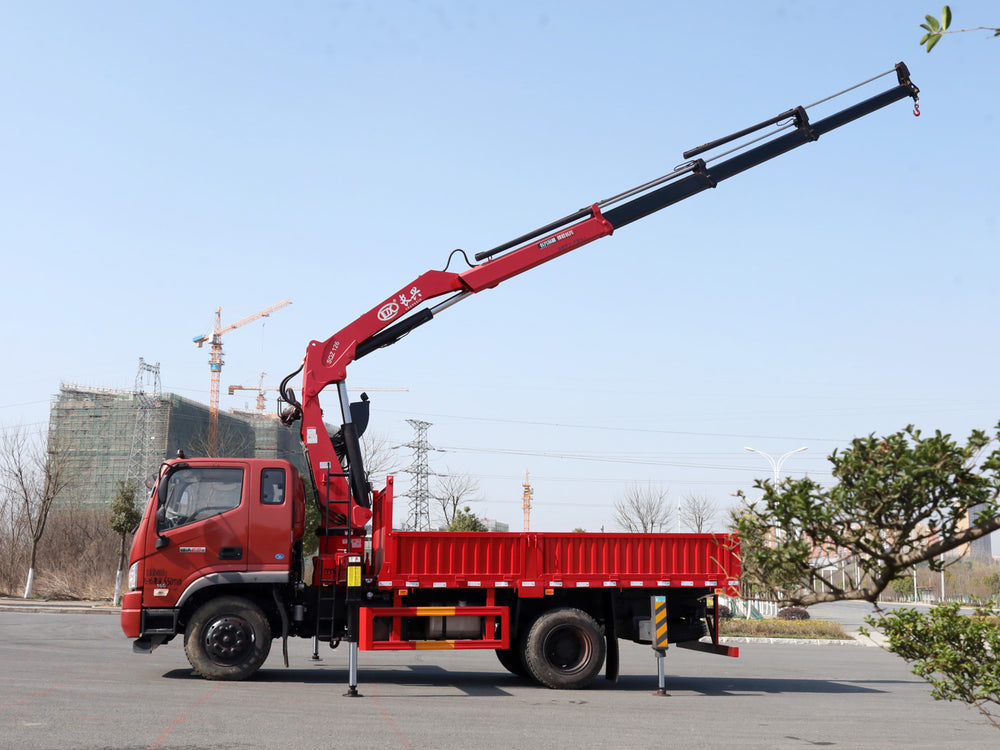

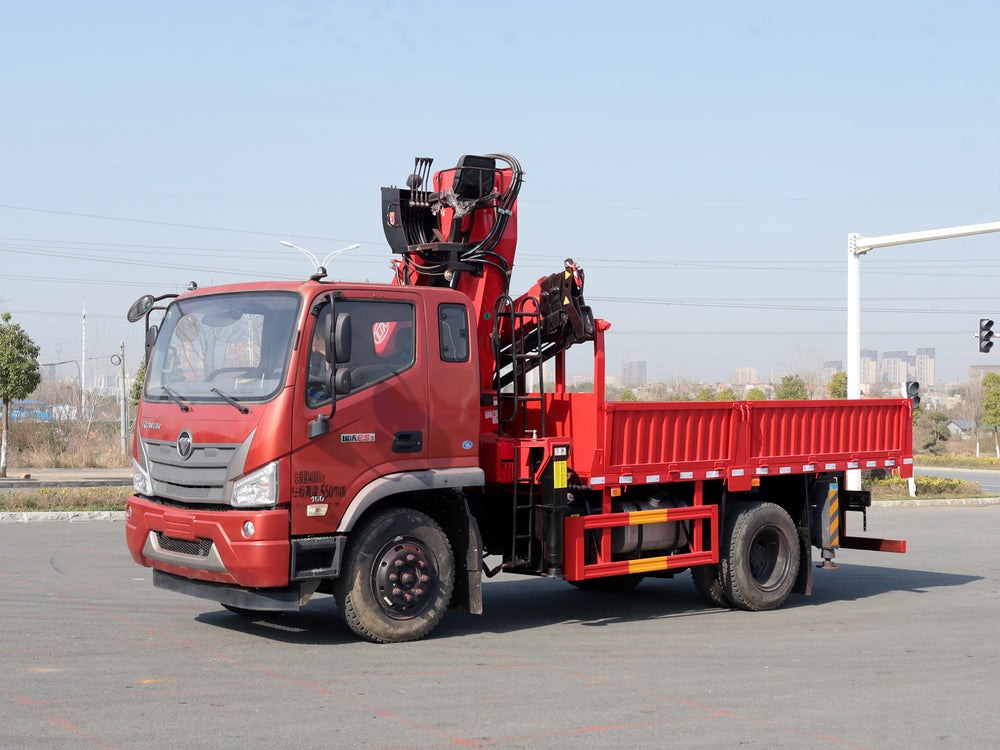

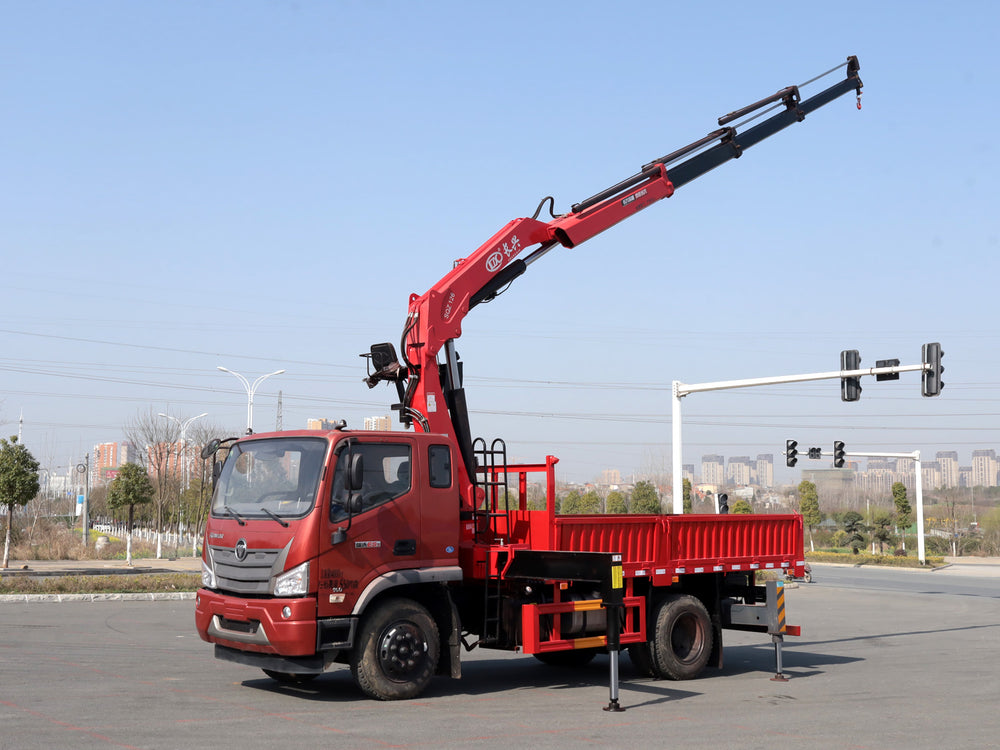

Foton Ruivo 6.3-ton folding boom truck-mounted crane

Overall vehicle size and performance
Chassis Brand	Foton 4x2
Driving type	left-hand drive
Total vehicle weight	14000 kg
curb weight	7400 kg
Rated effective load	6500 kg
Overall vehicle dimensions	7280×2340×3350 mm
Cargo box dimensions	4300×2350×550 mm
Chassis parameters
engine	WP3NQ160E61
horsepower	160 horsepower
Speed gearbox	Fast 8 gears
wheelbase	3900 mm
axis	3.6 ton/9 ton
Emission standards	Euro 6
Tire type and size	8.25R20 16PR
fuel tank	200 liters
Top speed	110 km/h

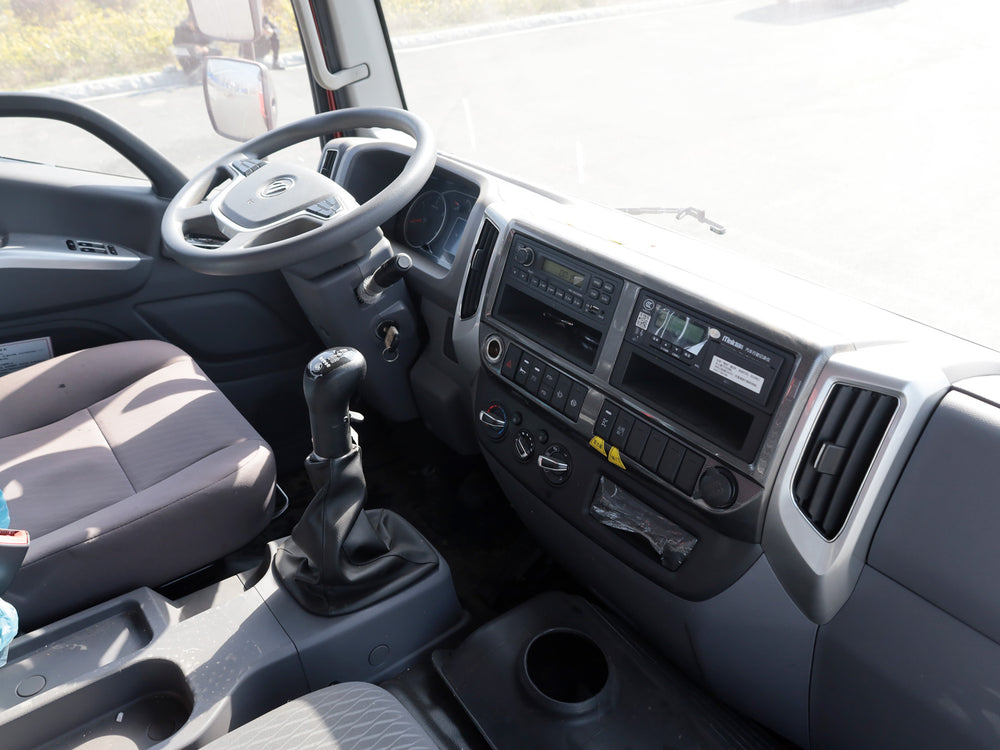

other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	Changxing 6.3-ton folding boom crane
Maximum lifting capacity	6.3 tons
Maximum working radius	10.5 meters
Maximum lifting height	13.5 meters
boom type	4-section folding arm
Rotation angle	360° rotation
Crane weight	2.3 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
