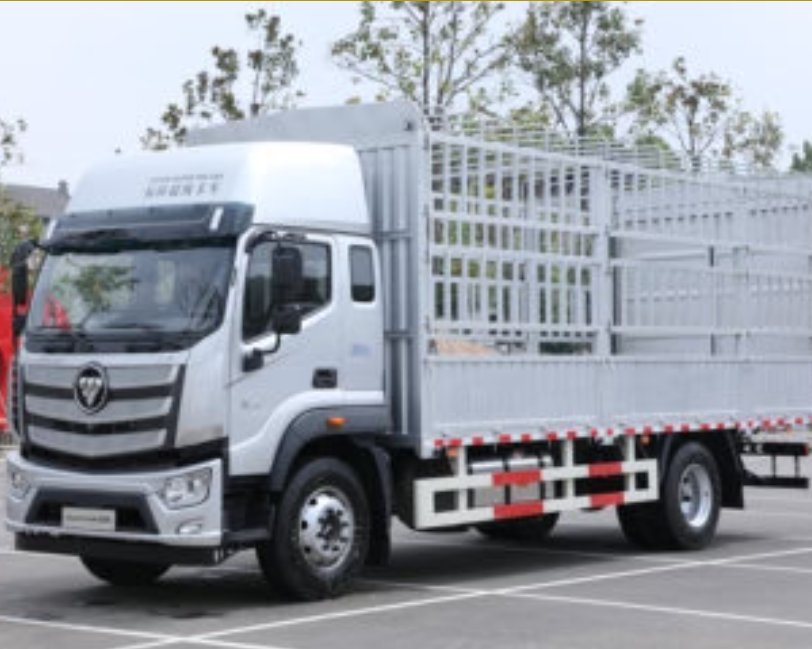

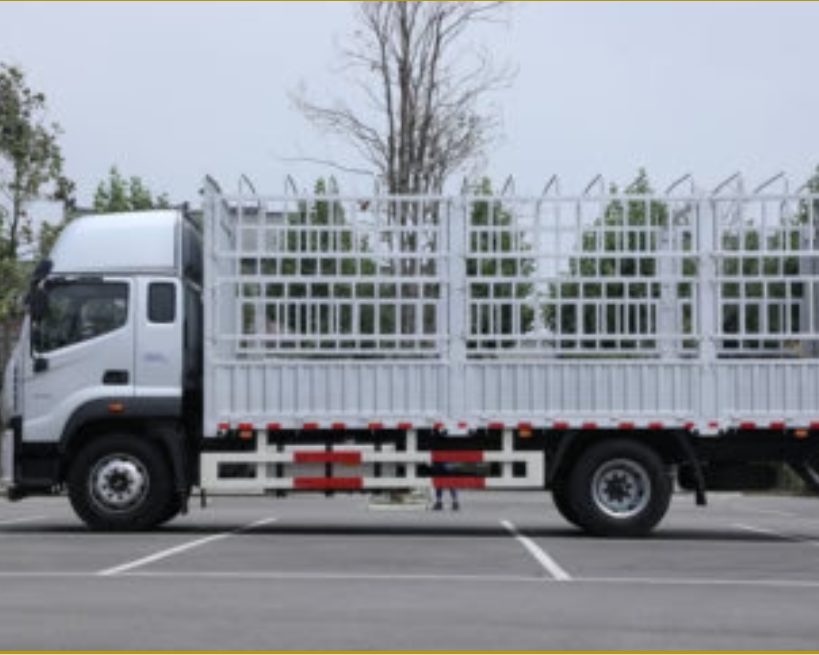

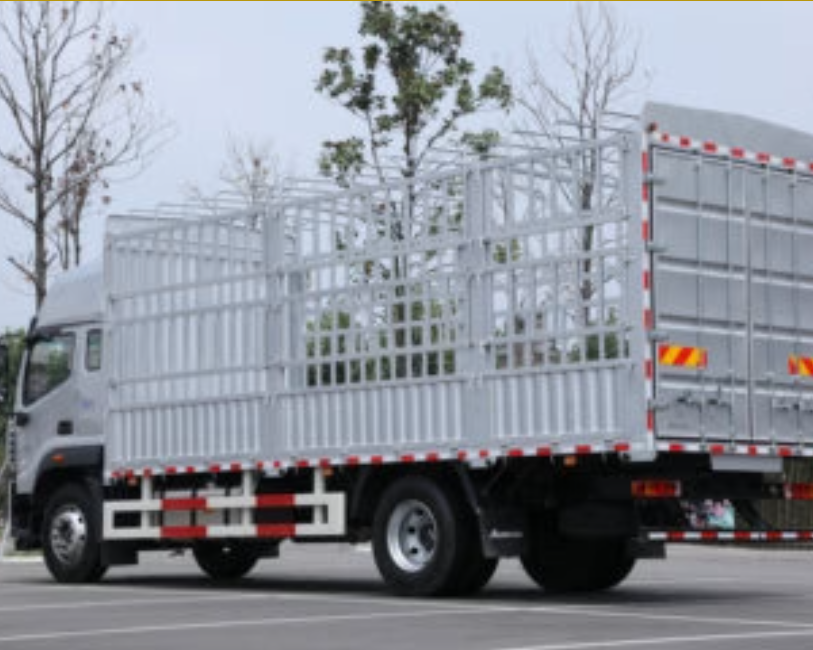

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Request a Quote Now
| Category | Item | Specification |
|---|---|---|
| Basic Vehicle Information | Announcement Model | BJ5166CCY-1A |
| Vehicle Type | Stake Cargo Truck | |
| Drive Type | 4×2 | |
| Wheelbase | 5150mm | |
| Cargo Box Length Class | 6.8m | |
| Overall Length | 9m | |
| Overall Width | 2.55m | |
| Overall Height | 3.95m | |
| Front Track | 1955mm | |
| Rear Track | 1800mm | |
| Curb Weight | 7.975 tons | |
| Rated Payload | 7.895 tons | |
| Gross Vehicle Weight | 16 tons | |
| Maximum Speed | 89km/h | |
| Origin | Changping, Beijing | |
| Tonnage Class | Medium-duty Truck | |
| Required Driving License | A1, A2, B2 | |
| Approach Angle | 18° | |
| Departure Angle | 9° | |
| Front Overhang / Rear Overhang | 1.27m / 2.58m | |
| Energy Type | Diesel | |
| Remarks | Optional Fast 8JS85E transmission, 4.875/4.111 rear axle ratio, 450L/600L aluminum alloy fuel tank, air suspension seat | |
| Engine Parameters | Engine Brand | Foton Cummins |
| Engine Model | Foton Cummins F4.5NS6B220 | |
| Engine Series | Foton Cummins F4.5 | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Cylinder Arrangement | Inline | |
| Displacement | 4.46L | |
| Emission Standard | China National VI | |
| Max Output Power | 162kW | |
| Max Horsepower | 220 HP | |
| Max Torque | 820N·m | |
| Max Torque Speed Range | 1300–1500rpm | |
| Rated Speed | 2300rpm | |
| Aftertreatment Technical Route | SCR+DOC+DPF | |
| Transmission Parameters | Transmission Model | Fast 8JS85TE |
| Transmission Brand | Fast | |
| Shift Mode | Manual | |
| Forward Gears | 8 | |
| Reverse Gears | 2 | |
| Cargo Box Parameters | Cargo Box Type | Stake Body |
| Cargo Box External Length | 6.8m | |
| Cargo Box External Width | 2.45m | |
| Cargo Box Internal Width | 2.45m | |
| Cab Parameters | Cab Type | Extended Half Row High Roof Cab |
| Cab Suspension | Four-point mechanical suspension | |
| Cab Width | 2200mm | |
| Cab Tilt Mode | Manual Tilt | |
| Rated Passengers | 2 persons | |
| Seat Layout | Extended Half Row | |
| Driver Seat Type | Mechanical shock-absorbing seat | |
| Fuel Tank | Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 300L | |
| Chassis Parameters | Front Axle Rating | 3.6t |
| Front Axle Allowable Load | 5600kg | |
| Frame Size | Longitudinal beam section height 234mm | |
| Rear Axle Rating | 8t | |
| Rear Axle Allowable Load | 10400kg | |
| Rear Axle Gear Ratio | 4.333 | |
| Suspension Leaf Spring Configuration | 10/10+8 pieces | |
| Front & Rear Suspension Type | Front and rear leaf spring suspension | |
| Tire Parameters | Tire Specification | 10R22.5 16PR |
| Number of Tires | 6 pcs |
