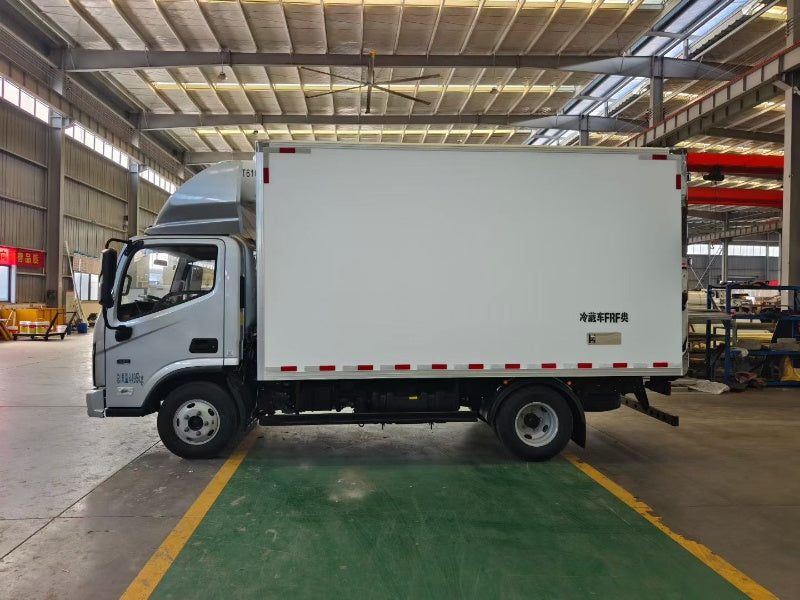

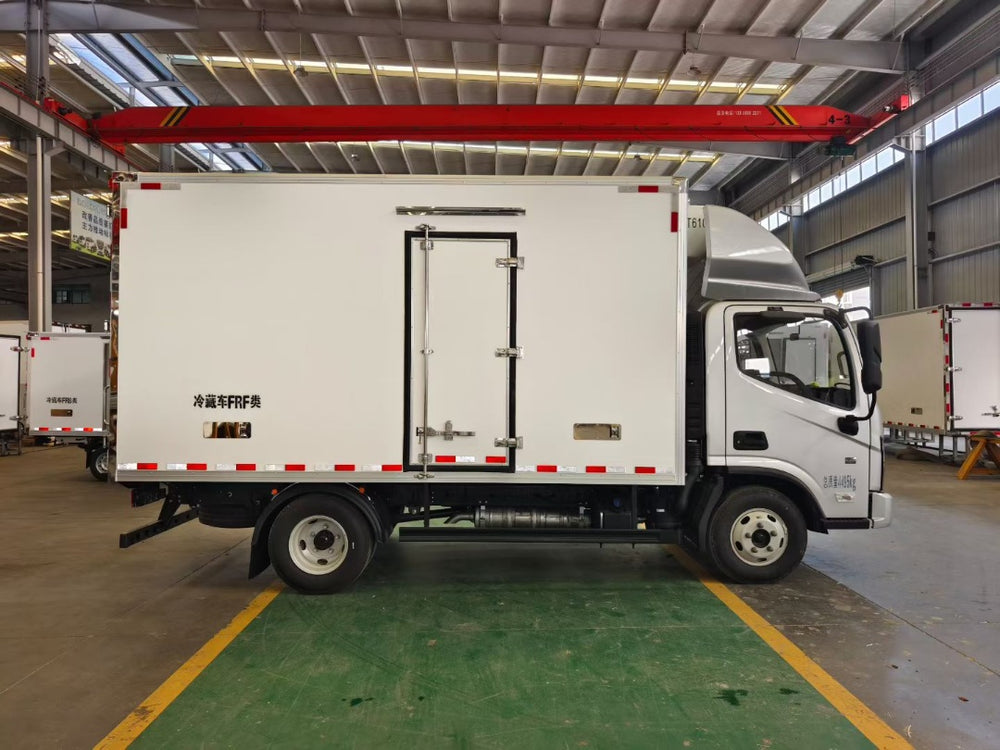

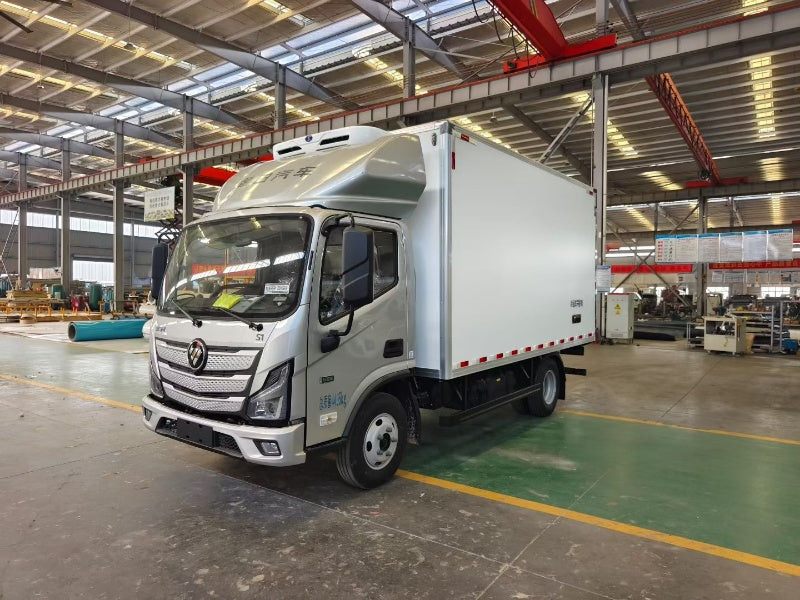

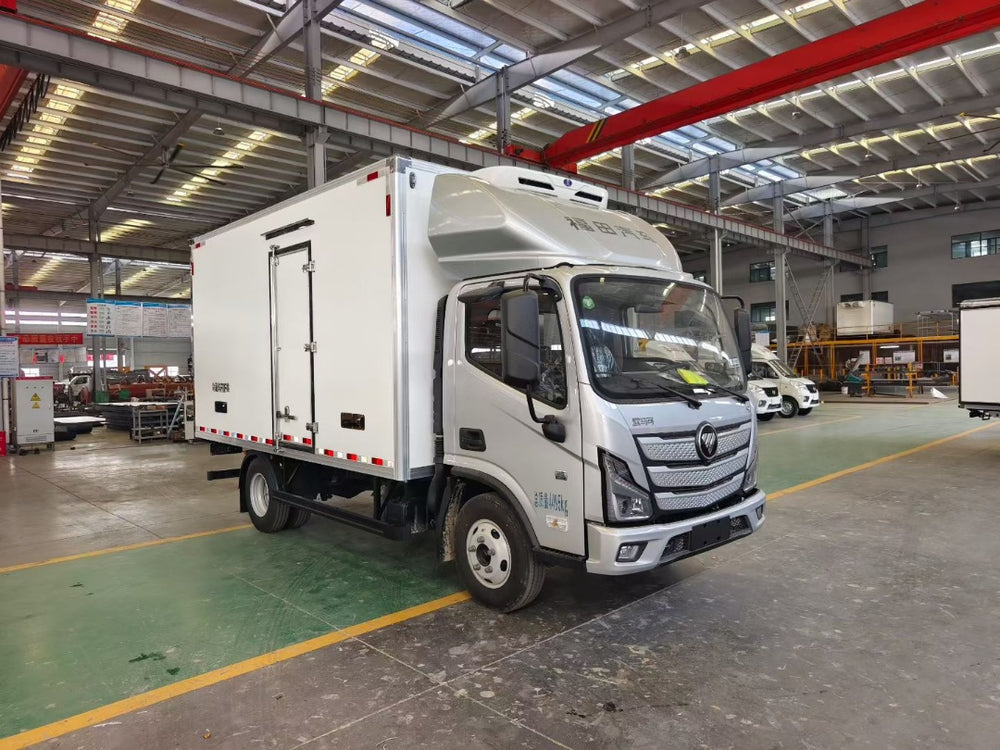

Foton Aumark 4.2-meter 5 ton refrigerated truck

1 / 8

Foton Aumark 4.2-meter 5 ton refrigerated truck 1. Basic vehicle parameters
Chassis Brand	Foton Aumark
Total vehicle weight	7800 kg
curb weight	2800 kg
Rated load	4800 kg
Overall vehicle dimensions	5990×2250×3250 mm
Top speed	110 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	Oukang 4F25TC43
horsepower	121 kW / 165 HP
gearbox	ZF 6S468 6-speed manual transmission
Front axle/Rear axle	3.5 tons / 4.5 tons
wheelbase	3360 mm
Tire specifications	7.00R16 14PR tubeless tire
tank	120L Aluminum Alloy
Emission standards	Euro 6

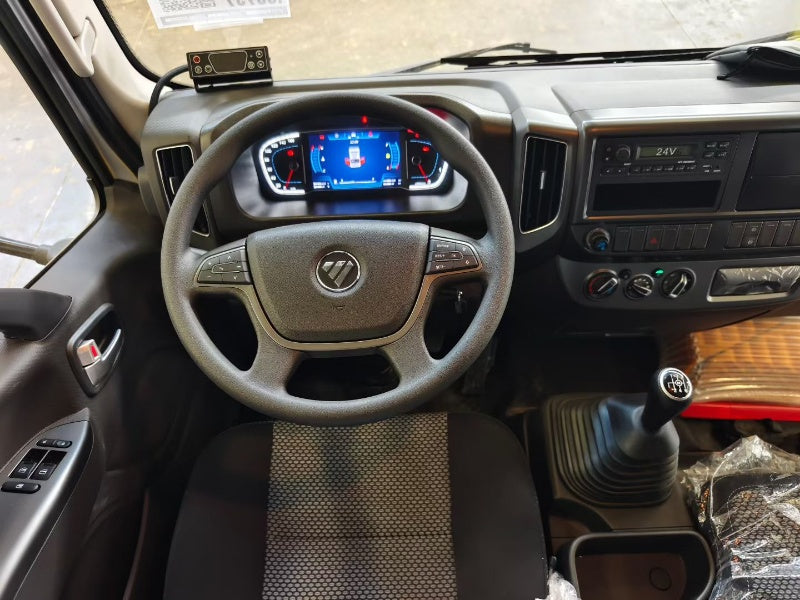

Other configurations	LCD instrument cluster, multi-function steering wheel, cruise control, air-suspension seats (ventilated/heated), automatic air conditioning, power-adjustable and heated side mirrors, ABS, tire pressure monitoring, parking sensors, LED daytime running lights.
3. Basic parameters of the upper part

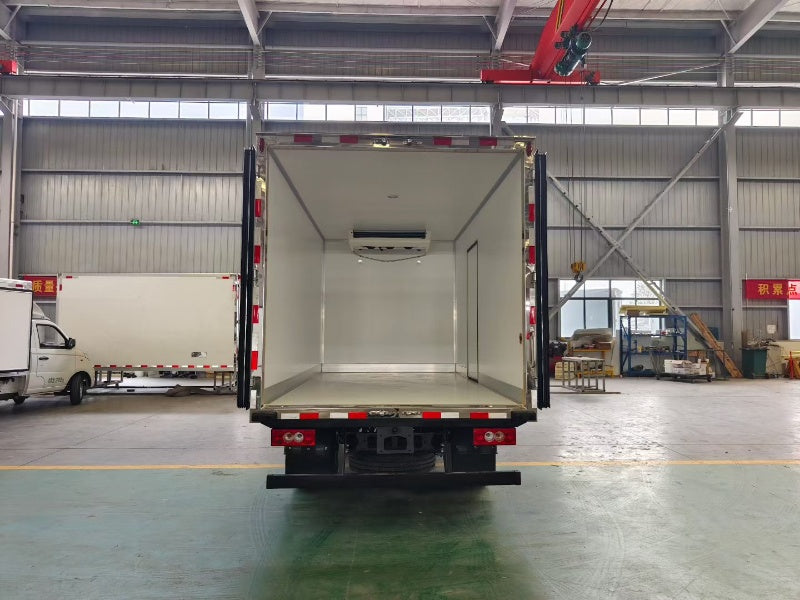

Cargo box dimensions	4080×2100×2100 mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

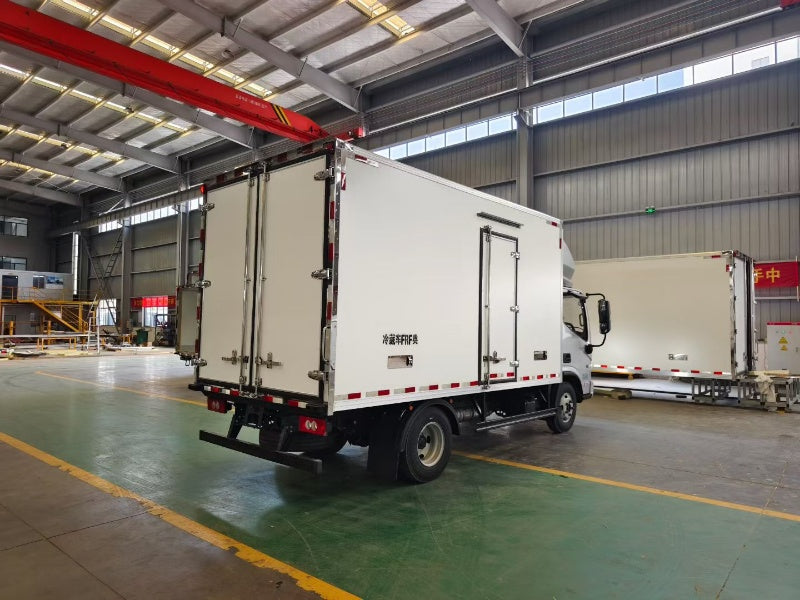

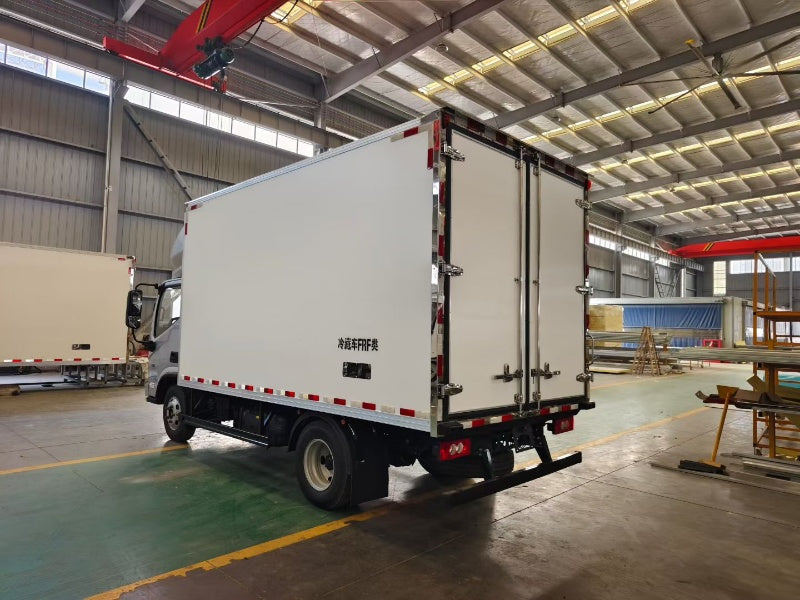

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional	Meat hook guide rail, ventilation slot, LED interior light, hydraulic tailgate
