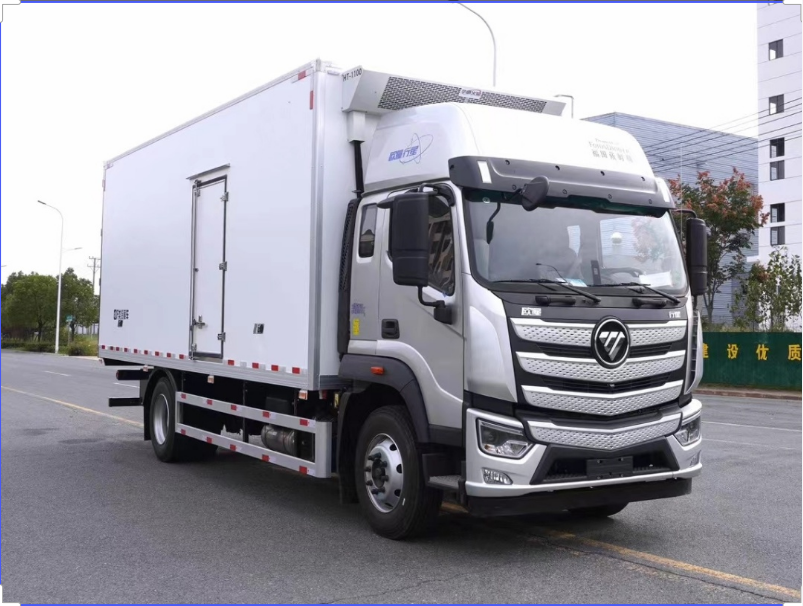

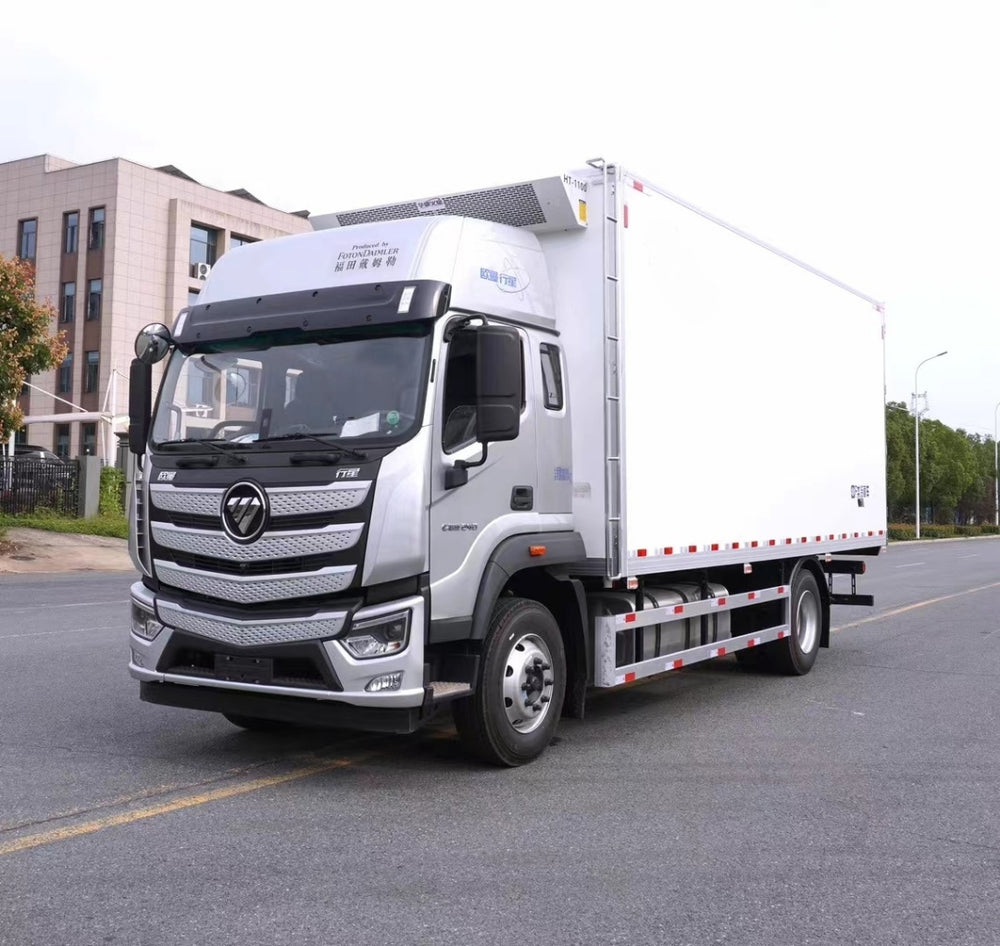

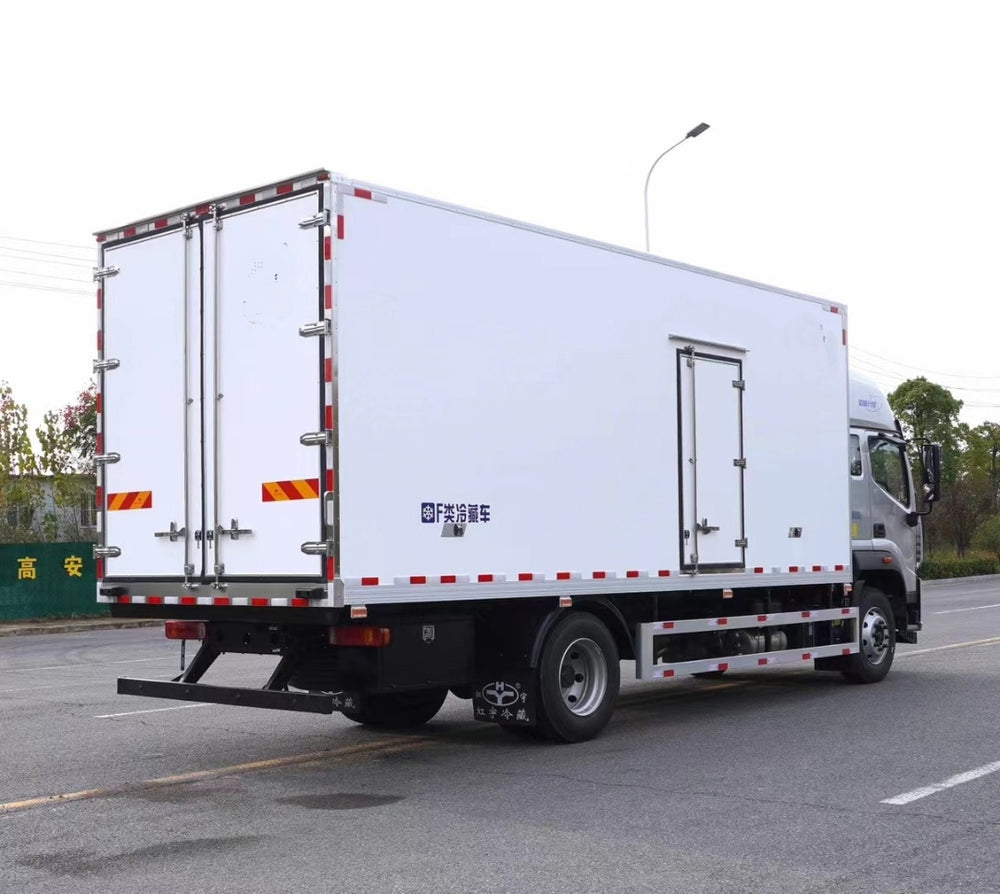

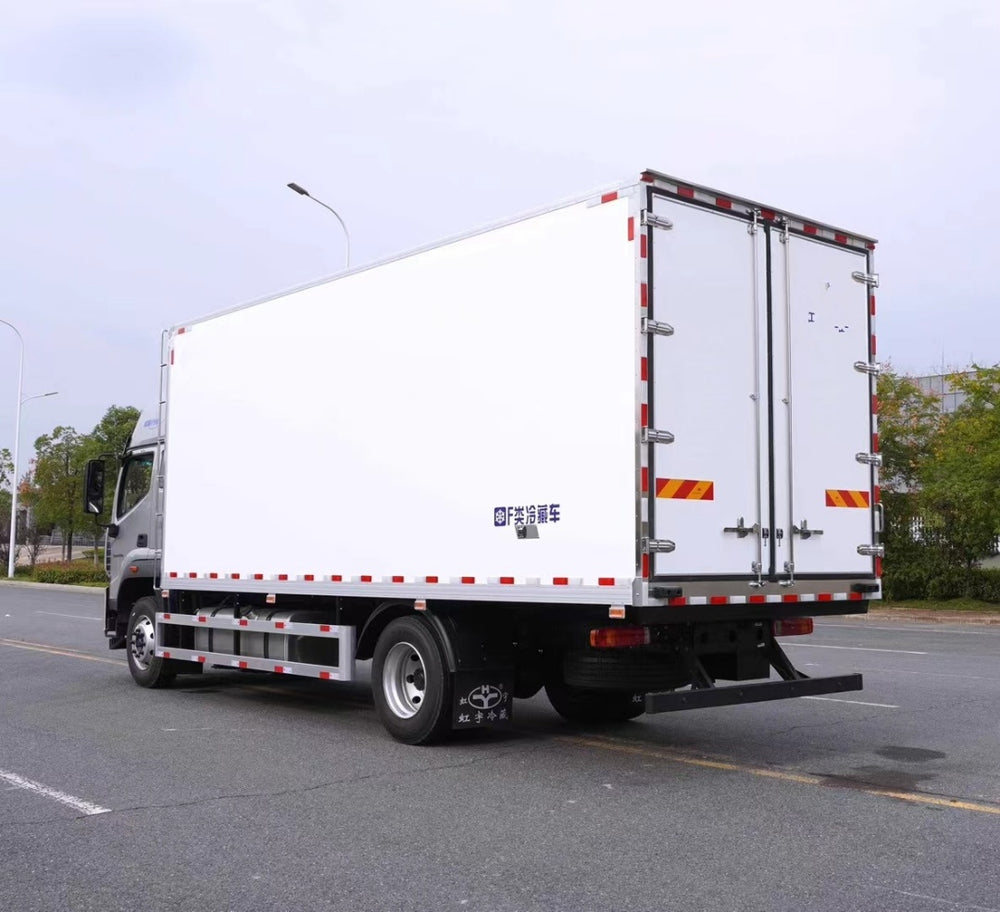

Foton Auman 6.8-meter 10 ton refrigerated truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	Foton Auman
Total vehicle weight	18000kg
curb weight	7880 kg
Rated load	10000kg
Overall vehicle dimensions	9200×2600×3960 mm
Top speed	89 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	Cummins 300HP
horsepower	221 kW / 300 HP
gearbox	Fast 8-speed gearbox
Front axle/Rear axle	5.7 tons / 8tons
wheelbase	5150 mm
Tire specifications	275/80R22.5 18PR tubeless tire
tank	600L Aluminum Alloy
Emission standards	Euro 6

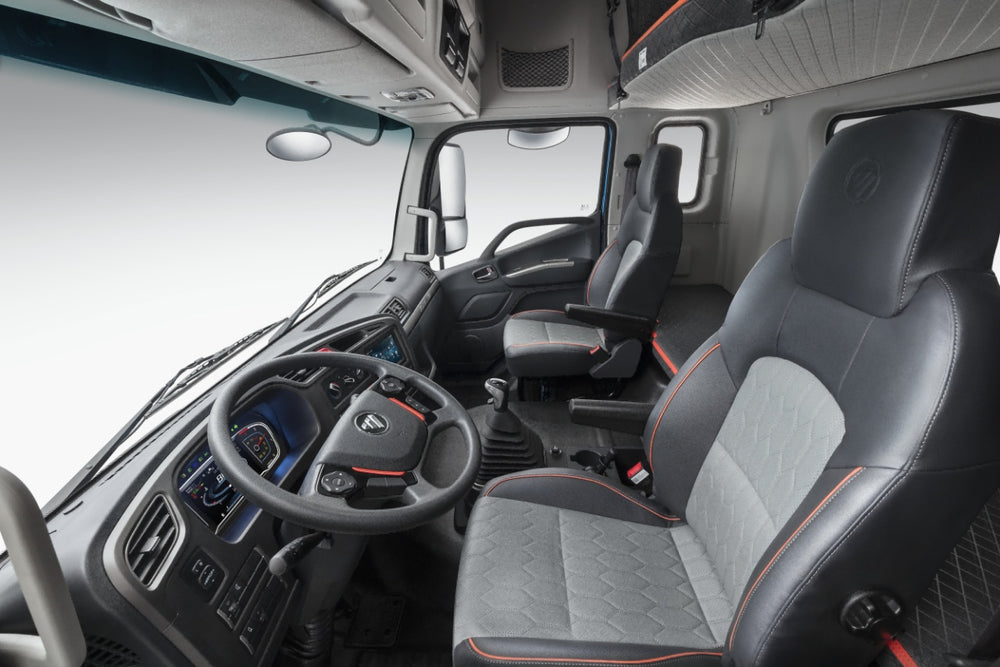

Other configurations	Full-floating airbag shock absorption, intelligent cockpit, four-way monitoring, central locking, power windows and doors, heated side mirrors, multi-function steering wheel, and LCD instrument panel.
3. Basic parameters of the upper part

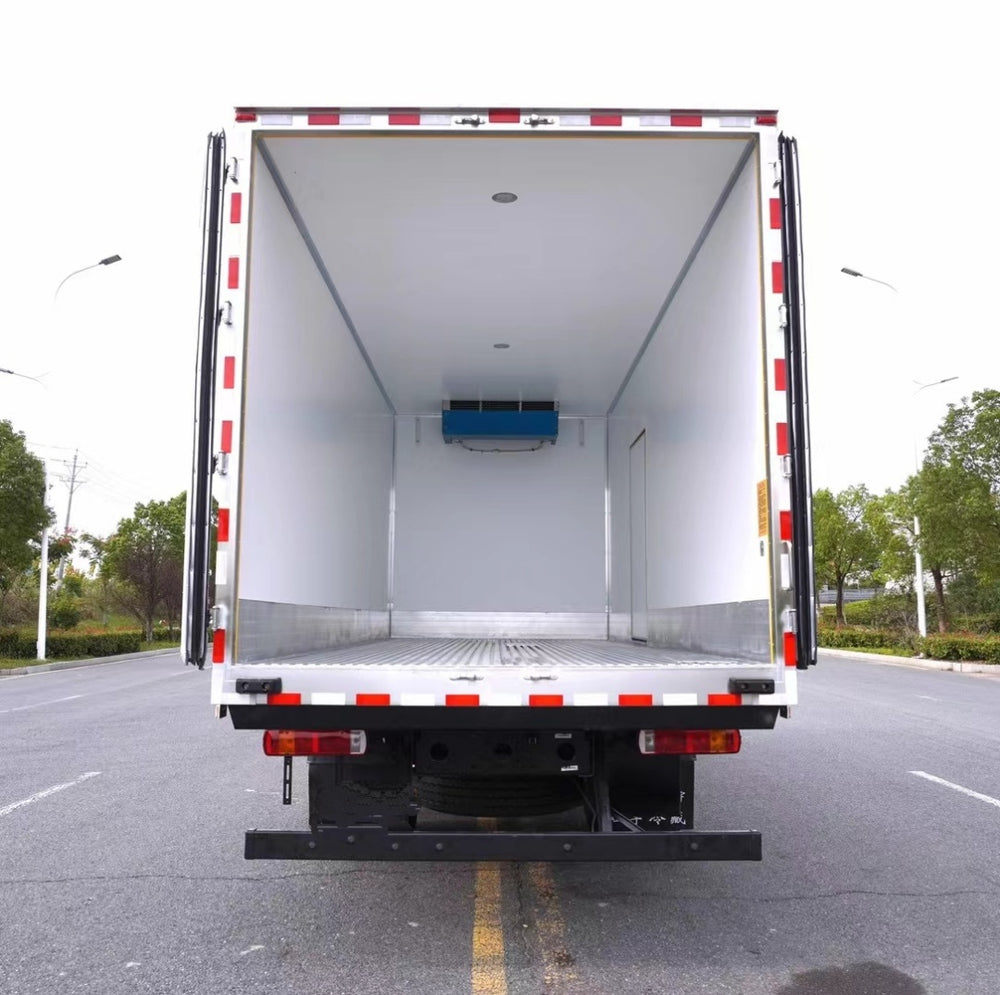

Cargo box dimensions	6800×2440×2500 mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

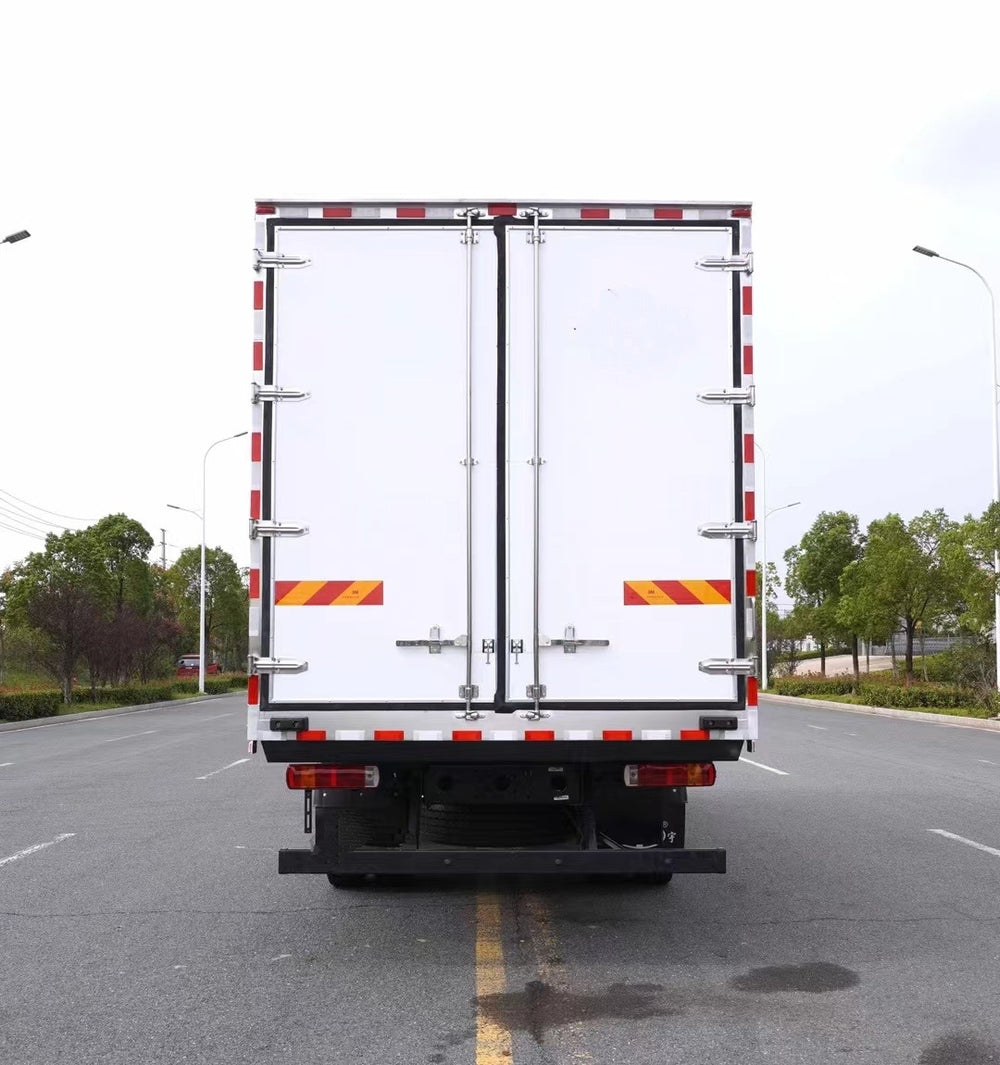

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
