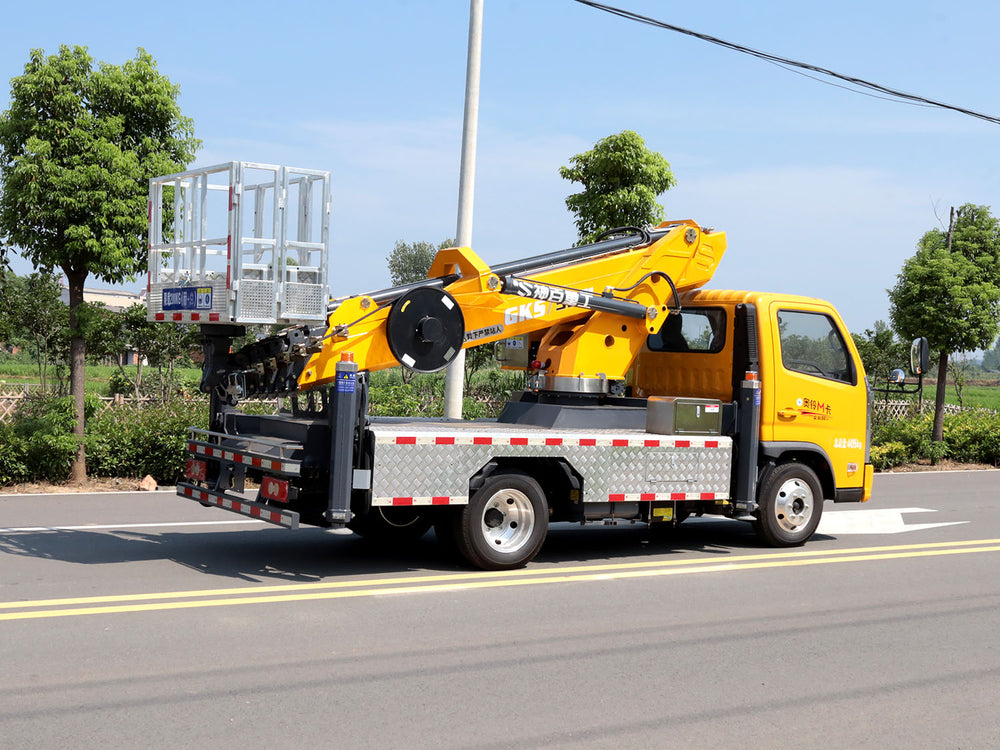

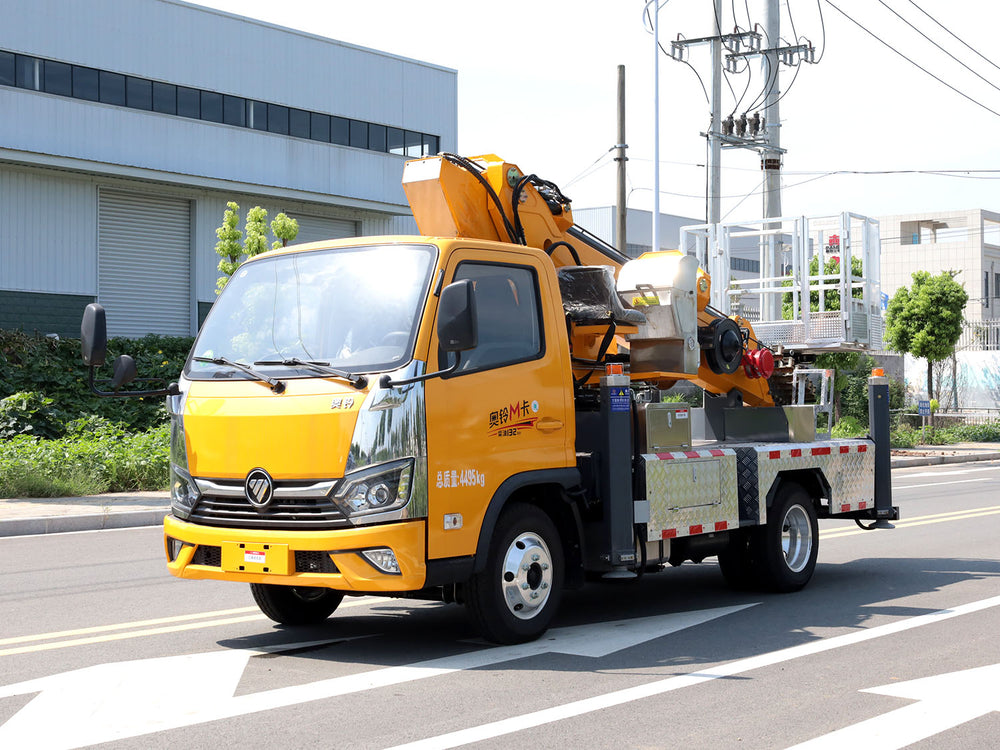

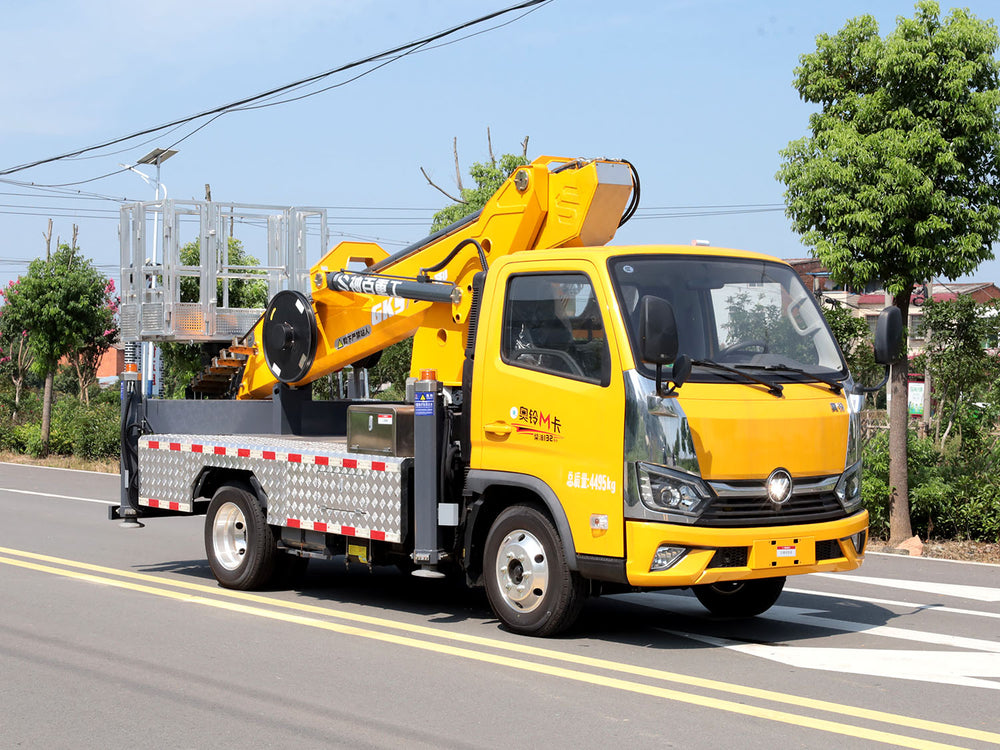

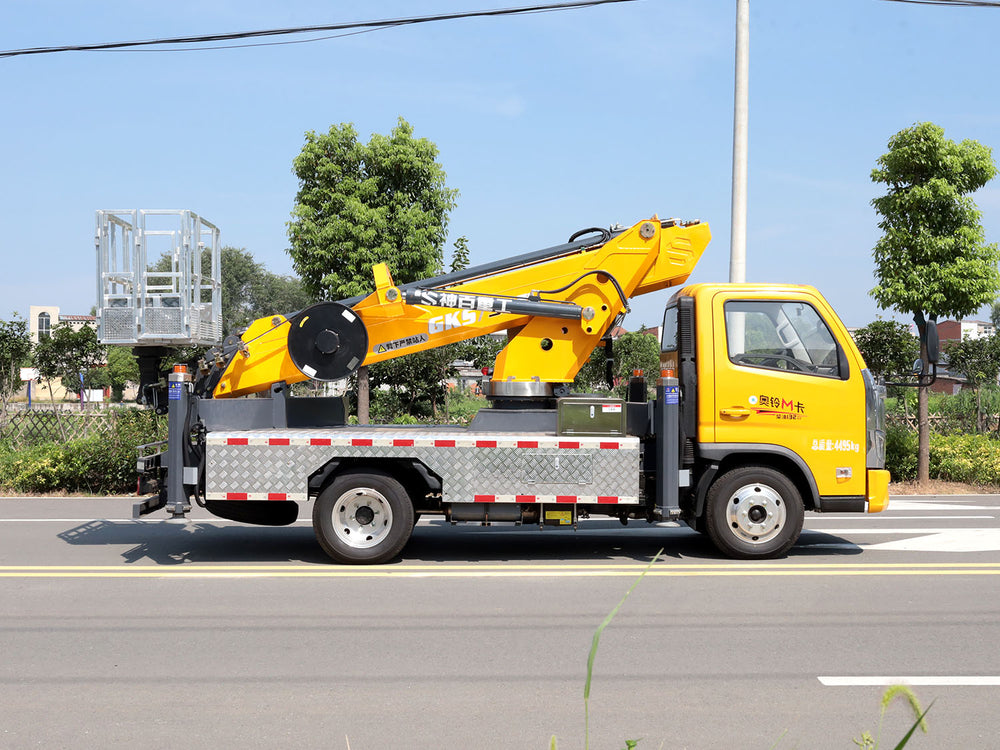

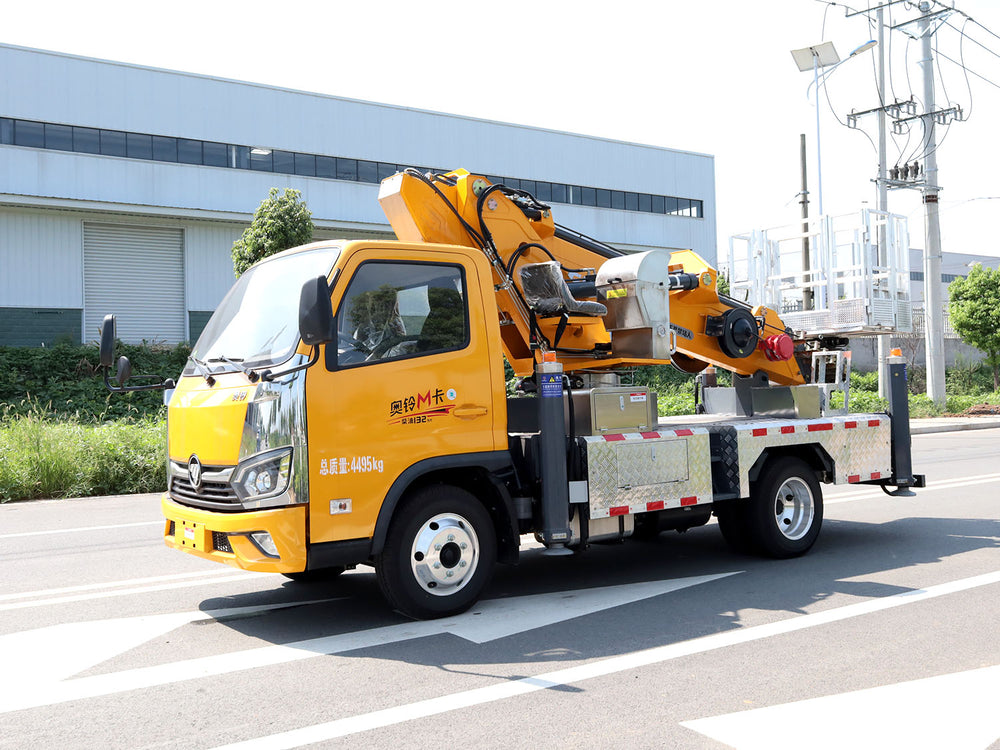

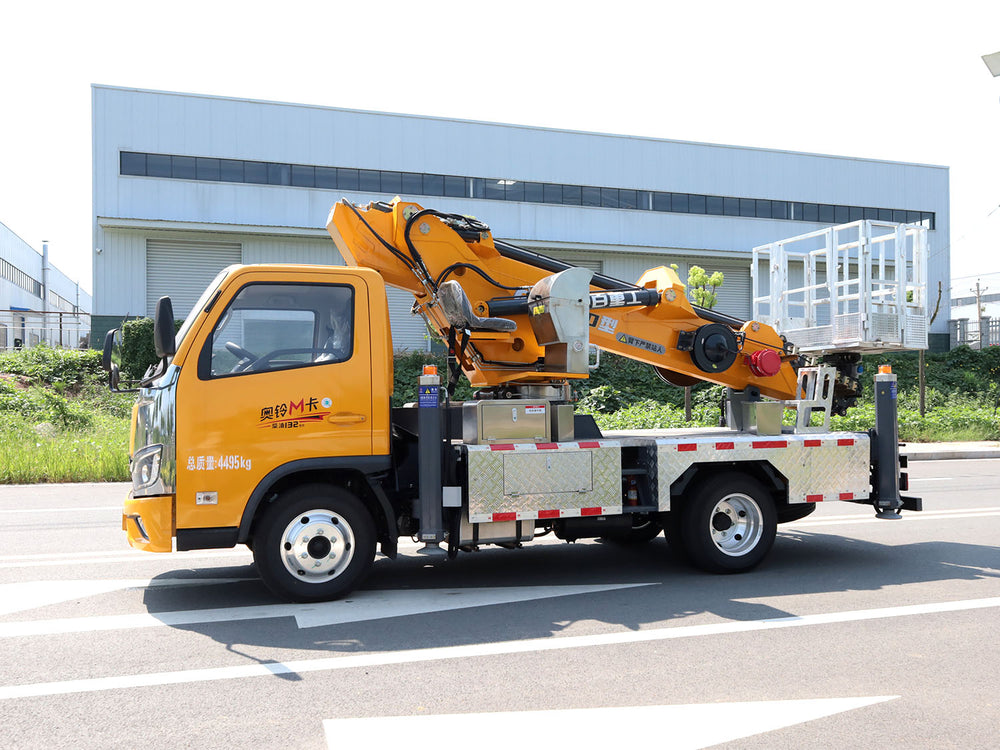

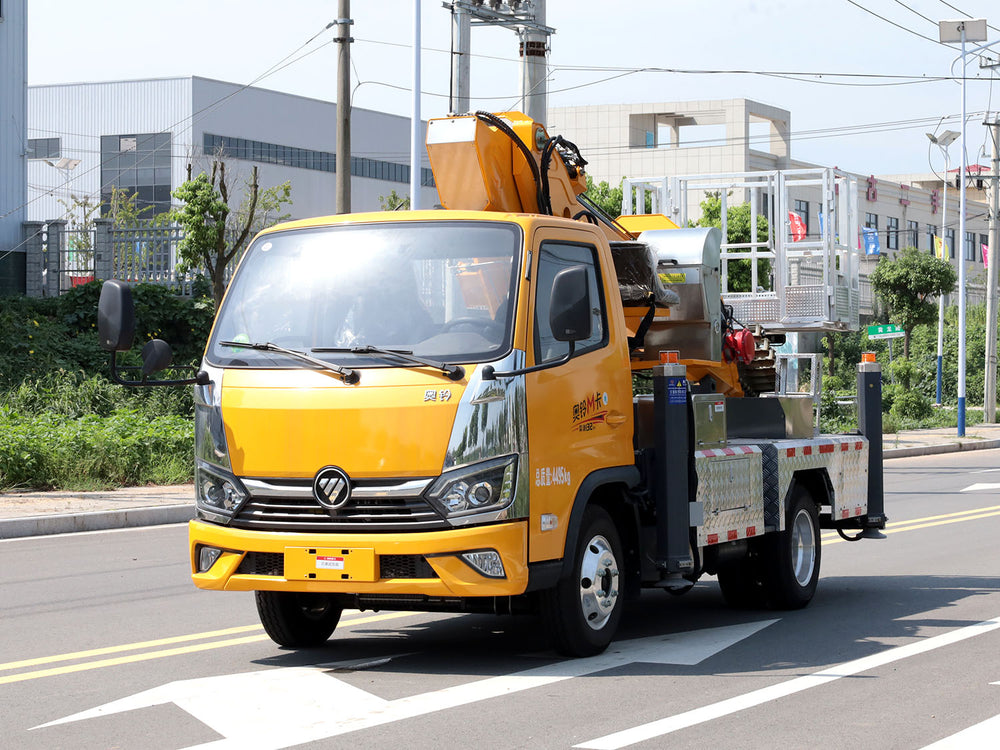

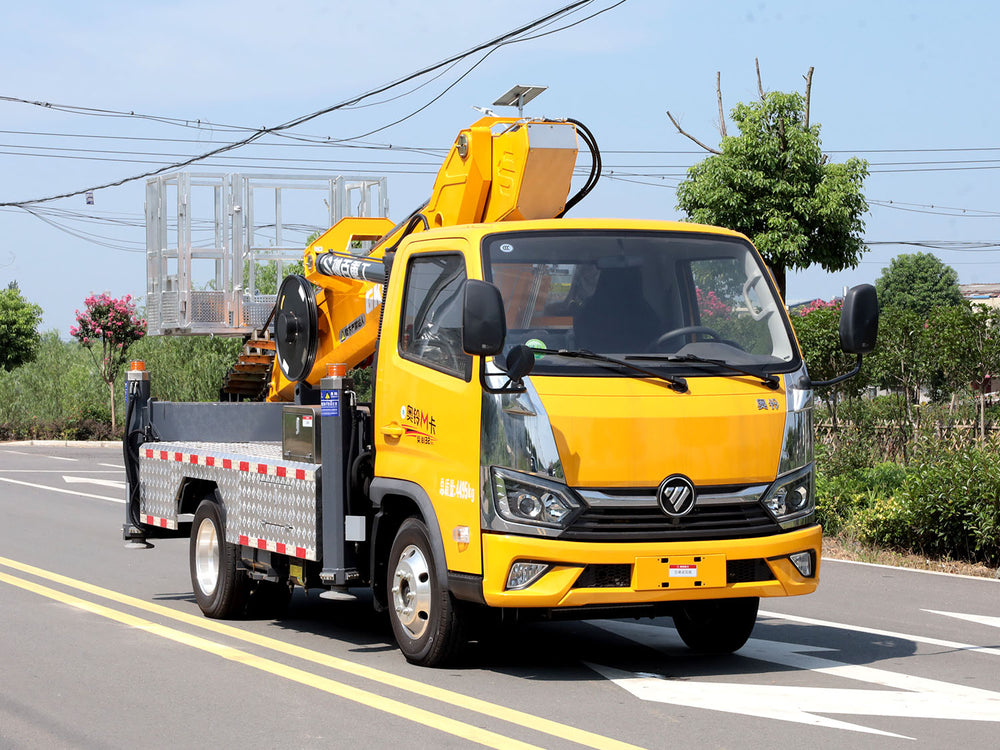

Foton Aoling M-Series 28-Meter Aerial Work Platform Truck

1 / 8

1. Basic Vehicle Parameters
Chassis Brand	Foton
Total vehicle weight	4495 kg
curb weight	4300KG
Overall vehicle dimensions	5998×2098×2750mm
Engine Model	Q23-132E60
horsepower	132 horsepower
gearbox	Wanliyang 5-speed
wheelbase	2900mm
Tire specifications	650R16LT
Braking System	Air-over-hydraulic Brakes
Emission standards	Euro 6
Top speed	110 km/h
fuel tank capacity	75 liters
Lateral support leg span (front/rear)	5150mm/4500 mm
Standard configuration	Power Windows, Air Conditioner, Central Lock, Multi-function Steering Wheel
2. Basic parameters of the upper part
Maximum working height	28.3m
Maximum working radius	16m
Rated load of the work platform	200 kg
boom slewing angle	360° rotation
Overall platform dimensions	1800 × 700 × 1000 mm
Platform rotation range	±180°
boom structure	7 Section Boom，6Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily
control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply
