Foton Aoling 5.2-meter extended refrigerated truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	Foton 4x2
Total vehicle weight	11920kg
Curb weight	5000 kg
Rated load	6800kg
Overall vehicle dimensions	7445×2600×3595mm
Top speed	110 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	F3.8NS6B170
Horsepower	125 kW / 170 HP
Gearbox	Wanliyang 6-speed
Front axle/Rear axle	3.6 tons / 7 tons
Wheelbase	4200mm
Tire specifications	8.25R16
Diesel fuel tank	150L Aluminum Alloy
Emission standards	Euro 2 or Euro 3 Euro 4 or Euro 5 or Euro 6

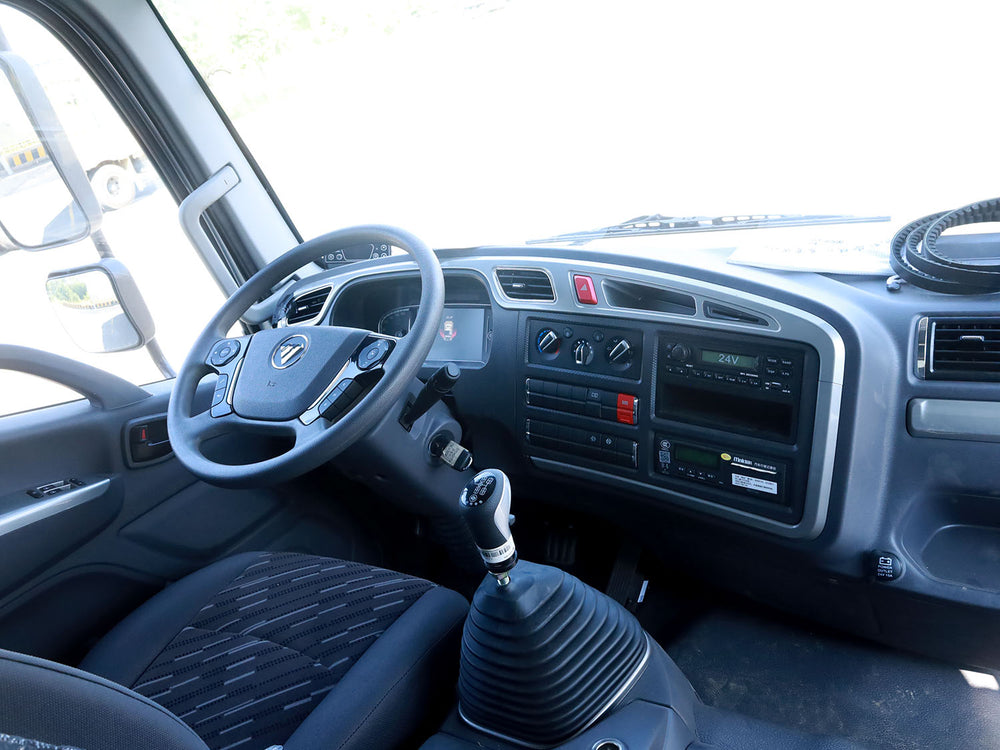

Other configurations	Full-floating airbag shock absorption, intelligent cockpit, four-way monitoring, central locking, power windows and doors, heated side mirrors, multi-function steering wheel, and LCD instrument panel.
3. Basic parameters of the upper part
Cargo box dimensions	5200×2450×2500mm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm
Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
