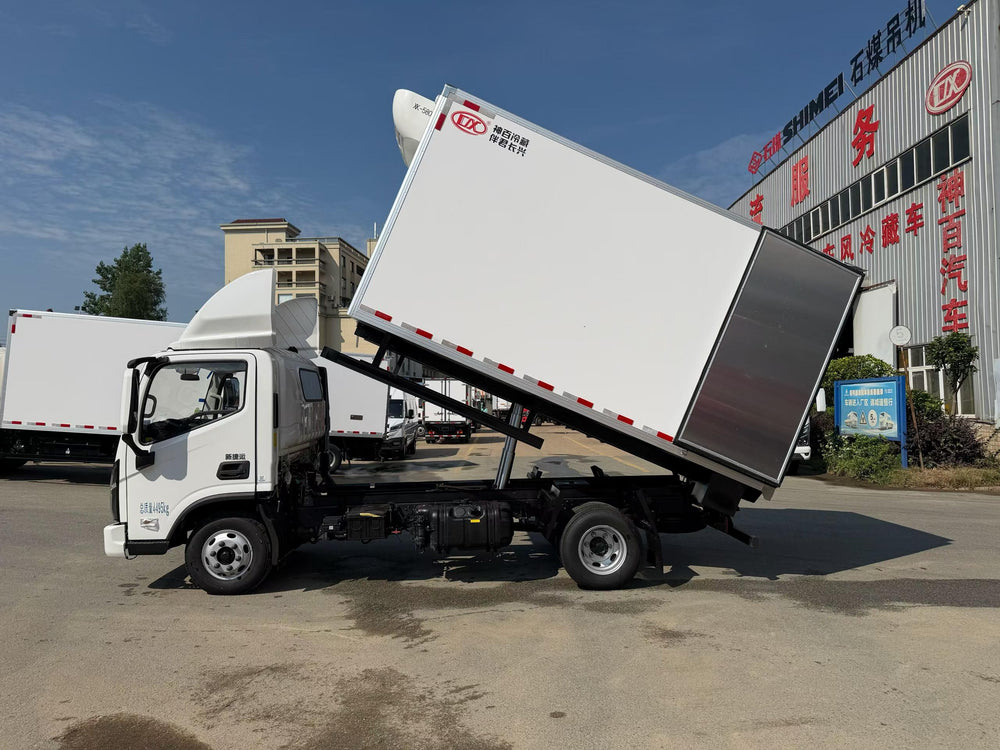

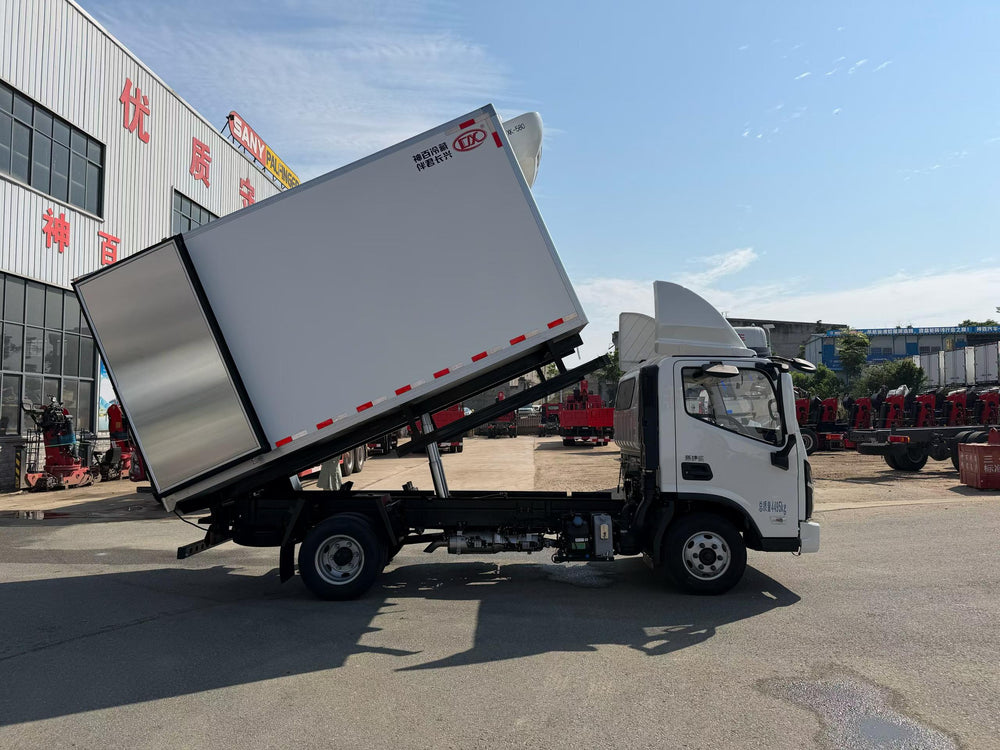

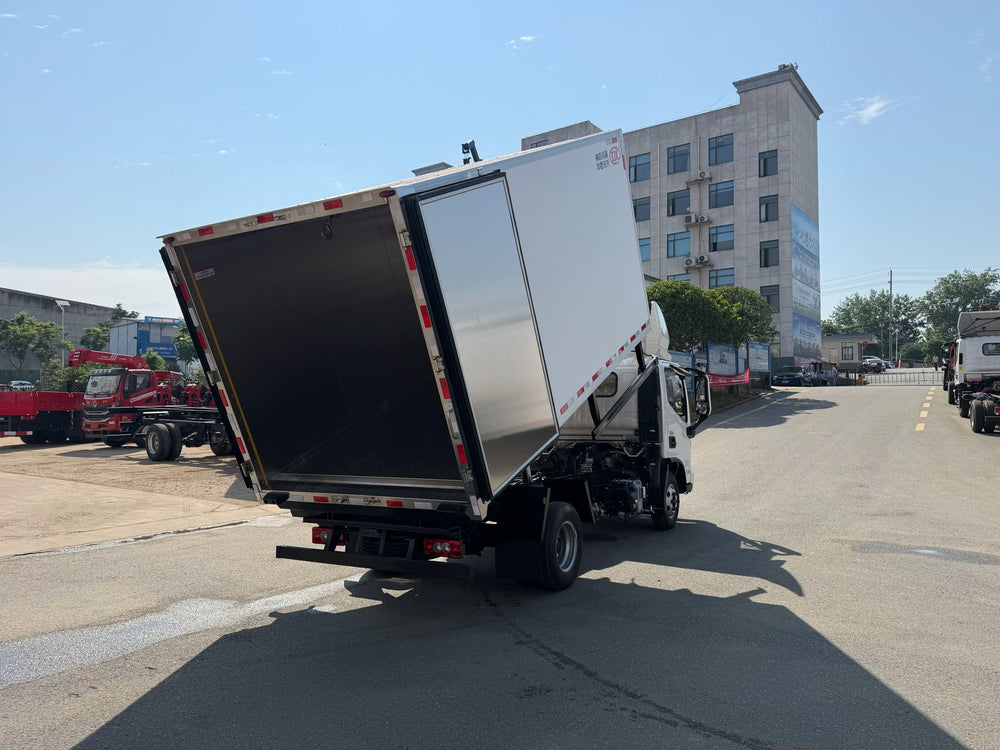

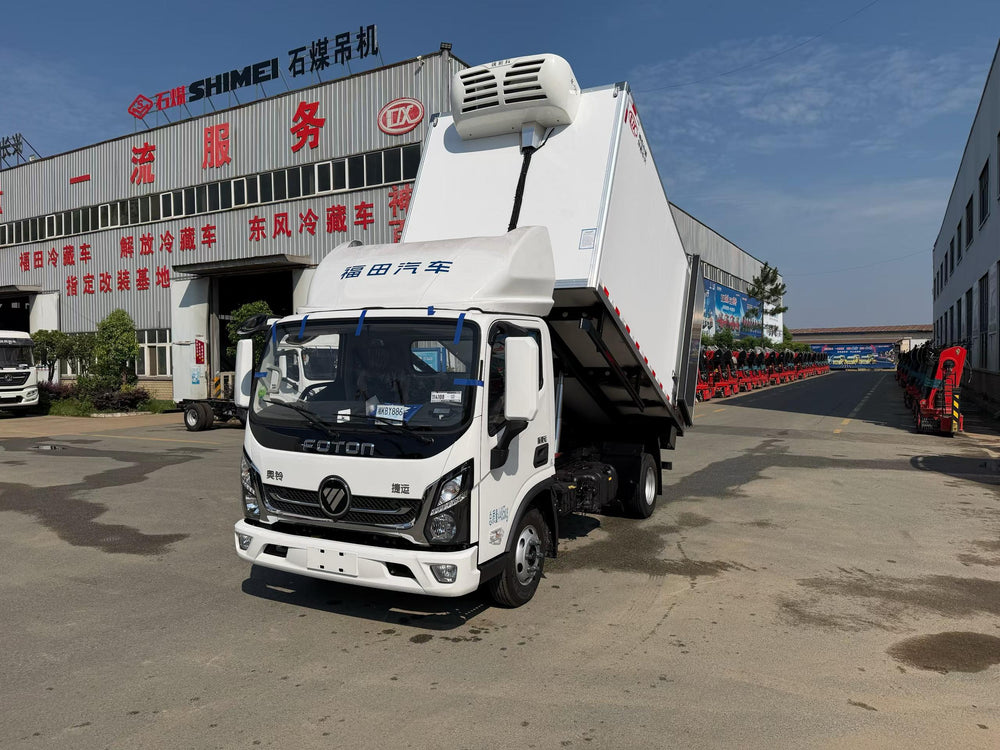

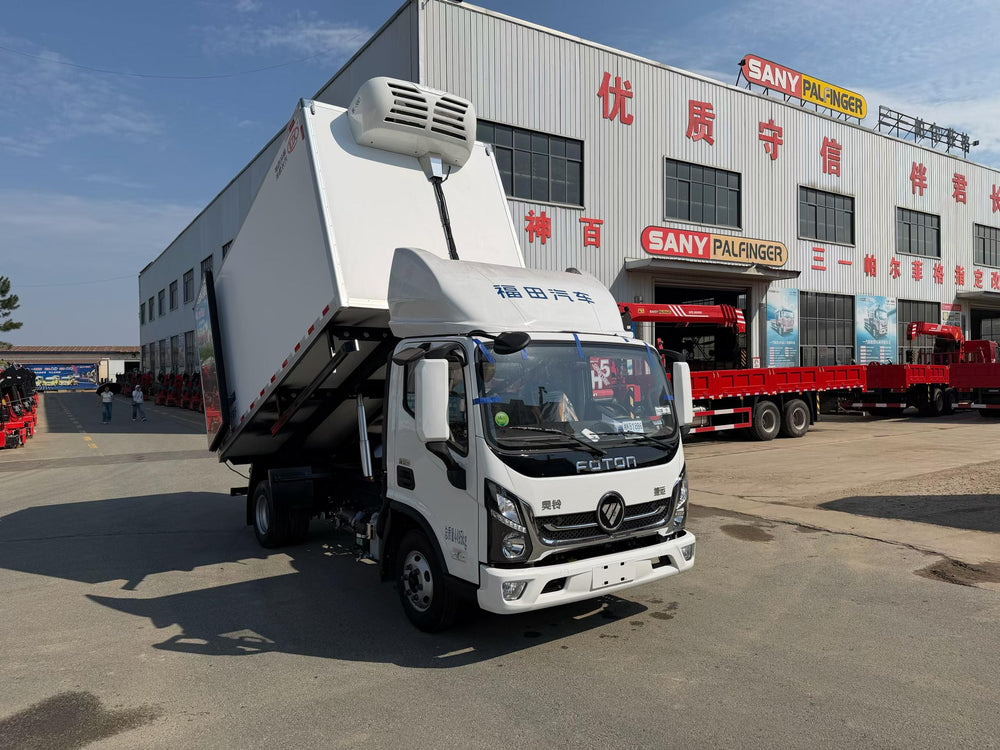

Foton Aoling 4.2-meter dump refrigerated truck

1 / 6

1. Basic vehicle parameters
Chassis Brand	Foton 4x2
Total vehicle weight	4495kg
Curb weight	3200kg
Rated load	1300kg
Overall vehicle dimensions	5985×2260×3315mm
Top speed	95 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	F2.8NS6B150
Horsepower	110 kW / 150 HP
Gearbox	Wanliyang 6-speed
Front axle/Rear axle	2.85 tons / 6 tons
Wheelbase	3360mm
Tire specifications	7.00R16LT
Diesel fuel tank	120L Aluminum Alloy
Emission standards	Euro 2 or Euro 3 Euro 4 or Euro 5 or Euro 6
Other configurations	Full-floating airbag shock absorption, intelligent cockpit, four-way monitoring, central locking, power windows and doors, heated side mirrors, multi-function steering wheel, and LCD instrument panel.
3. Basic parameters of the upper part
Cargo box dimensions	4085×2100×2100mm
Self-unloading lifting system	Lifting capacity 8 tons
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

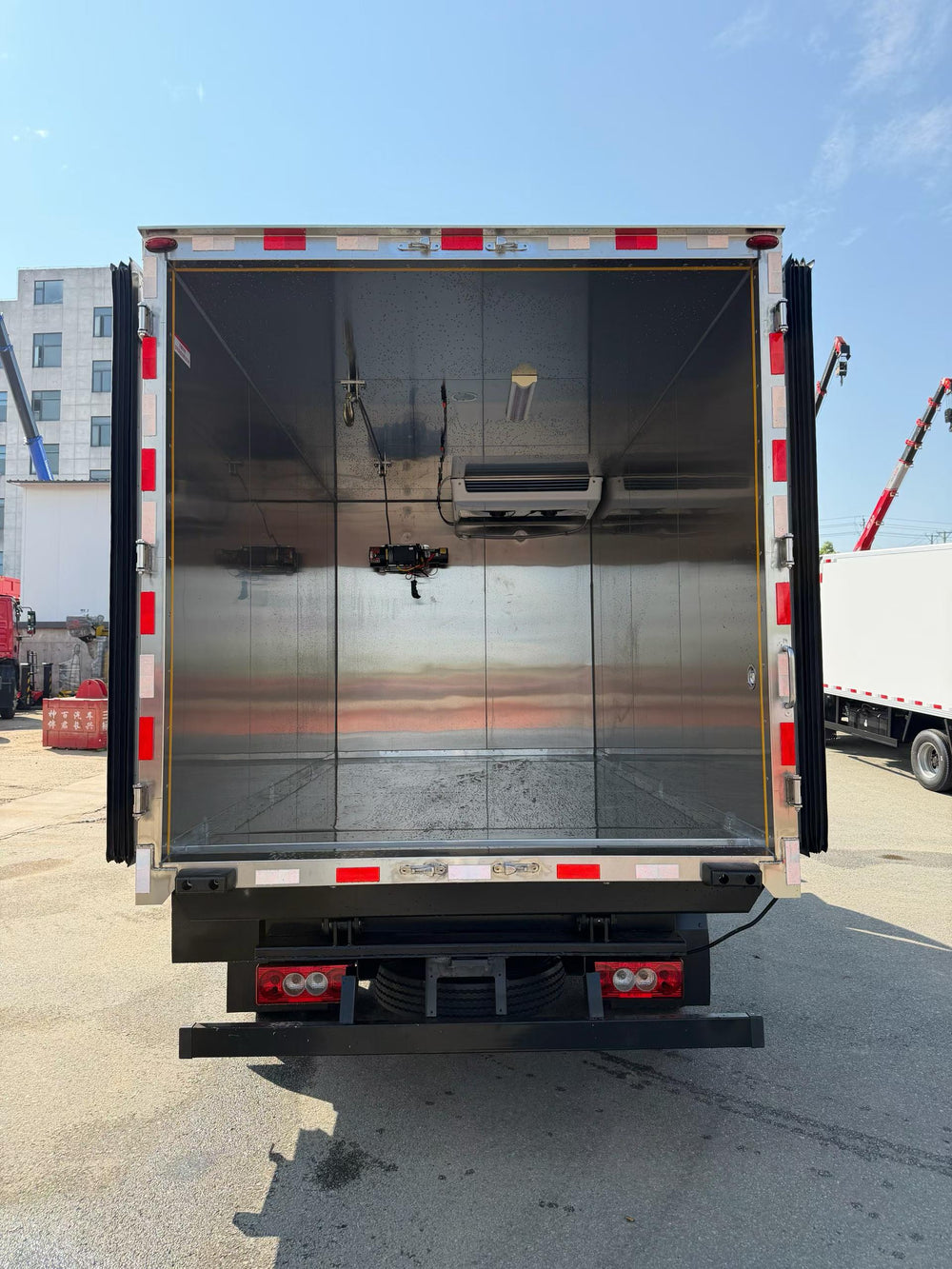

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
