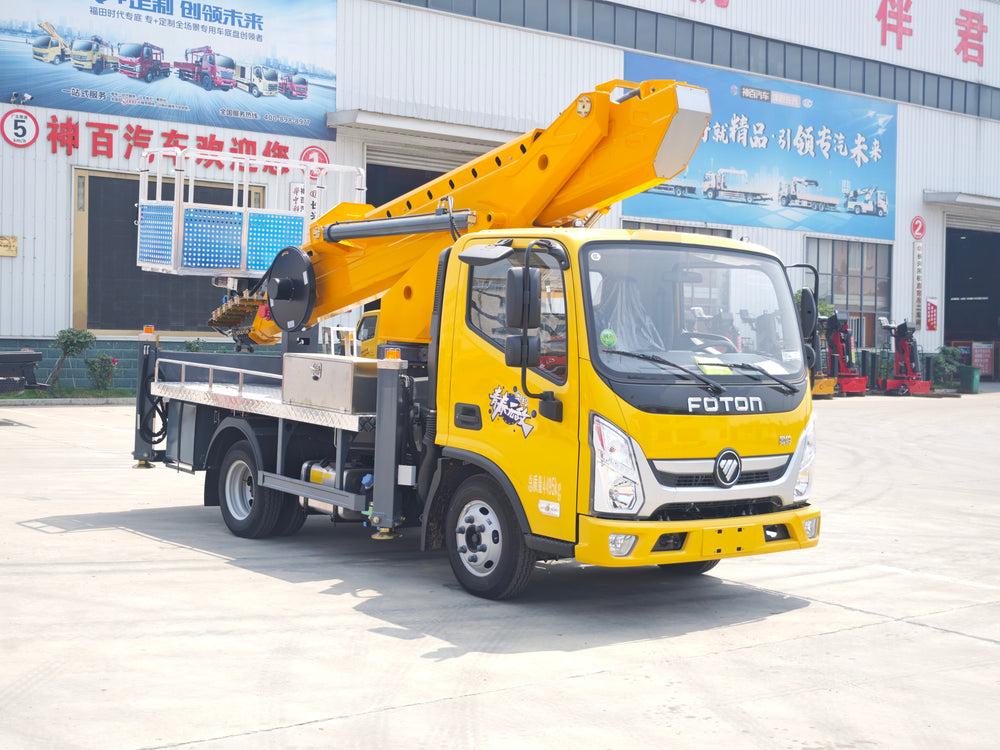

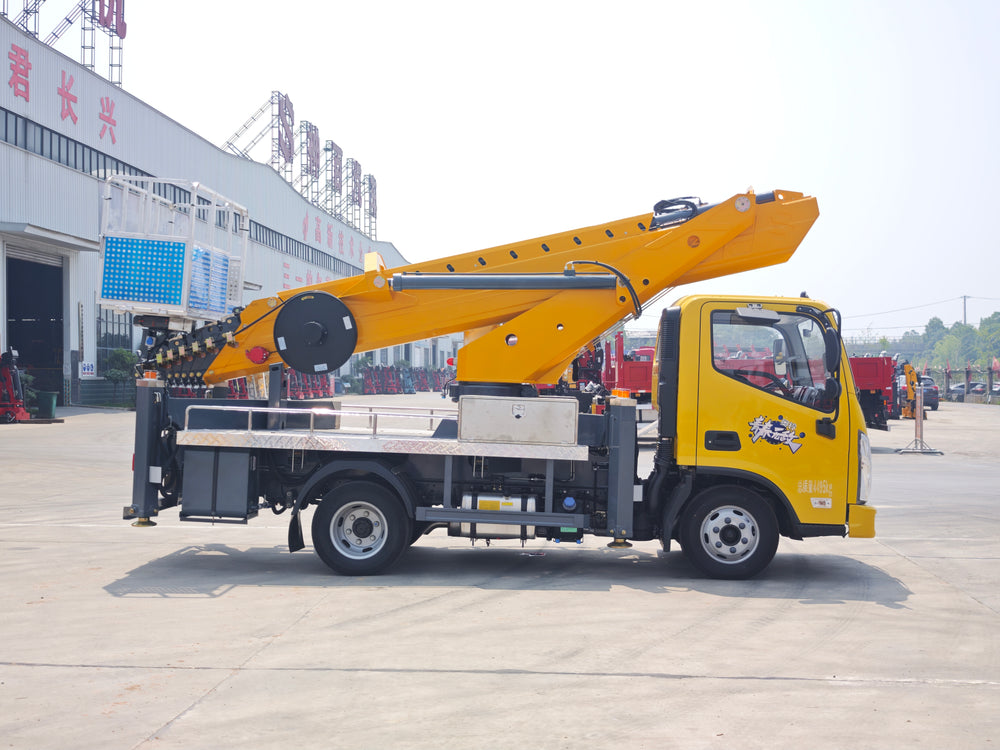

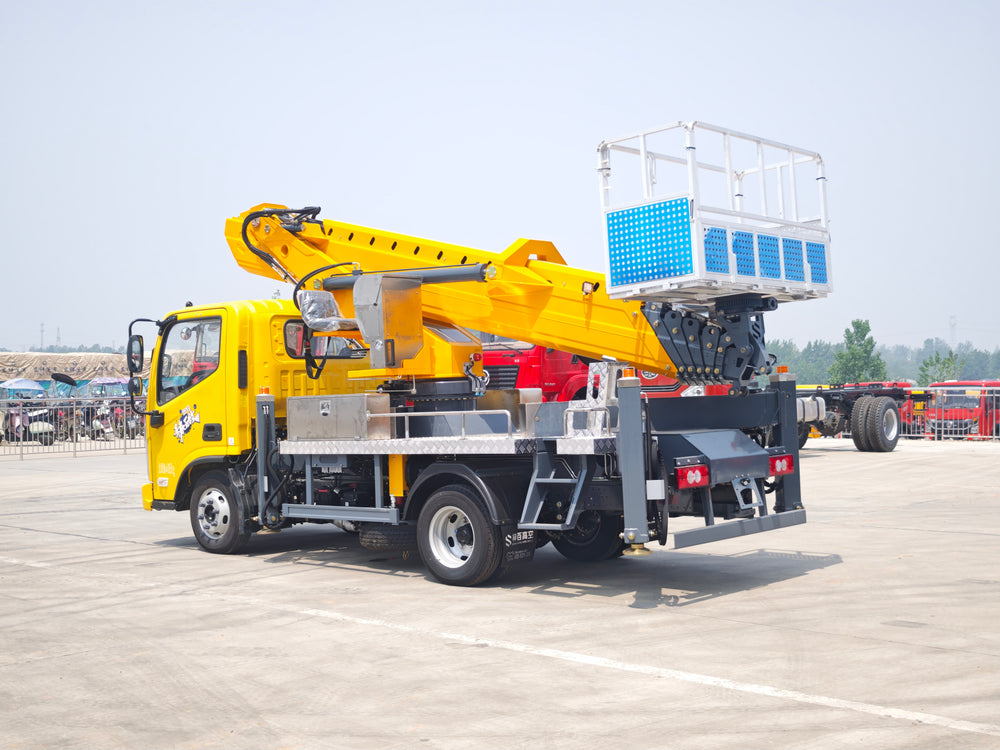

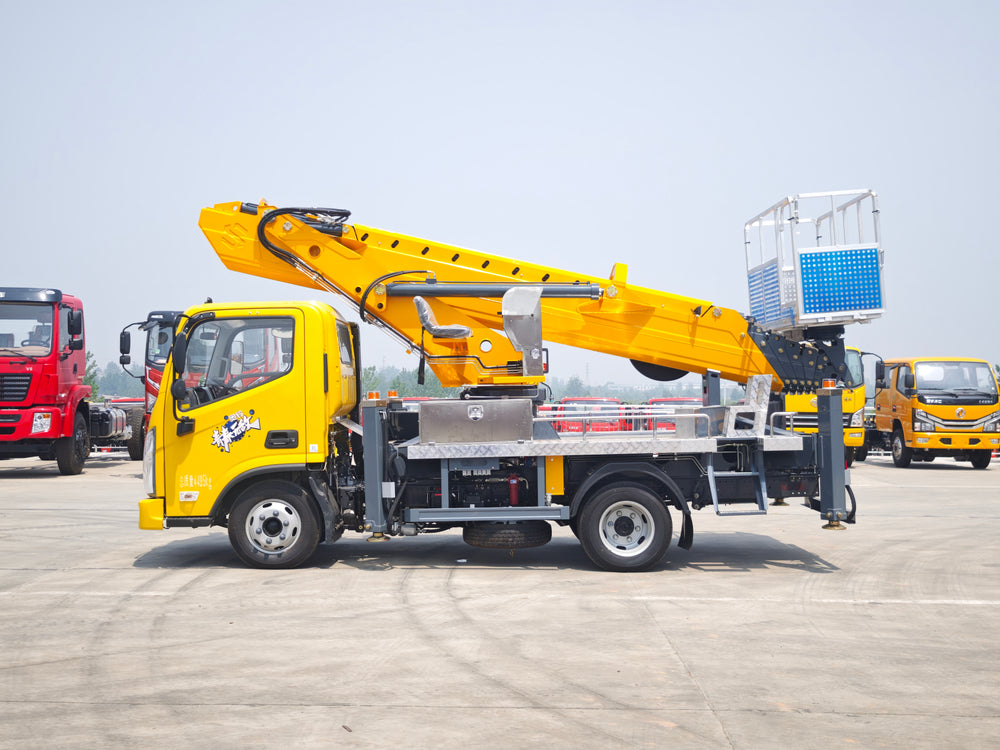

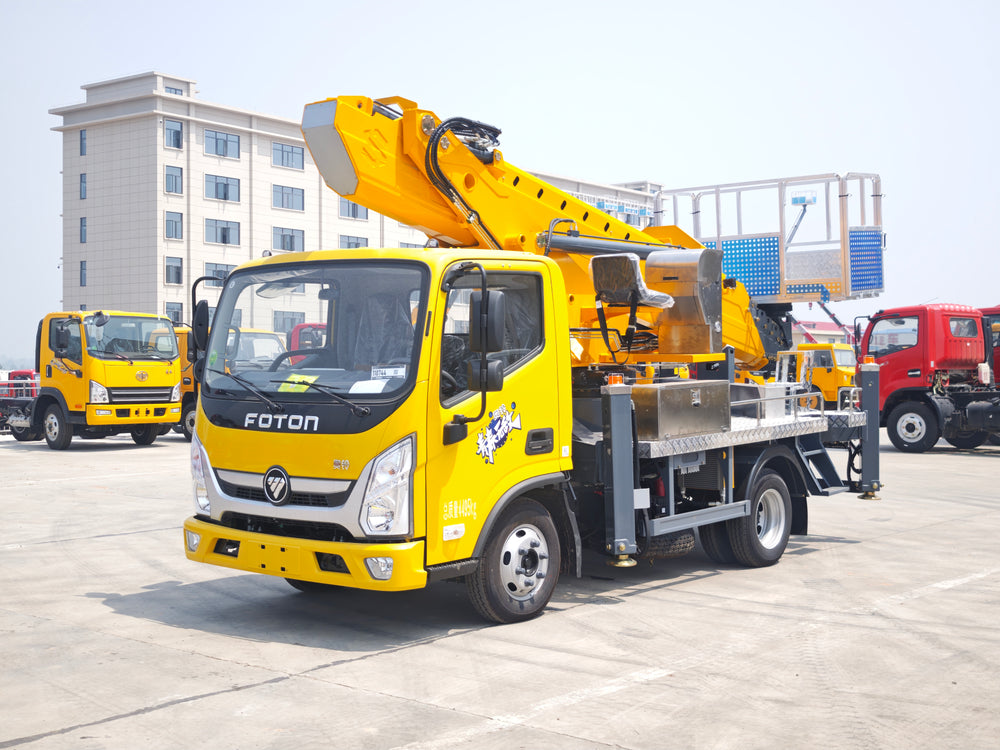

Foton Aoling 35-meter aerial work platform
Foton Aoling 35-meter aerial work platform
1. Basic Vehicle Parameters |
|
Chassis Brand |
Foton |
Total vehicle weight |
4495 kg |
curb weight |
4300KG |
Overall vehicle dimensions |
5995mm*2200mm*3100mm |
Engine Model |
Yunnei 151HP |
horsepower |
151horsepower |
gearbox |
Wanliyang 8-speed |
wheelbase |
3300mm |
Tire specifications |
700R16 |
Braking System |
Air-over-hydraulic Brakes |
Emission standards |
Euro 6 |
Top speed |
99km/h |
fuel tank capacity |
75liters |
Lateral support leg span (front/rear) |
6120mm/5800mm |
Standard configuration |
Power Windows, Air Conditioner, Central Lock, Multi-function Steering Wheel |
2. Basic parameters of the upper part |
|

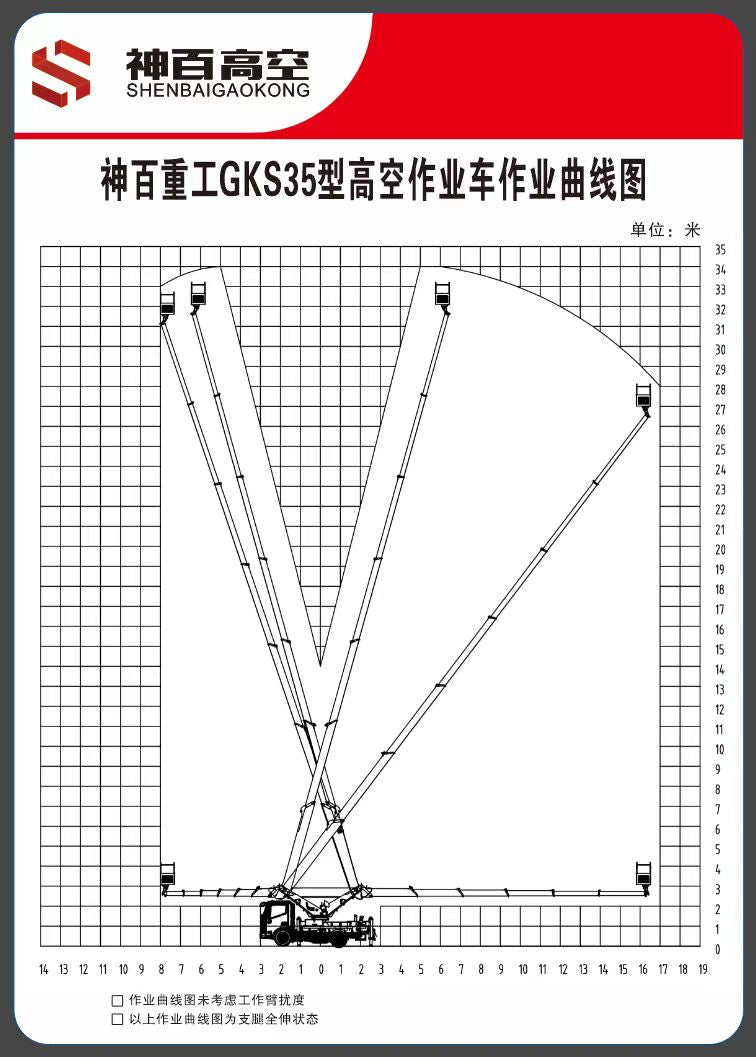

Maximum working height |
33.8m |
Maximum working radius |
16.5m |
Rated load of the work platform |
200 kg |
boom slewing angle |
360° rotation |
Overall platform dimensions |
1800 × 700 × 1000 mm |
Platform rotation range |
±180° |
boom structure |
7Section Boom，6Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily |
control system |
The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen. |
Hydraulic system |
Electro-hydraulic proportional valve with stepless speed regulation function |

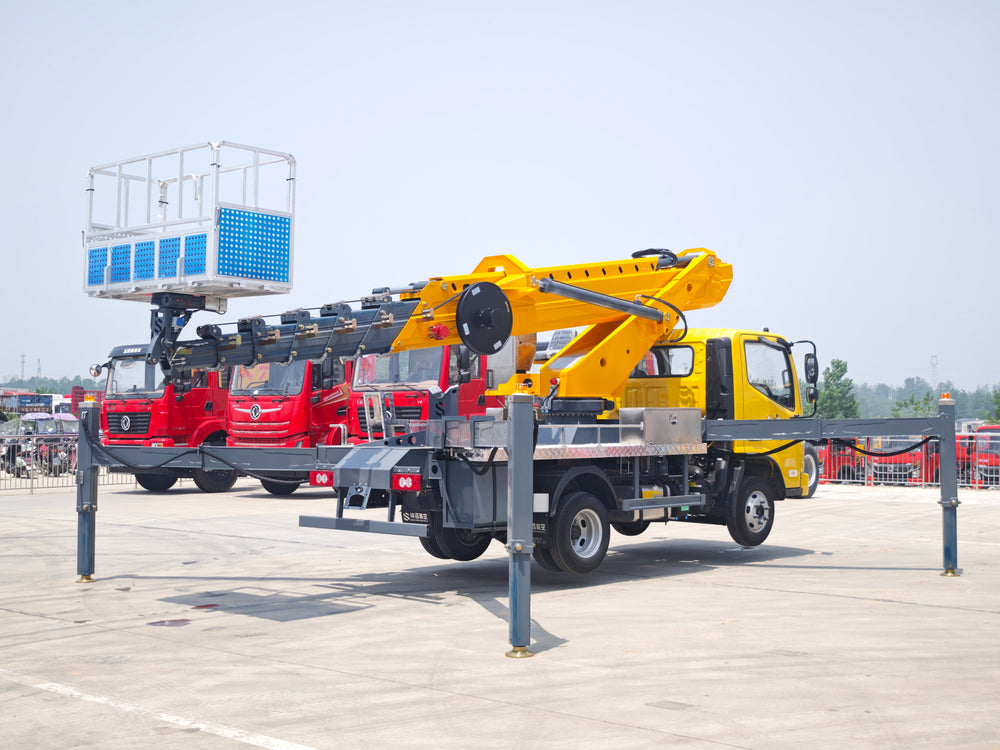

Hydraulic outriggers |
The H-type 4-group telescopic bracket is independently adjustable and highly stable. |
Safety devices |
Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply |
