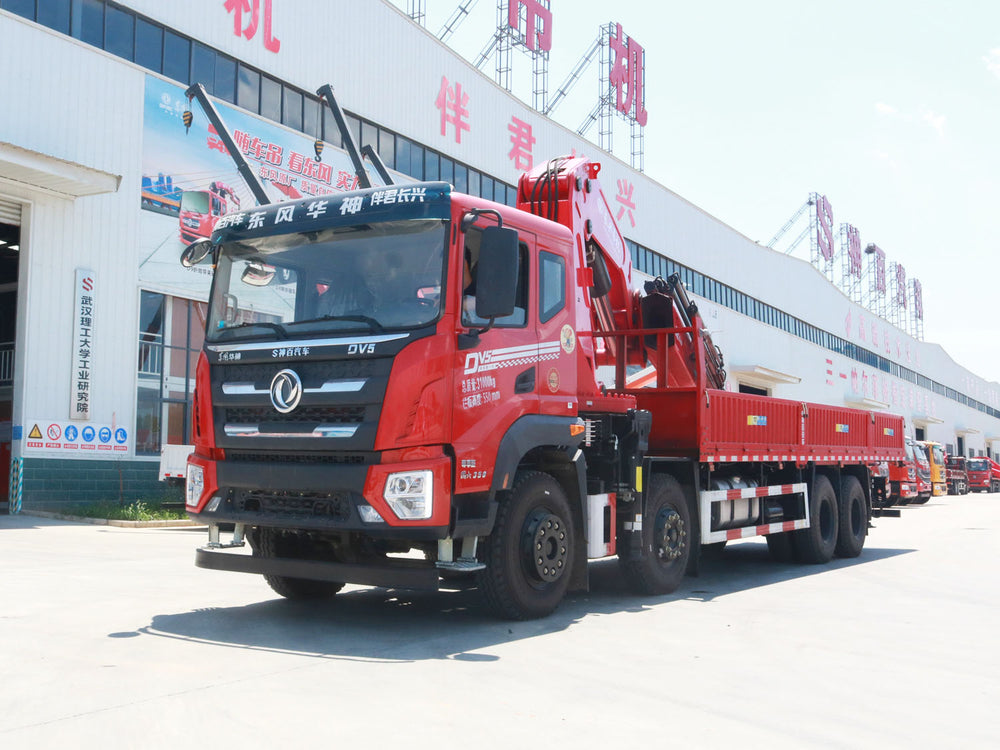

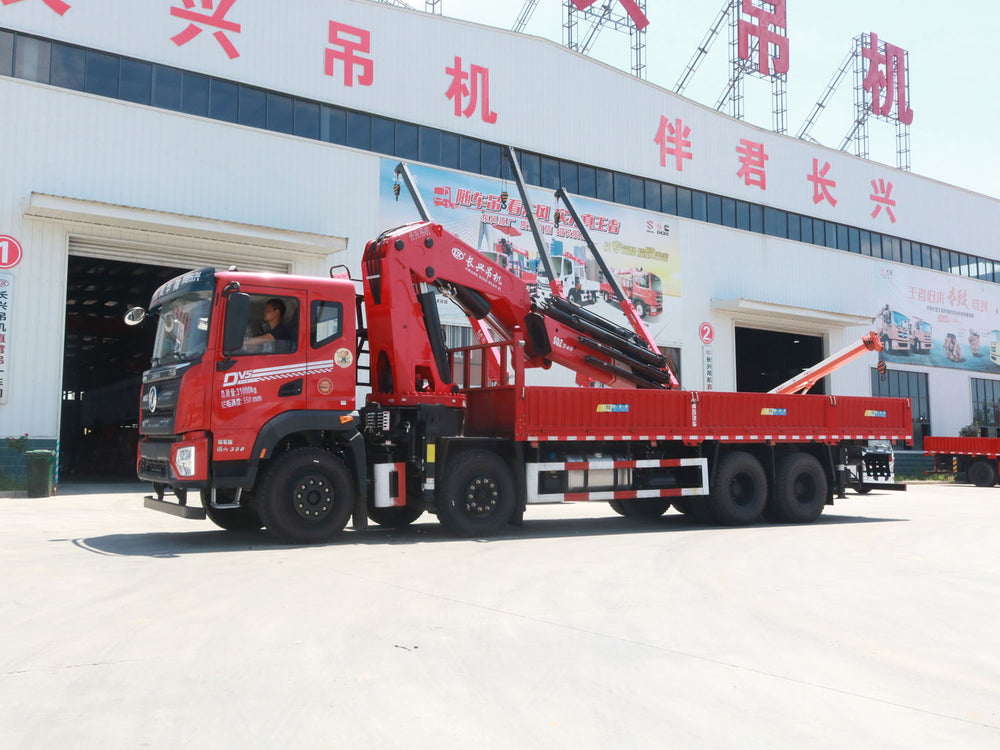

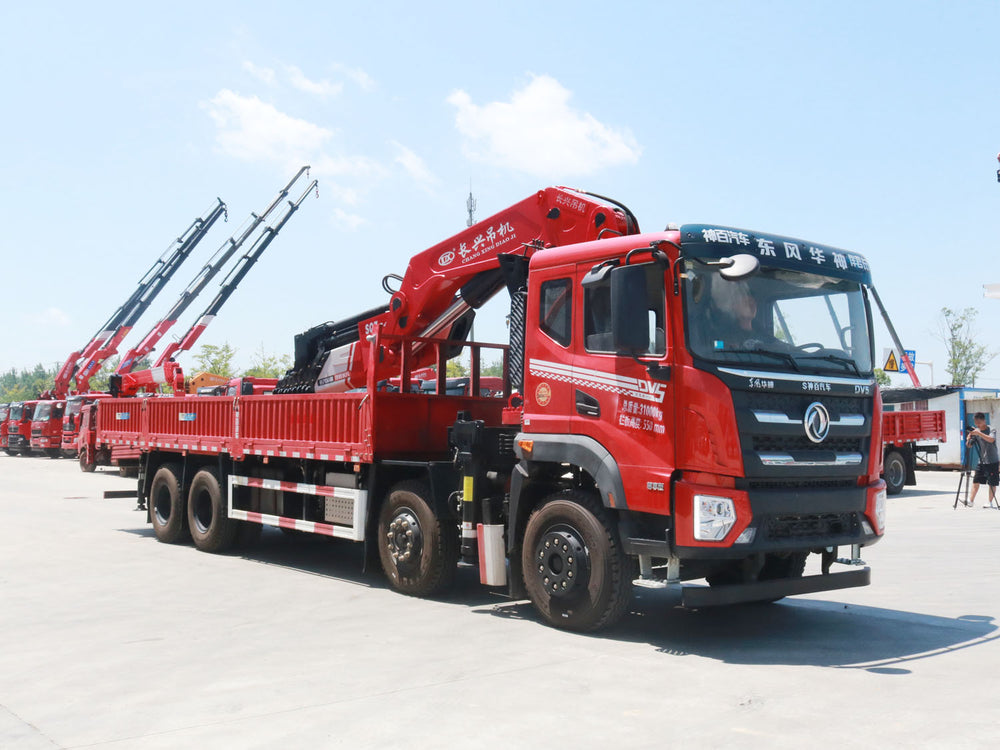

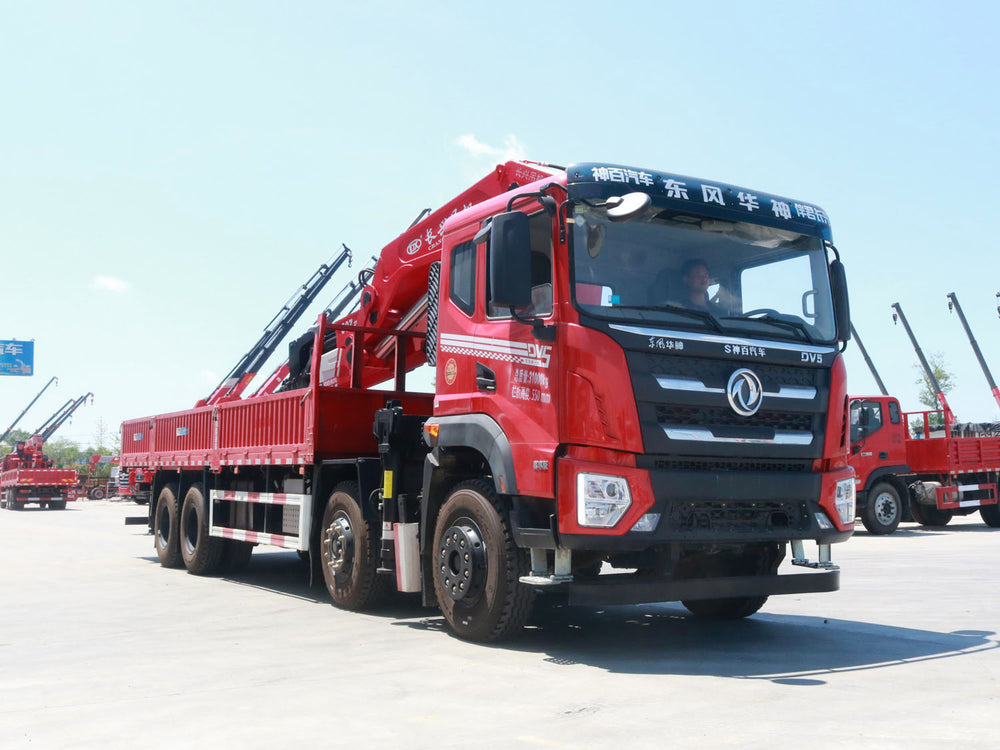

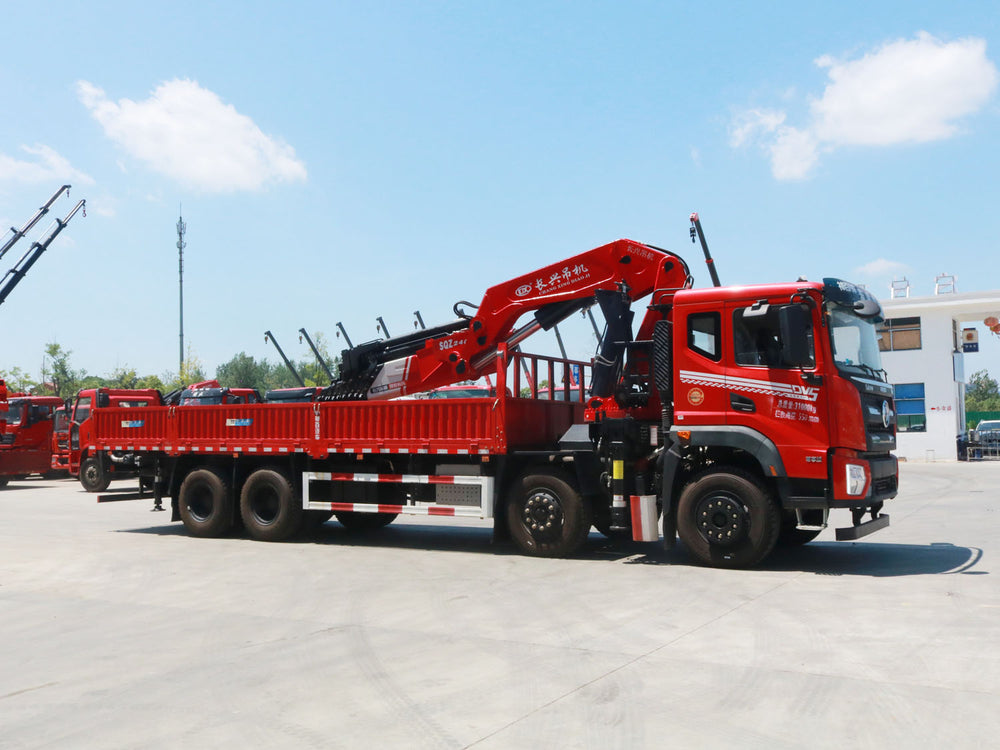

Dongfeng Huashen DV5 8x4 Changxing 30-ton folding boom truck crane

1 / 8

Dongfeng Huashen DV5 8x4 Changxing 30-ton folding boom truck crane

Overall vehicle size and performance
Chassis Brand	DongFeng 8x4
Driving type	left-hand drive
Total vehicle weight	31000 kg
curb weight	16500 kg
Rated effective load	11000 kg
Overall vehicle dimensions	12000×2550×3980 mm
Cargo box dimensions	9000×2450×550 mm
Chassis parameters
engine	YCK08350-60
horsepower	350 horsepower
Speed gearbox	Fast 10JSD 140TB
wheelbase	2250+4100+1350 mm
axis	7 ton/13 ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	350 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.

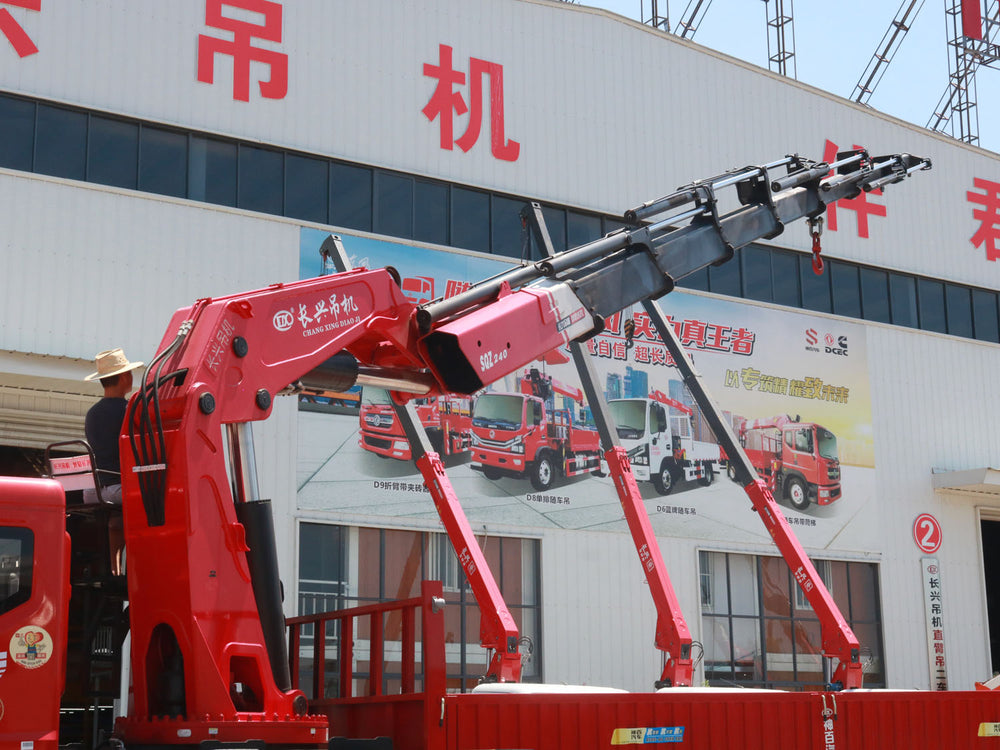

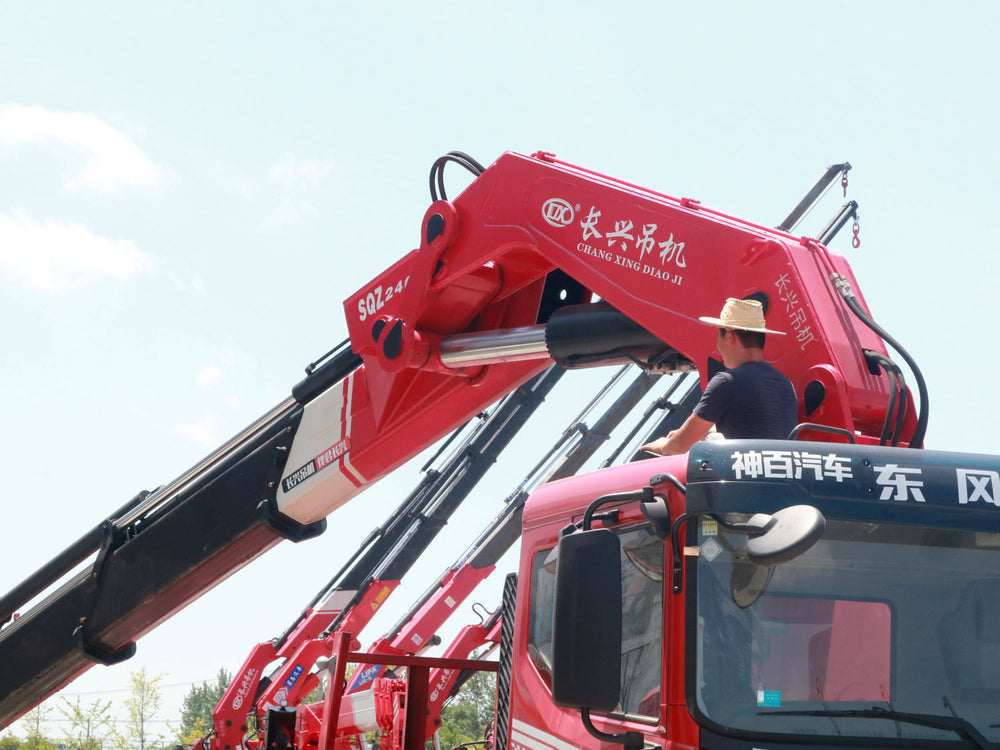

Crane parameters
Crane Model	Changxing CXSQZ600
Maximum lifting capacity	30 tons
Maximum working radius	15 meters
Maximum lifting height	18.6 meters
boom type	7-section folding arm
Rotation angle	360° rotation
Crane weight	6.8 tons
Hydraulic oil tank	200 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator

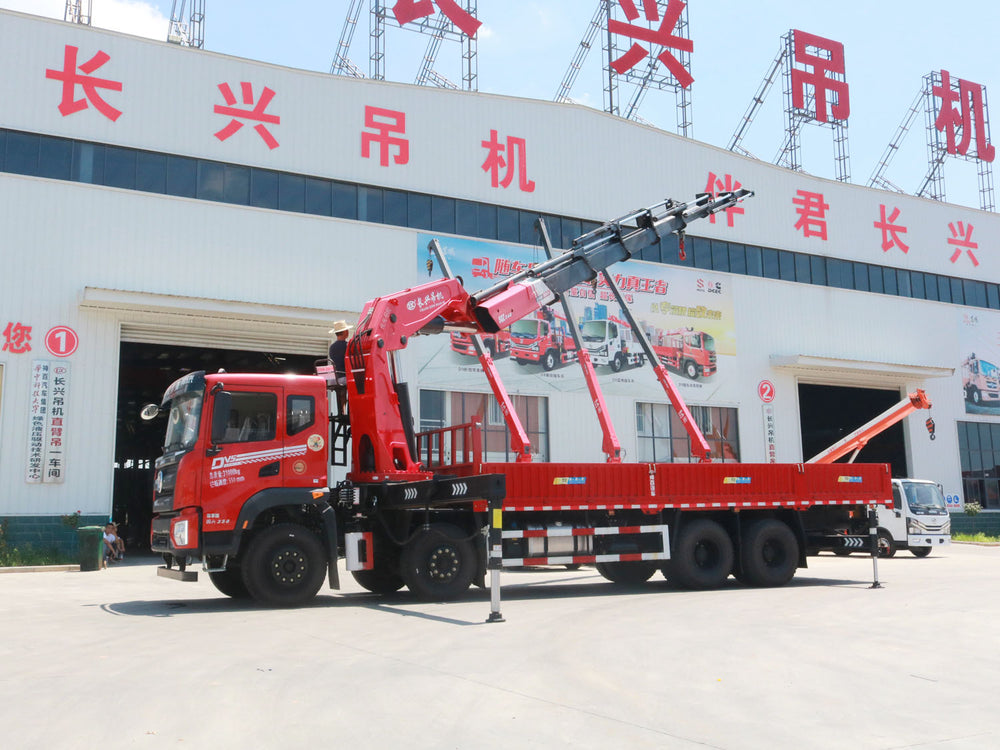

Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
