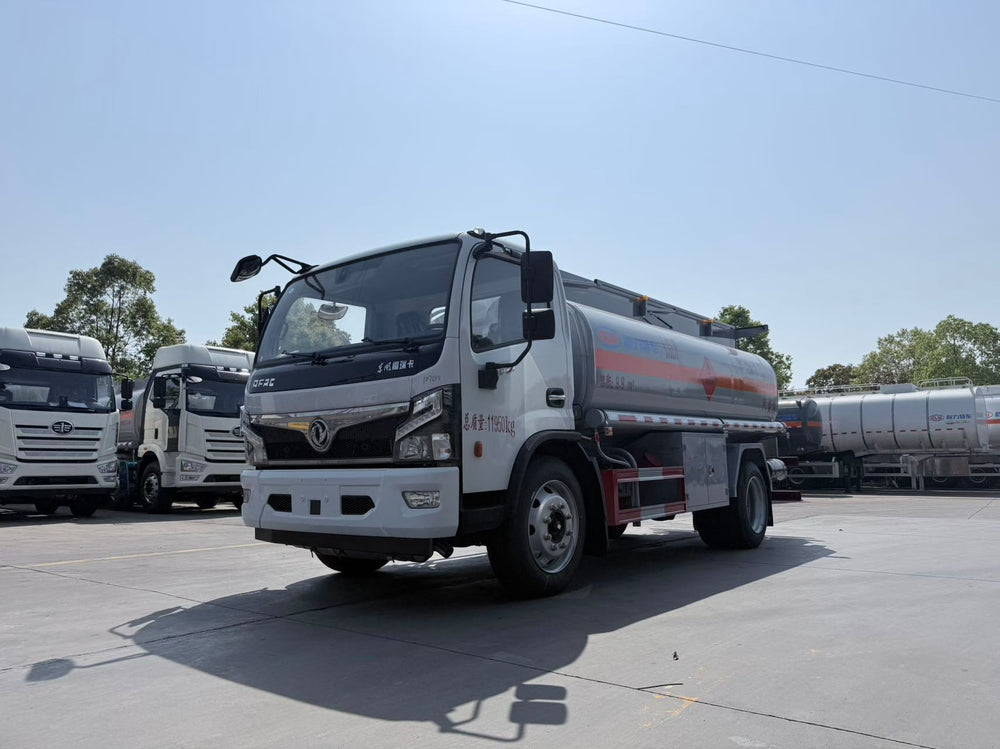

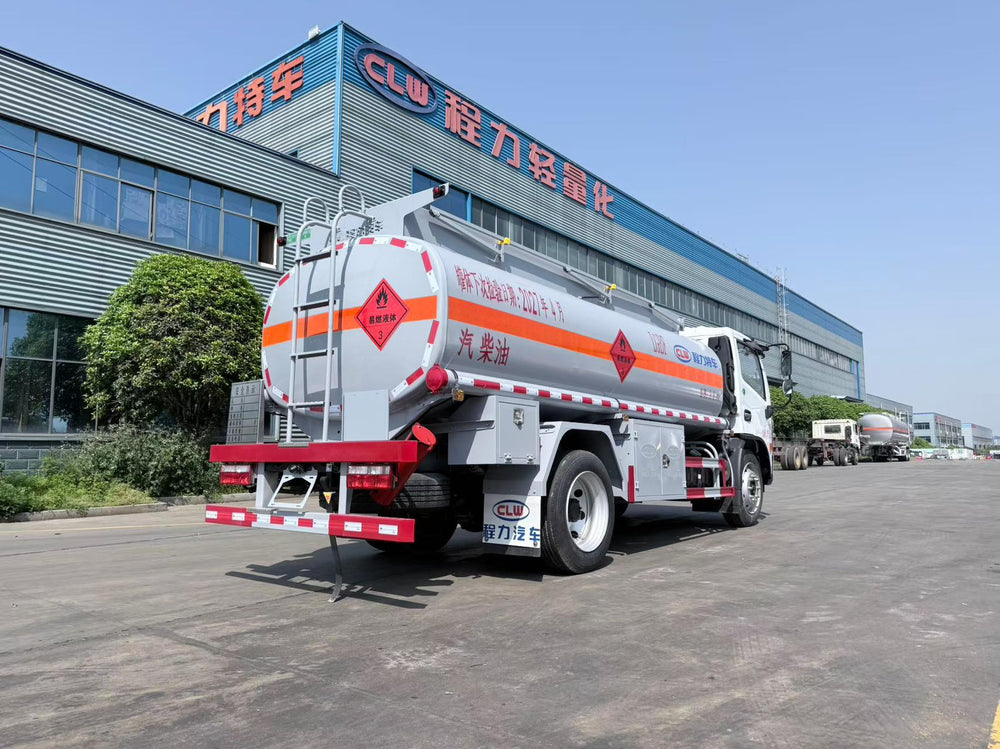

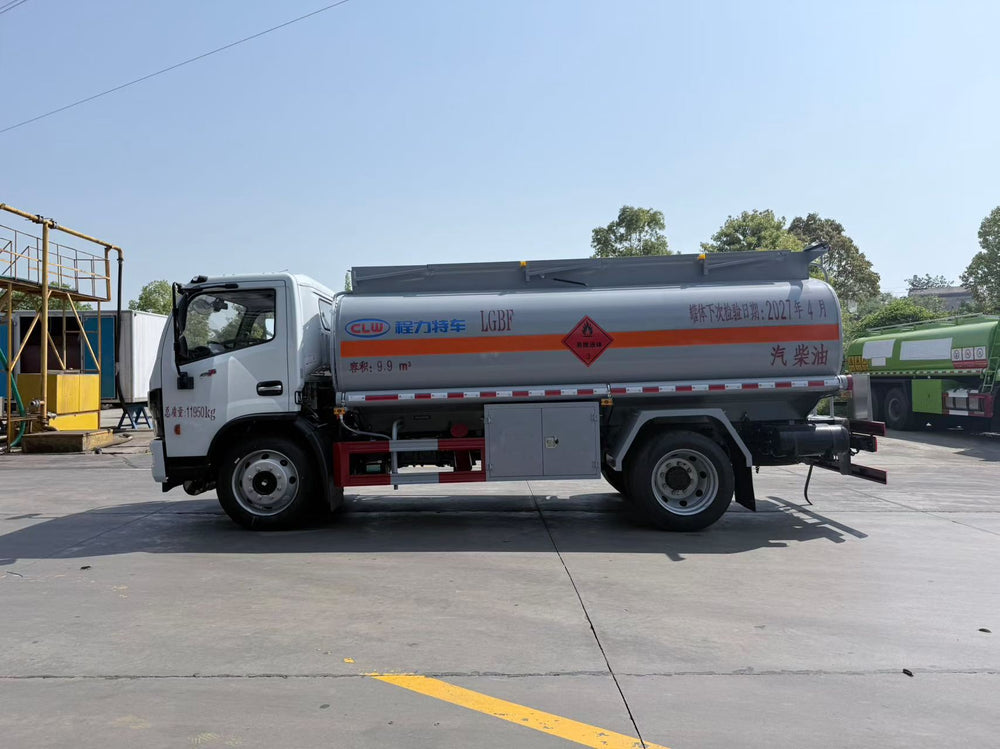

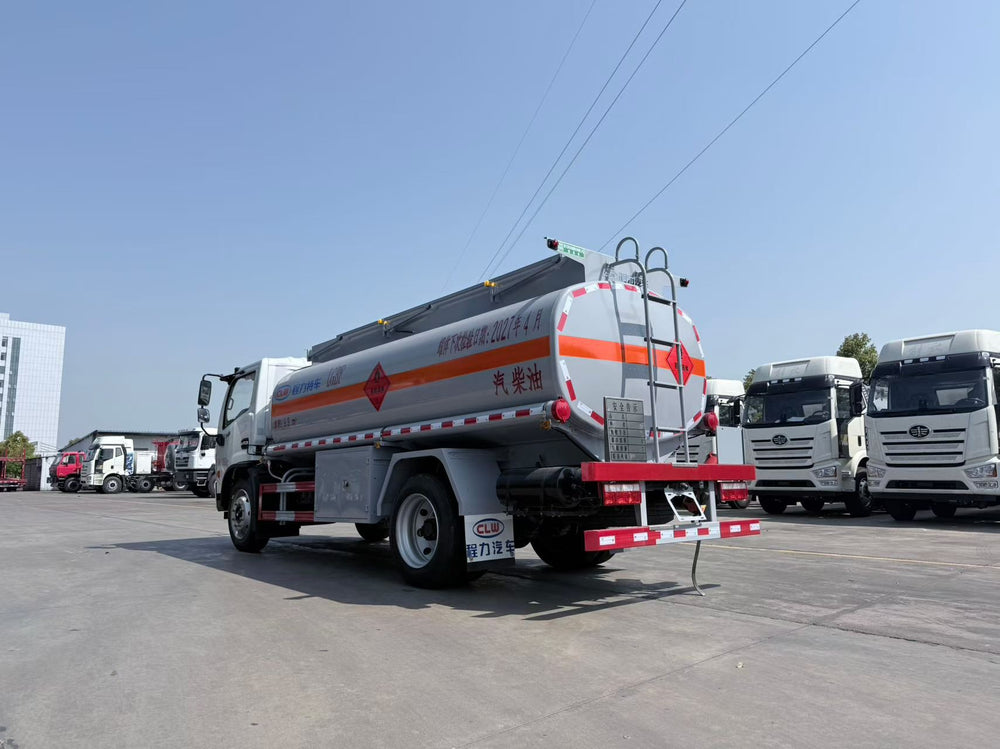

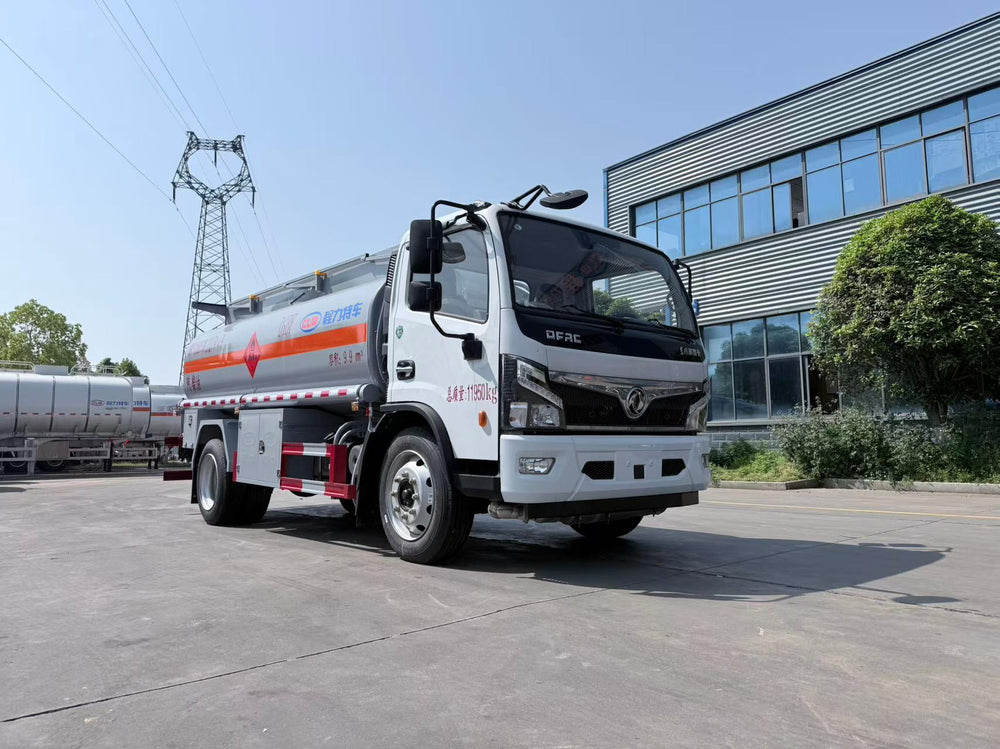

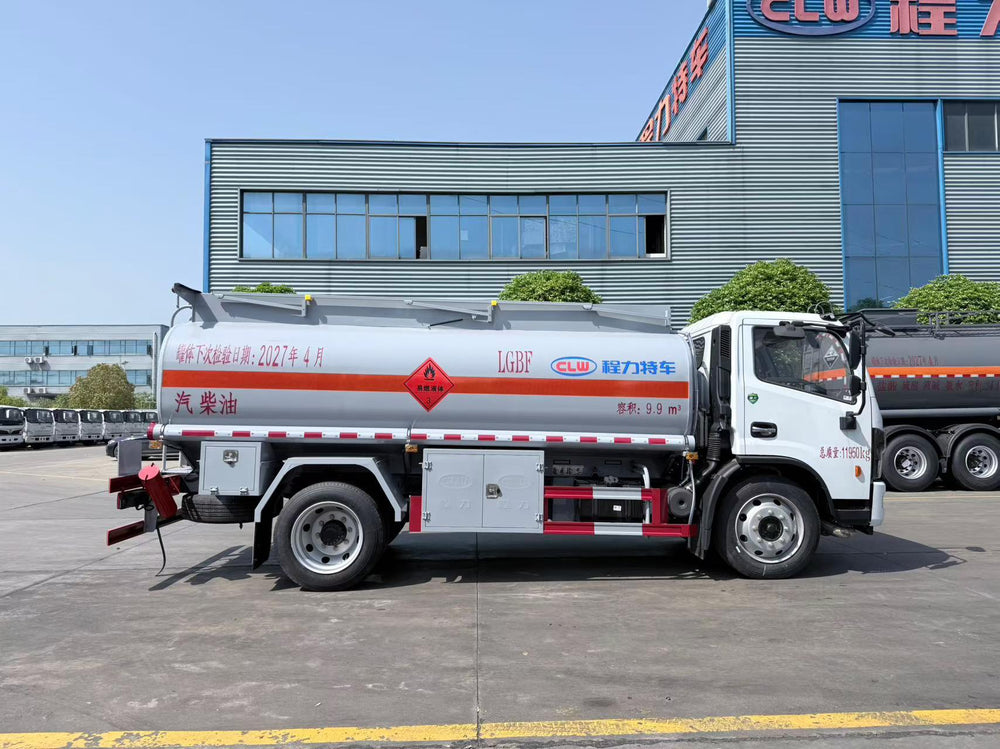

Dongfeng Furika 10m³ oil tanker truck
Dongfeng Furika 10m³ Fuel Tanker
General Vehicle Parameter
|
Item |
Specification |
|
Product Name |
Fuel Tanker / Refueling Truck |
|
Chassis Model |
EQ1125SJ8CDCWXP |
|
Overall Dimension (L×W×H) |
6950 × 2200 × 2800 mm |
|
Wheelbase |
3800 mm |
|
Axle Quantity |
2 axles (4×2 drive) |
|
Gross Vehicle Weight(GVW) |
11900 kg |
|
Curb Weight |
5170 kg |
|
Rated Payload |
6730 kg |
|
Cab |
Singlerow 2030 flatroof cab, 3 seats |
|
Max. Speed |
80 km/h (speedlimiter installed for dangerous goods) |
|
Emission Standard |
Euro VI / China 6 |
|
Drive Type |
Lefthand Drive (LHD); RHD optional |
|
Chassis & Powertrain |
|
|
Item |
Specification |
|
Engine Model |
Yunnei D30TCIF1, 4cylinder diesel |
|
Rated Power /Horsepower |
125 kW / 170 HP |
|
Gearbox |
FAST 8speed manual transmission |
|
Front Axle |
3.5 t |
|
Rear Axle |
6.0 t |
|
Frame |
188 mm straight beam frame |
|
Tire Spec. |
255/70R19.5 16PR vacuum tire, 6+1 spare |
|
Steering |
Power steering |
|
Brake System |
Air brake, exhaust brake, ABS, front disc brake |
|
Standard Chassis Features |
Airconditioner, electric windows, central lock, tire burst emergency device, forward collision warning, lane departure warning, spark arrester for exhaust pipe |
|
Tank Superstructure |
|
|
Item |
Specification |
|
Nominal Tank Capacity |
10 m³ (Announcement volume: 9.9 m³) |
|
Tank Material |
Q235B carbon steel |
|
Cylinder Plate Thickness |
4.2 mm |
|
Head Plate Thickness |
4.5 mm |
|
Baffle Plate Thickness |
4.2 mm |
|
Compartment |
Single compartment |
|
Transport Medium |
Diesel, gasoline, kerosene |
|
Standard Europeanstandard Fittings |
Europeanstyle manhole cover, emergency bottom valve with voice alarm, bottom loading port, overfill prevention probe socket, vapor recovery connector |
|
Oil Pump |
7640 gear oil pump, pumpin & pumpout function |
|
Dispensing Unit (Optional) |
Highflow fuel dispenser, 15 m reinforced hose reel + fuel nozzle |
|
Safety Accessories |
Rear access ladder, manual safety guardrail, toolbox, staticelectric grounding reel, fire extinguisher, flame arrester, side & rear protective devices, warning signs for flammable liquid |
