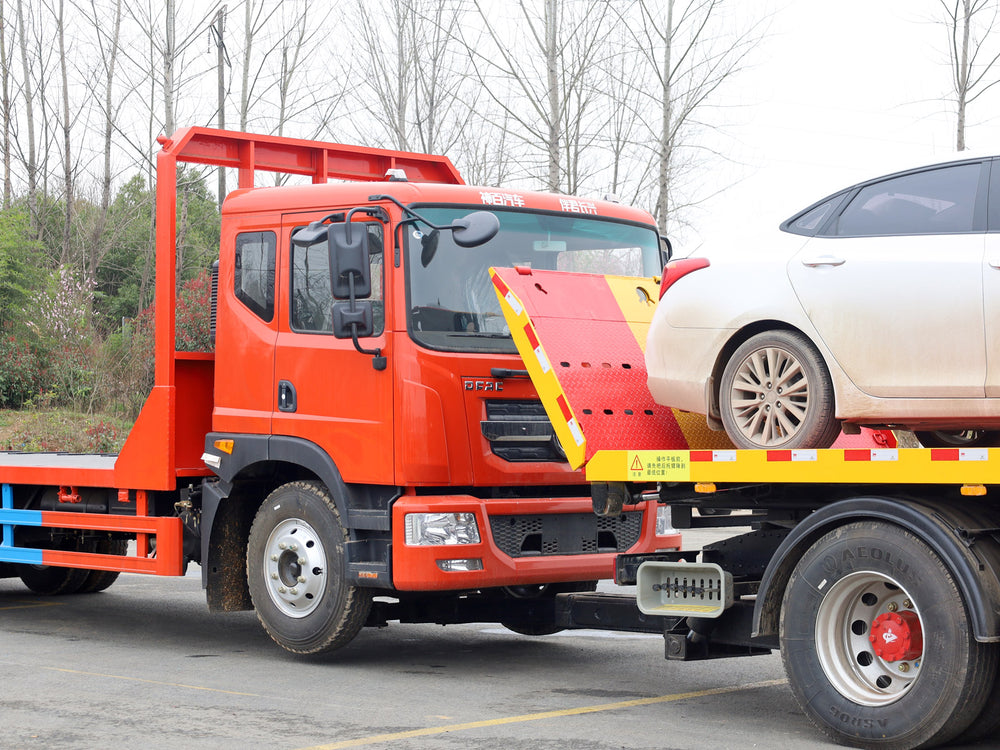

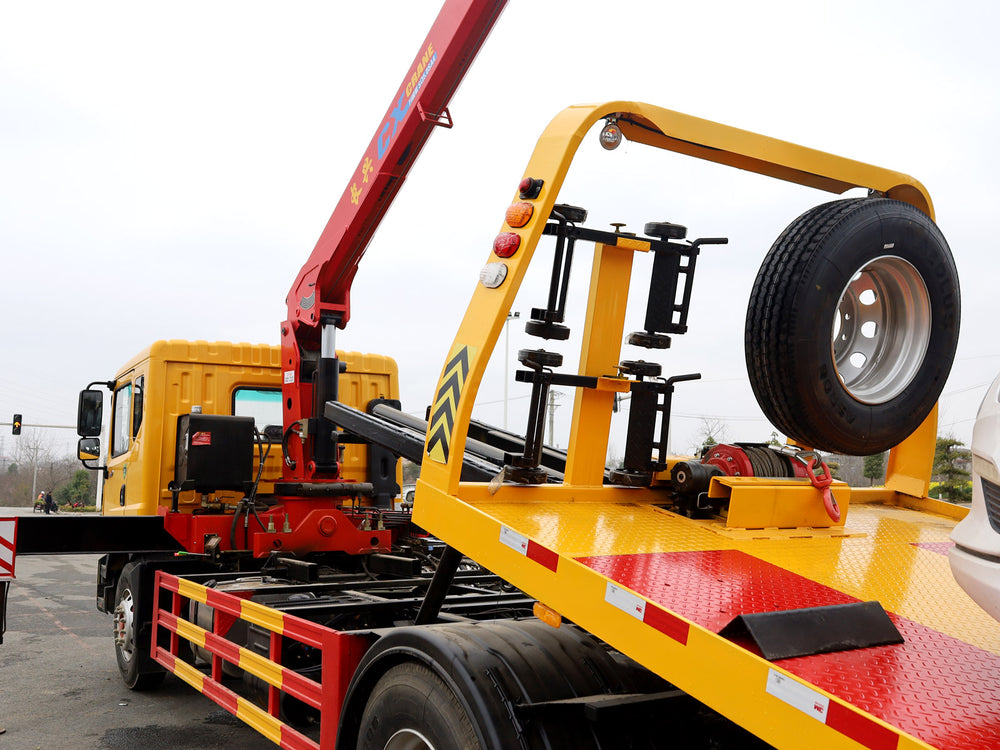

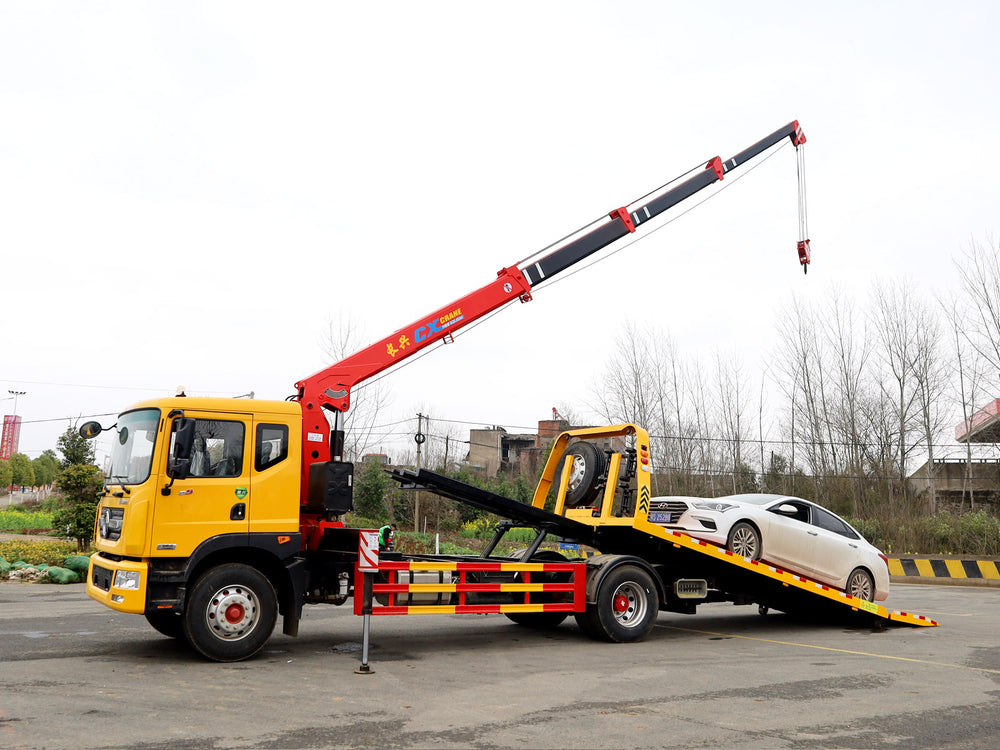

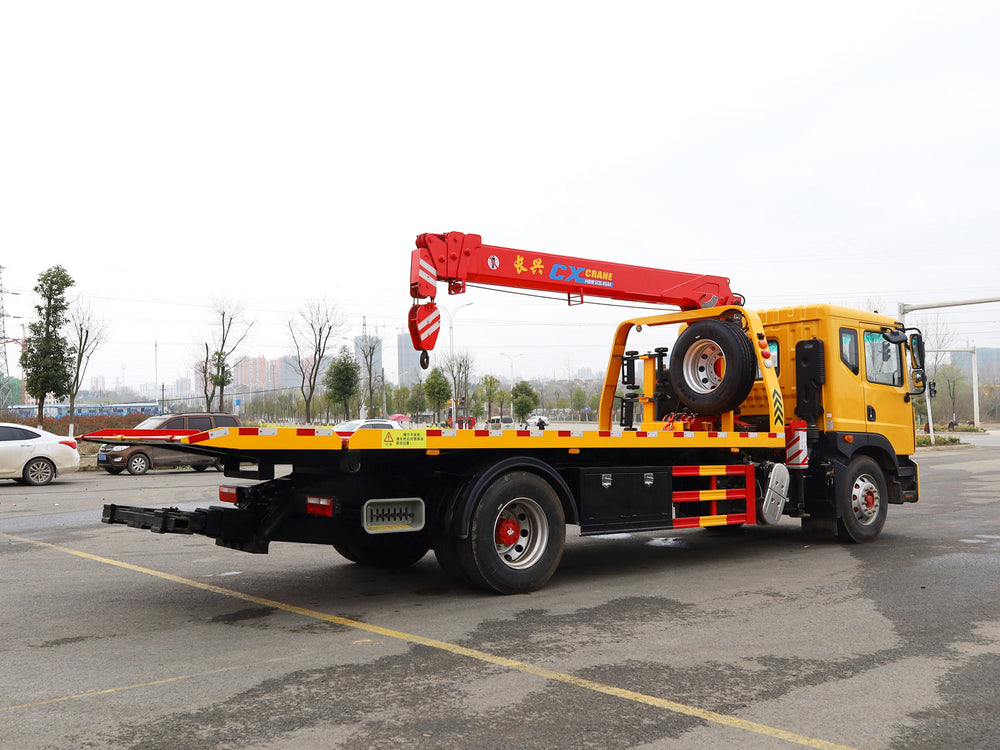

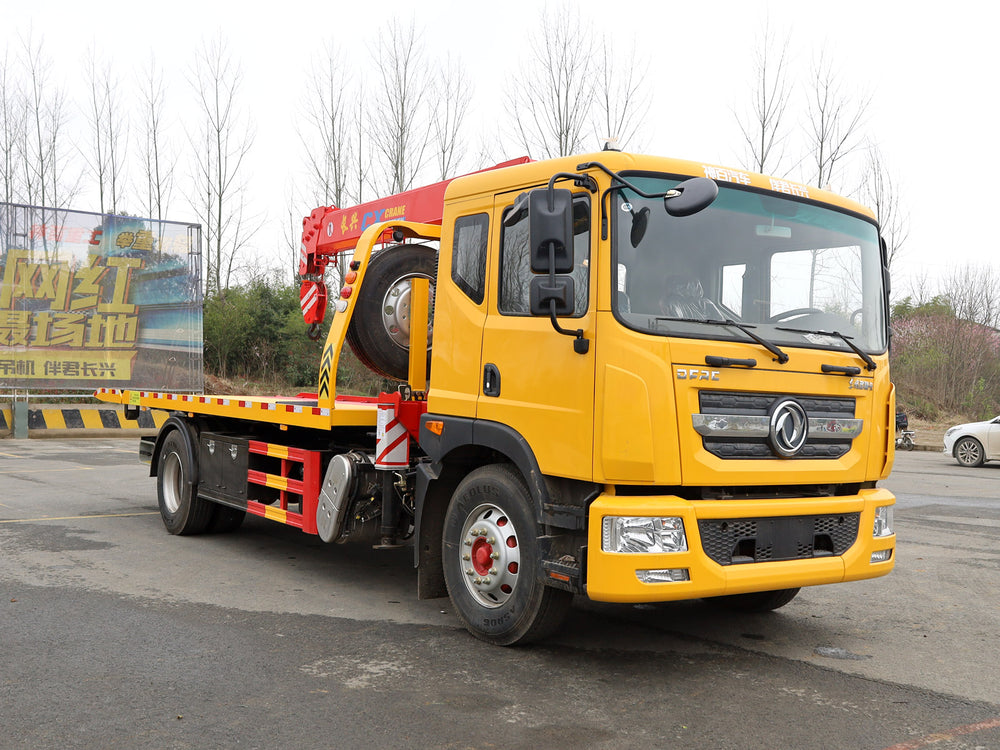

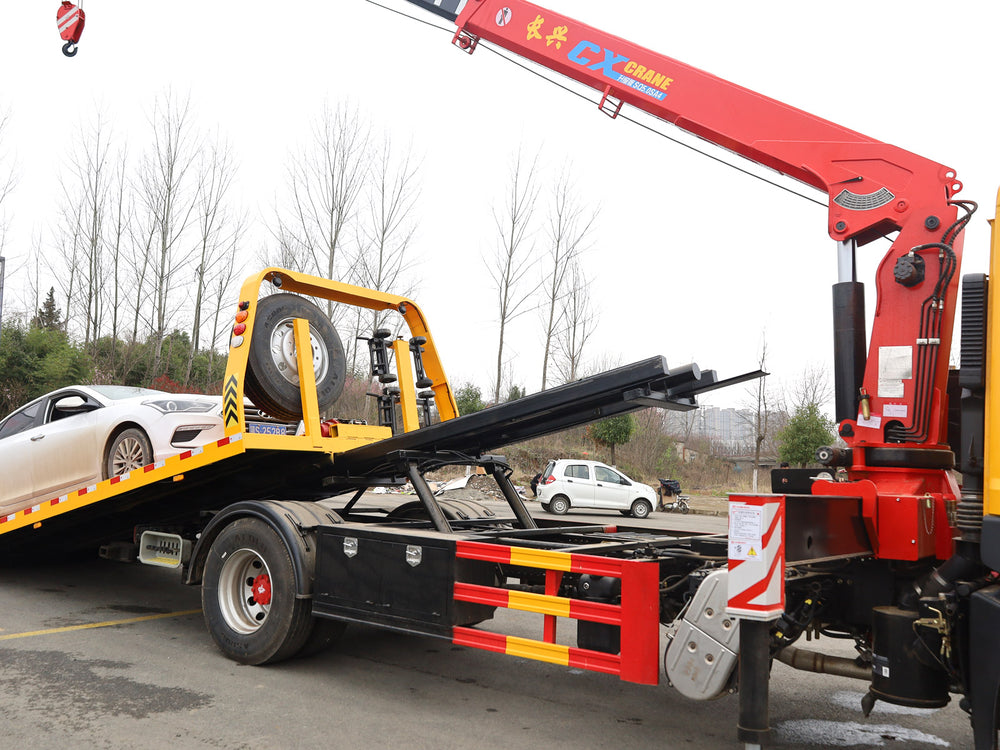

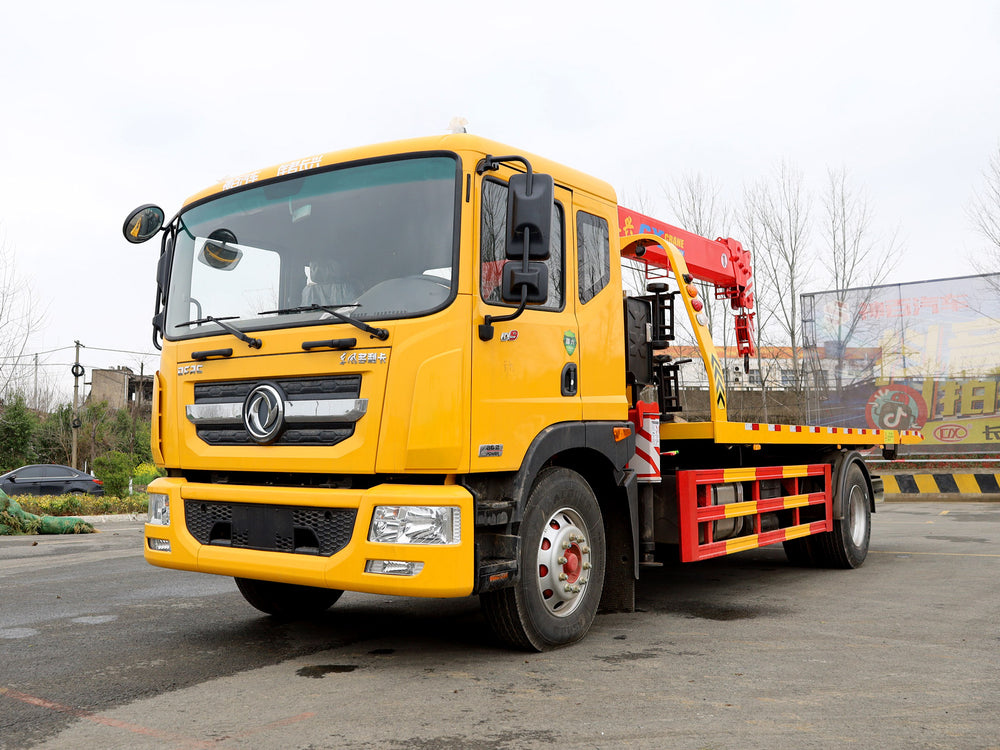

Dongfeng Dolica D9 6.8 meter equipped with a 5-ton straight boom crane tow truck

1 / 8

Dongfeng Dolica D9 equipped with a 5-ton straight boom crane tow truck

1. Basic Vehicle Parameters
Chassis Brand	DongFeng
Driving type	Left-hand drive
Total vehicle weight	18000kg
Curb weight	12500kg
Overall vehicle dimensions	9400×2550×3450 mm
Engine Model	Cummins 230 horsepower
Horsepower	230 horsepower
Gearbox	Fast 8 gears
Wheelbase	5300mm
Tire specifications	1000R20 steel-belted tire
Emission standards	Euro 2, Euro 3, Euro 4, Euro 5, Euro 6
Top speed	100 km/h
Fuel tank capacity	300 liters
Standard configuration	Extended cab with sleeper berth, four-point suspension, factory-installed air conditioning, power windows and doors, central locking, ABS, and air brakes.
2. Basic parameters of the upper part
Flat panel size	6800×2500mm(1.2 m tail-end tipping plate)
Flat plate bearing	Mainboard 10 tons, tailboard 3 tons
Rear trailing arm	Rated lifting capacity: 8 tons
Hydraulic winch	8 tons, steel wire rope approximately 25m long
Crane Brands	Changxing
Crane Specifications	5-ton 3-section folding boom crane
Maximum working radius	8.5m
Maximum lifting height	11m
Standard tools	Toolbox, handwashing box, 2 auxiliary trolleys, 1 pair of L-shaped tire holders, 4 binding straps, 1 pair of forks, 1 chain hook
Applicable Scenarios	One-to-two roadside assistance, transport of light accident vehicles
