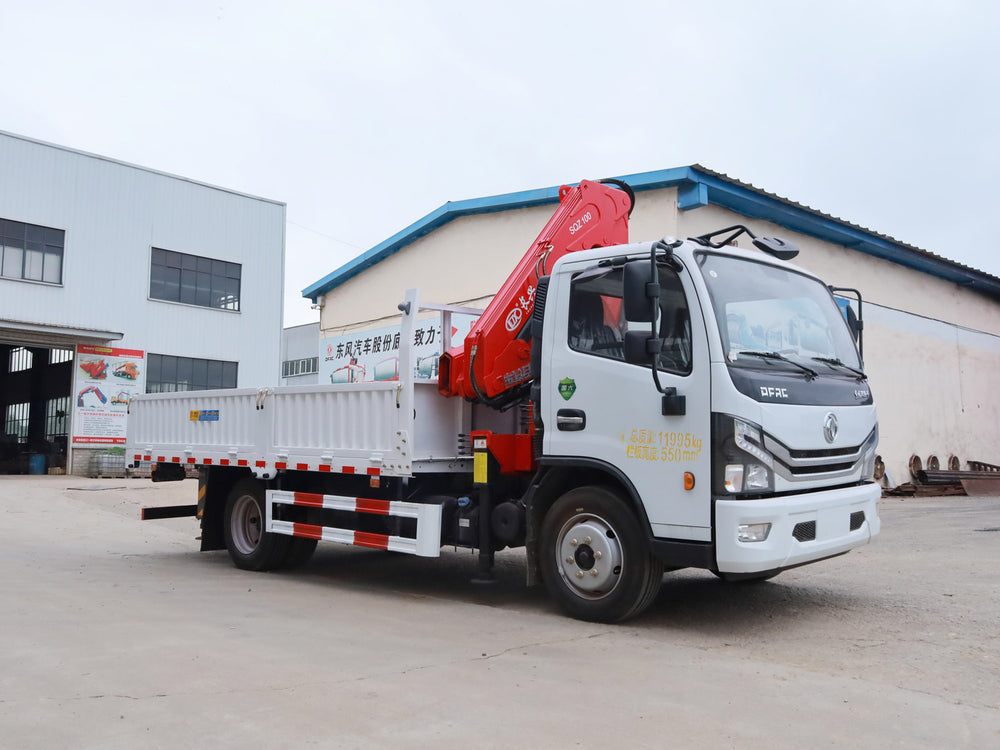

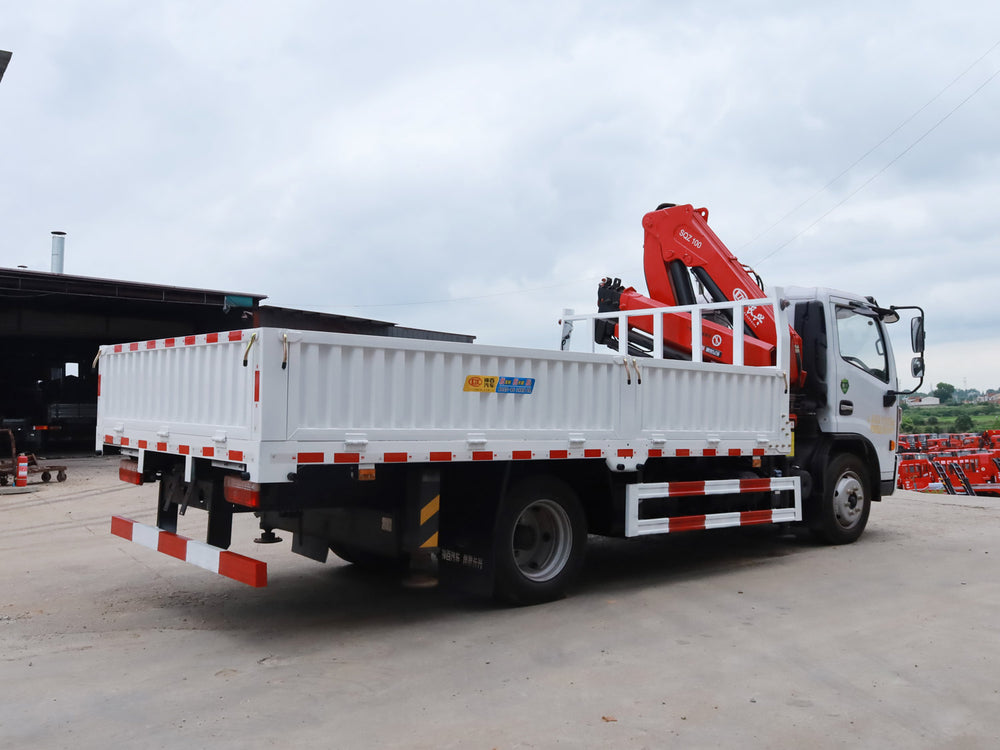

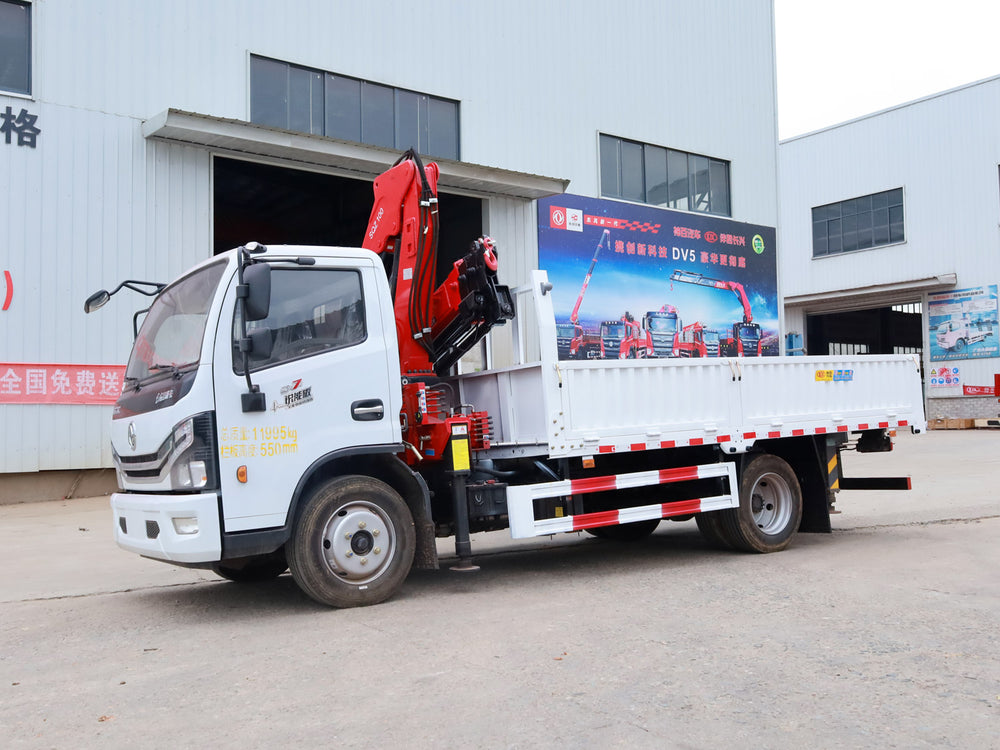

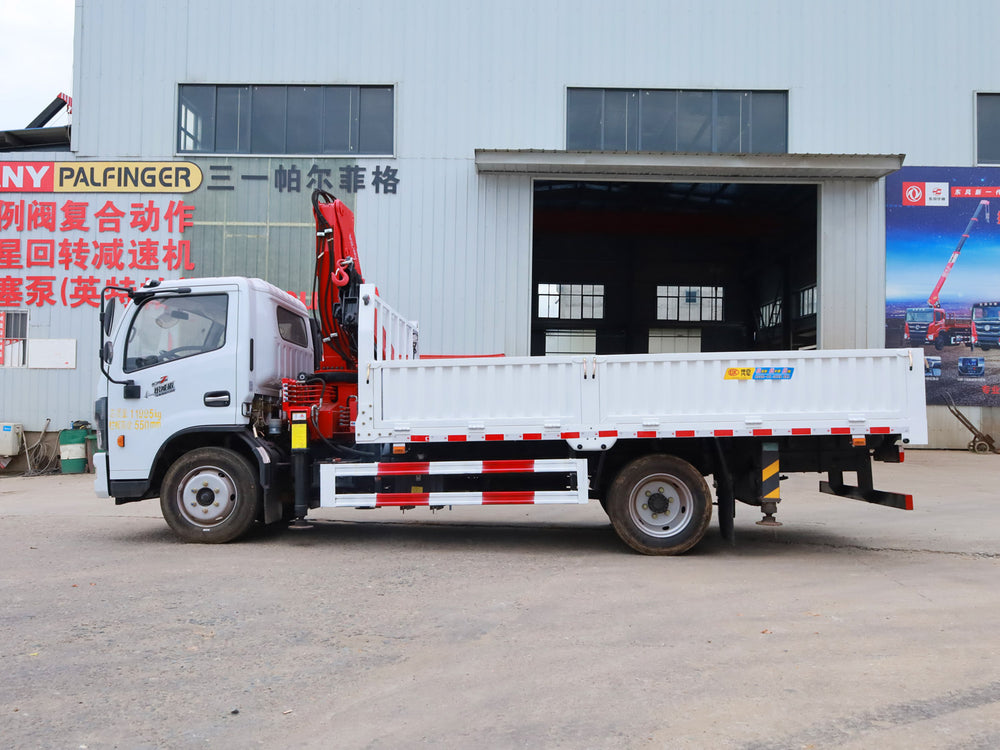

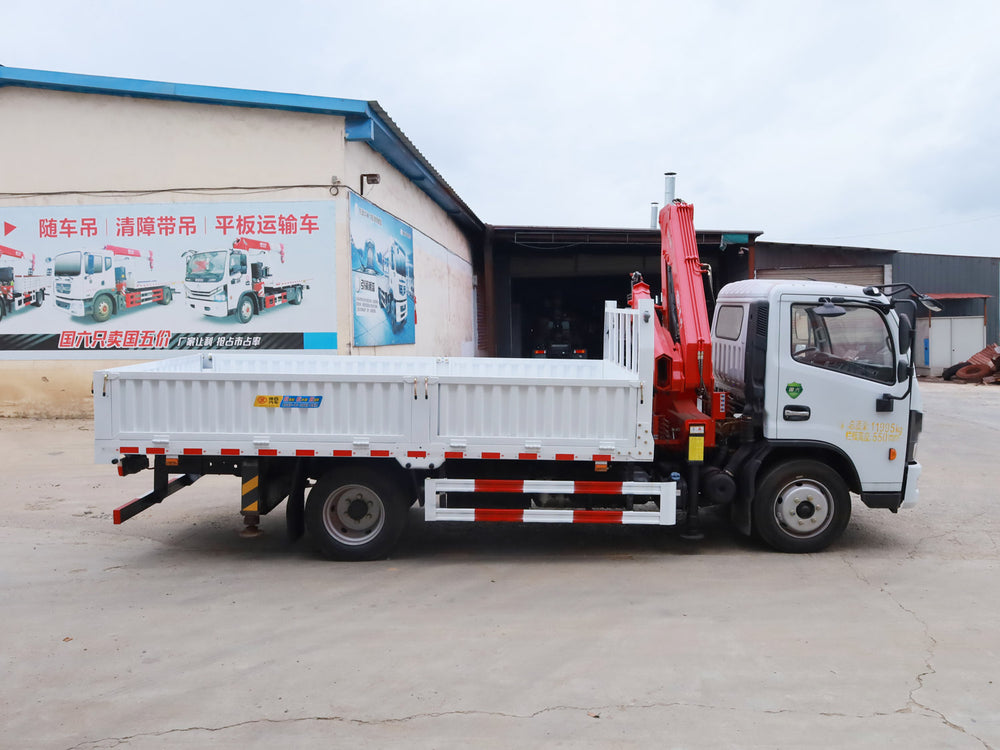

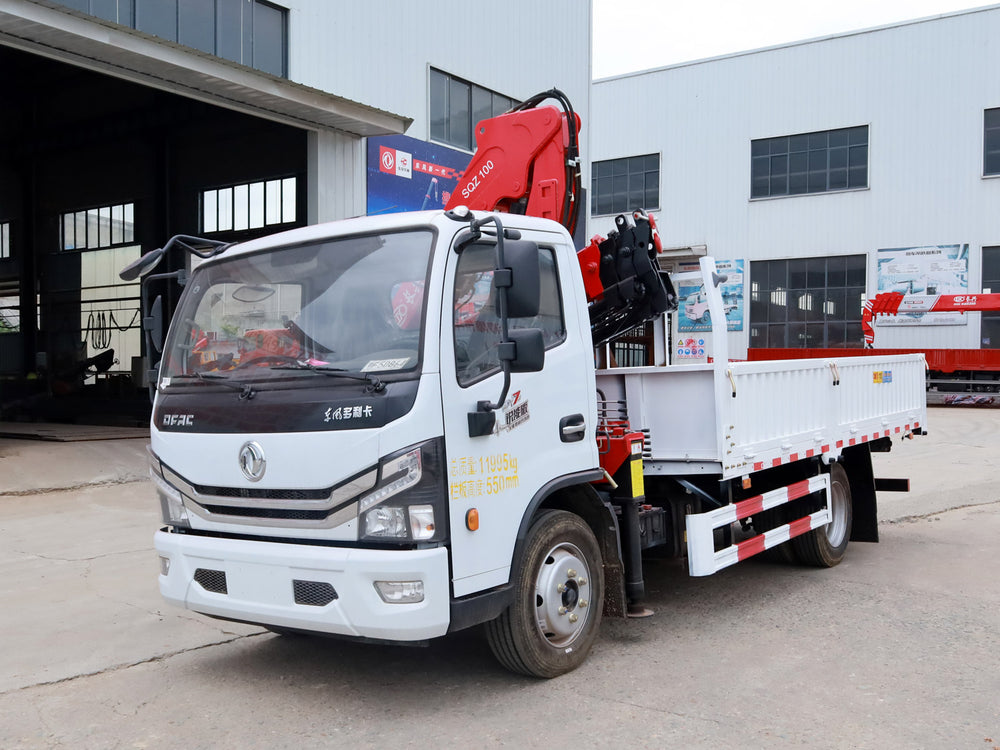

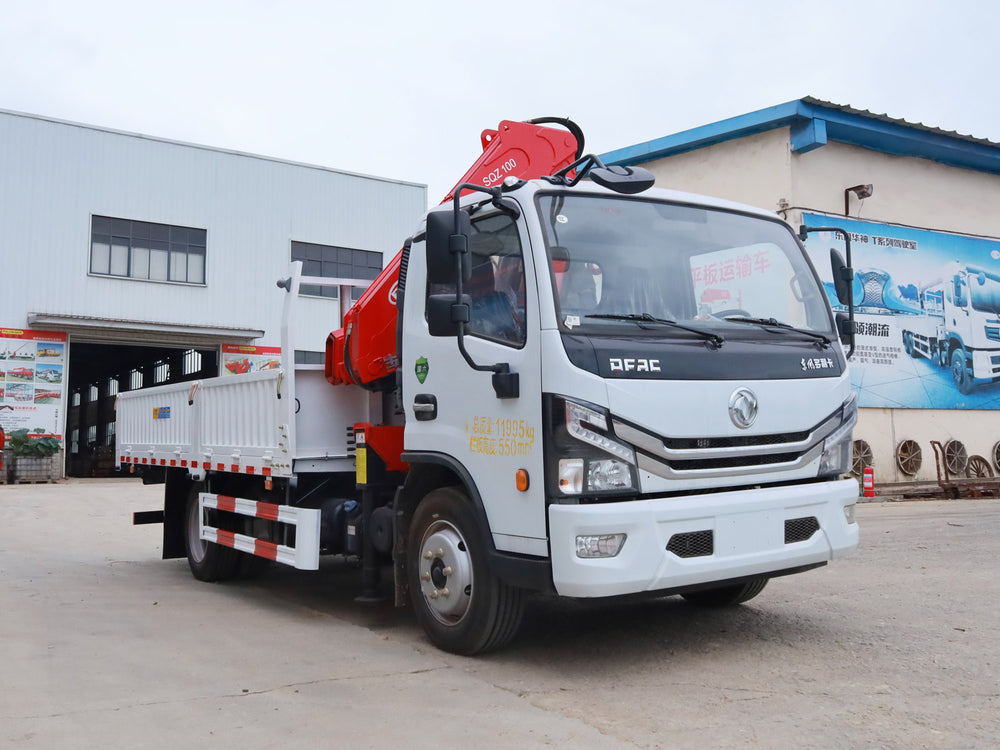

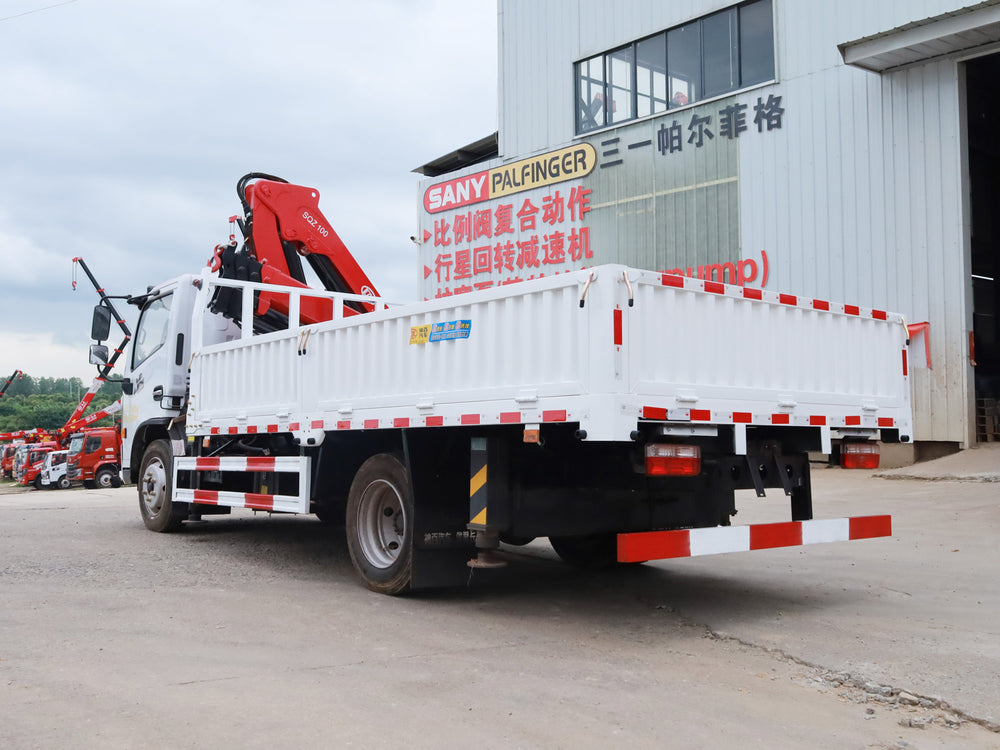

Dongfeng Dolica D7 Single-row Changxing 5-ton Knuckle Arm Truck Crane

1 / 8

Dongfeng Dolica D7 Single-row Changxing 5-ton Knuckle Arm Truck Crane

Overall vehicle size and performance
Chassis Brand	DongFeng 4x2
Driving type	left-hand drive
Total vehicle weight	14000 kg
curb weight	8000 kg
Rated effective load	6000 kg
Overall vehicle dimensions	7070×2450×3450 mm
Cargo box dimensions	5400×2400×550 mm
Chassis parameters
engine	YCY30165-60
horsepower	165 horsepower
Speed gearbox	Fast 8JS95E-C
wheelbase	3800mm
axis	3.9 ton/8 ton
Emission standards	Euro 6
Tire type and size	8.25R16 18PR
fuel tank	120 liters
Top speed	100 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	Changxing SQZ12.5
Maximum lifting capacity	5 tons
Maximum working radius	8.5m
Maximum lifting height	11m
boom type	3-section folding arm
Rotation angle	360° rotation
Crane weight	1.8 tons
Hydraulic oil tank	80 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
