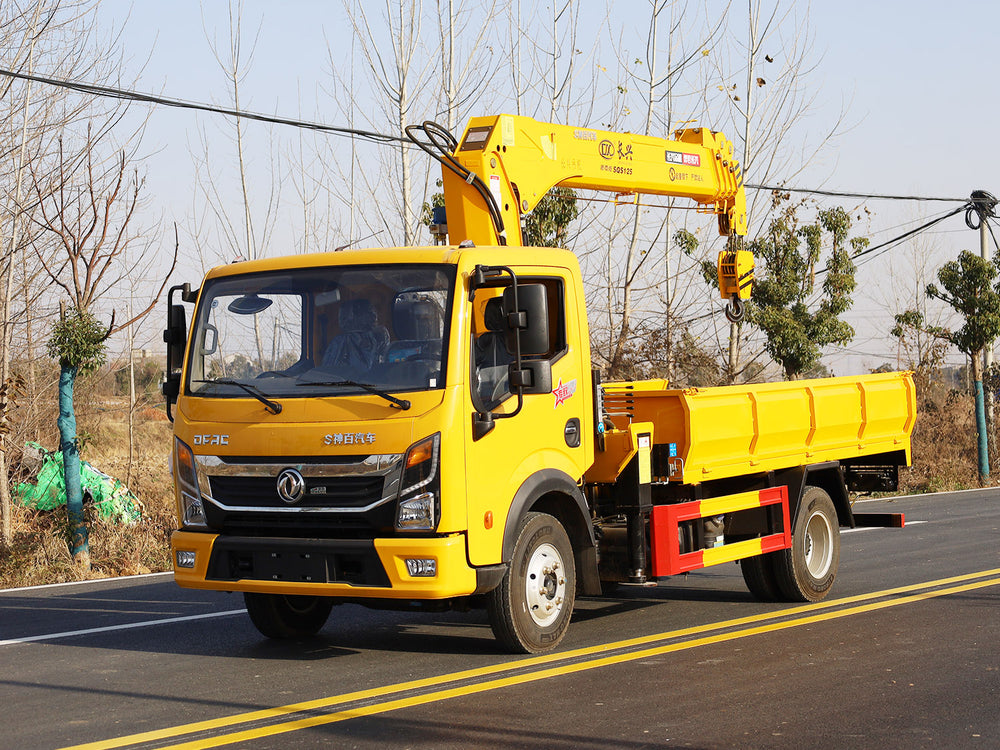

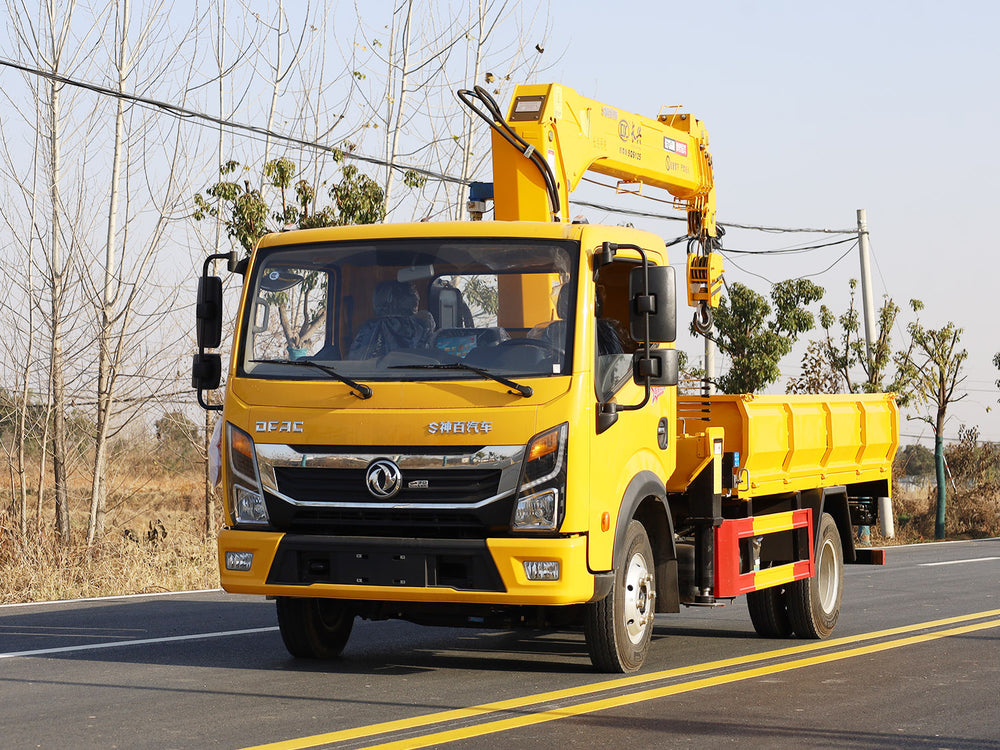

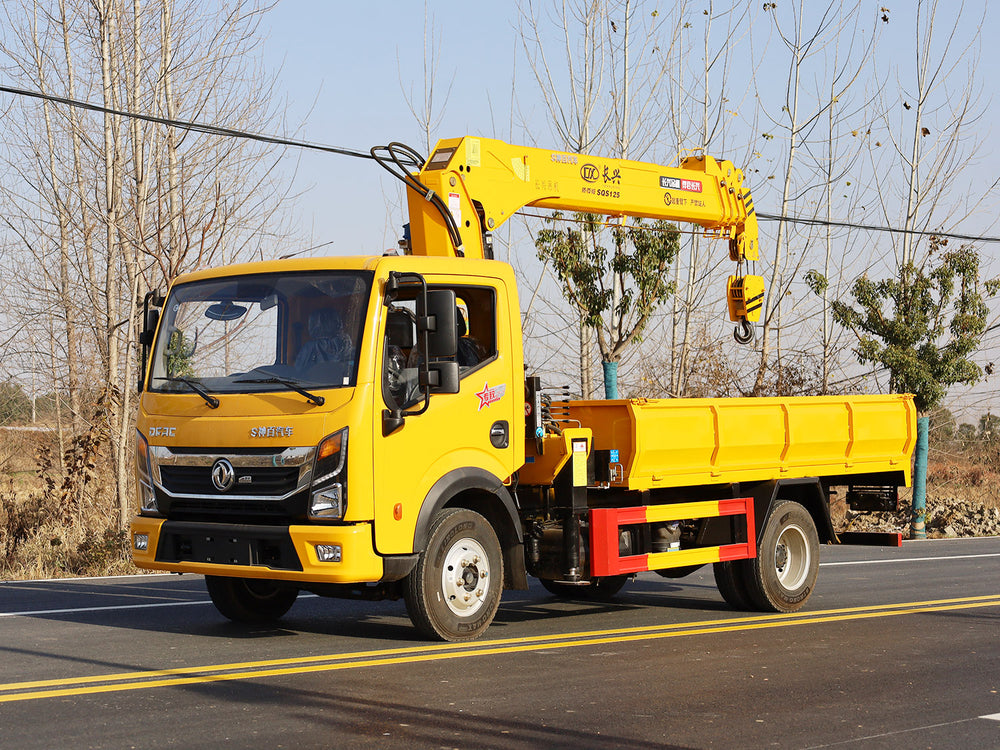

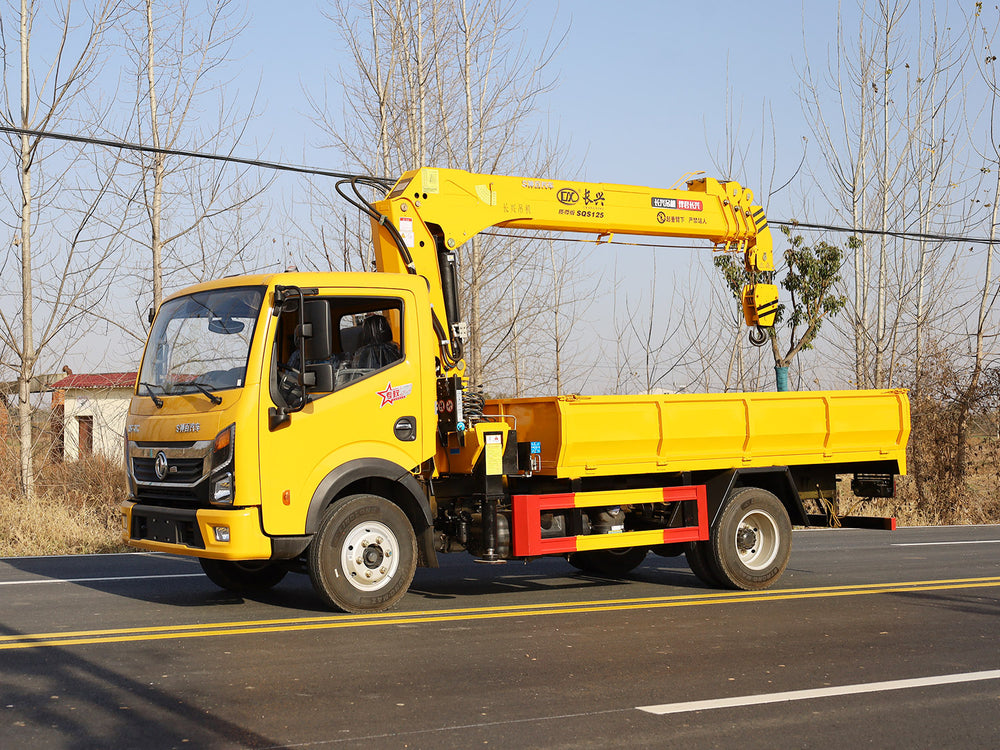

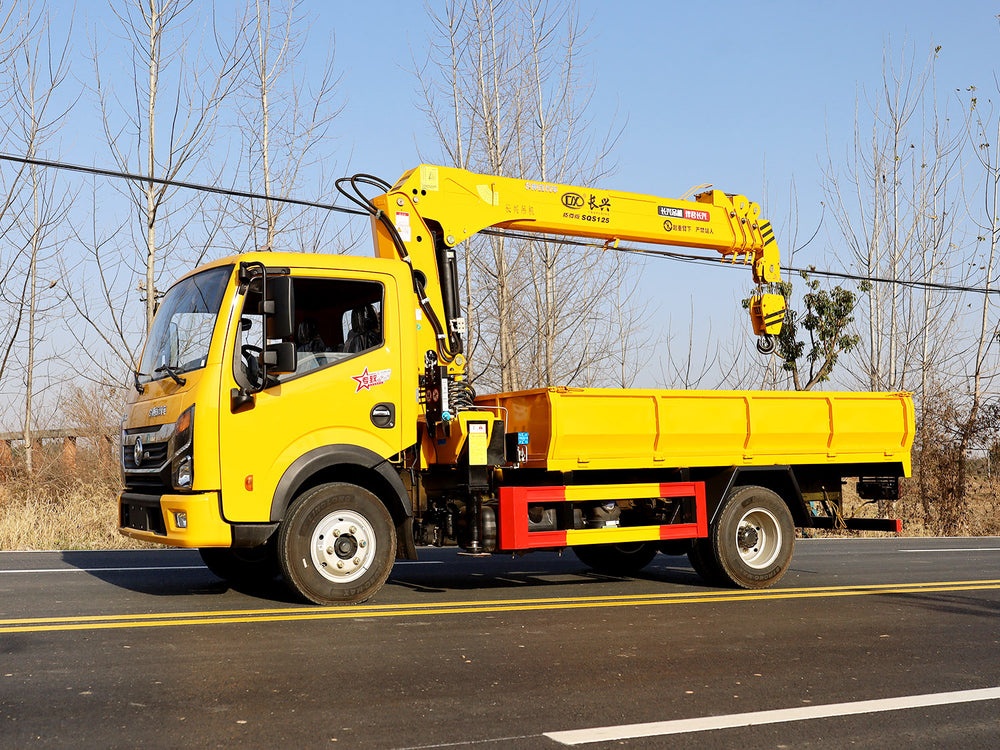

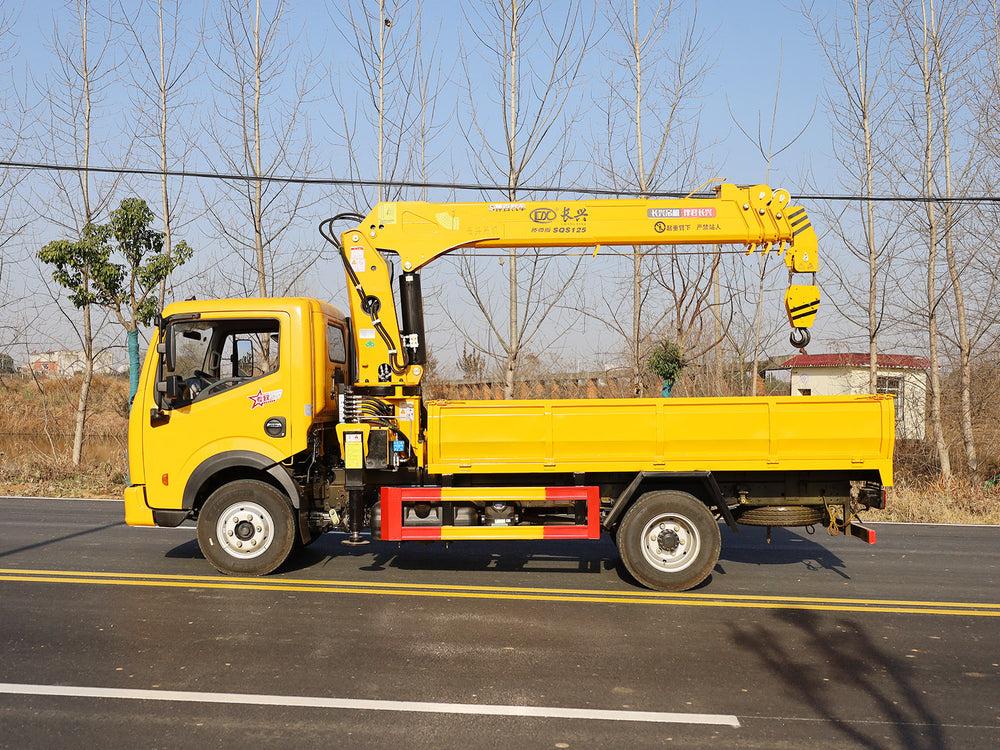

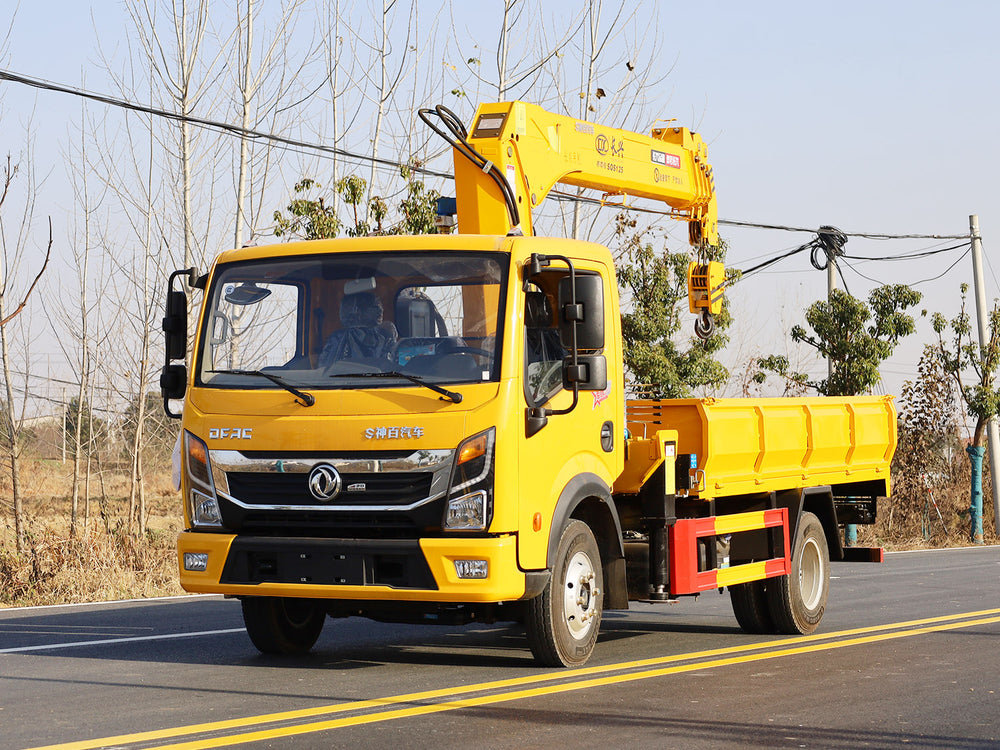

Dongfeng Dolica D6-N Single-row Changxing 5-ton Straight Boom Truck Crane

1 / 8

Dongfeng Dolica D6-N Single-row Changxing 5-ton Straight Boom Truck Crane

Overall vehicle size and performance
Total vehicle weight	4500kg
curb weight	3200kg
Rated effective load	1300kg
Overall vehicle dimensions	5995×2200×3350 mm
Cargo box dimensions	4200×2100×550 mm
Chassis parameters
Chassis Brand	Dongfeng 4X2
Driving type	left-hand drive
engine	YCY24140‑60
horsepower	140 Horsepower
Speed gearbox	Wanliyang 6 gears
wheelbase	3308 mm
axis	1.8 Ton/3.5 Ton
Emission standards	Euro 6
Tire type and size	7.50R16
fuel tank	120 Liters
Top speed	110km/h

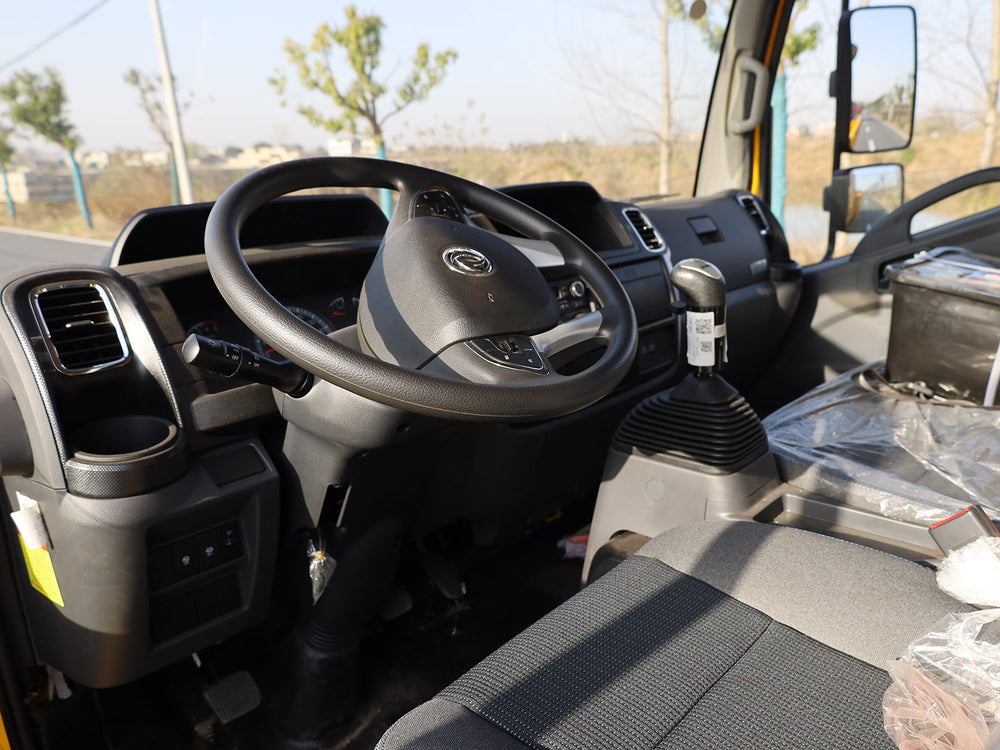

other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing SQS125‑4
Maximum lifting capacity	5 Tons
Maximum working radius	11.6m
Maximum lifting height	13.6m
boom type	4-section Straight Boom
Rotation angle	360° rotation
Crane weight	2300kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
