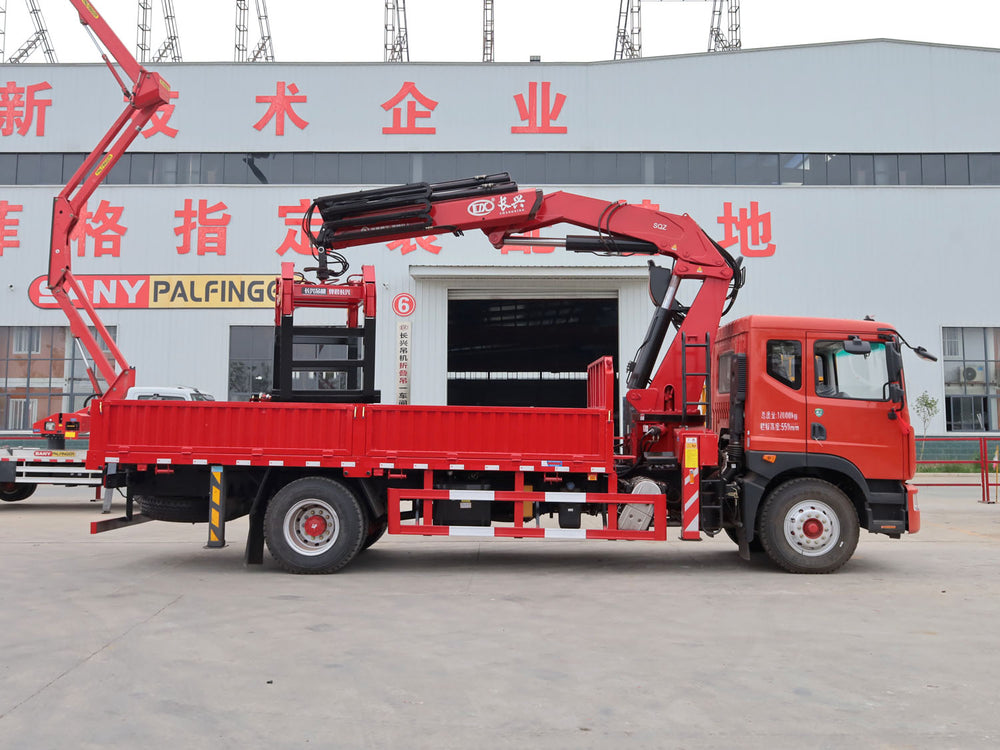

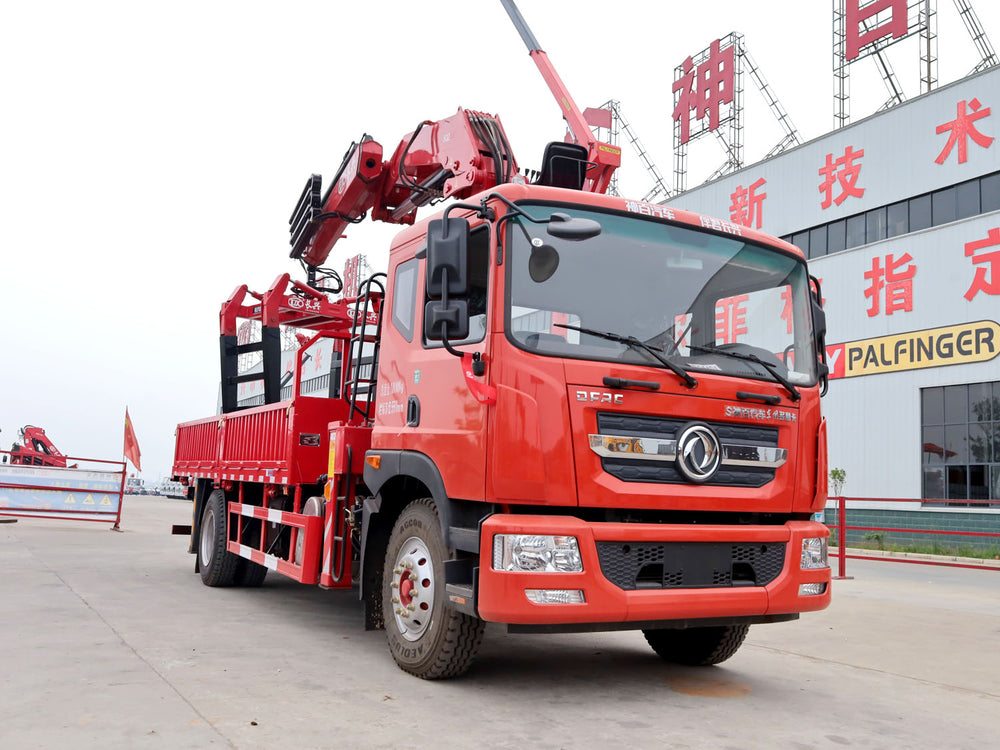

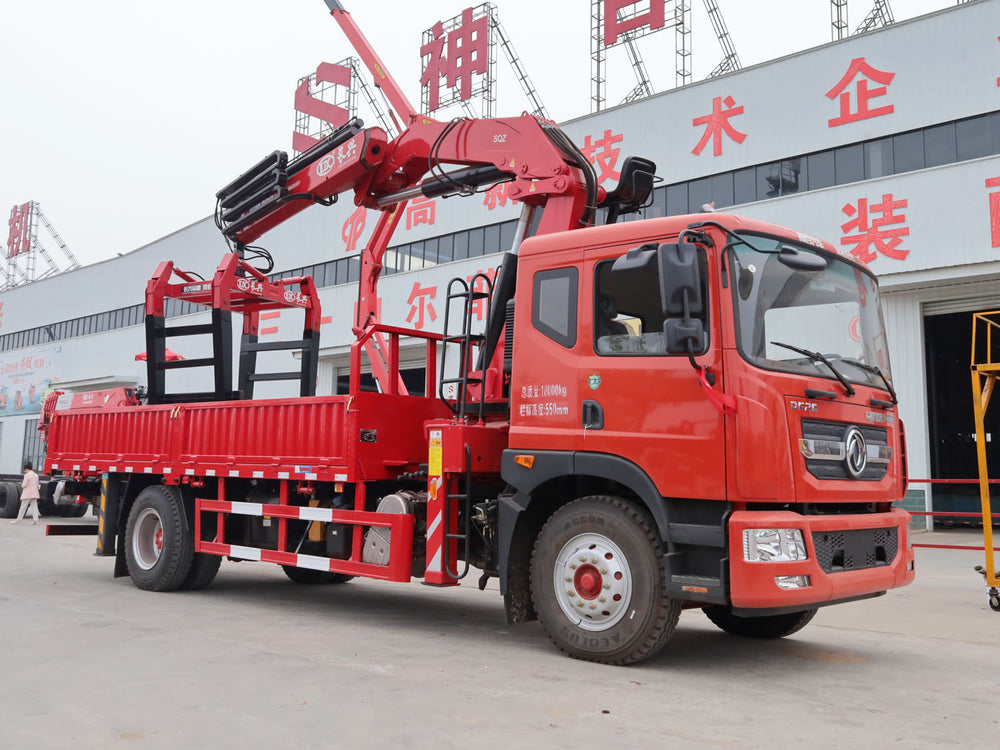

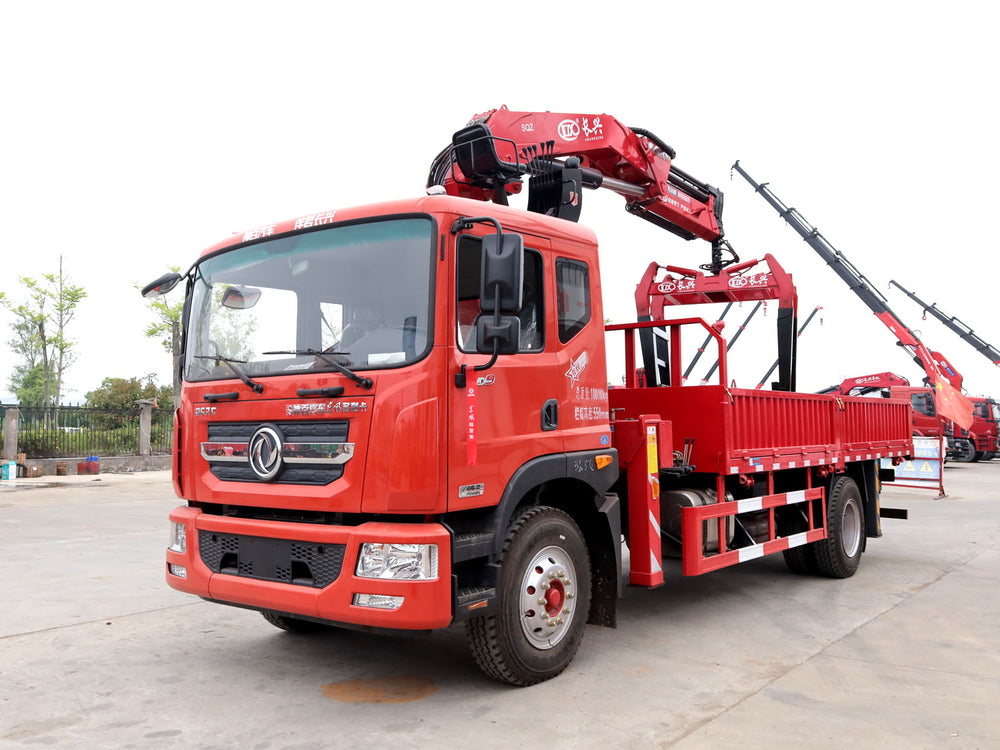

Dongfeng D9 Dolica 8-ton Knuckle Boom Truck Crane

Overall vehicle size and performance
Chassis Brand	DongFeng 4x2
Driving type	left-hand drive
Total vehicle weight	18000 kg
curb weight	11000 kg
Rated effective load	7305 kg
Overall vehicle dimensions	8990×2500×3650mm
Cargo box dimensions	6000 × 2350 × 550mm
Chassis parameters
engine	YCY30200-60
horsepower	200 horsepower
Speed gearbox	Fast 8JS95E-C Small Eight-speed
wheelbase	5300mm
axis	3.9 ton/10 ton
Emission standards	Euro 6
Tire type and size	10.00R20 18PR
fuel tank	280 liters
Top speed	90 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	Changxing CXSQZ160
Maximum lifting capacity	8 tons
Maximum working radius	8.5 meters
Maximum lifting height	11.6 meters
boom type	4-section folding arm
Rotation angle	360° rotation
Crane weight	3.6 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity

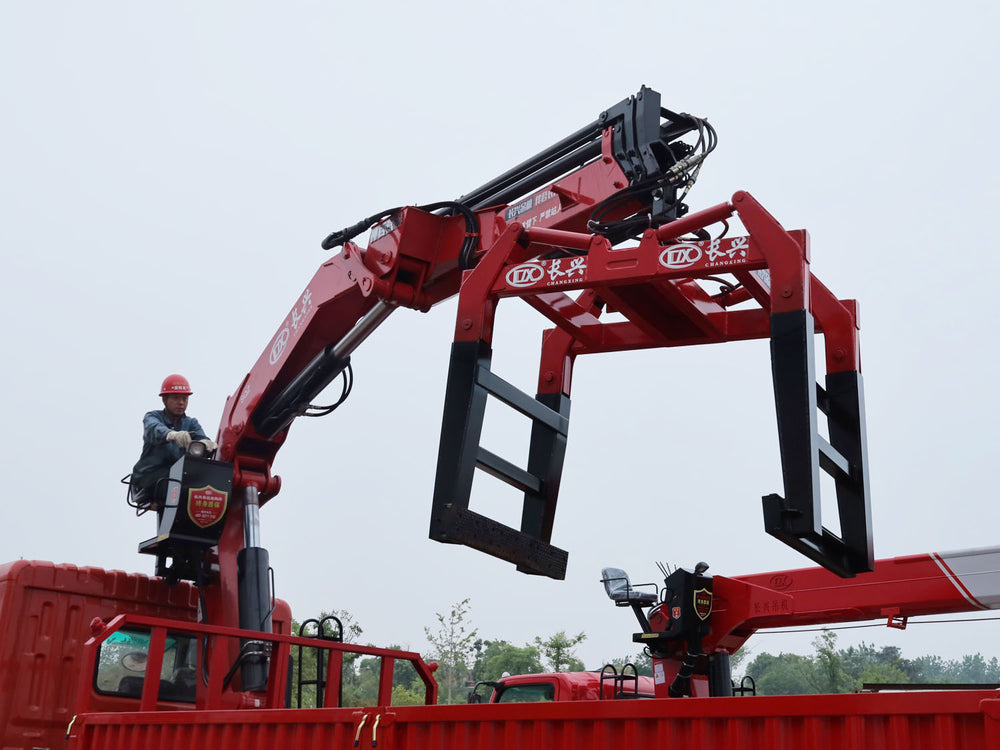

Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration

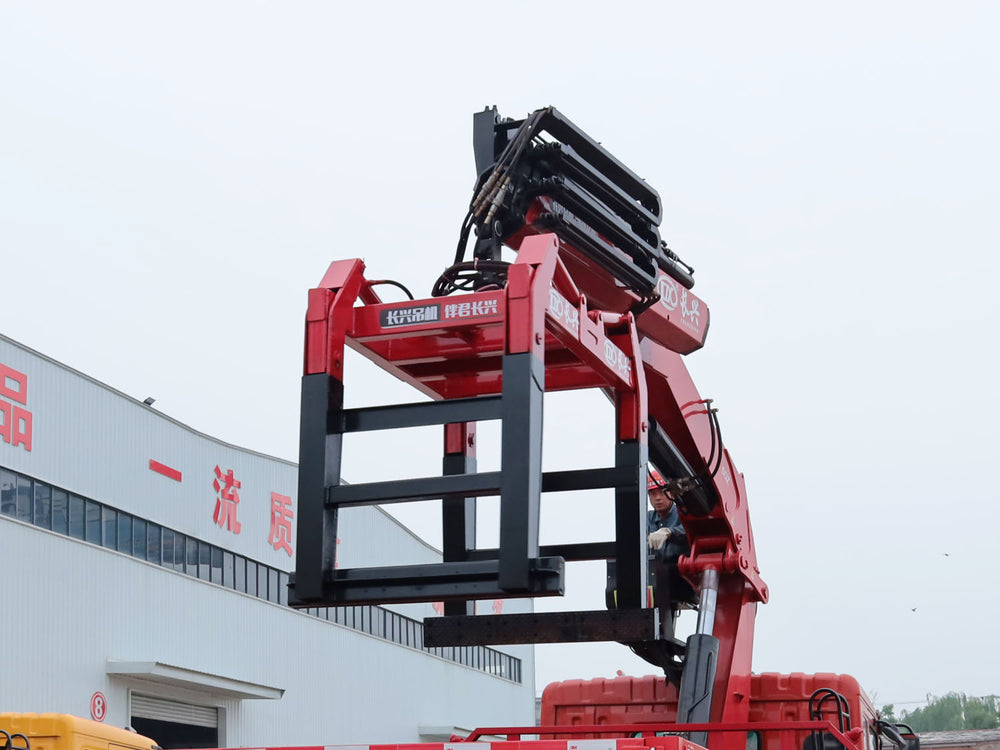

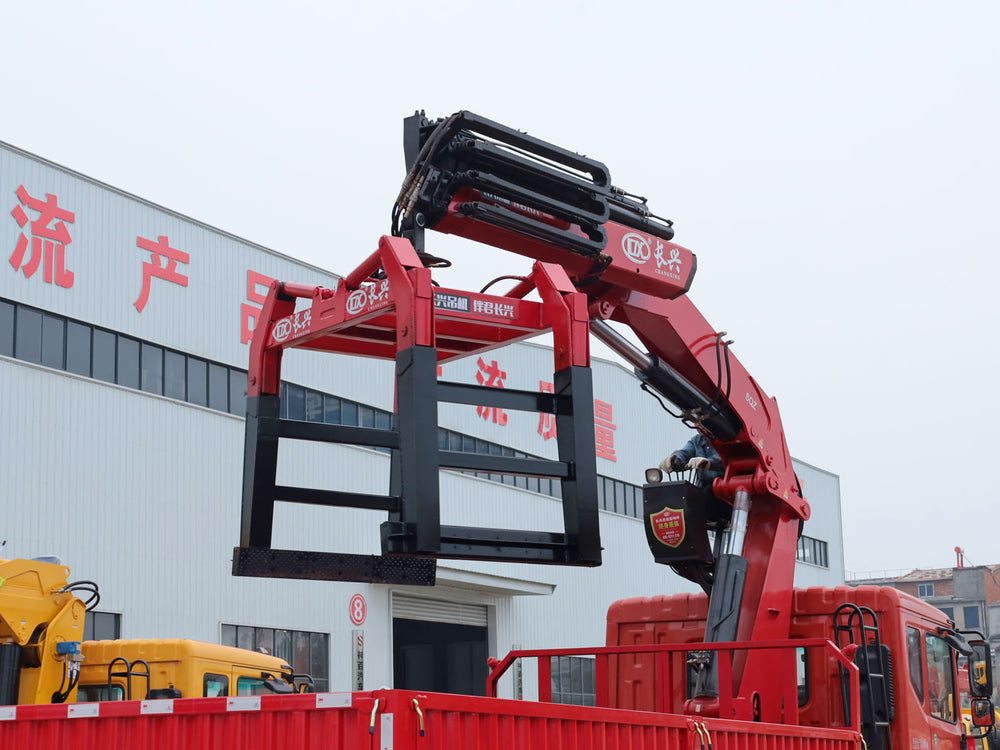

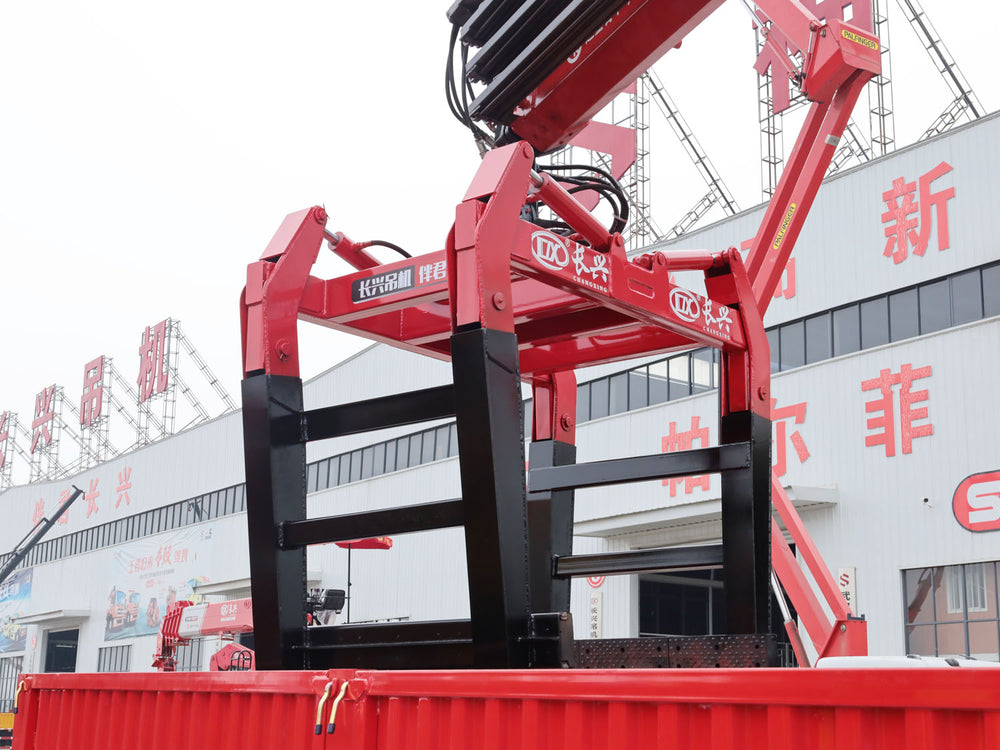

Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
