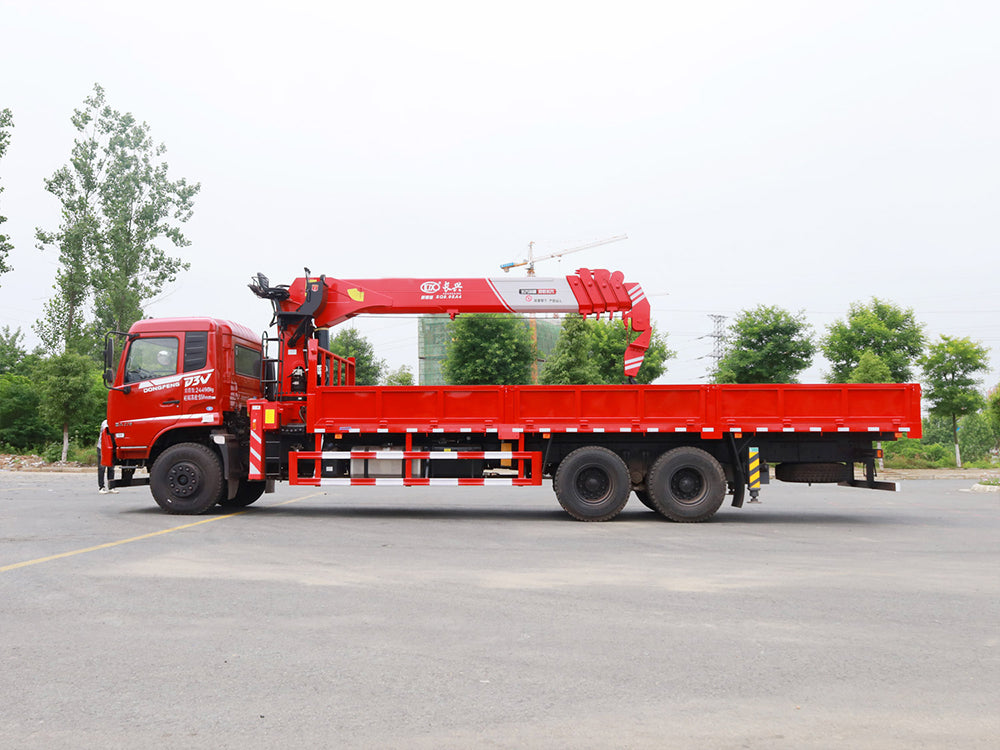

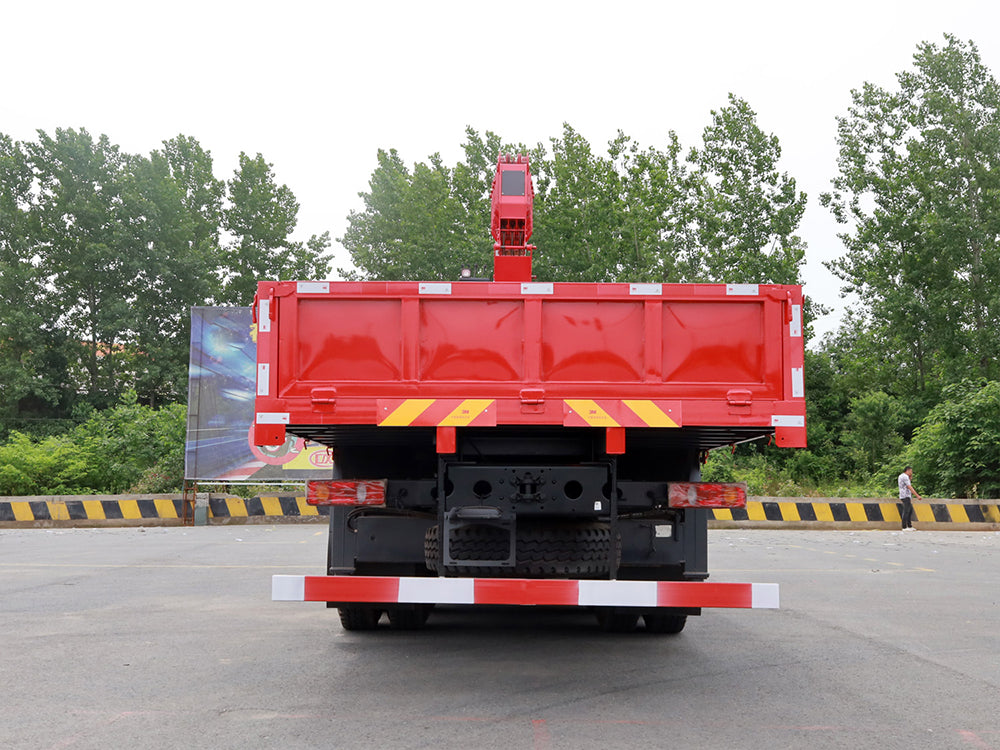

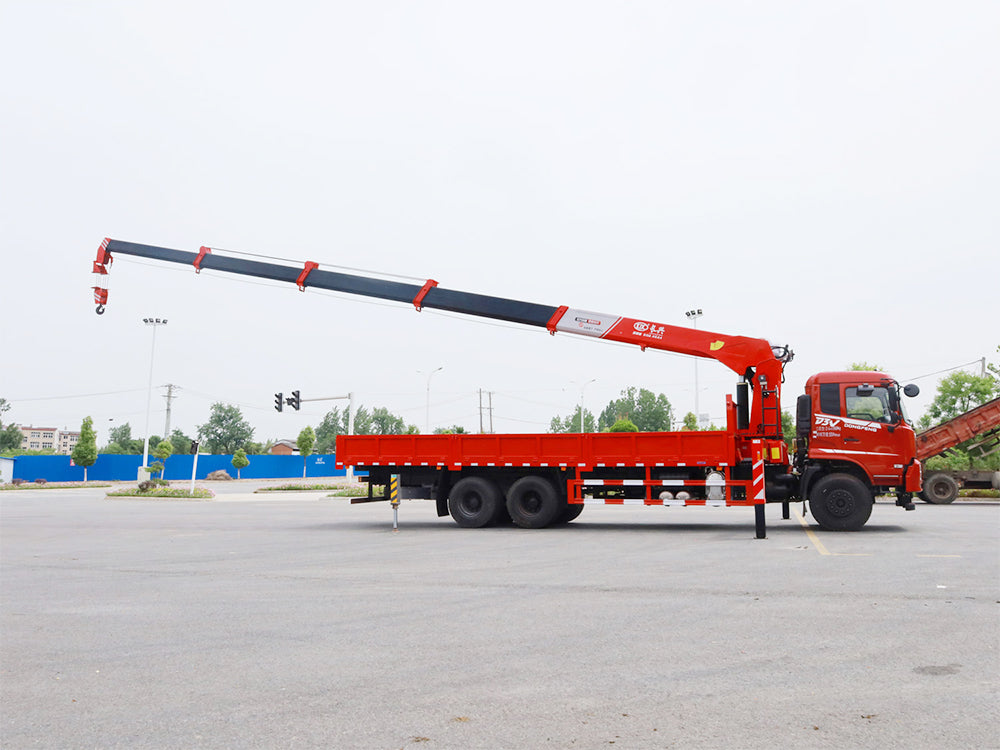

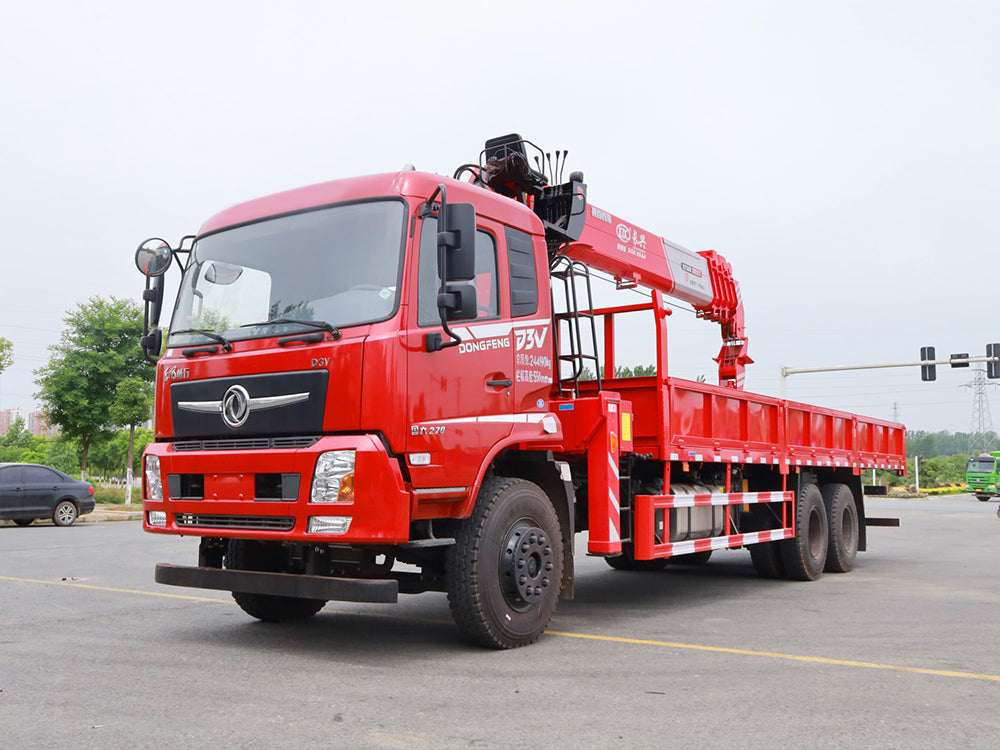

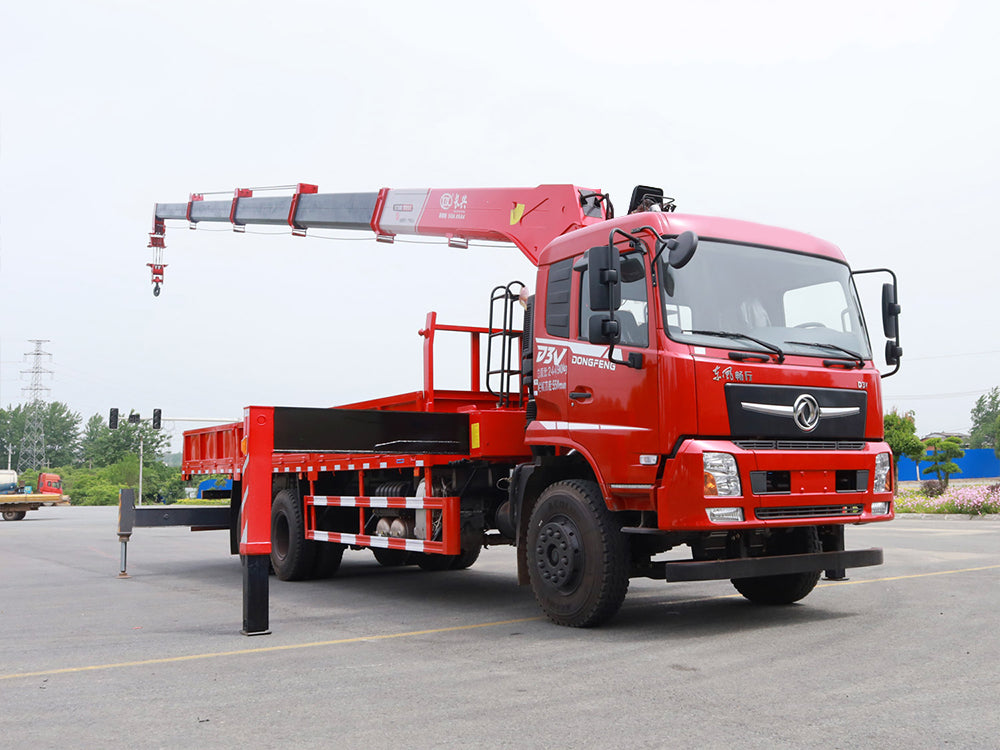

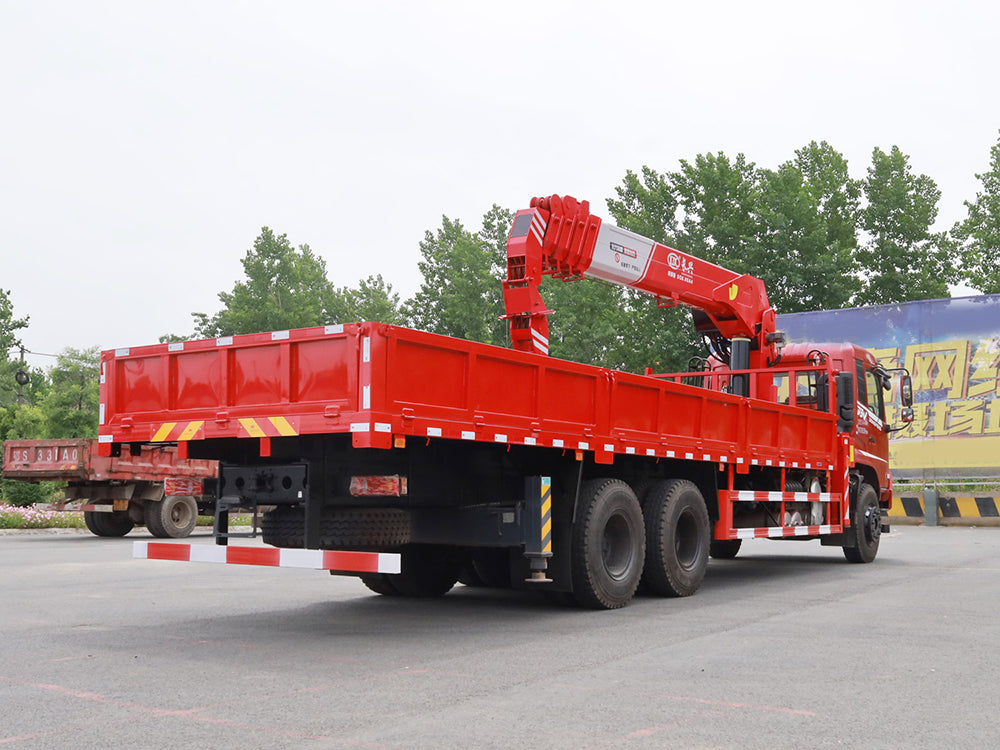

Dongfeng D3V 6*4 12-ton truck-mounted crane

Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
1 / 7
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane
Dongfeng D3V 6*4 12-ton truck-mounted crane

Dongfeng D3V 6*4 12-ton truck-mounted crane

Overall vehicle size and performance

Total vehicle weight

24500kg

Curb weight

14800kg

Rated effective load

9700kg

Overall vehicle dimensions

10800×2550×3880mm

Cargo box dimensions

8200×2450×600mm

Chassis parameters

Chassis Brand

Dongfeng 6X4

Driving type

left-hand drive

Engine

YCS06270-60

Horsepower

270Horsepower

Speed gearbox

Fast 9 gears

Wheelbase

5900+1350mm

Axis

5.5 Ton/2*11.5 Ton

Emission standards

Euro 2、Euro 3、Euro 4、Euro 5、Euro 6

Tire type and size

11.00R20 18PR

Fuel tank

280 Liters

Top speed

90 km/h

Other

Main Airbag SeatMiddle SeatFour-point SuspensionAutomatic Air ConditionerCentral LockElectric WindowsRemote KeyMulti-function Steering WheelCruise Control

Crane parameters

Crane Model

Changxing SQS250-5

Maximum lifting capacity

12 Tons

Maximum working radius

17.7m

Maximum lifting height

20.1m

Boom type

5-section Straight Boom

Rotation angle

360° rotation

Crane weight

5470kg

Hydraulic oil tank

240 liters

Hydraulic system

Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator

Outboard support configuration

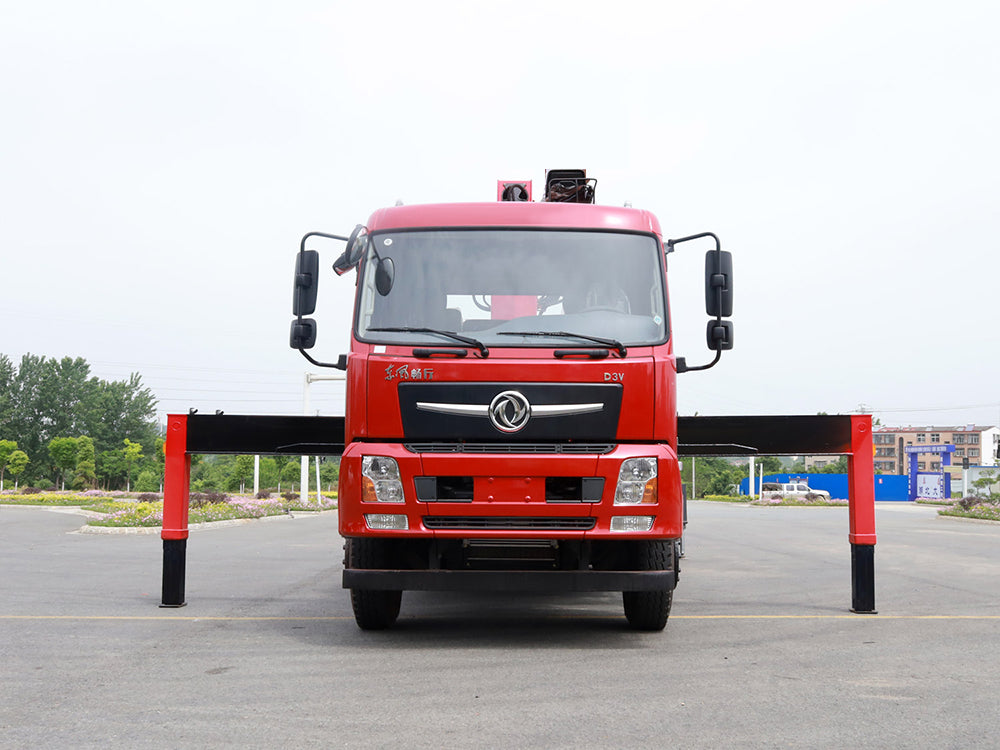

Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity

Operation Function

Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.

Optional configuration

Crane Additional Configuration

Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket

Application scenarios

Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
