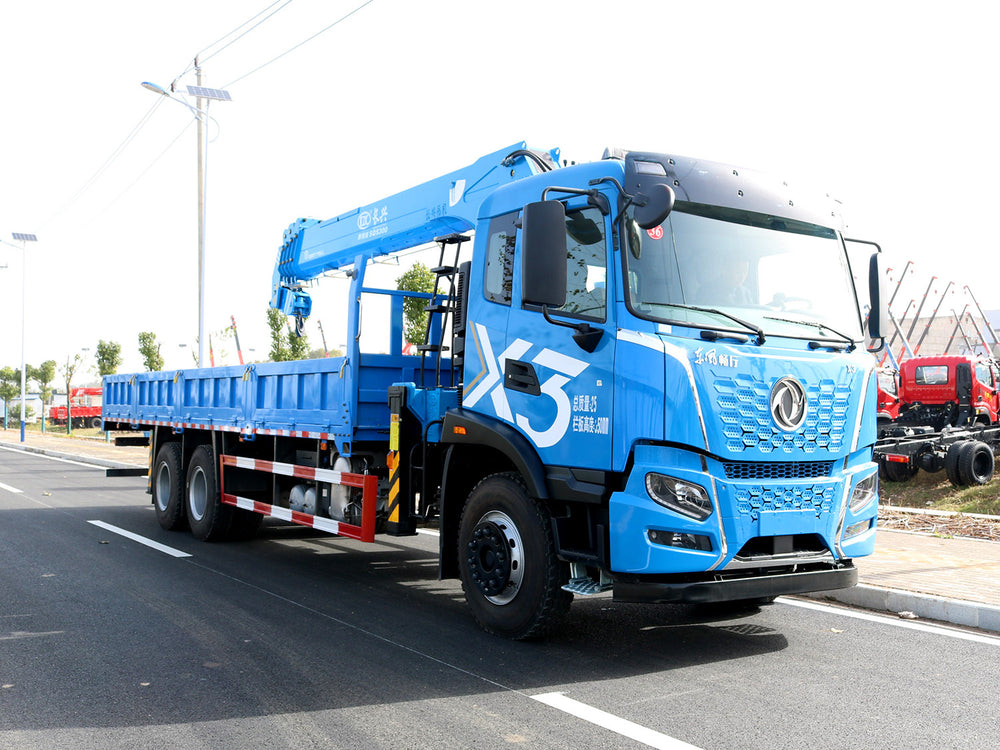

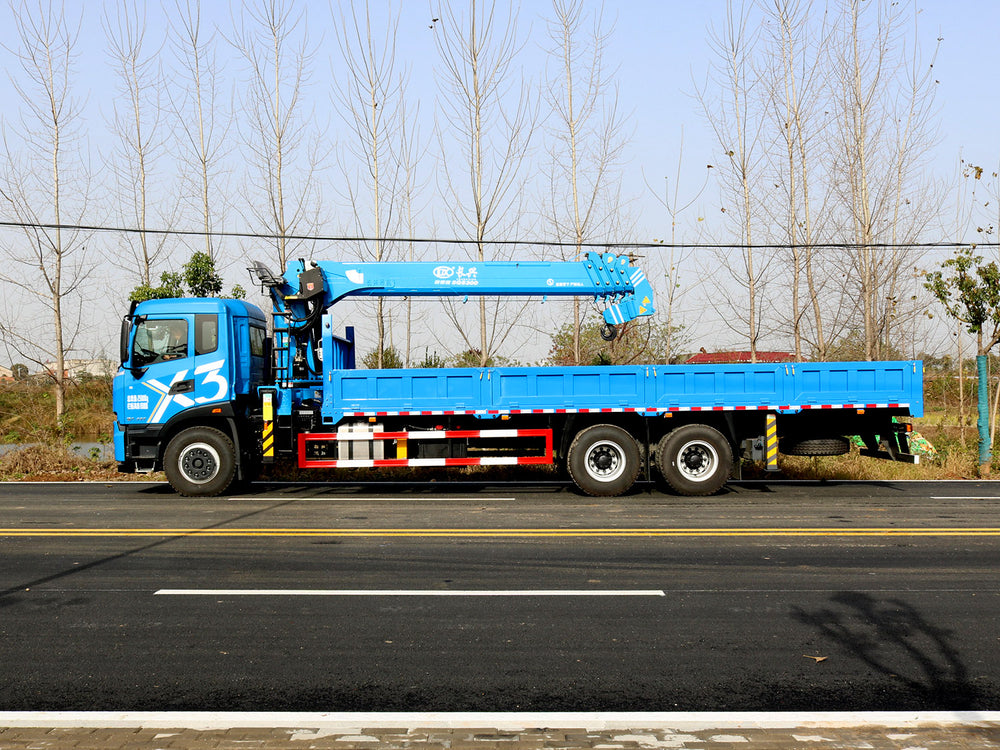

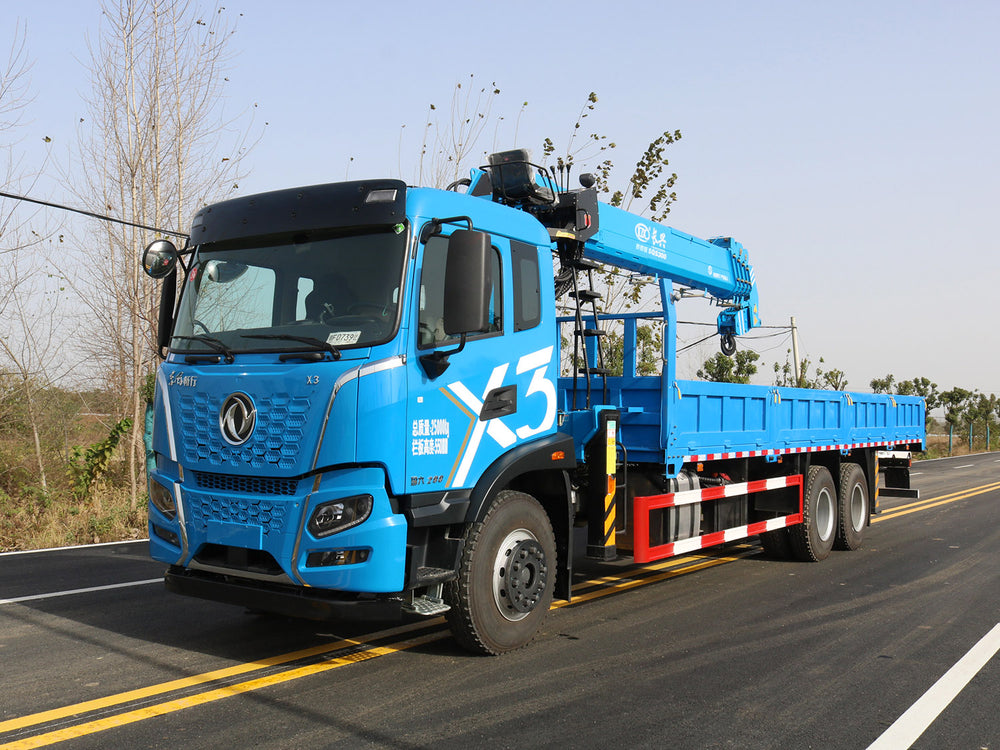

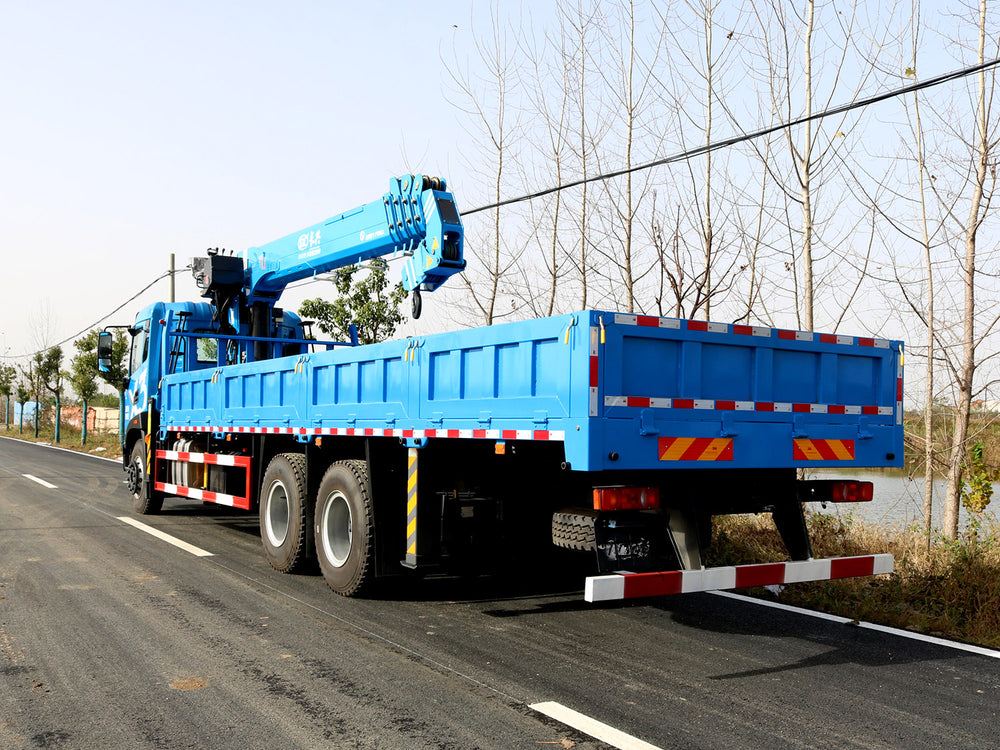

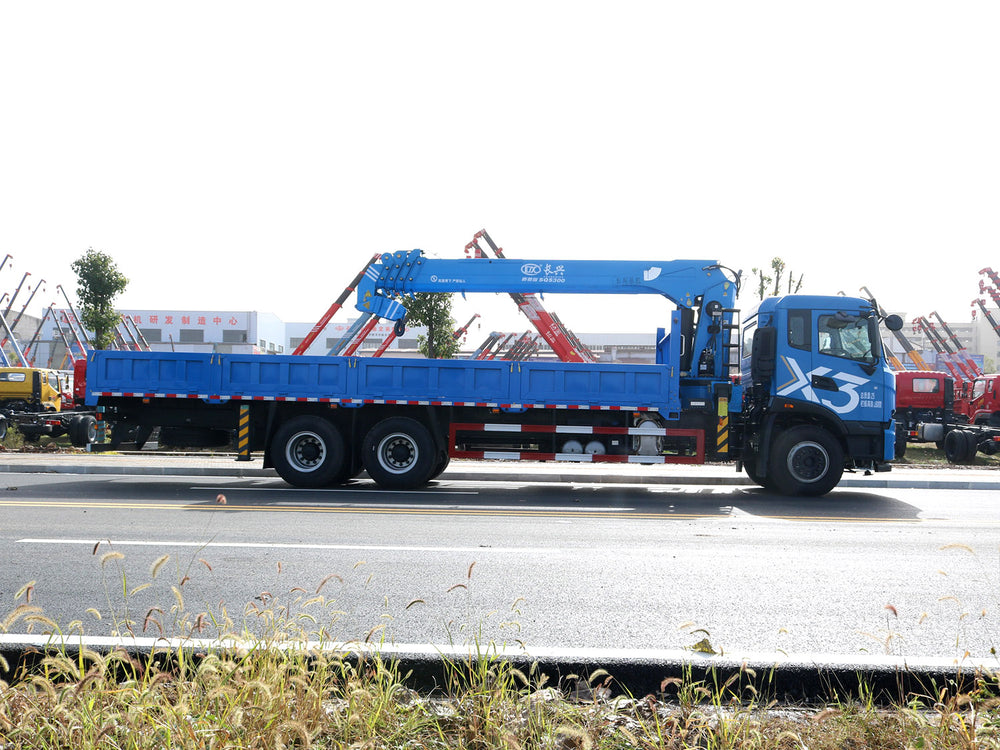

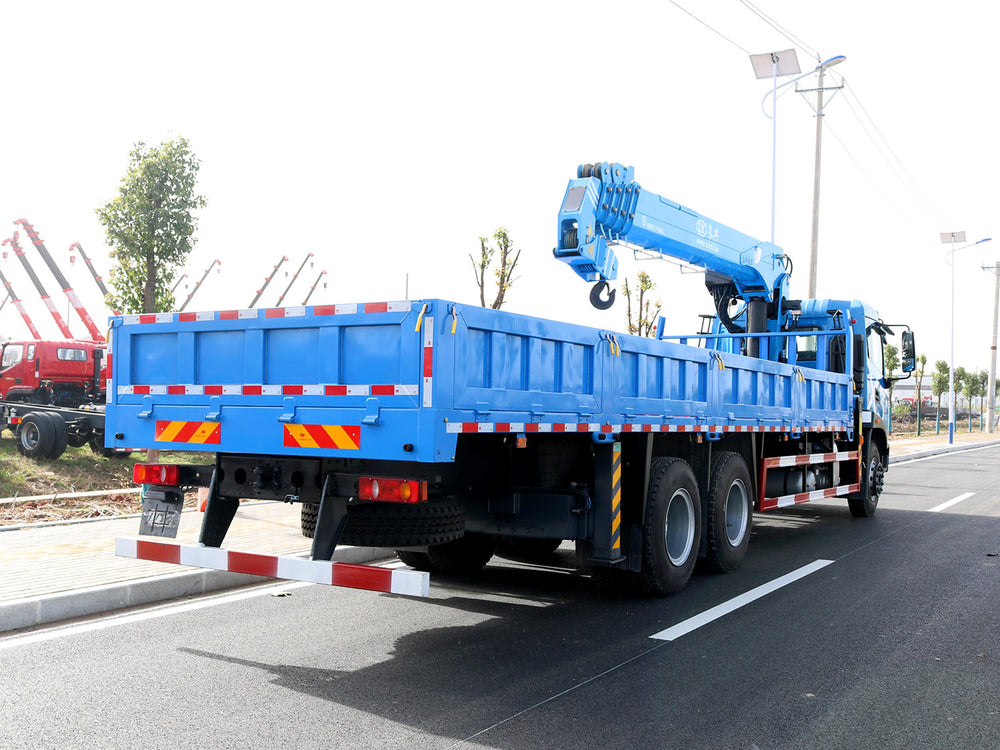

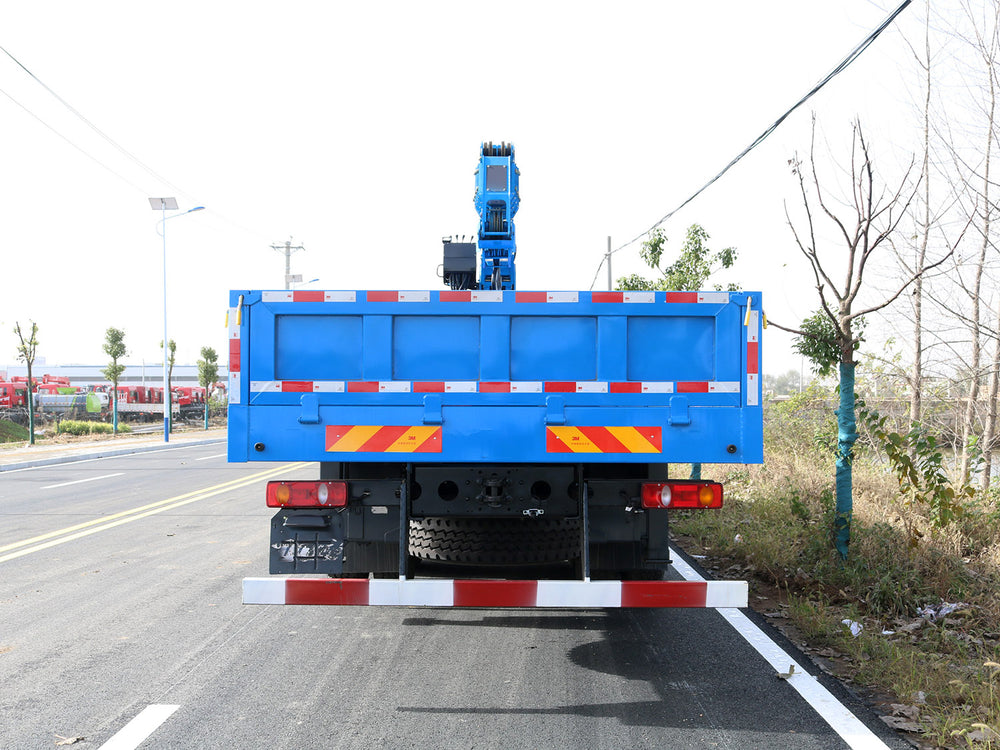

Dongfeng Changxing X3 rear dual axle superstructure Changxing Zhizun Edition 12-ton straight boom truck-mounted crane

Overall vehicle size and performance
Total vehicle weight	25000kg
curb weight	1800kg
Rated effective load	7000kg
Overall vehicle dimensions	12000×2550×3850mm
Cargo box dimensions	8600×2450×550mm
Chassis parameters
Chassis Brand	Dongfeng 6X4
Driving type	left-hand drive
engine	YC6A290-50
horsepower	290 Horsepower
Speed gearbox	Fast 9 gears
wheelbase	5800+1350mm
axis	5.5 Ton/11.5Ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	400 Liters
Top speed	89km/h

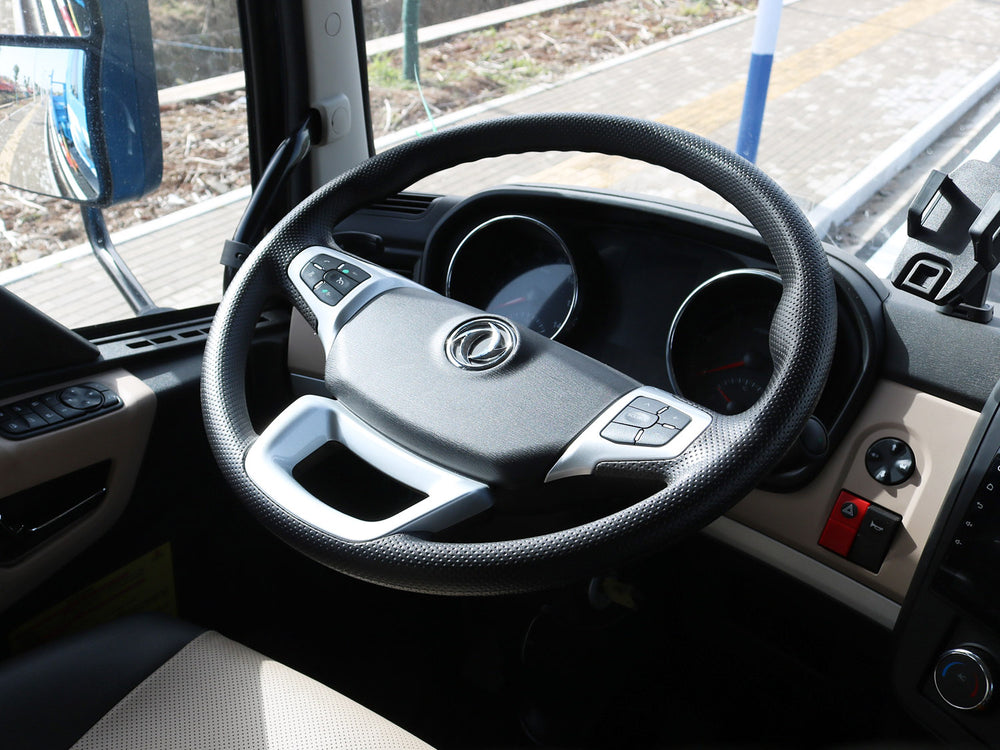

other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing
Maximum lifting capacity	12 Tons
Maximum working radius	18.4m
Maximum lifting height	20.1m
boom type	5-section Straight Boom
Rotation angle	360° rotation
Crane weight	5500kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
