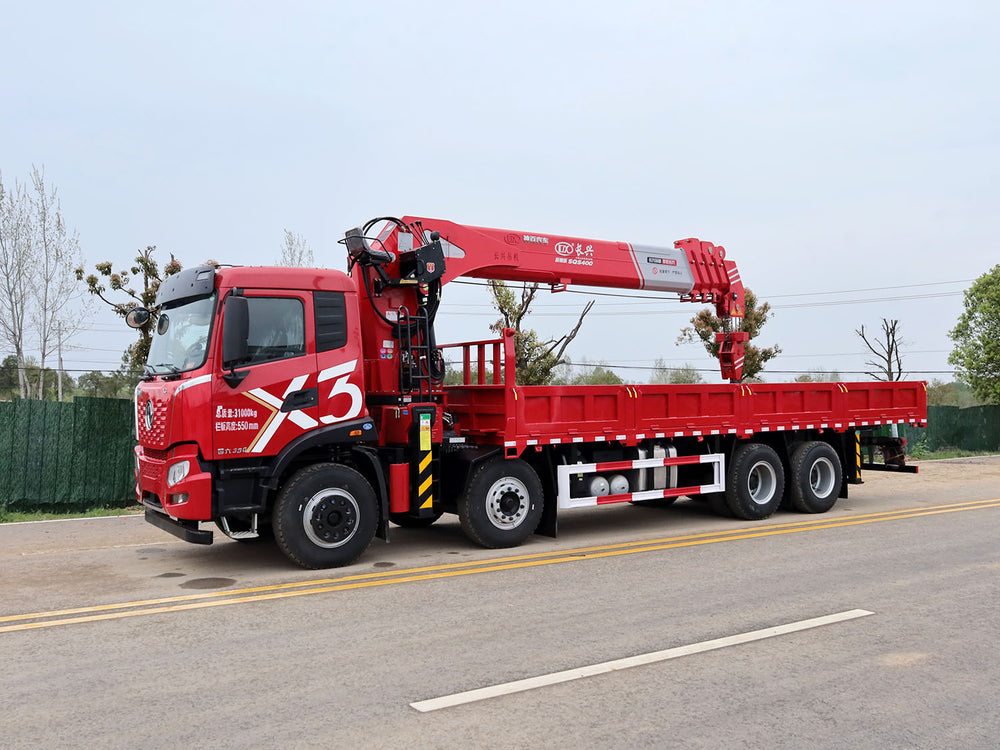

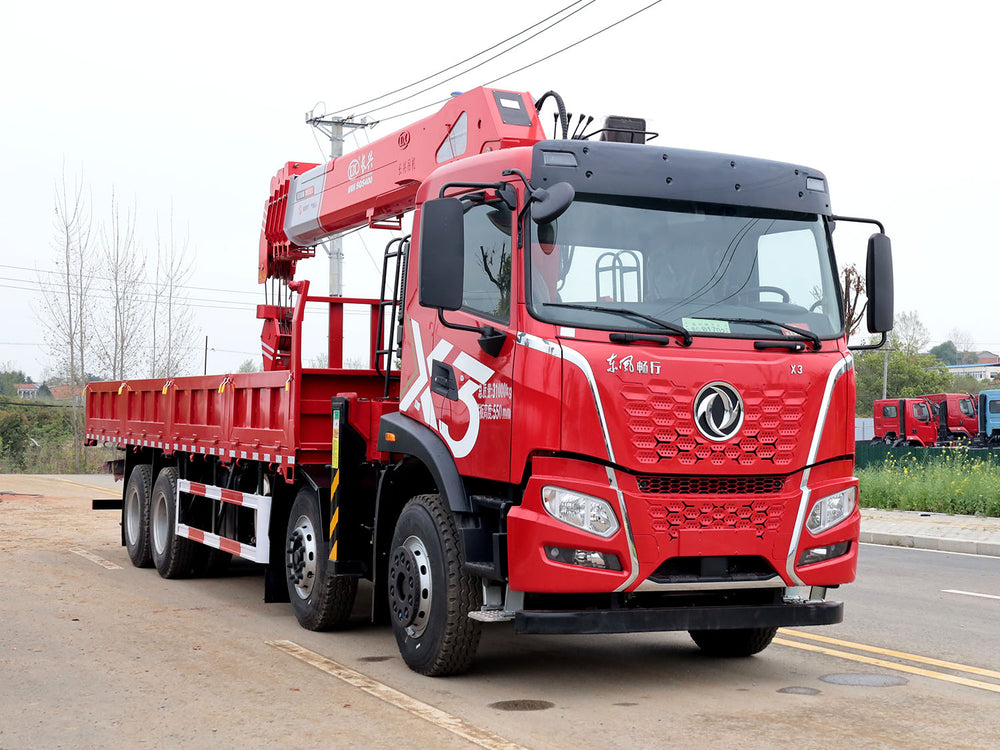

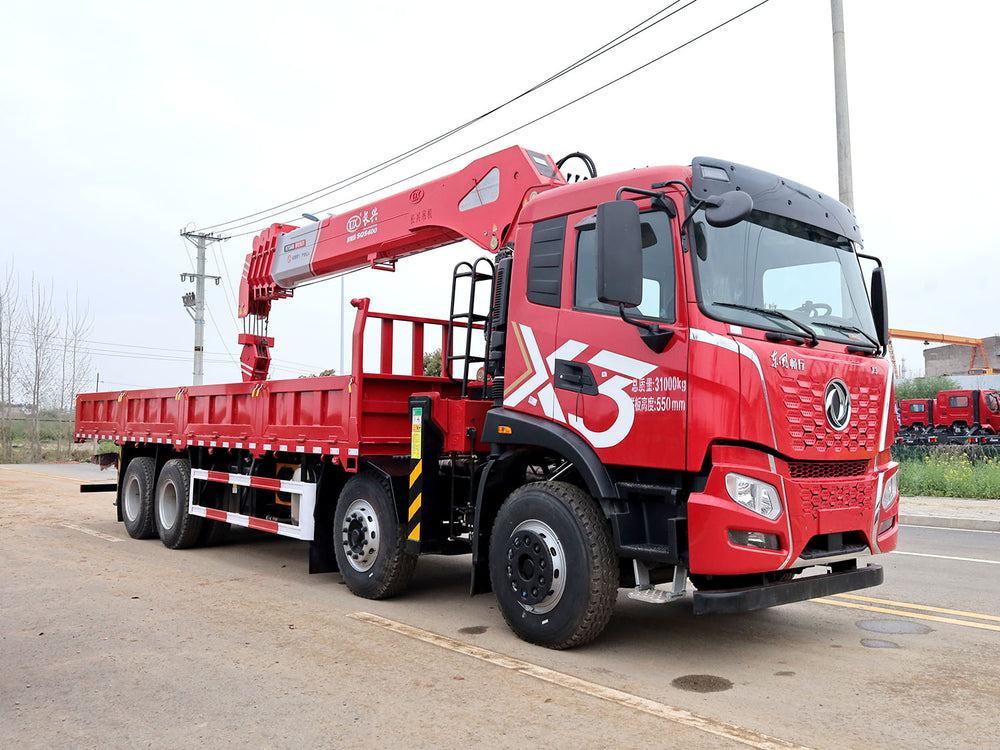

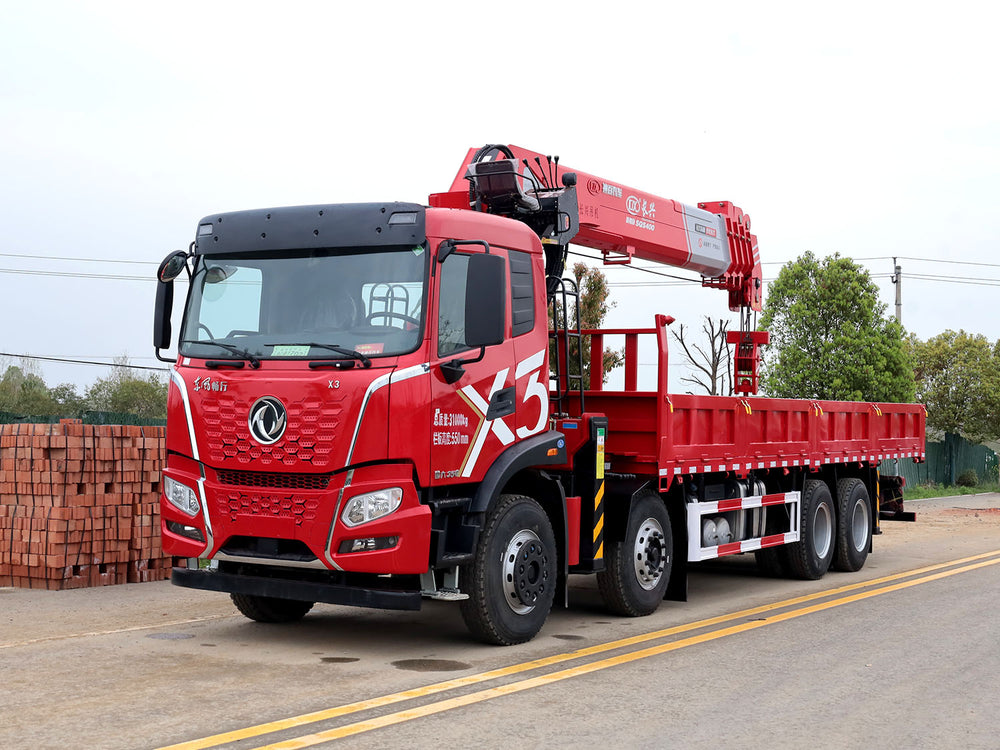

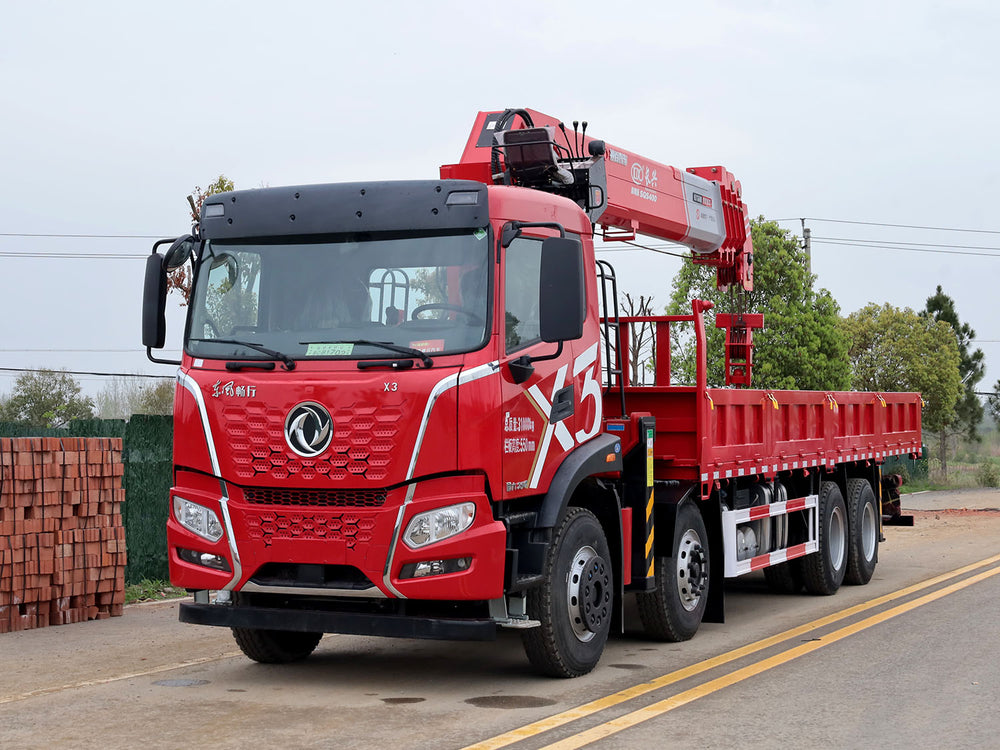

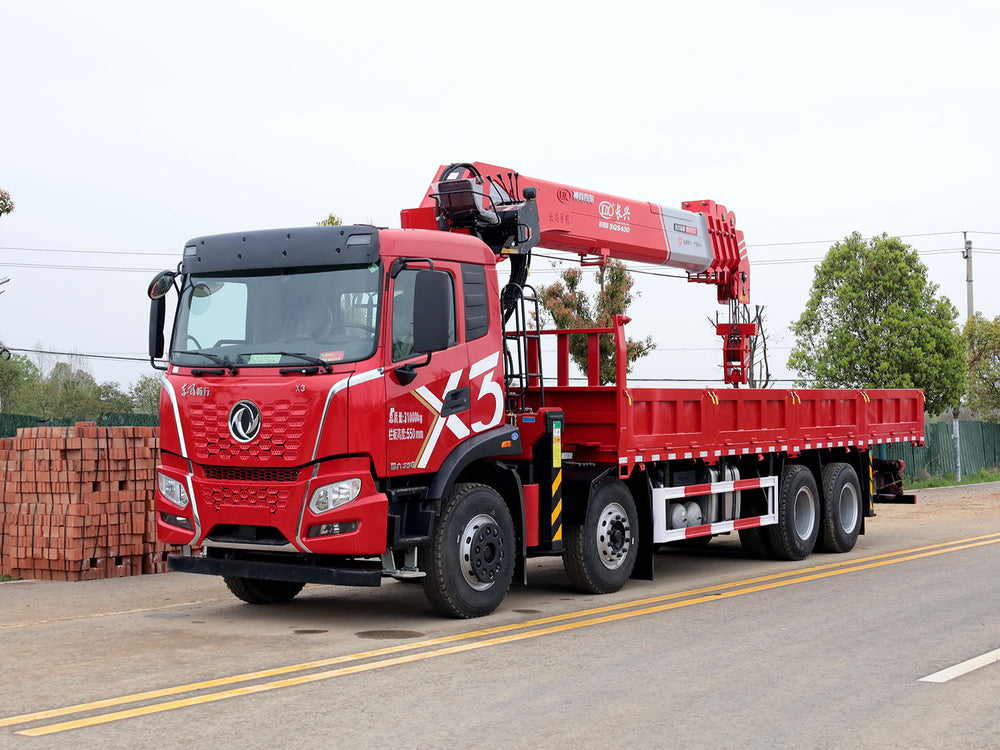

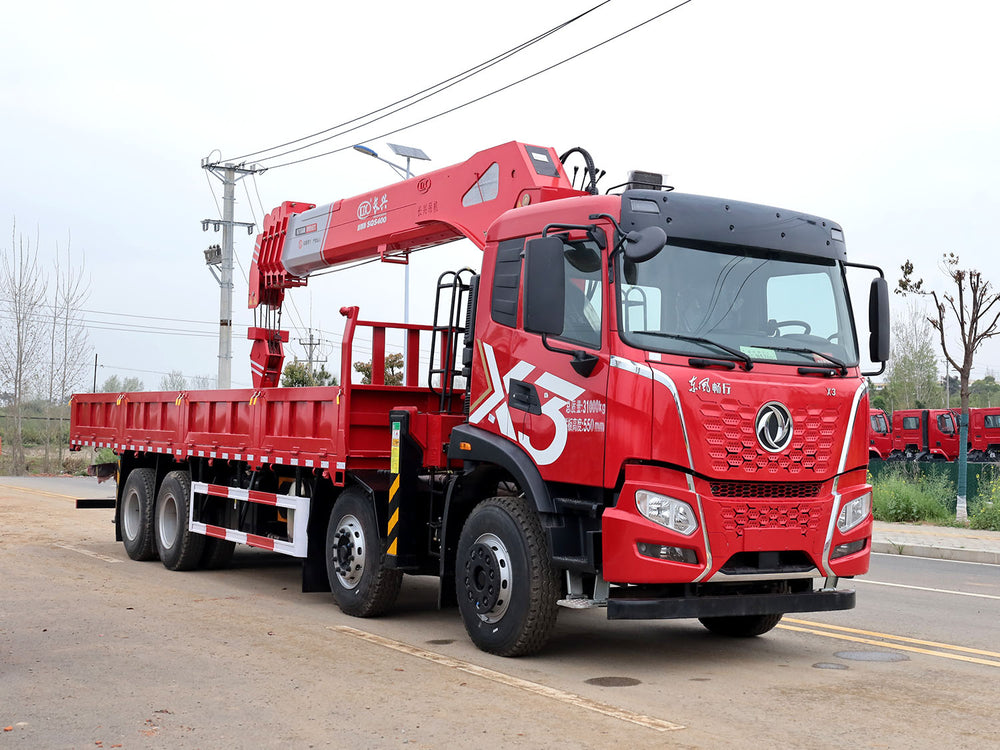

Dongfeng Changxing X3 8x4 Changxing 16-ton Straight Boom Truck Crane

Overall vehicle size and performance
Total vehicle weight	31000kg
curb weight	19500kg
Rated effective load	11000kg
Overall vehicle dimensions	11800×2550×3850 mm
Cargo box dimensions	8300×2450×550 mm
Chassis parameters
Chassis Brand	Dongfeng 8X4
Driving type	left-hand drive
engine	YCK08350‑60
horsepower	350 Horsepower
Speed gearbox	Fast 12JS160 12 gears
wheelbase	2150+4250+1350 mm
axis	5.5 Ton/11.5Ton
Emission standards	Euro 6
Tire type and size	11.00R20 18PR
fuel tank	400 Liters
Top speed	89km/h

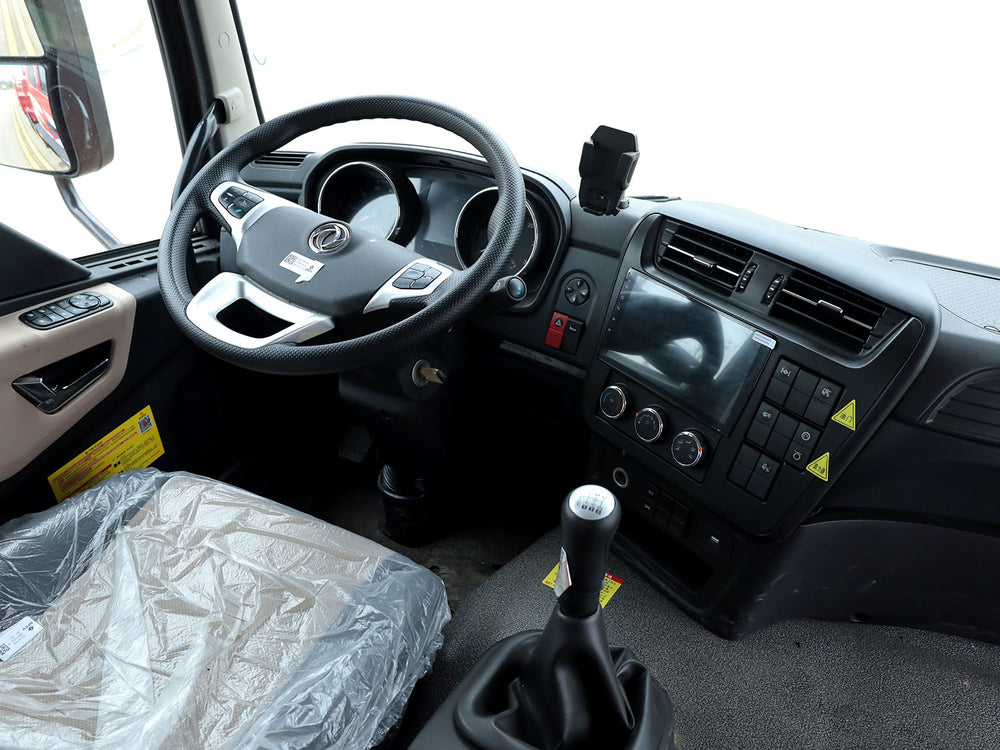

other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing SQS400‑5
Maximum lifting capacity	16 Tons
Maximum working radius	19.5 m
Maximum lifting height	21.0 m
boom type	5-section Straight Boom
Rotation angle	360° rotation
Crane weight	4500kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
