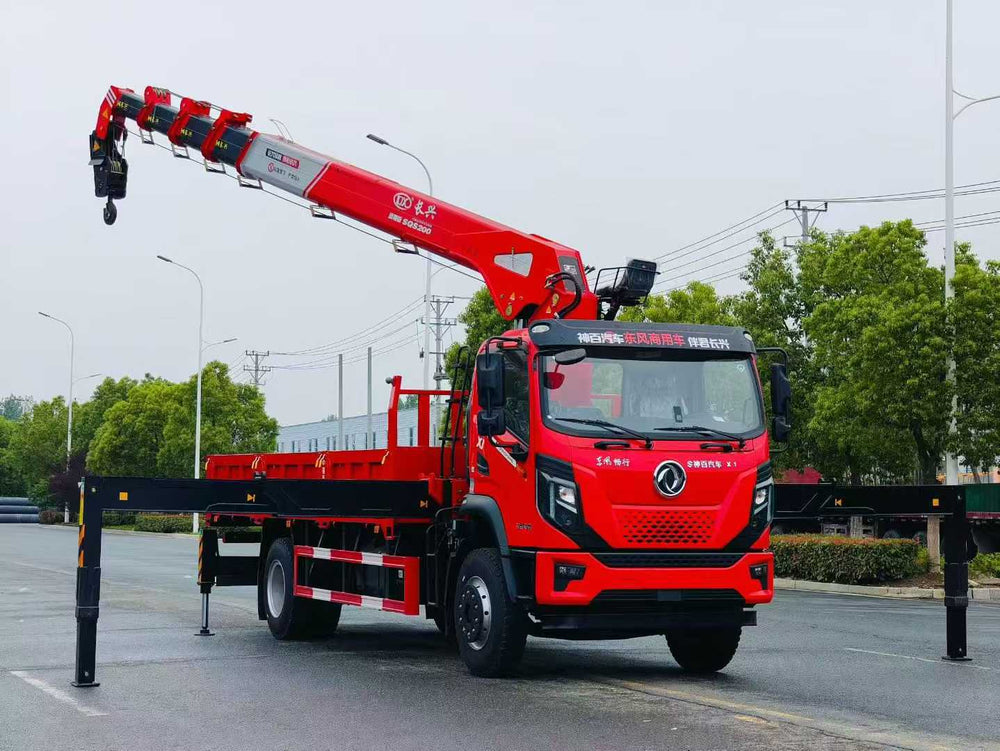

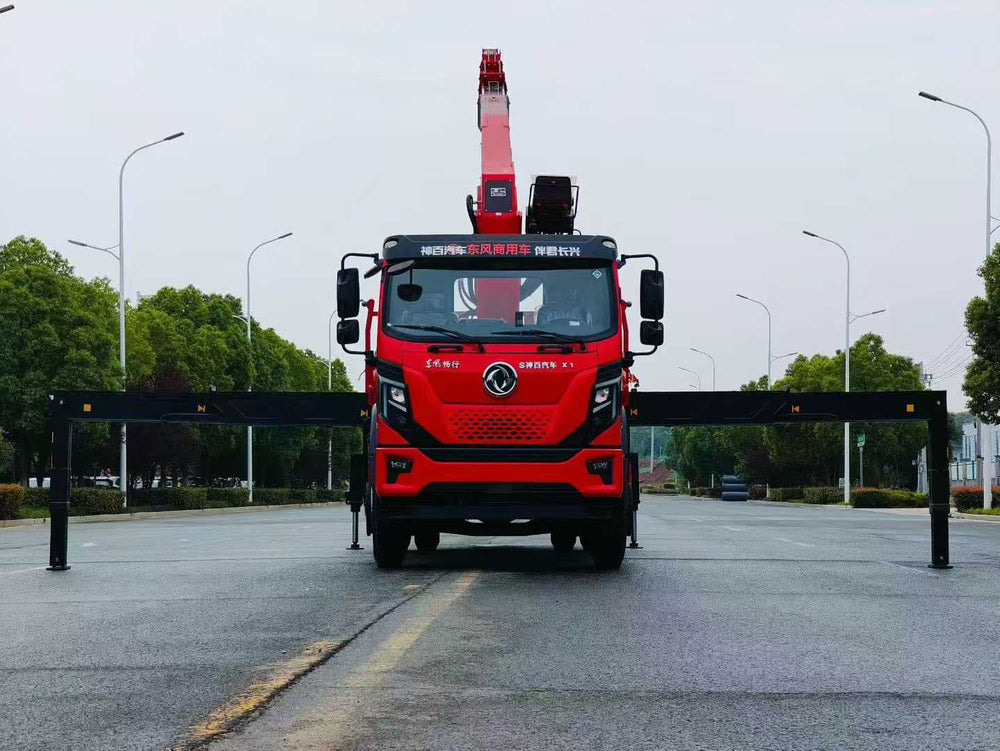

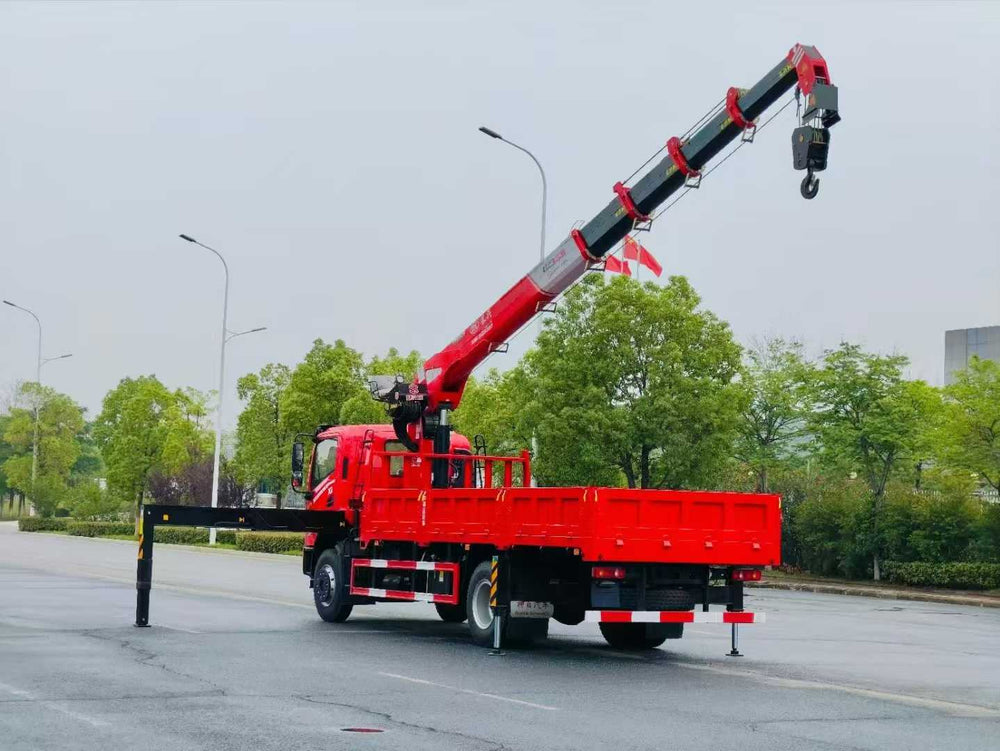

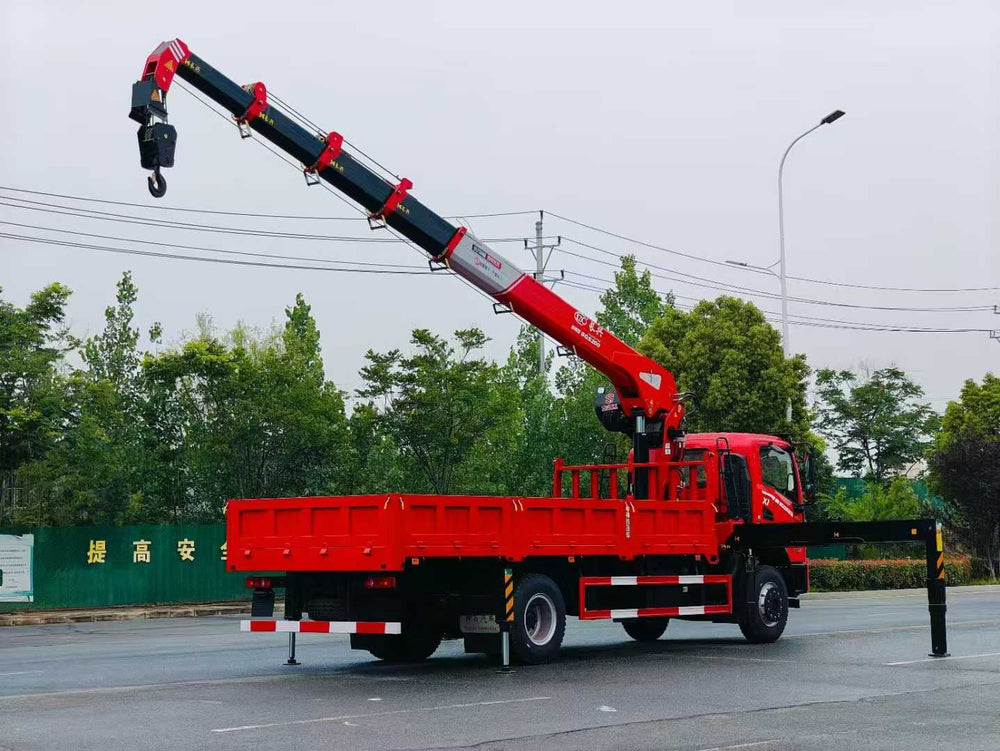

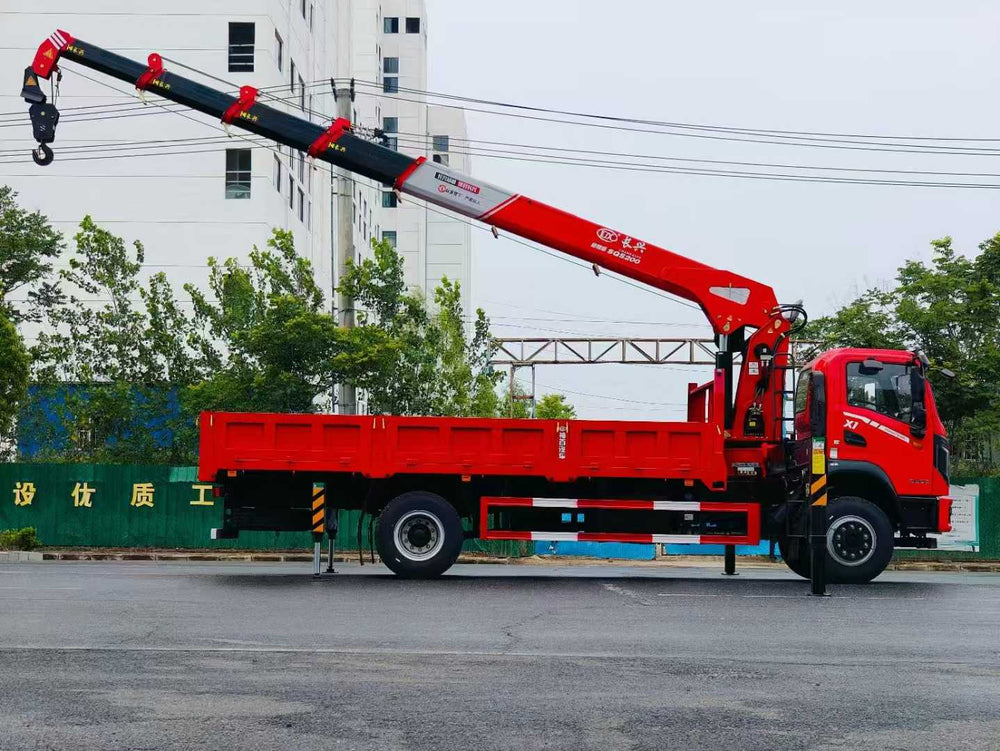

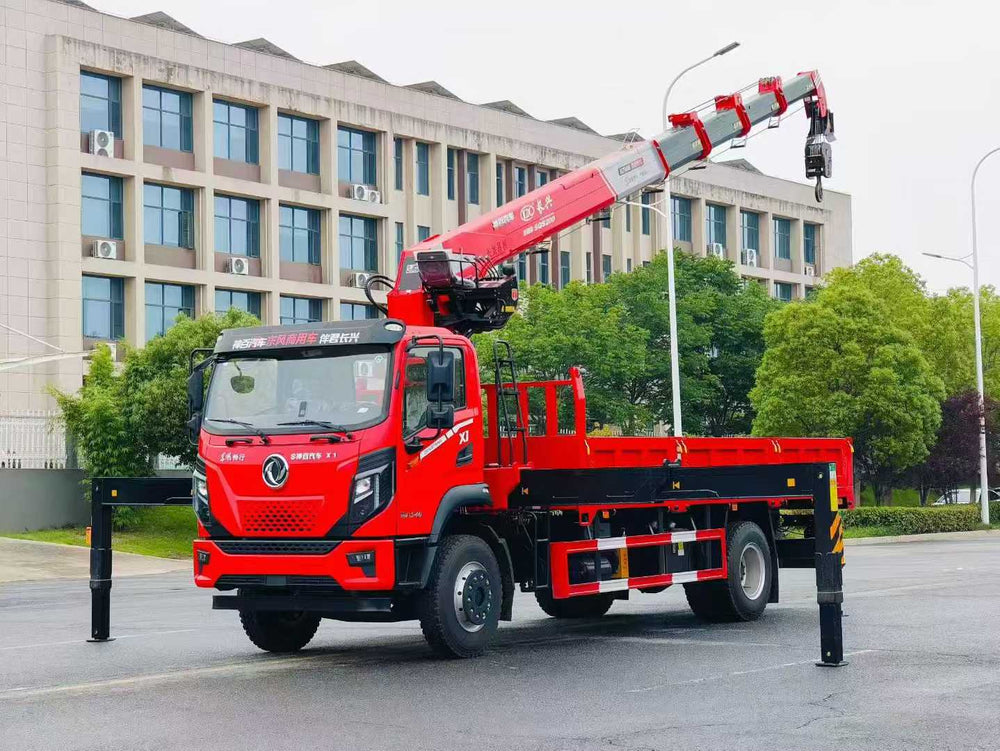

Dongfeng Changxing X1 8-ton 5-section boom truck crane

Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
1 / 6
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane
Dongfeng Changxing X1 8-ton 5-section boom truck crane

Dongfeng Changxing X1 8-ton 5-section boom truck crane

Overall vehicle size and performance

Total vehicle weight

18000kg

curb weight

11550kg

Rated effective load

6400kg

Overall vehicle dimensions

9000×2550×3680mm

Cargo box dimensions

6100×2400×600mm

Chassis parameters

Chassis Brand

Dongfeng 4X2

Driving type

left-hand drive

engine

YCS04240-66

horsepower

240Horsepower

Speed gearbox

Fast 8 gears

wheelbase

5100 mm

axis

5.5 Ton/11.5 Ton

Emission standards

Euro 2、Euro 3、Euro 4、Euro 5、Euro 6

Tire type and size

10.00R20

fuel tank

300 Liters

Top speed

90 km/h

other

German MAN BodyMain Airbag SeatMiddle SeatFour-point SuspensionAutomatic Air ConditionerCentral LockElectric WindowsRemote KeyMulti-function Steering WheelCruise Control

Crane parameters

Crane Model

Changxing SQS250-5

Maximum lifting capacity

8 Tons

Maximum working radius

18.5m

Maximum lifting height

19.6m

boom type

5-section Straight Boom

Rotation angle

360° rotation

Crane weight

3100kg

Hydraulic oil tank

150 liters

Hydraulic system

Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator

Outboard support configuration

Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity

Operation Function

Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.

Optional configuration

Crane Additional Configuration

Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket

Application scenarios

Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
